Create and Manage Custom Dashboards

Updated 4 days ago by Archana Singh

Custom Dashboards provide a toolbox for building your own visual interface around Harness data using flexible filtering and criteria. By creating and fine-tuning visualizations that slice and dice your data, you can identify and optimize:

  • Development and deployment velocity
  • Bottlenecks
  • Rollback durations and other useful metrics

Harness user's interaction with Custom Dashboards is role-based. Certain options depend on their membership in a Harness User Group with specific Account Permissions. For more information, see Manage Groups and Permissions.

Only Harness Account Administrators can create a Custom Dashboard. However, you can share the dashboard with other non-admin users. For more information, see Share a Custom Dashboard.

If you're a non-Administrator, you can work with the Custom Dashboards that are shared with you.

In this topic:

Before You Begin

Step: Create a Dashboard

To create a Custom Dashboard, perform the following steps:

  1. In Harness click Custom Dashboards and then click Create Custom Dashboard.
  2. Enter a Dashboard Name. This should be unique within your Harness account.
  3. Optionally, enter a Description. This can be used to communicate the dashboard's purpose to other users.
  4. Click Submit. Your new Custom Dashboard will open in the initial state as shown below.

Step: Edit or Clone a Dashboard

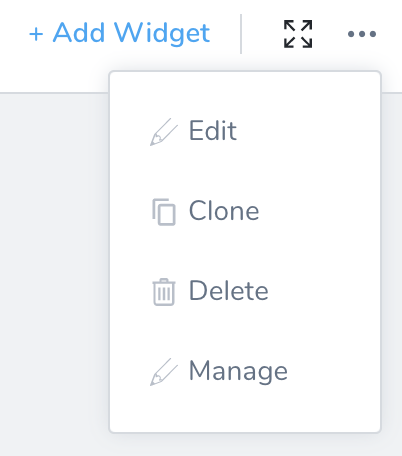

At a Custom Dashboard's upper-right corner, Account Administrators see these additional controls for modifying the dashboard as a whole. The following options are available:

Add a Widget

Click Add Widget to populate your Custom Dashboard with Widgets. For more information, see Add and Configure Dashboard Widgets.

Expand or Collapse a Custom Dashboard

To enter/exit Full Screen display of your dashboard, click the Expand/Collapse toggle.

Edit a Custom Dashboard
  1. Click the More Options ••• and select Edit.
  2. In Update Custom Dashboard, enter the Dashboard Name and Description (optional).
  3. Click Submit.

Clone a Custom Dashboard
  1. Click the More Options ••• and select Clone.
  2. In Clone Custom Dashboard, enter the Dashboard Name and Description (optional).
  3. Click Submit.
Delete a Custom Dashboard
  1. Click the More Options ••• and select Delete.
  2. Click Delete.
Deleting a Custom Dashboard also permanently deletes any configurations you've applied to its Widgets. This action cannot be undone.
Manage a Custom Dashboard

Click the More Options ••• and select Manage. This option allows you to Share a Custom Dashboard.
