AWS Lambda Quickstart

This content is for Harness FirstGen. Switch to NextGen.

This topic shows you how to deploy a Node.js function to your AWS Lambda service using a Basic Deployment strategy in Harness.

Objectives

You'll learn how to:

Set up and verify AWS IAM and EC2 for the Harness Shell Script Delegate.
Install the Harness Shell Script Delegate.
Connect Harness with AWS.
Add your Lambda function file and specification to Harness.
Create and deploy a Lambda Basic Workflow.

Once you have the prerequisites set up, the tutorial should only take about 10 minutes.

Before You Begin

Review Harness Key Concepts to establish a general understanding of Harness.
Create an AWS IAM Role for Harness Lambda Deployments:

Create an IAM role with the following policies attached and use the role when you create the EC2 instance for the Harness Shell Script Delegate:
- AmazonEC2FullAccess: Needed for Shell Script Delegate on EC2 instance.
- IAMReadOnlyAccess: Needed to verify required policies.
- AWSLambdaRole: Needed to invoke function.
- AWSLambda_FullAccess (previously AWSLambdaFullAccess): Needed to write to Lambda.
- AmazonS3ReadOnlyAccess: Needed to pull the function file from S3.

  For example, if the role you created was named LambdaTutorial, you can attach the policies like this:
```
$ aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/AmazonEC2FullAccess --role-name LambdaTutorial

$ aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/service-role/AWSLambdaRole --role-name LambdaTutorial

$ aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/IAMReadOnlyAccess --role-name LambdaTutorial

$ aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/AWSLambdaFullAccess --role-name LambdaTutorial

$ aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/AmazonS3ReadOnlyAccess --role-name LambdaTutorial
```
- AWS Lambda Execution Role — As a Lambda user, you probably already have the AWS Lambda Execution Role set up. If you do not, follow the steps in AWS Lambda Execution Role from AWS. You will use this role when you set up an Infrastructure Definition later in the tutorial.
Create an EC2 instance for the Harness Shell Script Delegate.
The instance must meet the following requirements:
- Linux/UNIX server.
- Minimum 1 CPU.
- Minimum 8GB RAM. For example, an AWS EC2 instance type such as m5a.xlarge has 16GB of RAM, 8 for the Delegate and 8 for the remaining operations.
- Minimum 6GB Disk space.
- Create the EC2 Instance in the same region, VPC, and ideally, one of the subnets used by your functions.
- Attach the IAM role you created to this instance.
Create an AWS S3 bucket or use an existing S3 bucket to upload the function used here.

We'll being using a file named index.js containing the following function:
```
exports.handler = function(event, context, callback) {
   console.log("Received event: ", event);
   var data = {
       "greetings": "Hello, " + event.firstName + " " + event.lastName + "."
   };
   callback(null, data);
}
```
You can download the zip file here: https://lambda-tutorial-harness.s3.amazonaws.com/function.zip. If you want to create the file yourself, in a code editor, create the file index.js and paste in the above code. Zip the file and name the zip file function.zip.
Upload the function.zip file to a bucket in your AWS S3. In our example, we named the bucket lambda-harness-tutorial.

Visual Summary

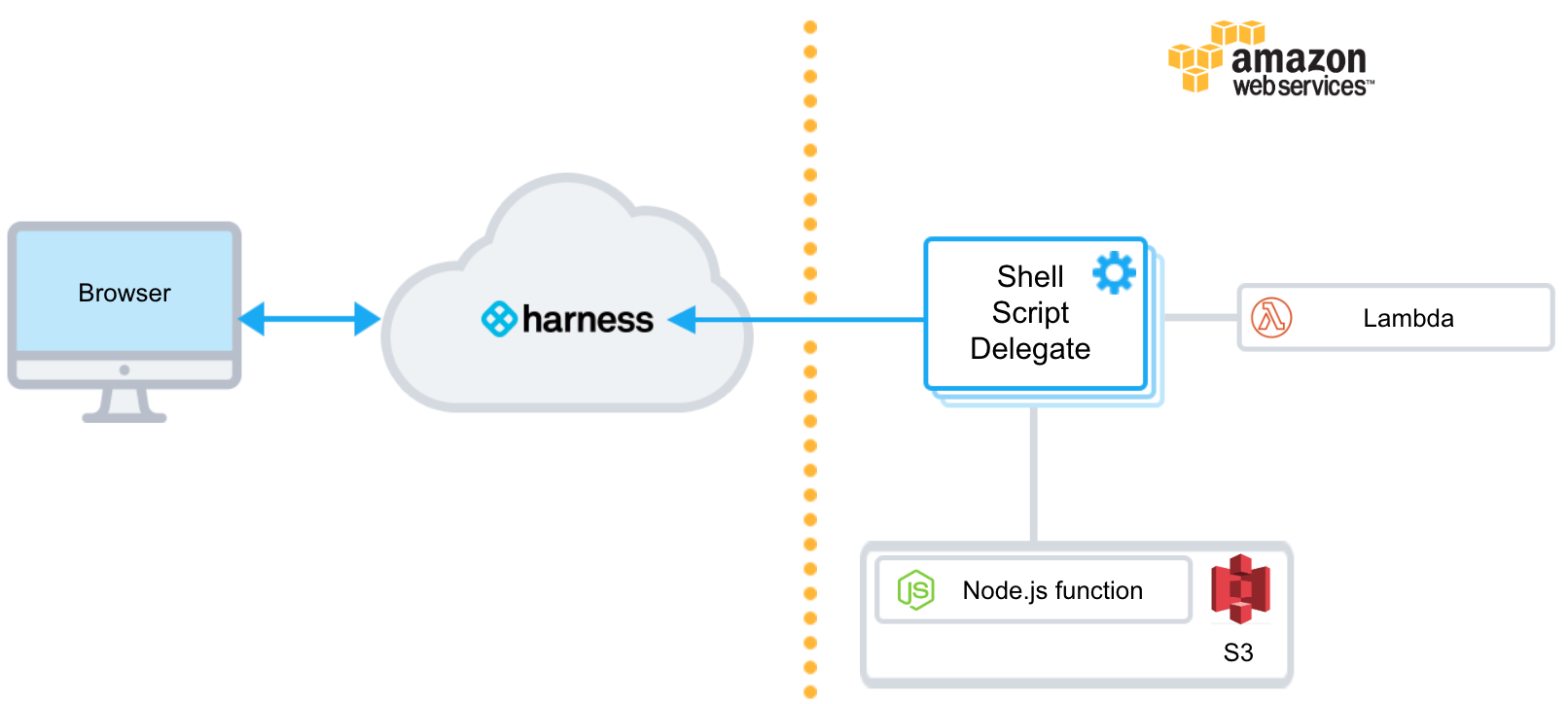

The following diagram shows the very simple topology for this tutorial:

You will install the Harness Shell Script Delegate on an EC2 instance in your AWS account, select a target VPC for deployment, and then use Harness to pull a Node.js function from S3 and deploy it to Lambda.

Step 1: Install and Launch the Shell Script Delegate

First we'll install the Harness Shell Script Delegate on the EC2 instance you set up with the IAM role you created for Harness Lambda deployments.

To install the Delegate on your EC2 instance:

Sign into the Harness Manager.
Click Setup, and then click Harness Delegates.
Click Download Delegate, and then click Shell Script.
Enter a name for the Delegate, and select the Primary Profile.
Click Copy Download Link.
Log into your EC2 instance, paste the Shell Script Delegate command, and hit Enter.
Once the Delegate is downloaded, unzip it (tar -zxvf harness-delegate.tar.gz), change directories into the harness-delegate folder and run the start command: ./start.sh. Ignore any warning about the ulimit.

The Delegate will start and in a few moments you will see it listed in the Harness Delegates page.

Delegate Selector

Add a Delegate Selector to the Delegate so you can use it when you create a Harness AWS Cloud Provider, in the next step in this tutorial. This will ensure the IAM role applied to the Delegate is used by your AWS Cloud Provider.

In the Delegate listing on the Harness Delegates page, click Edit next to Selectors.
Type in AWS-Tutorial, press Enter, and then click Submit. The Selector is added to the Delegate.

Step 2: Add a Harness AWS Cloud Provider

In this section, we will add a Harness AWS Cloud Provider to your Harness account to connect to both AWS S3, Lambda, and the VPC. You can use a single or separate AWS Cloud Providers for the connections, but using a single AWS Cloud Provider is easiest.

As Harness provides first-class support for CloudWatch, you can also use the same AWS Cloud Provider for your CloudWatch connection.Permissions: The AWS Cloud Provider will assume the IAM Role associated with the Delegate you installed in your VPC.

In the Harness Manager, click Setup, and then click Cloud Providers.
Click Add Cloud Provider. The Cloud Provider dialog appears. Enter the following settings:
- Type: Select Amazon Web Services.
- Display Name: Enter AWS-Tutorial.
- Credentials: Select Assume IAM Role on Delegate.
- Delegate Selector: Select the Delegate Selector you added to your Delegate, AWS-Tutorial.
Click Test and then Submit.

Now that the hard part is done, you can quickly set up your Lambda deployment in just a few minutes.

Step 3: Add Your Lambda Function

Now we'll add a Lambda function and configure its Lambda Function Specification. We'll start by creating a Harness Application.

An Application in Harness represents a logical group of one or more entities, including Services, Environments, Workflows, Pipelines, Triggers, and Infrastructure Provisioners. Applications organize all of the entities and configurations in Harness CD. For more information, see Create an Application.

Create a Harness Application

To create the Harness Application, do the following:

In Harness, click Setup, and then click Add Application. The Application settings appear.
Enter the name Lambda-Tutorial and click SUBMIT. The new Application is added.

We won't cover all of the Application entities in this tutorial. We assume you've read Harness Key Concepts.

Create a Harness Service

To add your function and spec, you create a Harness Service. Services represent your microservices, apps, or functions. You define their sources as artifacts and you add your specs.

Click Services. The Services page appears.
Click Add Service. The Service dialog appears.
Enter the following settings and click Submit:
- Name: Enter MyFunction.
- Deployment Type: Select AWS Lambda.

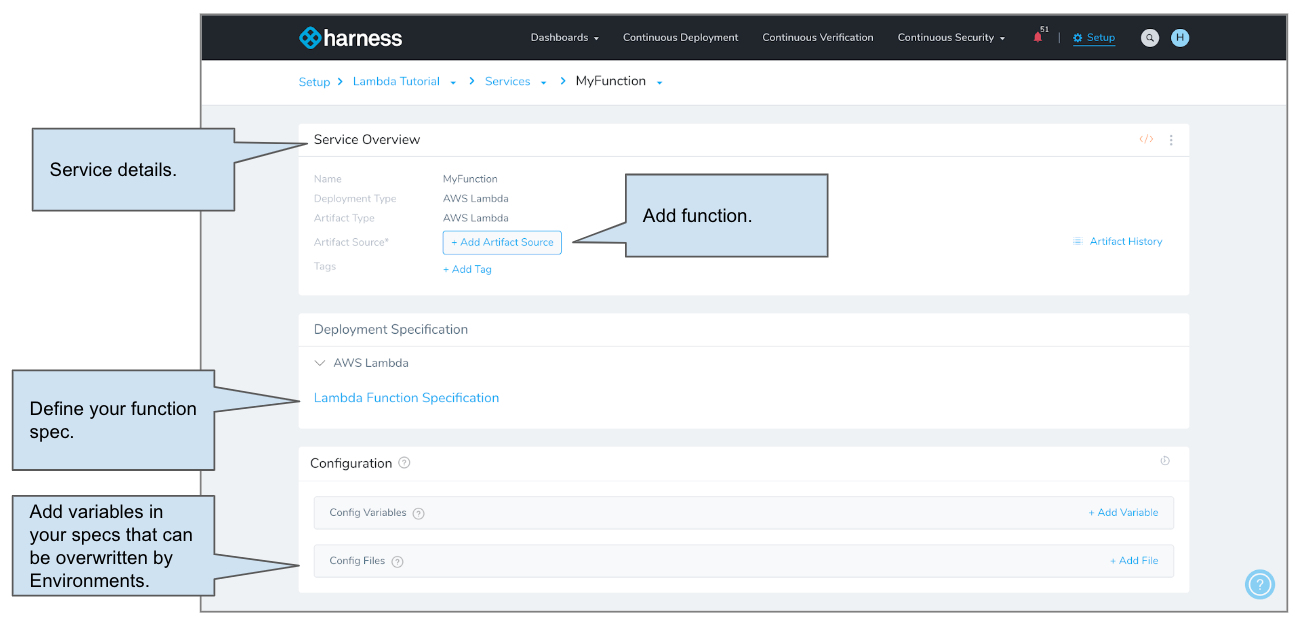

The new Service is listed.

Add an Artifact Source

Use the AWS S3 bucket to which you uploaded the function.zip file as part of the prerequisites. In our example, we named the bucket lambda-harness-tutorial.

We use S3 in this quickstart, but Harness supports the following artifact sources with Lambda:
In your Harness Service, click Add Artifact Source and select Amazon S3. The Amazon S3 settings appear. Enter the following settings:
- Name: Enter example-function.
- Cloud Provider: Select the AWS Cloud Provider you added earlier, AWS-Tutorial.
- Bucket: Select the bucket where you uploaded the function.zip file. In our example, we named the bucket lambda-harness-tutorial.
- Artifact Path: Select function.zip.

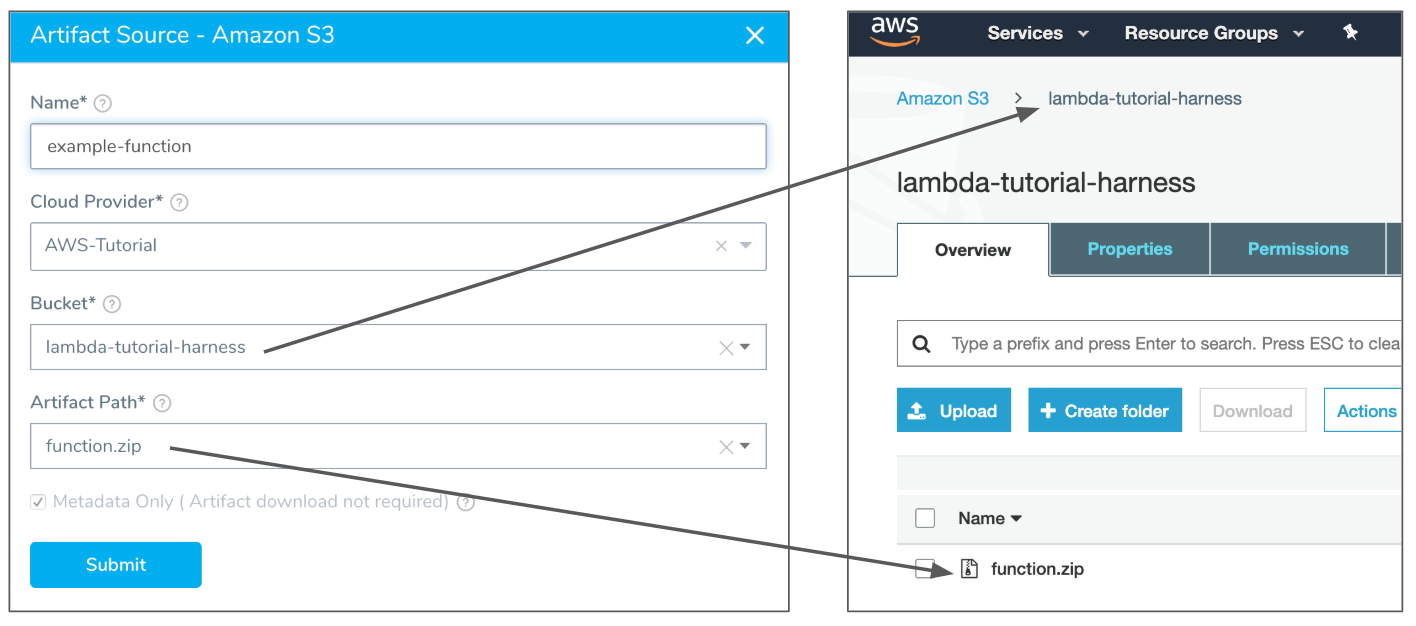

This grabs the file from your AWS S3 bucket, for example:

note

The Meta-data Only option is selected by default. Harness will not copy the actual zip file. During runtime, Harness passes the metadata to Lambda where it is used to obtain the file.

Click SUBMIT. The Lambda function file is added as an Artifact Source.

Add AWS Lambda Function Specification

Next, we'll add the Lambda Function Specification to provide details about the Lambda functions in the zip file in Artifact Source.

Click Lambda Function Specification. The AWS Lambda Function Specifications dialog appears. Enter the following settings:

note

The details you provide are very similar to the options in the AWS CLI aws lambda create-function command. For more information, see create-function from AWS.

Runtime: Select nodejs12.x.
Memory Size and Execution Timeout: Leave the defaults.
Function Name: Enter tutorialFunction.
Handler: Enter index.handler.
Memory Size and Execution Timeout for the function**:** Leave the defaults.

If you remember the code sample for our function, the value of the Handler setting is the file name (index) and the name of the exported handler module, separated by a dot. In our example, the handler is index.handler.

note

If you had multiple Lambda functions in the zip file in Artifact Source, you could click Add Function and provide details for each function.

Click SUBMIT. Your function is added to the Service.

Step 4: Define Your Lambda Target Infrastructure

Now that we've added a Lambda Service to your Application, we'll define an Environment where your function will be deployed. In an Environment, you specify the AWS VPC settings as an Infrastructure Definition.

Use the breadcrumb navigation to jump to Environments.
Click Add Environment. The Environment dialog appears. Enter the following settings:
- Name: Enter LambdaTutorial.
- Environment Type: Select Non-Production.

note

Later on in this tutorial you will see that we use the Environment name as a Lambda Alias. Consequently, the Environment name must meet the Lambda Alias name requirements, which do not permit spaces. Hence, we use LambdaTutorial here.

Click SUBMIT. The new Environment page appears. Next we will add an Infrastructure Definition to identify the related VPC information.
On your Environment page, click Add Infrastructure Definition. Enter the following settings:

note

AWS Lambda uses this information to set up elastic network interfaces (ENIs) that enable your function to connect securely to other resources within your private VPC. For more information and guidelines, see Configuring a Lambda Function to Access Resources in an Amazon VPC from AWS.

Name: Enter LambdaTutorialVPC.
Cloud Provider Type**:** Select Amazon Web Services.
Deployment Type: Select AWS Lambda.
Select Use Already Provisioned Infrastructure.
Cloud Provider: Select the AWS Cloud Provider you added earlier, AWS-Tutorial.
IAM Role: Select the AWS Lambda Execution Role that AWS Lambda assumes when it executes your function.
Region: Select the AWS region where your function will be used.
VPC: Select the VPC for the function.
Subnets: Select one or more of the subnets where the Lambda function will access resources.
Security Groups: Select a security group for the function.

The Infrastructure Definition settings are similar to the ‑‑role and ‑‑vpc-config options in the aws lambda create-function command. For example:

$ aws lambda create-function --function-name example-function \
--runtime nodejs12.x --handler index.handler --zip-file lambda/function.zip \
--role execution-role-arn \
--vpc-config SubnetIds=<subnet-ids>,SecurityGroupIds=<security-group-ids>

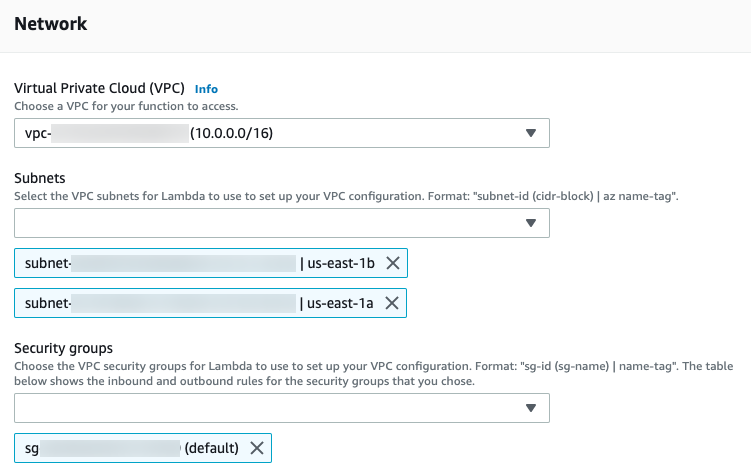

These are the same as the Network section of a Lambda function:

Click Submit. The new Infrastructure Definition is added to the Harness Environment.

You will select this Environment and Infrastructure Definition when you create your Harness Workflow.

Step 5: Build a Basic Lambda Workflow

The Lambda Basic Workflow you will create has two steps, generated by Harness automatically:

AWS Lambda - This step deploys the function and also sets the Lambda aliases and tags for the function.
Rollback AWS Lambda - If a deployment fails, this step uses aliases to roll back to the last successful version of a Lambda function.

Use the breadcrumb navigation to jump to Workflows, and then click Add Workflow. The Workflow settings appear.
- Name: Enter MyFunction Lambda Tutorial.
- Workflow Type: Select Basic.
- Environment: Select the Environment you created earlier, LambdaTutorial.
- Service: Select the Service you created earlier, MyFunction.
- Infrastructure Definition: Select the Infrastructure Definition you created earlier, LambdaTutorialVPC.

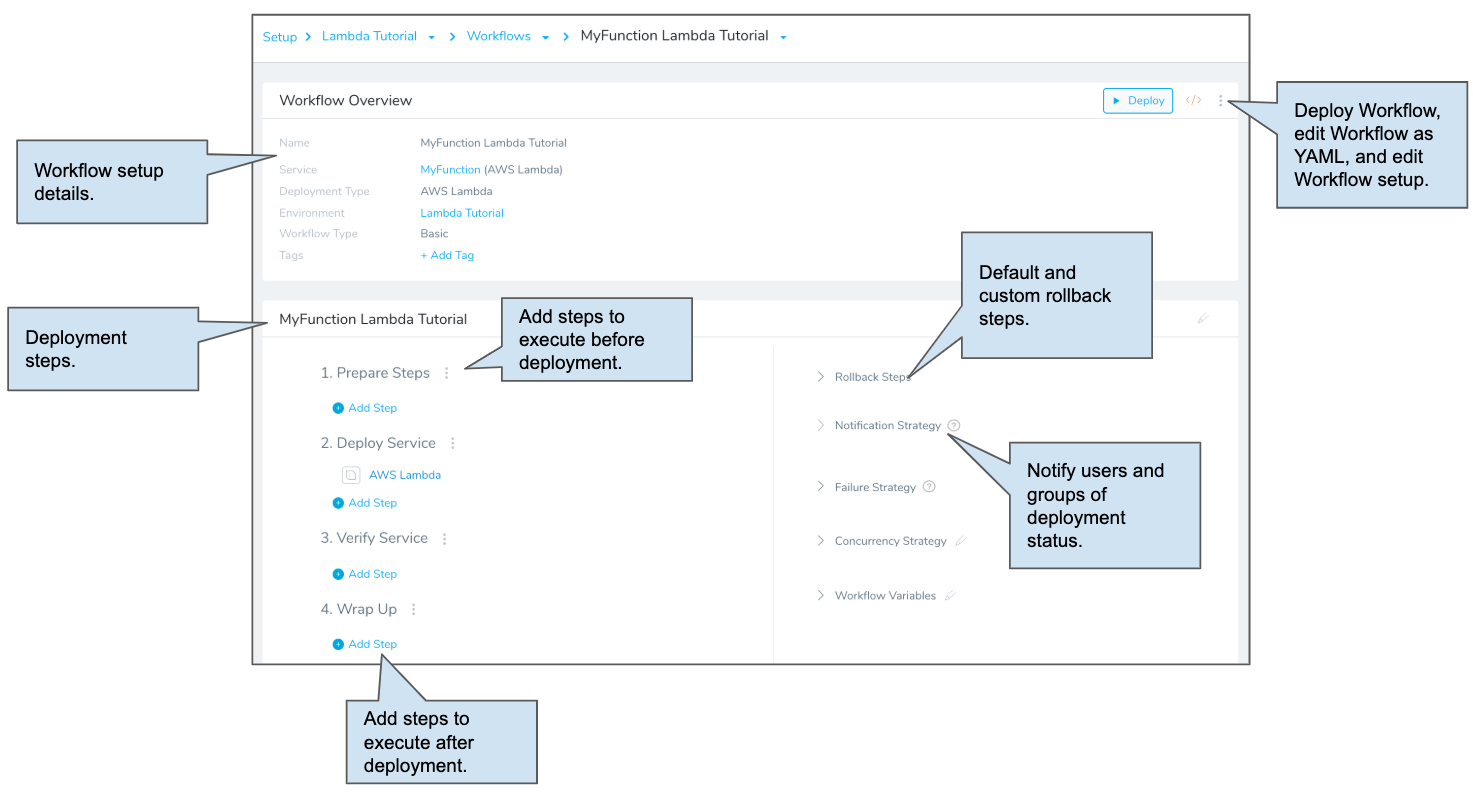

Click SUBMIT. The new Basic Workflow is created and pre-configured with the AWS Lambda step.

Next, let's look at the pre-configured AWS Lambda step.

AWS Lambda Step

When you deploy the Workflow, the AWS Lambda step creates the Lambda functions defined in the Service you attached to the Workflow. This is the equivalent of the aws lambda create-function API command.

The next time you run the Workflow, manually or as the result of a Trigger, the AWS Lambda step updates the Lambda functions. This is the equivalent of the aws lambda update-function-configuration API command.

In the Workflow, click the AWS Lambda step. The Configure AWS Lambda settings appear. Enter or review the following settings:
- Name: Simply the name of the step.
  - Aliases: Lambda function alias for the function you are deploying.
  - Tags: Click Add, in Key, enter Name, and in Value enter tutorialFunction. |
The AWS Lambda step in the Workflow applies the alias just like you would using the AWS Lambda console.

By default, Harness names the alias with the name of the Environment by using the built-in Harness variable ${env.name}. You can replace this with whatever alias you want, or use other built-in Harness variables by entering $ and seeing what variables are available.

You can set the tags for your Lambda functions in the AWS Lambda step and, once deployed, you can see the tags in the AWS Lambda console.
Click Submit.

Your Lambda Workflow is complete. You can run the Workflow to deploy the Lambda function to your AWS Lambda service.

Step 6: Deploy Your Lambda Function

Now that the Basic Workflow for Lambda is set up, you can click Deploy in the Workflow to deploy the Lambda functions in the Harness Service to your AWS Lambda environment.

If you're not already on the main Workflow page, use the breadcrumb navigation to navigate to MyFunction Lambda Tutorial.
Click the Deploy button. The Deploy settings appear. Enter the following settings:
- Artifacts > MyFunction: Select Build# function.zip.
- Send notification to me only: Enable this setting if you are doing this tutorial using your corporate Harness account. Enabling this setting will ensure that other users won't be notified on this deployment.
Click Submit. The deployment executes.

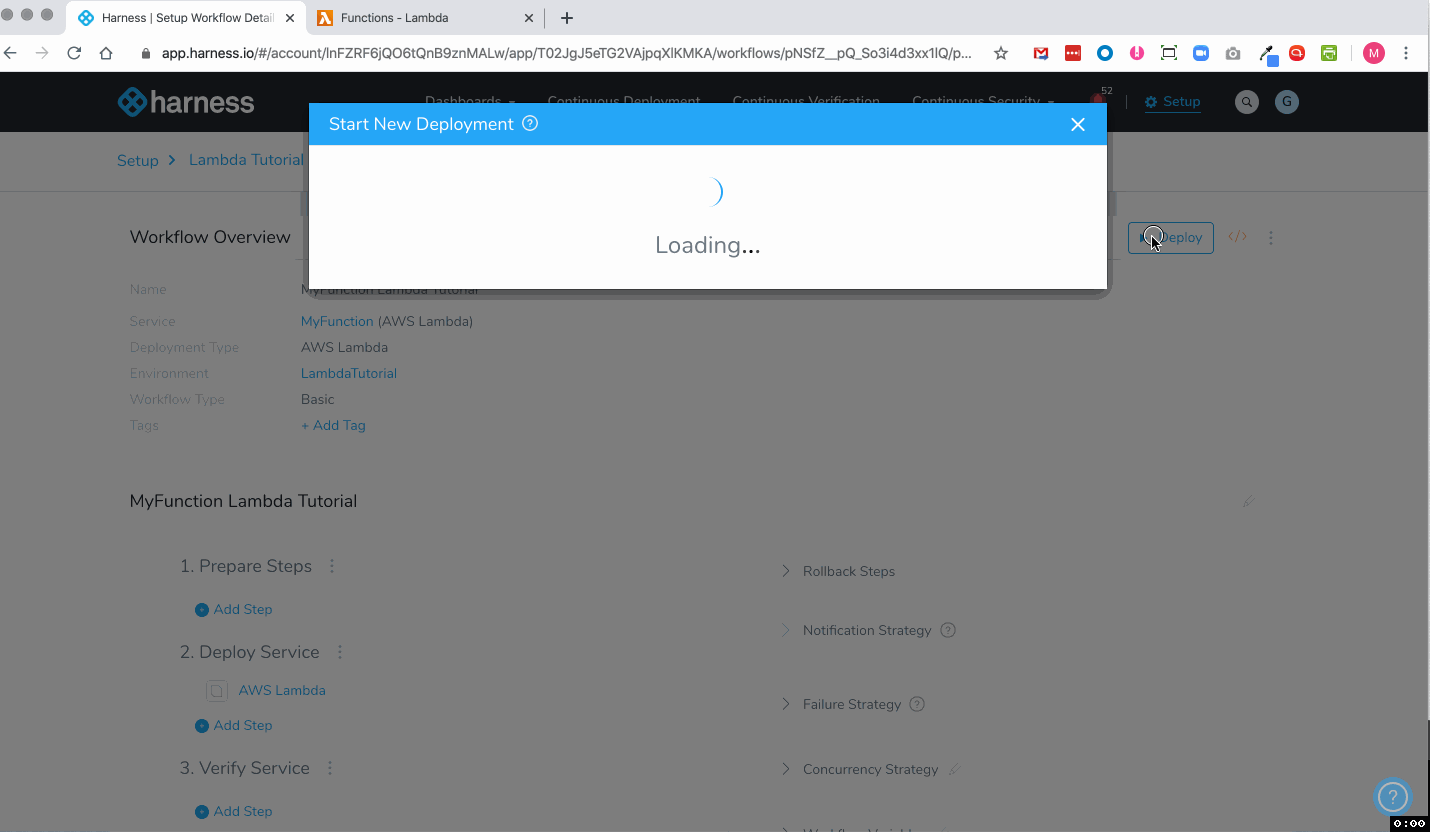

Here's an example of a typical deployment:

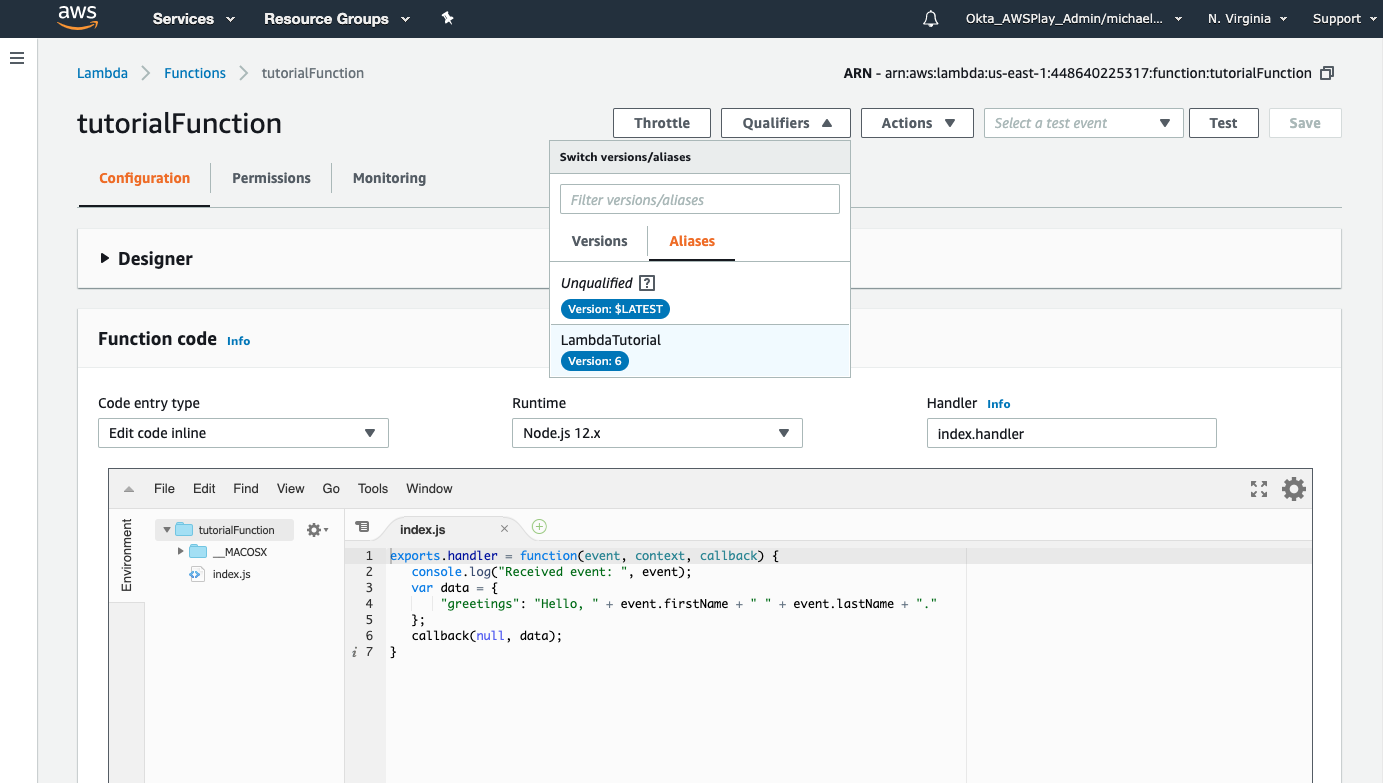

To see the completed deployment, log in to your AWS Lambda console. The Lambda function is listed:

You can also log into AWS and use the aws lambda get-function command to view the function.

View Lambda Deployments in the Serverless Functions Dashboard

Harness Manager's Serverless Functions Dashboard offers views of your Lambda deployment data.

Here is an individual Lambda deployment and how it is displayed on the Serverless Functions dashboard:

See Serverless Functions Dashboard.

To see your Lambda invocations on the Serverless Dashboard, the Execution Role for the Lambda function must have the following policies:

AmazonEC2FullAccess
AWSLambdaFullAccess
AWSLambdaVPCAccessExecutionRole
AWSLambdaRole
CloudWatchReadOnlyAccess

Next Steps

In this tutorial, you learned how to:

Set up and verify AWS IAM and EC2 for the Harness Shell Script Delegate.
Install the Harness Shell Script Delegate.
Connect Harness with AWS.
Add your Lambda function file and specification to Harness.
Create and deploy a Lambda Basic Workflow.

Read the following related How-tos:

Lambda Deployment Overview.
Triggers show you how to automate deployments in response to different events.
CloudFormation Provisioner will show you how to add provisioning as part of your Workflow.

Objectives​

Before You Begin​

Visual Summary​

Step 1: Install and Launch the Shell Script Delegate​

Delegate Selector​

Step 2: Add a Harness AWS Cloud Provider​

Step 3: Add Your Lambda Function​

Create a Harness Application​

Create a Harness Service​

Add an Artifact Source​

Add AWS Lambda Function Specification​

Step 4: Define Your Lambda Target Infrastructure​

Step 5: Build a Basic Lambda Workflow​

AWS Lambda Step​

Step 6: Deploy Your Lambda Function​

View Lambda Deployments in the Serverless Functions Dashboard​

Next Steps​

Objectives

Before You Begin

Visual Summary

Step 1: Install and Launch the Shell Script Delegate

Delegate Selector

Step 2: Add a Harness AWS Cloud Provider

Step 3: Add Your Lambda Function

Create a Harness Application

Create a Harness Service

Add an Artifact Source

Add AWS Lambda Function Specification

Step 4: Define Your Lambda Target Infrastructure

Step 5: Build a Basic Lambda Workflow

AWS Lambda Step

Step 6: Deploy Your Lambda Function

View Lambda Deployments in the Serverless Functions Dashboard

Next Steps
