Connect to AppDynamics as a Custom APM

Updated 3 weeks ago by Chakravarthy Tenneti

As an alternative to Harness' standard AppDynamics integration, you can use this guide to add AppDynamics to Harness as a custom APM. This approach enables you to expand monitoring beyond Business Transactions, to cover specific metrics of interest (for example, JVM data).

In this topic:

Before You Begin

Step 1: Add AppDynamics as a Custom Verification Provider

To add a Custom Metrics Provider using AppDynamics, do the following:

  1. In Harness Manager, click SetupConnectorsVerification Providers.
  2. Click Add Verification Provider. From the drop-down, select Custom Verification.

    This opens the Metrics Data Provider settings.
  3. In Type, select Metrics Data Provider, as shown above.

Step 2: Display Name

In Display Name, give the Verification Provider an arbitrary name. (You will use this name to select this provider in a Workflow.)

Step 3: Base URL

In Base URL, enter: https://<your-AppDynamics-account-name>.saas.appdynamics.com/controller

Step 4: Headers

In Headers, click Add Headers, and add the following row:

Key

Value

Encrypted Value

Authorization

Enter a base 64–encoded version of this string, representing your AppDynamics credentials:

<username>@<account-name>:<password>

You can also use an Open Authorization (OAuth) token-based authentication. Instead of the above credentials combination, enter your token.

For more information about generating the token, see AppDynamics API Clients documentation.

Checked

Step 5: Validation Path

In Validation Path, enter rest/applications?output=json.

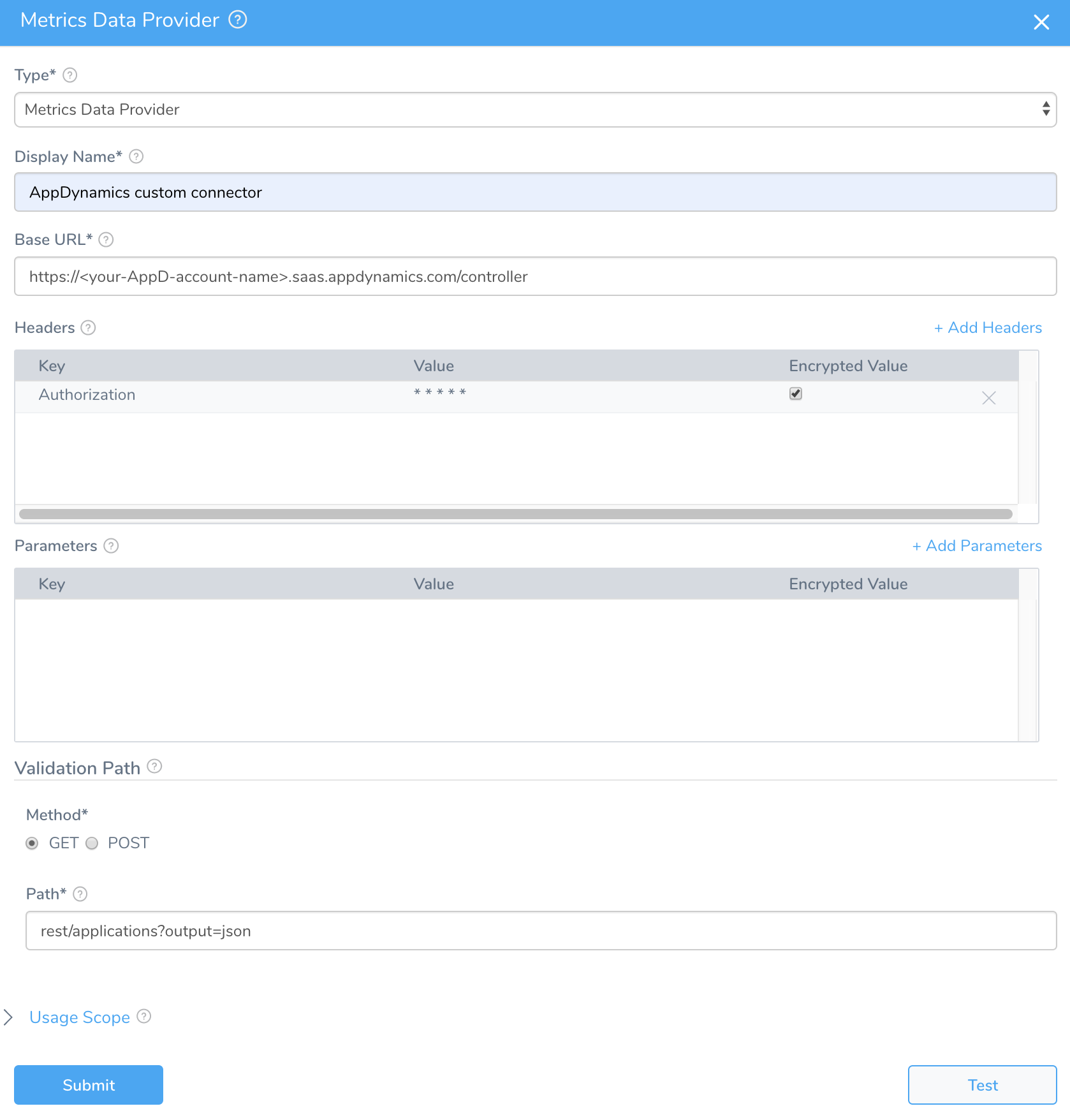

The settings will now look something like this:

Step 6: Test and Submit

  1. Click Test to verify your custom verification provider.
  2. If the test succeeds, click Submit to save the custom verification provider.

See Also
