Add Artifacts and App Stacks for Traditional (SSH) Deployments
The Harness Secure Shell (SSH) Service contains the application package artifact (file or metadata) and the related commands to execute on the target host. It also included scripts for installing and running an application stack, if needed.
In this topic, we will show you how to create the Service for your application package artifact, add additional scripts, and add an application stack.
In this topic:
- Before You Begin
- Step 1: Create a Harness SSH Service
- Step 2: Select an Artifact Type
- Option: Select an Application Stack
- Review: Secure Shell Service Sections
- Step 3: Add Your Artifact Source
- Option: View Artifact History
- See Also
- Configure As Code
Before You Begin
- Connect to Your Repos and Target SSH Platforms
- Traditional Deployments Overview
- Harness Key Concepts
Step 1: Create a Harness SSH Service
To create a Service for an application package, do the following:
- In your Application, click Services, and then click Add Service. The Add Service settings appear.
- In Name, enter a name for the Service. You will use this name when selecting this Service in Harness Environments, Workflows, and other components. For more information, see Services.
- In Deployment Type, select Secure Shell (SSH). All file-based Services are Secure Shell (SSH) deployments.The Artifact Type and Application Stack settings appear.
Step 2: Select an Artifact Type
In Artifact Type, select the file type of your artifact. For example, Java Archive (JAR).
Supported Packaging Formats
Harness supports the following traditional deployment packaging formats: WAR, JAR, TAR, RPM, ZIP, Docker, and custom files.
All of these formats are also supported by other Harness deployment types, such as Kubernetes, Helm, PCF, ECS, etc. This topic is concerned with traditional deployments outside of the container orchestration platforms.
Option: Select an Application Stack
In Application Stack, select the app stack you want to use to as a runtime environment for your application, such as Tomcat.
When the Service is created, it contains the scripts need to install the application stack.
If you are deploying to an existing instance that already has an app stack installed, you can leave Application Stack empty. For more information, see Add Application Stacks.

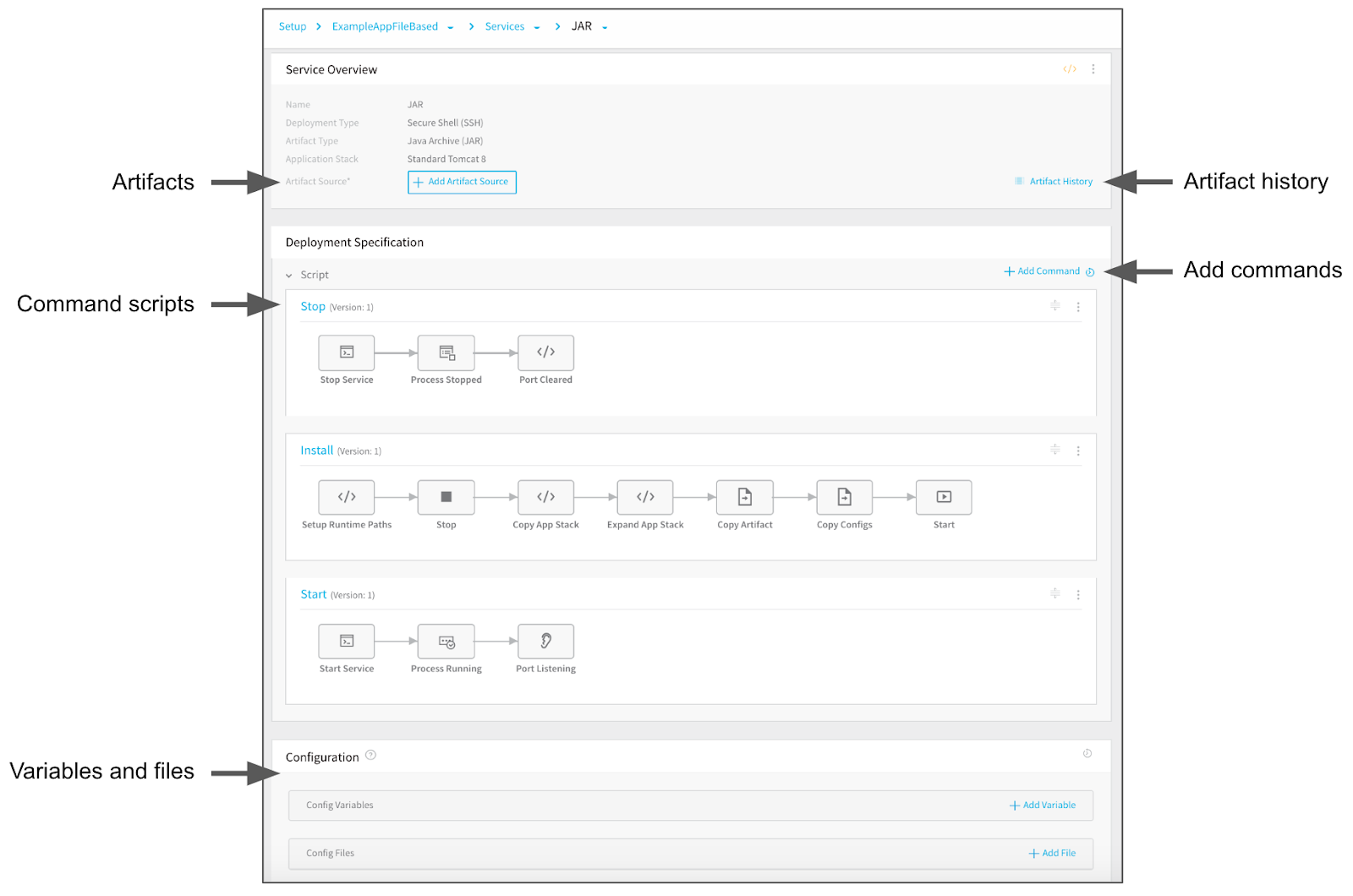

Review: Secure Shell Service Sections
The Service page has the following important sections:
- Artifact Source - The package files you want deployed are added here. In some cases an actual file is obtained, but in most cases metadata is sufficient.
- Artifact History - You can manually pull metadata on your artifacts to see their builds and versions.
- Script - The scripts to set up your files. These will typically include application stack setup unless your target hosts already have the application stack set up.
- Add Commands - You can add new commands from an Application or Shared Template Library, or simply add a blank command and add Harness scripts to it.
- Configuration - You can add variables and files to use in your Service scripts. These can be encrypted by Harness, allowing you to use secrets. The variables and files can be overwritten in Environments and Workflows.
Step 3: Add Your Artifact Source
The Artifact Source for the Service lists the file(s) that you want copied to the target host(s). The Artifact History will manually pull artifact build and version metadata from the Artifact Source.
Before you can add an artifact source, you need to add a Harness Artifact Server or Cloud Provider. If your artifact files are located on cloud platform storage like AWS S3, GCP Storage, or Azure Storage, you can add a Cloud Provider. If the files are located in a repo such as Artifactory or an automation server such as Jenkins, you can create an Artifact Server.
To add an artifact source, do the following:
- Click Add Artifact Source, and select the repo or cloud platform where the artifact is located. The dialog for the artifact source appears. This guide will use AWS S3 as an example.
- In Cloud Provider, select the Harness Cloud Provider to use to locate your artifact file.
- In Bucket, select the name of the bucket containing your artifact.
- In Artifact Path, click the artifact Harness located in the bucket you selected in Bucket. If the artifact is at the root of the bucket, then just the filename is provided. If the artifact is in a folder, the file path is provided
The Metadata Only option will be available if the artifact source file can be downloaded, and unavailable if the Harness only needs the metadata to download the file on the target host.
Metadata is sufficient as it contains enough information for the target host(s) to obtain or build the artifact. Harness stores the metadata. During runtime, Harness passes the metadata to the target host(s) where it is used to obtain the artifact(s). Ensure that the target host has network connectivity to the Artifact Server. For more information, see Service Types and Artifact Sources.Harness has a limit of a 1GB file upload. However, Harness directly streams from the artifact server if the file size is larger (even larger than 25GB). For artifacts larger than 1GB, use the Meta-data Only option in the Harness Service Artifact Source settings.When you are done, the dialog will look something like this:
- Click SUBMIT. The artifact source is listed.
Option: View Artifact History
When you add an Artifact Source to the Service, Harness will pull all the build and version history metadata for its artifacts. You can see the results of the pull in Artifact History and, if you do not see a build/version you expected, you can manually pull them.
To view the artifact history, do the following:
- Click Artifact History. This assistant lists the artifact builds and versions Harness has pulled.
- In the Artifact History assistant, click Manually pull artifact. The Manually Select An Artifact dialog appears.
- In Artifact Stream, click the Artifact Source you added to the Service.
- In Artifact, select an artifact build/version, and then click SUBMIT.
- Click Artifact History to view the history.
Now all available artifact builds and version history metadata is displayed.
Configure As Code
To see how to configure the settings in this topic using YAML, configure the settings in the UI first, and then click the YAML editor button (</>).
