AMI Basic Deployment

Updated 3 weeks ago by Michael Katz

This guide explains how to use existing Amazon Machine Images (AMIs) and AWS Auto Scaling Groups (ASGs) to deploy new ASGs and instances to Amazon Elastic Compute Cloud (EC2) via Harness. It includes the following sections:

Deployment Overview

For a general overview of how Harness works, see Harness Architecture and Application Components.

This guide will cover the following major steps:

  1. Install and run a Harness (Shell Script or ECS) Delegate.
  2. Add an AWS Cloud Provider.
  3. Create a Harness Application.
  4. Create a Harness Service using the Amazon Machine Image artifact type.
  5. Create an Environment and Infrastructure Definition.
  6. Create a Harness Workflow for a basic deployment.
  7. Deploy the Workflow.

Intended Audience

  • DevOps

Before You Begin

For a Basic deployment, you'll need:

  • A working AMI that Harness will use to create your instances.
  • A working Auto Scaling Group (ASG), as a template for the Auto Scaling Group that Harness will create.
  • An AWS Instance in which to install a Harness Delegate (covered in the next section).
  • IAM Role for the Harness Cloud Provider connection to AWS. The required policies are listed in ECS (Existing Cluster).

We will walk you through setting up a Harness Delegate, connections to your AWS account (using the Harness AWS Cloud Provider), Harness Services, Service Infrastructures, and Workflows.

Install and Run the Harness Delegate

In your AWS instance, install and run either a Harness Shell Script Delegate (the simplest option) or a Harness ECS Delegate. For basic installation steps, see Delegate Installation and Management. For simplicity, Harness further recommends:

  • Run the Delegate in the same subnet as your Auto Scaling Group, using the same security group and the same key pair.
  • Once the Delegate shows up in Harness Manager's Delegates page, assign it a Tag (for example, AMI-Delegate). You will use this Delegate Tag when you set up the AWS Cloud Provider to assume the IAM role used by the Delegate.

AWS Cloud Provider Setup

Add an AWS Cloud Provider as follows:

  1. In Harness Manager, click Setup.
  2. Click Cloud Providers. The Cloud Providers page appears.
  3. Click Add Cloud Provider. The Cloud Provider dialog appears. (You will override some default entries shown below.)
  4. In Type, select Amazon Web Services.
  5. In Display Name, enter a name for the Cloud Provider, such as aws-ami-example.
  6. Enable the Assume IAM Role on Delegate option.
  7. In Delegate Tag, enter the tag that you gave your Delegate in Harness Manager's Delegates page.

    When you are done, the dialog will look something like this:
  8. Click TEST to ensure that your credentials work.
  9. Click SUBMIT. The Cloud Provider is added, with a tag matching your Delegate.

Harness Application Setup

The following procedure creates a Harness Application for your AMI deployments.

An Application in Harness represents a logical group of one or more entities, including Services, Environments, Workflows, Pipelines, Triggers, and Infrastructure Provisioners. Applications organize all of the entities and configurations in Harness CI/CD. For more about Applications, see Application Components.

To create a new Application:

  1. In Harness Manager, click Setup.
  2. In the Applications section, click Add Application. The Application dialog appears.
  3. Give your Application a name, such as AMI Application.
  4. Optionally, add a Description of this Application's purpose.
  5. Click SUBMIT. The new Application is added to the Applications list.
  6. Click your new Application's name. The Application's list of entities appears, initially empty.

In the following sections, we will define this Application's Service, Environment, and Service Infrastructure. We'll then define and execute deployment Workflows.

AMI Service Setup

Different types of Harness Services are available for different deployment platforms. The AMI type includes AMI-specific settings. To add an AMI Service:

  1. In your new Application, click Services. The Services page appears.
  2. In the Services page, click Add Service. The Add Service dialog appears—initially empty.
  3. In Name, enter a name for your Service, such as AMI Deployment Service.
  4. In Description, (optionally) enter a description for your service.
  5. In Deployment Type, select Amazon Machine Image. Your dialog will now look something like this:
  6. Click SUBMIT. The new Service is displayed.

Next, we will set up the Artifact Source, User Data, and Configuration options.

Add Artifact Sources

A Service's Artifact Source is the AMI you want to use to create instances. In this guide, we specify our Artifact Source for deployment by AWS Region and (optionally) Tags and AmiResource Filters. To add an Artifact Source to this Service:

  1. From the Service Overview section, click Add Artifact Source, then click Amazon AMI.

  1. In the resulting Artifact Source dialog, select the Cloud Provider you set up earlier under AWS Cloud Provider Setup.
  2. Select the AWS Region where your AMI is located.
  3. Add any AWS Tags that you are using to identify your AMI. (For details on these key/value pairs, see Amazon's Tagging Your Amazon EC2 Resources topic.)
  4. Optionally, in the AmiResource Filters field, add AMI ID filters to locate the AMI resource. (These are key/value pairs that prepend ami‑image: to the AMI ID. For example: ami‑image:ami‑0981c1b27d2d4f749.)
  5. Click SUBMIT to add the Artifact Source.

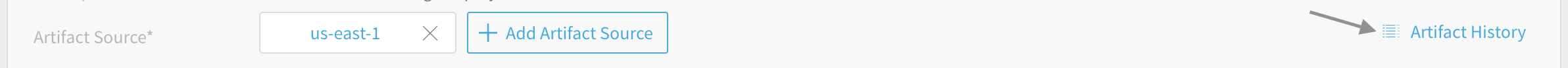

You can see the results of your Artifact Source settings clicking Artifact History.

Deployment Specification (User Data)

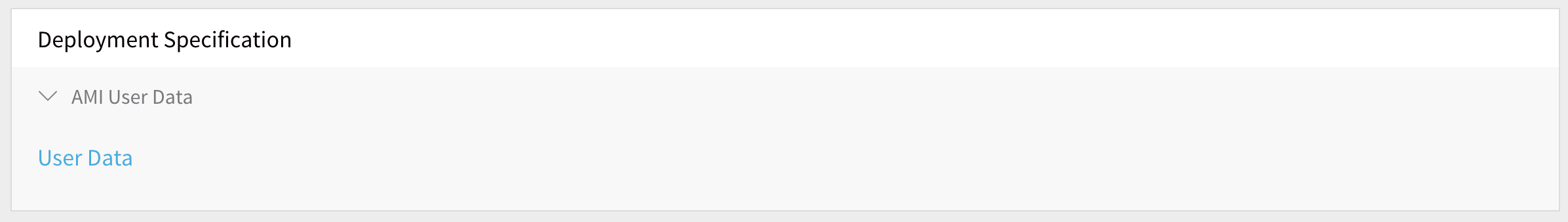

In the Service's Deployment Specification section, you can select the User Data link to enter configuration scripts and directives that your AWS instance will run upon launch.

The resulting User Data container corresponds to the AWS Launch Instance wizard's Advanced Details > User data container.

What Can I Add in User Data?

You can enter the same shell scripts and cloud-init directives that AWS will accept through its own UI. For details about scripting requirements, formatting, and options, see Amazon's EC2 User Data and Shell Scripts documentation. When Harness creates a new instance, it will apply your defined User Data.

Configuration Variables and Files

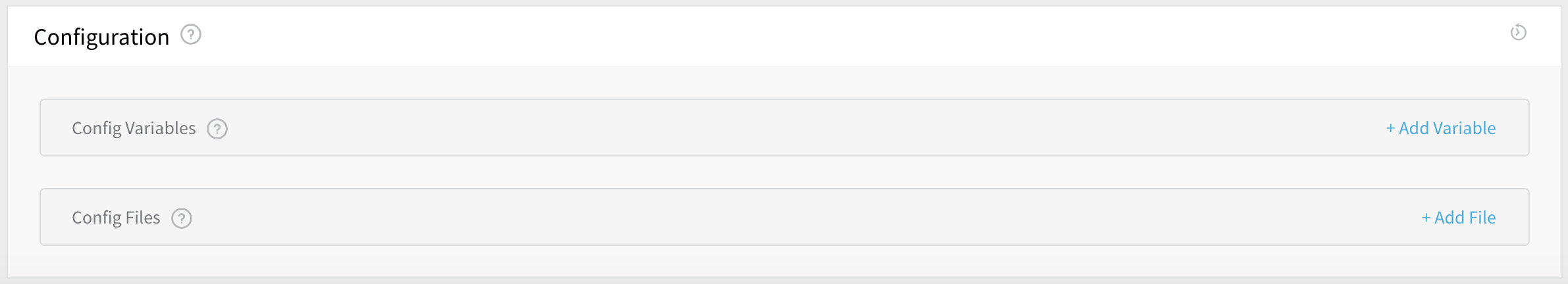

In the Service's Configuration section, you can add Service-level variables and files. For details about the options here, see Harness' Configuration Variables and Files topic.

Referencing Config Variables in User Data

You can define variables in the Service's Config Variables section and reference them in User Data scripts. Type the prefix: ${serviceVariable. to prompt Harness to automatically display existing variables. Here is an example:

Environment and Infrastructure Definition

Once you've defined your Application's Service, you define Environments where your Service can be deployed. In an Environment's Service Infrastructure settings, you specify:

  • A Harness Service—for AMI, a Service with an AMI artifact you configured.
  • A deployment type, such as Basic or Blue/Green.
  • An AWS Cloud Provider, such as the aws-ami-example provider that you added in AWS Cloud Provider Setup.

An Environment represents one of your deployment infrastructures—such as Dev, QA, or Production. You can deploy one or many Services to each Environment.

Create a New Harness Environment

The following procedure creates an Environment for the AMI Service you've configured.

  1. In your Harness Application, click Environments. The Environments page appears.
  2. Click Add Environment. The Environment dialog appears.
  3. In Name, enter a name that describes the deployment Environment—for example, AMI-Env.
  4. Optionally, enter a Description.
  5. In Environment Type, select Non-Production.
  6. Click SUBMIT. In the resulting Environment Details page, you'll define your new Environment's contents.

Add a Service Infrastructure

Infrastructure Definition is replacing Service Infrastructure as the method for defining your target infrastructure. Currently, Infrastructure Definition is behind a feature flag. Contact Harness Support to migrate to the Infrastructure Definition feature.

You define the AWS infrastructure to use for deployment as a Harness Service Infrastructure. For AMI deployments, you will use an AWS Auto Scaling Group. To add the Service Infrastructure:

  1. In your Environment's Service Infrastructure section, click Add Service Infrastructure. The Service Infrastructure dialog appears.
  2. (Recommended:) Deselect the Auto Generate Name check box to unlock the Display Name field. You can then enter a custom name—making this Service Infrastructure easier to identify when you add it to a Workflow.
  3. In Service, select the Harness Service you created, using an AMI, in AMI Service Setup.
  4. In Cloud Provider, select the Cloud Provider you added earlier in AWS Cloud Provider Setup. The dialog will now look something like this:
  5. Click Next. This opens the dialog's Configuration section.
The Configuration section's drop-down lists take a few seconds to populate. Later, some fields will again take a few seconds to repopulate based on your selections in other fields.
  1. For this example, accept the default Already Provisioned option.

(If you have configured an Infrastructure Provisioner in Harness, you can use that configuration by instead selecting the Dynamically Provisioned option. For details, see our AMI CloudFormation and Terraform examples.)

  1. Select the Region where your Auto Scaling Group (ASG) is located.
  2. In the Auto Scaling Groups drop-down, select an existing ASG in your EC2 setup that Harness will clone as it creates a new ASG to use for the deployment. We typically call the ASG you select the base ASG. It is not used in the deployment. It is simply cloned in order for Harness to create a new ASG. (The newly created ASG will have unique Min and Max instances and Desired Capacity.)
  3. If you want to use Application Load Balancers, use Target Groups (for ALB) to select one or more Target Groups that will route requests to the ASG you will deploy.
  4. If you want to use Classic Load Balancers, use Classic Load Balancers to select one or more Classic Load Balancers for the ASG you will deploy.

    When you are done, the dialog's Configuration section will look something like this:
  5. Click SUBMIT. The new Service Infrastructure is added to your Harness Environment.
Harness will register the ASGs it creates with whatever Target Groups and Classic Load Balancers you enter. If you delete the ASG that you've specified here, Workflows using this Service Infrastructure will fail to deploy.

This is the last required step to set up the deployment Environment in Harness. With both the Service and Environment set up, you can now proceed to creating a deployment Workflow.

Add an Infrastructure Definition

Infrastructure Definition replaces Service Infrastructure as the method for defining your target infrastructure. Currently, Infrastructure Definition is behind a feature flag. Contact Harness Support to migrate to the Infrastructure Definition feature.

An Infrastructure Definition specifies a target infrastructure for deployments. When you create a Harness Workflow, you will pick the Infrastructure Definition you want to use as the target deployment environment.

For AMI deployments, you build your Infrastructure Definition using an AWS Auto Scaling Group. To add the Infrastructure Definition:

  1. In your Environment's Service Infrastructure section, click Add Infrastructure Definition. The Infrastructure Definition dialog appears.
  2. In Name, enter the name that will identify this Infrastructure Definition when you add it to a Workflow.
  3. In Cloud Provider Type, select Amazon Web Services.
  4. In Deployment Type, select Amazon Machine Image. This expands the Infrastructure Definition dialog to look something like this:
  5. For this example, accept the default Use Already Provisioned Infrastructure option.

(If you have configured an Infrastructure Provisioner in Harness, you can use that configuration by instead selecting the Map Dynamically Provisioned Infrastructure option. For details, see our AMI CloudFormation and Terraform examples.)

  1. In Cloud Provider, select the Cloud Provider you added earlier in AWS Cloud Provider Setup.
  2. Select the Region where your Auto Scaling Group (ASG) is located.
After you select your Cloud Provider and Region, the dialog's remaining drop-down lists take a few seconds to populate.

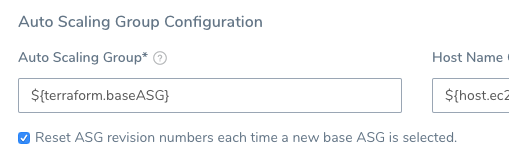

  1. In the Auto Scaling Groups drop-down, select an existing ASG in your EC2 setup that Harness will clone as it creates a new ASG to use for the deployment. We typically call the ASG you select the base ASG. It is not used in the deployment. It is simply cloned in order for Harness to create a new ASG. (The newly created ASG will have unique Min and Max instances and Desired Capacity.)
  2. If you want to use Application Load Balancers, use Target Groups (for ALB) to select one or more Target Groups that will route requests to the ASG you will deploy.
  3. If you want to use Classic Load Balancers, use Classic Load Balancers to select one or more Classic Load Balancers for the ASG you will deploy.
  4. Enable Scope to Specific Services, and use the adjacent drop-down to select the Harness Service you created in AMI Service Setup.

    (This scoping will make this Infrastructure Definition available whenever a Workflow, or Phase, is set up for this Service. You can also select additional Services in this field—and you can do that later, by editing the Infrastructure Definition to match newly added Services.)

    When you are done, the dialog's Configuration section will look something like this:
  5. Click SUBMIT. The new Service Infrastructure is added to your Harness Environment.
Harness will register the ASGs it creates with whatever Target Groups and Classic Load Balancers you enter. If you delete the ASG that you've specified here, Workflows using this Service Infrastructure will fail to deploy.

This is the last required step to set up the deployment Environment in Harness. With both the Service and Environment set up, you can now proceed to creating a deployment Workflow.

Override Service Settings

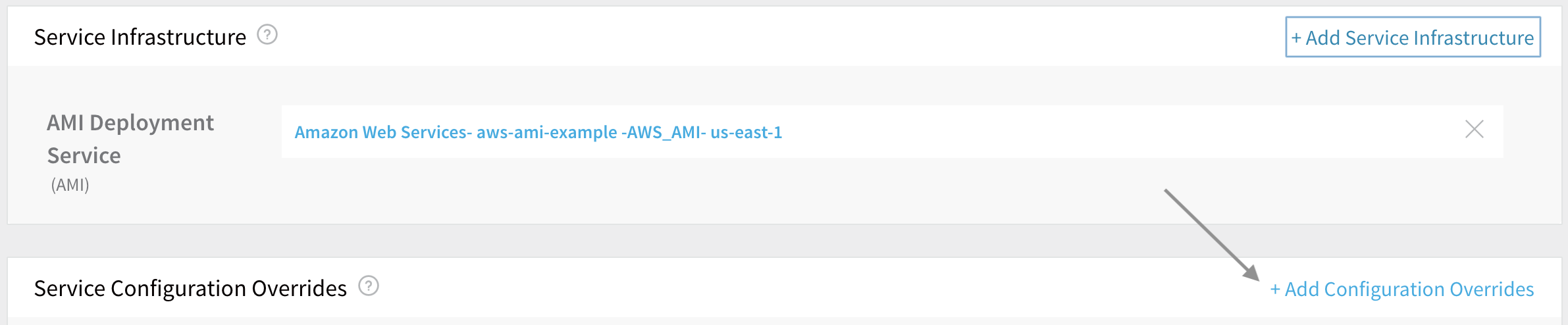

Optionally, your Environment can override Config Variables and Config Files set in Services that use the Environment. This enables you to maintain each Service's stored settings, but change them when using the Service with this Environment.

As an example, you might use a single Service across separate Environments for QA versus Production, and vary Service path variables depending on the Environment. For details, see Override a Service Configuration.

You can also overwrite Service variables at the Phase level of a multiple-Phase Workflow, such as Canary.

Basic Workflow and Deployment

This section walks you through creating an AMI Basic Workflow in Harness. By default, Harness AMI Basic Workflows have four deployment steps:

  1. Setup AutoScaling Group: Specify how many instances to launch, their resizing order, and their steady state timeout.
  2. Deploy Service: Specify the number or percentage of instances to deploy, within the ASG you've set up.
  3. Verify Service: Optionally, specify Verification Providers or Collaboration Providers.
  4. Wrap Up: Optionally, specify post-deployment commands, notifications, or integrations.

Harness preconfigures only the first two steps. Below, we outline those steps' defaults and options, with examples of the deployment logs' contents at each step.

The remaining two steps are placeholders, to which you can add integrations and commands. For details on adding Verify Service integrations, see Continuous Verification.

Your Workflows can use Harness' built-in ${artifact.metadata.tag} variable to refer to tagged AMIs. For example, if an AMI has an AWS tag named harness, you can refer to that AMI within Harness as ${artifact.metadata.harness}. For details about this convention, see Variables and Expressions in Harness. This can be useful in triggering Workflows and Pipelines.

Create a Basic Workflow

To create a Basic Workflow for AMI deployment, do the following:

  1. In your Application, click Workflows.
  2. Click Add Workflow. The Workflow dialog appears.

    If you are using Infrastructure Definitions, the Workflow dialog will look like this:

    If you are using a Service Infrastructure, the Workflow dialog will look like this:

  3. In Name, enter a name for your Workflow, such as AMI Basic Workflow.
  4. Optionally, add a Description of this Workflow's purpose.
  5. In Workflow Type, select Basic Deployment.
  6. Select the Environment you created for your AMI Basic deployment.
  7. Select the Service you created for your AMI Basic deployment.
  8. Select the Infrastructure Definition or Service Infrastructure you created for your AMI Basic deployment. (The Service Infrastructure field—if displayed—also provides the option of creating a New Service Infrastructure.)

    The dialog will now look something like this:
  9. Click SUBMIT. The new Basic Workflow for AMI is preconfigured.

Next, we will examine options for configuring the Basic deployment's first two steps.

Step 1: Setup AutoScaling Group

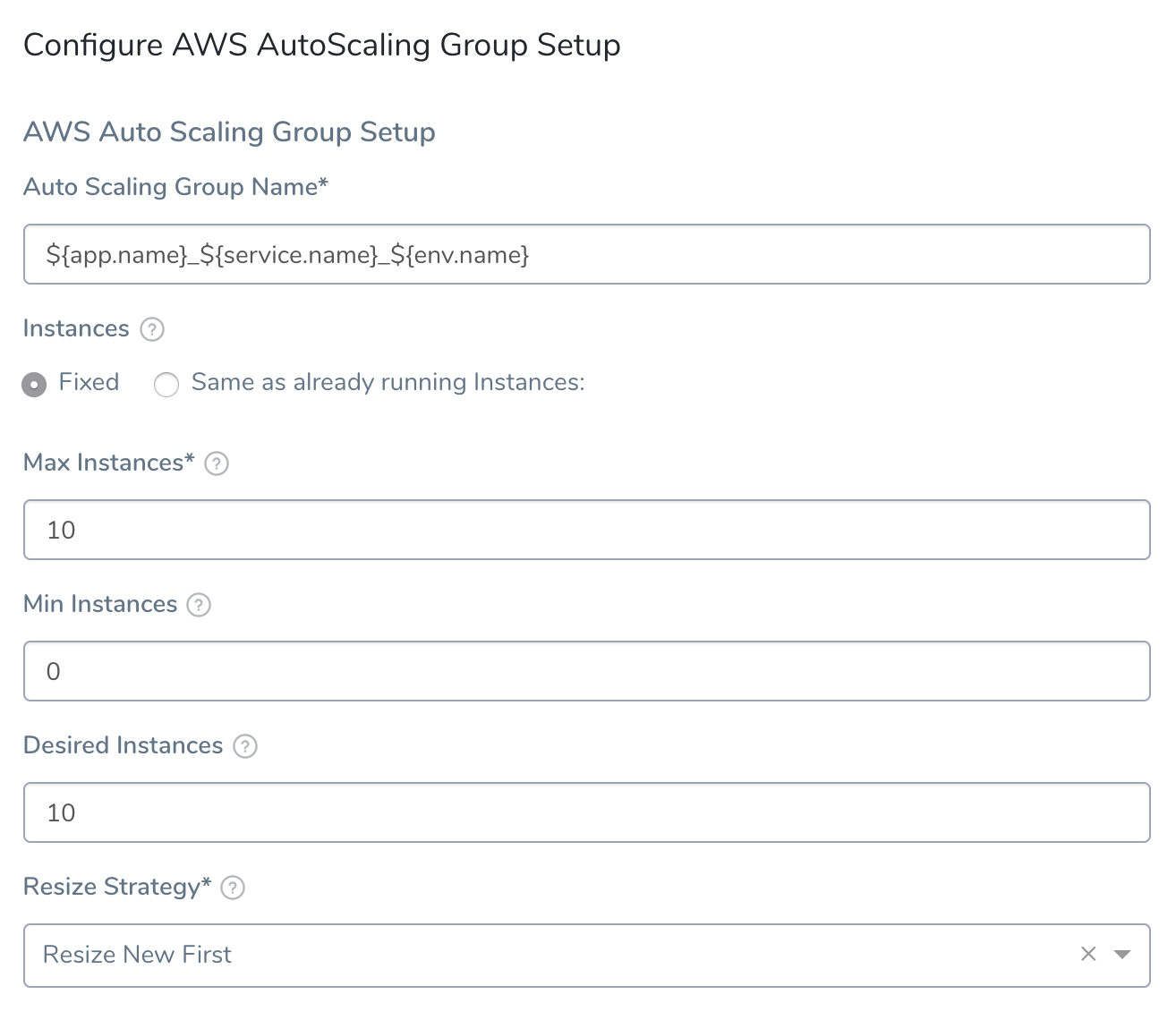

In Step 1, select AWS AutoScaling Group Setup to open a dialog where you can fine-tune the Auto Scaling Group (ASG) that Harness creates for the AMI Service you are deploying.

Many of the ASG's settings are mirrored from the ASG selected in the Workflow's Infrastructure Definition or Service Infrastructure. (This ASG is also called the base Auto Scaling Group.) However, this setup dialog enables you to provide the remaining settings, using the following options:

Field

Description

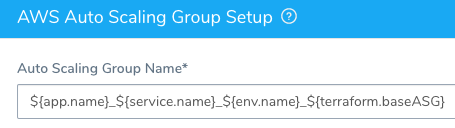

Auto Scaling Group Name

Either enter a name for the ASG that Harness will create (e.g., MyApp_MyAmiService_MyEnv.), or accept the name that Harness automatically generates. Entering a custom name will make your ASG easier to identify when you add it to an Infrastructure Definition or Service Infrastructure.

Instances

Select Fixed to enforce a maximum number of instances. (See details in the Max Instances field below.) This option supports consistency in testing.

Select Same as already running Max Instances to conform to the ASG's current scaling on AWS. This is a typical production setting, which will not downscale an instance count that has expanded to meet current load.

Max Instances

This field is displayed only if you have selected Fixed Instances above—in which case, an entry is required. Enter the maximum number of instances that the ASG collection should have at any time. This number corresponds to the AWS ASG's Max setting, and also constrains the Desired Capacity.

Min Instances

Optionally, enter the minimum number of instances that the ASG should have at any time. This number corresponds to the AWS ASG's Min setting, and can be 0. (Field is displayed only if you have selected Fixed Instances above.)

Desired Instances

Optionally, set the target number of instances for the ASG to maintain. This number corresponds to the AWS ASG's Desired Capacity setting. (Field is displayed only if you have selected Fixed Instances above.)

Resize Strategy

Select whether to resize new ASGs upward first, or to resize old ASGs downward first. The typical production selection is Resize New First, to maintain the highest availability. The Downsize Old First option constrains usage and costs, especially during testing.

Auto Scaling Steady State Timeout (mins)

Enter how long Harness should wait for ASGs to register and reach steady state. This setting (which is internal to Harness) also defines the interval that Harness will wait before downsizing old ASGs and deregistering them from the Target Group(s).

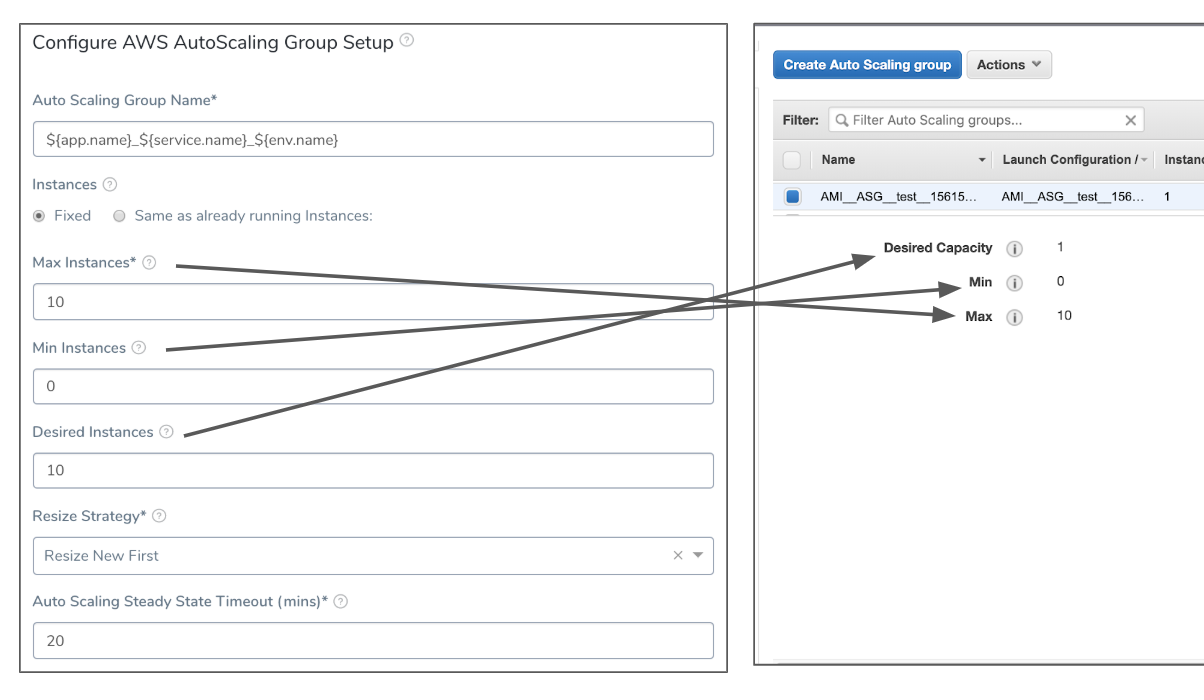

Certain settings in this dialog correspond to AWS Console options, as shown here:

Setup AutoScaling Group in Deployment

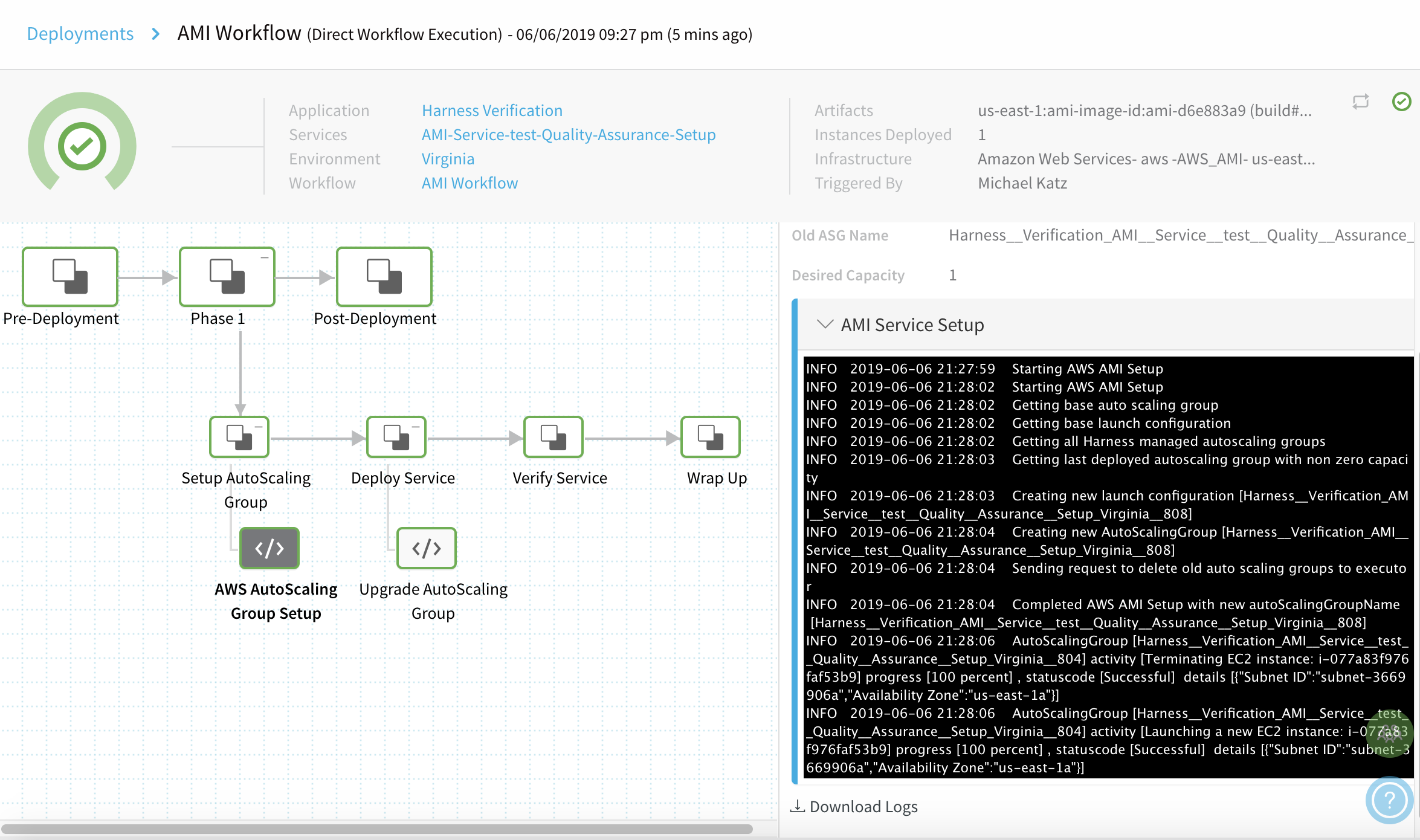

Let's look at an example where the AWS AutoScaling Group Setup—configured as shown above—is deployed. Here is the step in the Harness Deployments page:

Here's the output, showing a successful setup:

INFO   2019-06-04T19:03:16.561+0000   Starting AWS AMI Setup
INFO 2019-06-04T19:03:18.121+0000 Starting AWS AMI Setup
Getting base auto scaling group
Getting base launch configuration
Getting all Harness managed autoscaling groups
Getting last deployed autoscaling group with non zero capacity
Creating new launch configuration [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799]
INFO 2019-06-04T19:03:19.926+0000 Creating new AutoScalingGroup [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799]
Sending request to delete old auto scaling groups to executor
Completed AWS AMI Setup with new autoScalingGroupName [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799]
AutoScalingGroup [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__795] activity [Terminating EC2 instance: i-0d4ad1a03aee7f6dc] progress [100 percent] , statuscode [Successful] details [{"Subnet ID":"subnet-3669906a","Availability Zone":"us-east-1a"}]
AutoScalingGroup [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__795] activity [Launching a new EC2 instance: i-0d4ad1a03aee7f6dc] progress [100 percent] , statuscode [Successful] details [{"Subnet ID":"subnet-3669906a","Availability Zone":"us-east-1a"}]

Step 2: Deploy Service

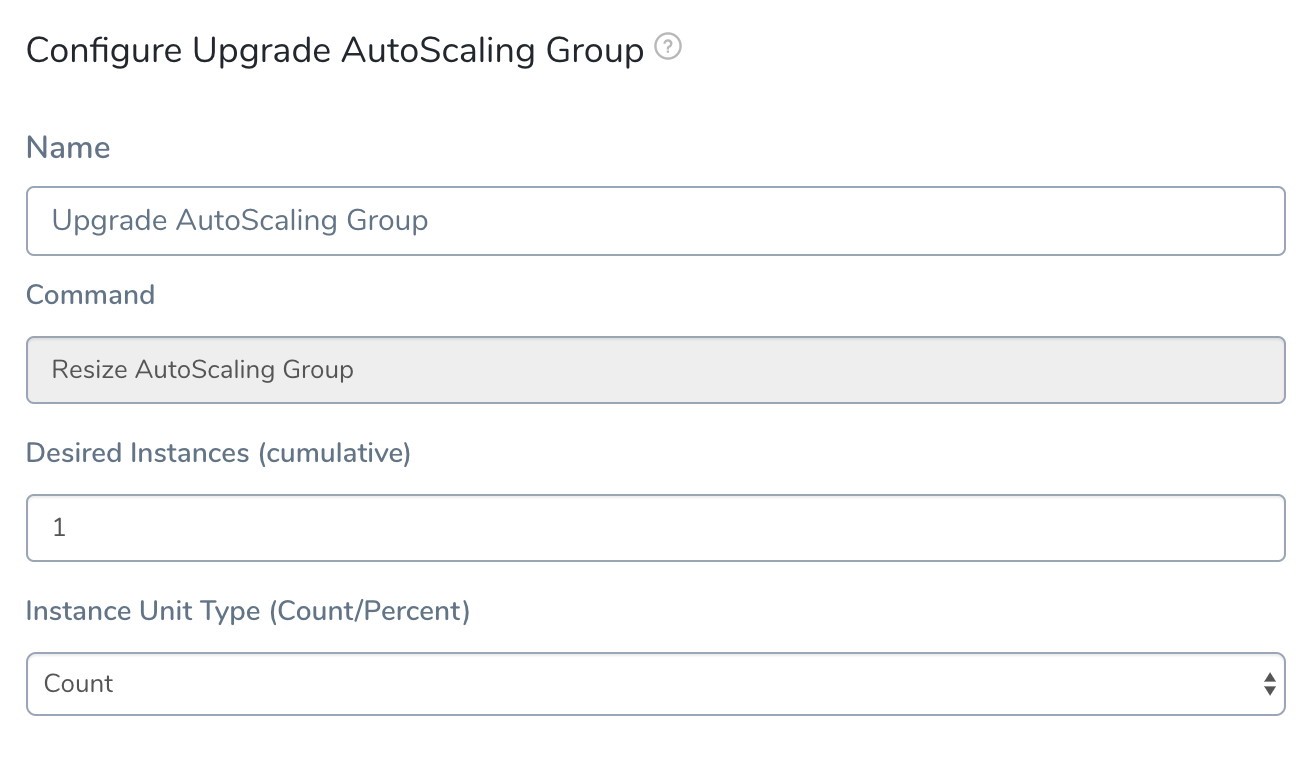

In Step 2, select Upgrade AutoScaling Group to open a dialog where you can define how many instances to deploy in the Auto Scaling Group, as either a count or a percentage.

This dialog provides the following options:

Field

Description

Desired Instances (cumulative)

Set the number of Amazon EC2 instances that the Auto Scaling Group will attempt to deploy and maintain. This field corresponds to the ASG's Desired Capacity setting, and interacts with the adjacent Instance Unit Type field:

  • Where Instance Unit Type is set to Count, enter the actual number of instances.
  • Where Instance Unit Type is set to Percent, enter a percentage of the available capacity.

Either way, your setting here cannot exceed your Max Instance capacity setting—which is a count—in the Workflow's preceding Setup AutoScaling Group step.

Instance Unit Type (Count/Percent)

Set the unit of measure, as either Count or Percent.

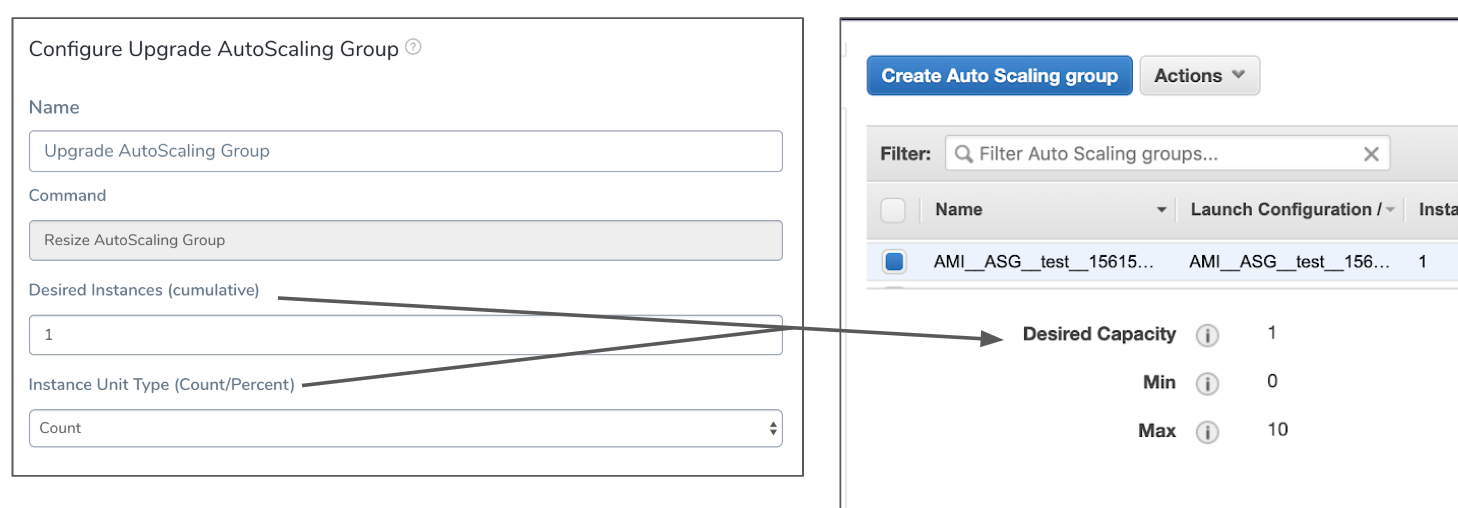

This diagram illustrates the relationship among Upgrade settings:

Deploy Service Step in Deployment

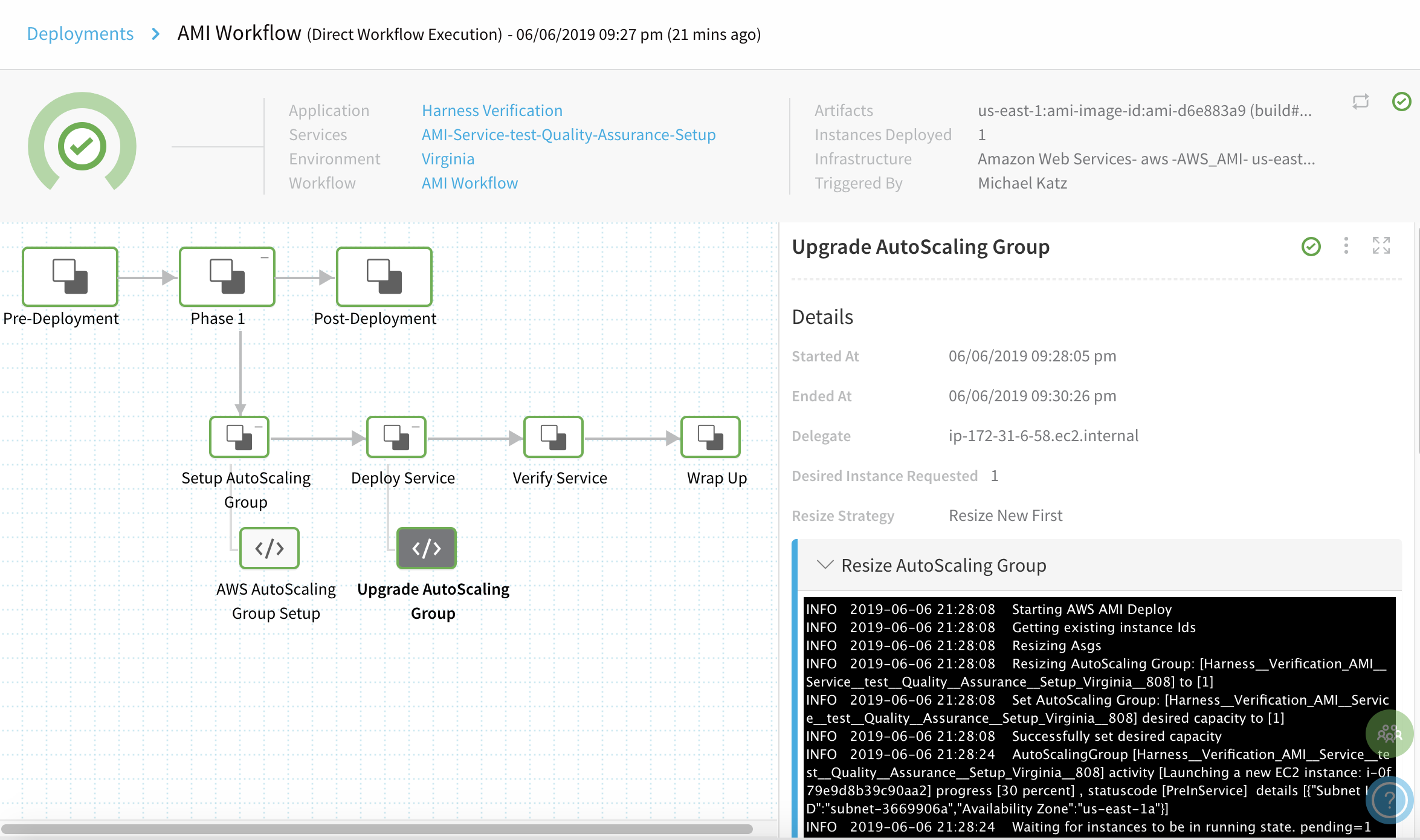

Using the Upgrade AutoScaling Group configuration shown above—requesting a modest Desired Instances count of 1—here is the Deploy Service step in the Harness Deployments page:

Here is partial output, showing a successful resizing and deployment:

INFO   2019-06-04T19:03:23.916+0000   Starting AWS AMI Deploy
Getting existing instance Ids
Resizing Asgs
Resizing AutoScaling Group: [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799] to [1]
Set AutoScaling Group: [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799] desired capacity to [1]
Successfully set desired capacity
INFO 2019-06-04T19:03:55.916+0000 AutoScalingGroup [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799] activity [Launching a new EC2 instance: i-0dca2187fac9b6e0f] progress [30 percent] , statuscode [PreInService] details [{"Subnet ID":"subnet-3669906a","Availability Zone":"us-east-1a"}]
Waiting for instances to be in running state. pending=1
INFO 2019-06-04T19:04:10.530+0000 AutoScalingGroup [Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799] activity [Launching a new EC2 instance: i-0dca2187fac9b6e0f] progress [30 percent] , statuscode [PreInService] details [{"Subnet ID":"subnet-3669906a","Availability Zone":"us-east-1a"}]
AutoScaling group reached steady state
Setting min capacity of Asg[Harness__Verification_AMI__Service__test__Quality__Assurance__Setup_Virginia__799] to [1]
[...]
AutoScaling group reached steady state
INFO 2019-06-04T19:06:13.937+0000 AutoScaling Group resize operation completed with status:[SUCCESS]

Basic Workflow Deployment

Now that the setup is complete, you can click Deploy in the Workflow to deploy the artifact to your Auto Scaling Group.

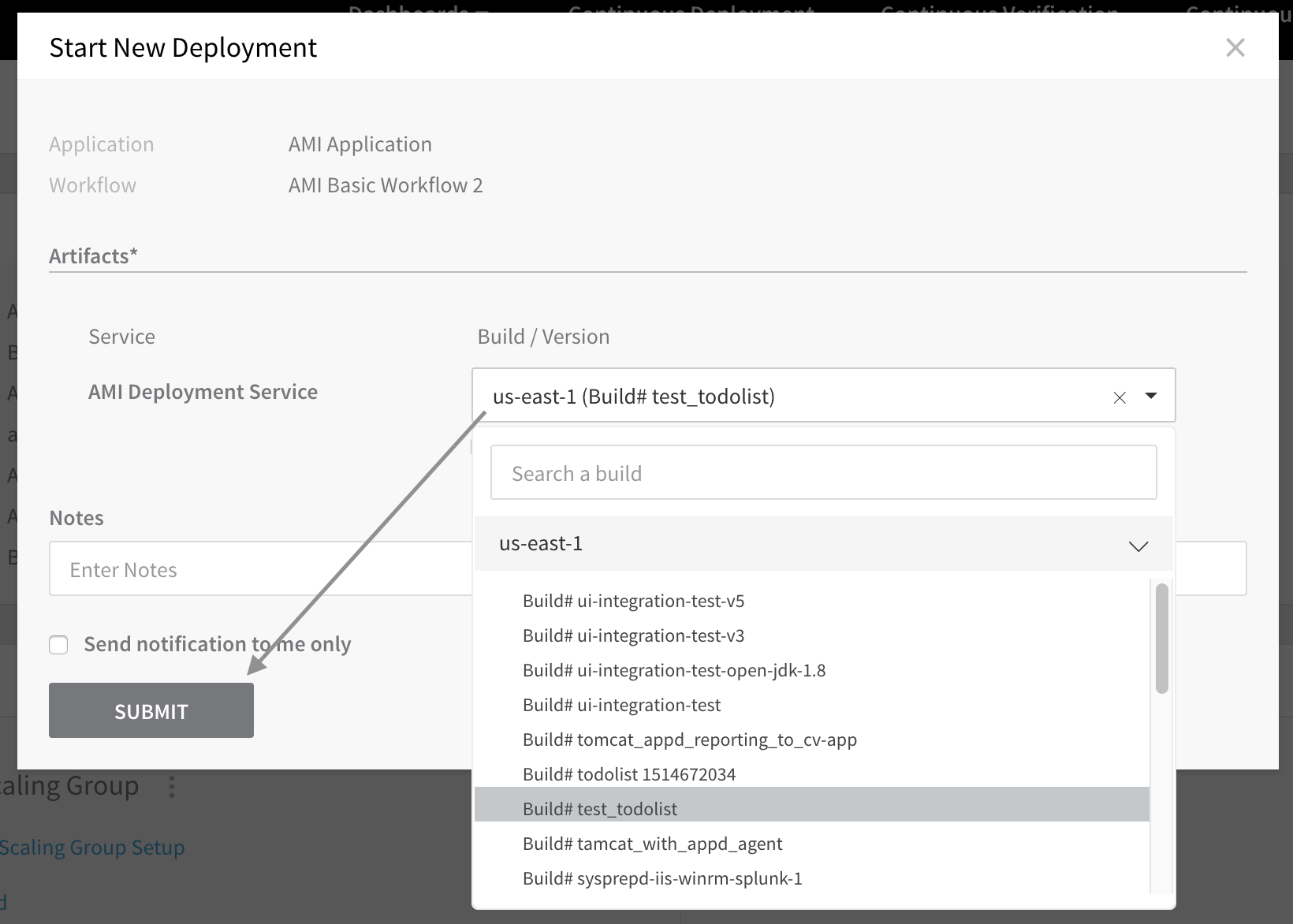

Next, select the AMI you want to deploy. (Harness populates this list from the Artifact Source settings in the AMI Service you created.) Then click SUBMIT.

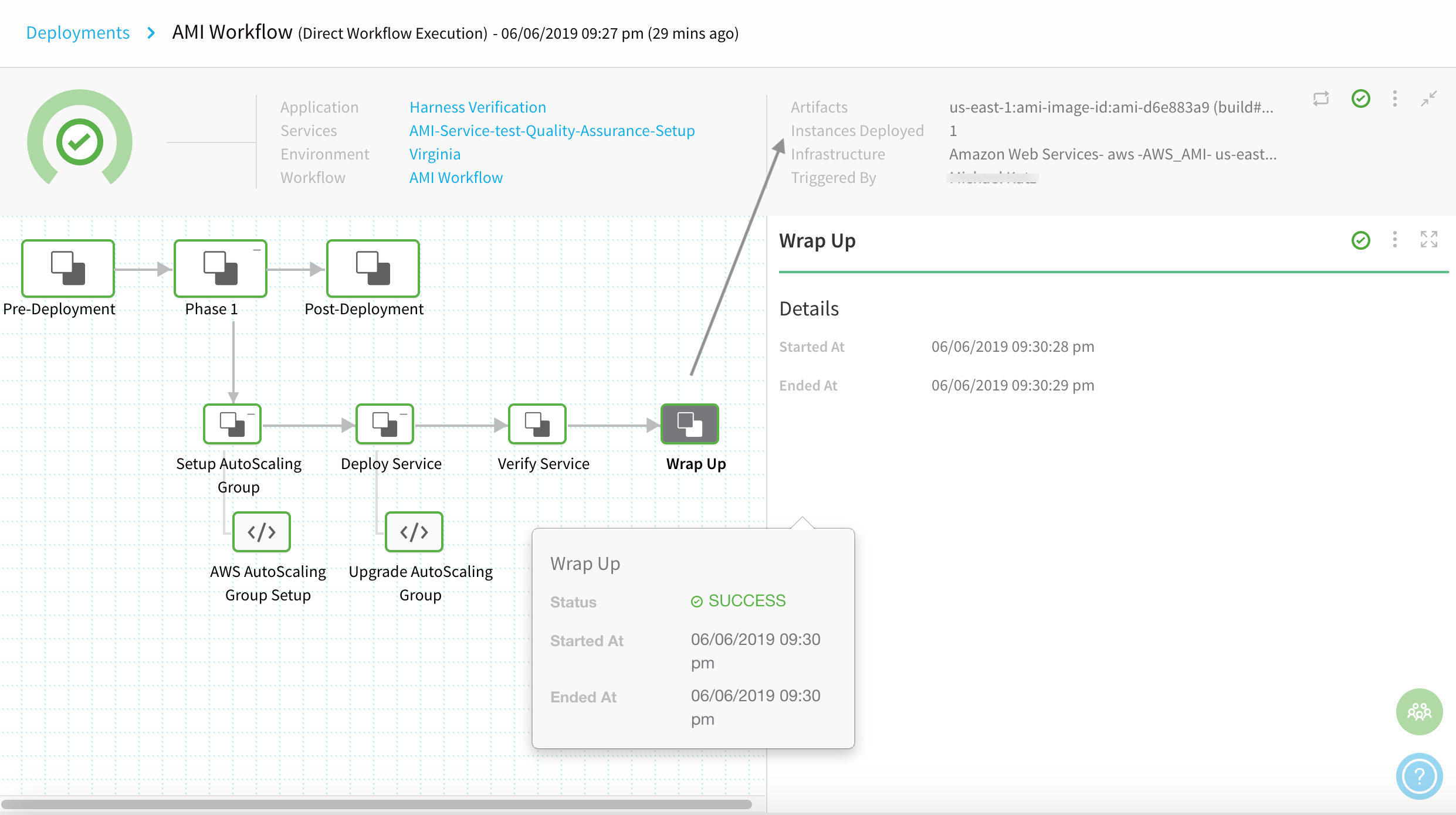

The Workflow deploys. Note that the Deployments page displays details about the deployed instances.

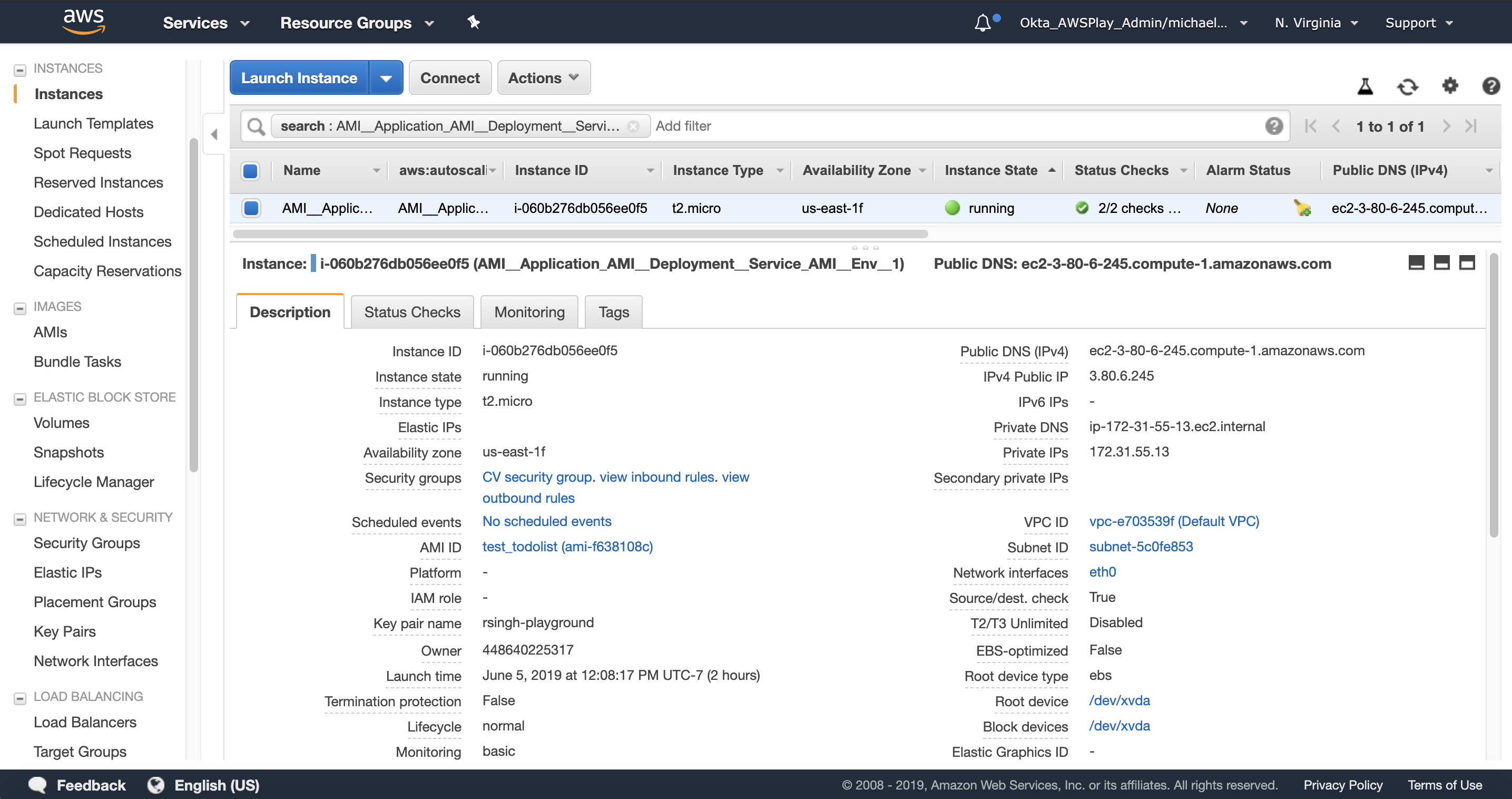

To verify the completed deployment, log into your AWS Console and locate the newly deployed instance(s).

Rollback Steps

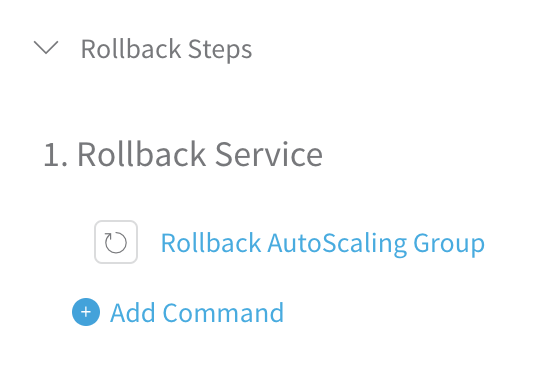

When you create an AMI Workflow, its Rollback Steps section automatically includes a Rollback Service step. This step will execute when Harness needs to roll back your deployment and restore the previous working version.

The configuration options available here depend on the deployment type. For general information about Rollback options, see Workflows.

Multi-Service Rollback

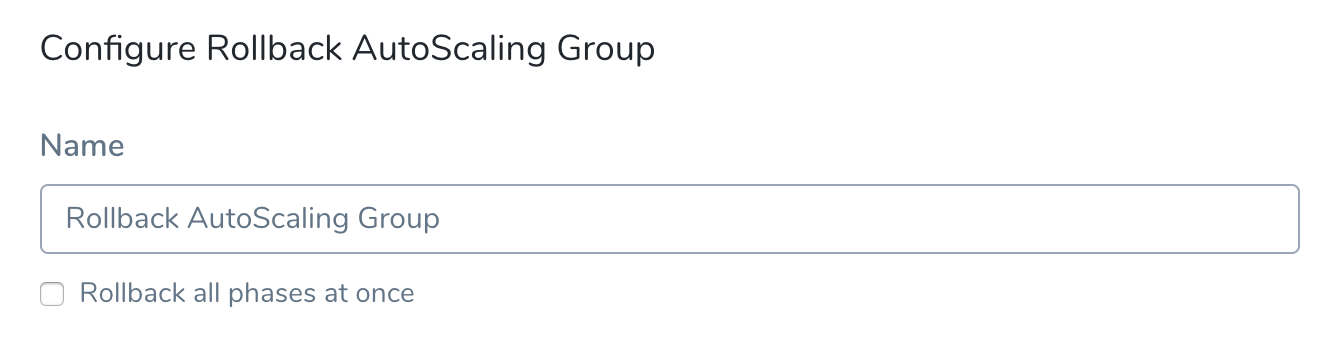

In an AMI Multi-Service Workflow's Rollback Service step, click Rollback AutoScaling Group to open the dialog shown below:

Enable the single option here, Rollback all phases at once, if you want to simultaneously roll back all of the AMI Workflow's Phases, up to the Phase where deployment failed.

For example, if a Workflow's Phase 2 fails to deploy, both Phase 2 and Phase 1 will be rolled back simultaneously. (Harness will ignore any Phase 1 rollback strategy settings.)

If this check box is not enabled, Harness will roll back Phase 2 and then Phase 1, according to each phase's rollback strategy.

Troubleshooting

The following errors might occur when setting up and deploying AMIs in Harness.

Auto Scaling Group Not Showing Up

When you configure an Infrastructure Definition or Service Infrastructure, the Infrastructure Definition or Service Infrastructure dialog's Auto Scale Group drop-down will initially be empty. This is expected behavior. Simply allow a few seconds for the drop-down to populate.

Couldn't Find Reference AutoScalingGroup

If a Workflow's Setup AutoScaling Group step fails with a message of the following form, this indicates that at least one Infrastructure Definition or Service Infrastructure in the Workflow's Environment is configured with an ASG that is not currently available on AWS:

Couldn't find reference AutoScalingGroup: [ECS__QA__Application_AMI_QA__245] in region: [us‑east-1]

To correct this:

  1. In Harness Manager, navigate to your Application's Environments details page.
  2. Open each InfrastructureDefinition or Service Infrastructure used by the Workflow that failed, and navigate to the dialog's lower configuration section. Ensure that the Auto Scaling Groups field points to an ASG to which you currently have access in the AWS Console.
  3. If this does not allow your deployment to proceed, you might also need to toggle the Host Name Convention field's entry between the publicDnsName and privateDnsName primitives. (This depends on whether the Launch Configuration that created your ASG template was configured to create a public DNS name.) For details, see AWS' IP Addressing in a VPC topic.
Harness Manager will prevent you from simply removing a misconfigured Infrastructure Definition or Service Infrastructure, if it's referenced by any of your Application's Workflows. So in some cases, you might find it easiest to create a new Infrastructure Definition/Service Infrastructure, reconfigure your Workflow to use that new infrastructure, and then delete the broken Infrastructure Definition(s)/Service Infrastructure(s).

Next Steps


How did we do?
