Secure Delegates with Tokens

note

Currently, this feature is behind a Feature Flag. Contact Harness Support to enable the feature. Feature Flags can only be removed for Harness Professional and Essentials editions. Once the feature is released to a general audience, it's available for Trial and Community Editions.

See New features added to Harness and Features behind Feature Flags (Early Access) for Feature Flag information.

Delegate tokens are used by Harness to encrypt communication between Harness Delegates and the Harness Manager. By default, when a new Harness account is created, all Harness Delegates in that account include the same token.

You can further secure Delegate to Harness communication by replacing the default Delegate token with new tokens. You can rotate and revoke Delegate tokens per your governance policies and replace revoked tokens with custom tokens when needed.

In this topic:

Before You Begin

Step 1: Generate a New Token

In Harness, click Setup.

Click Harness Delegates.

Click Delegate Tokens.

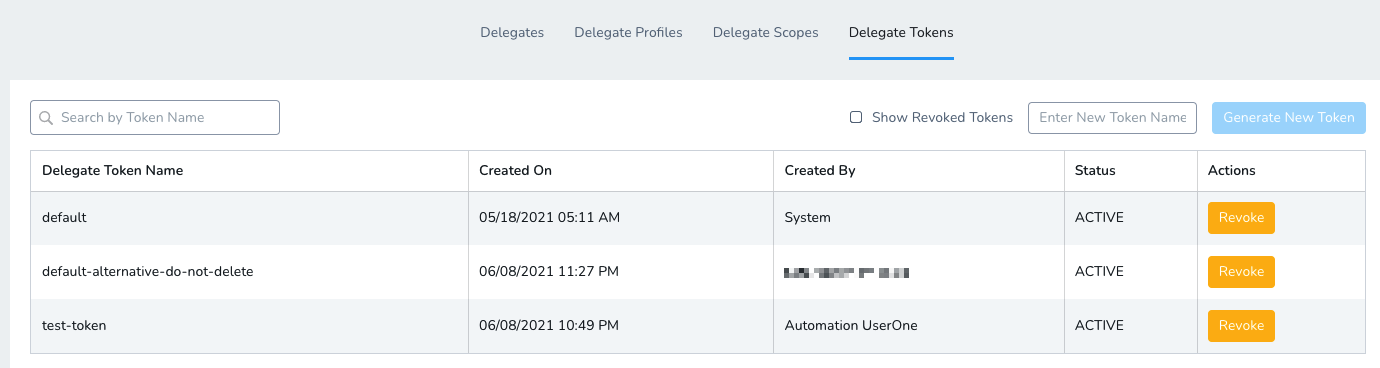

Here you can see, create, and revoke all Delegate tokens.

Enter a name for the new token, and then click Generate New Token.

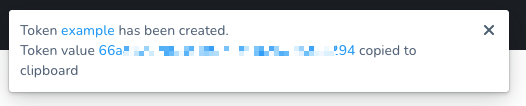

The new token is created and its value is copied to your system clipboard. The new token also appears in the list using the name you gave it.

Save the new token value. You cannot retrieve the token value after this.

Now you can update the Delegate(s) with the new token.

Option: Install a New Delegate with New Token

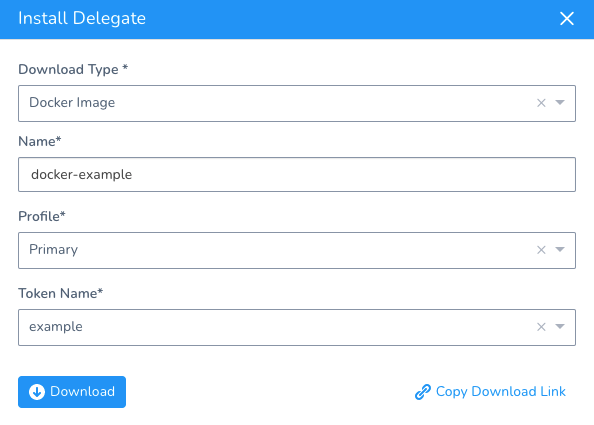

When you install a new Delegate, you can select the token to use:

After the new Delegate registers with Harness, you can:

  • Remove any Delegates that use old tokens
  • Revoke the old tokens

Option: Update and Restart Existing Delegate

You can update an existing Delegate with the new token value and then restart the Delegate.

Kubernetes Delegate

The Delegate is set up using the harness-delegate.yaml you downloaded originally.

Edit the harness-delegate.yaml you downloaded originally with the new token and then run kubectl apply -f harness-delegate.yaml to restart the Delegate pods.

Paste the token into the value field of the DELEGATE_TOKEN environment variable:

...
env:
- name: ACCOUNT_ID
value: AQ8xh0000000005bSM8Fg
- name: DELEGATE_TOKEN
value: [enter new token here]
- name: MANAGER_HOST_AND_PORT
value: https://app.harness.io
...

Run kubectl apply -f harness-delegate.yaml

The Delegate pods restart automatically. The pods restart with the updated settings.

Shell Script Delegate

You can rotate tokens for shell script delegates using one of the following methods:

  • Download a new tar.gz file and reinstall the delegate.
  • Update the value of the delegateToken variable in the start.sh, config-watcher.yaml, and config-delegate.yaml files.

If your delegates were not recently installed, the shart.sh, config-watcher.yaml, and config-delegate.yaml files might refer to the token name accountSecret. Replace these references with delegateToken

When you build the delegate image, add the changes in the init.sh file to the image. The init.sh file must be at the same level as start.sh (/opt/harness-delegate).

Docker Delegate

Docker doesn't provide a way to modify an environment variable in a running container because the operating system doesn't provide a way to modify an environment variable in a running process. You must destroy and recreate the container.

To destroy and recreate the container, use the launch-harness-delegate.sh you downloaded originally.

Paste the token as the value of the DELEGATE_TOKEN variable:

#!/bin/bash -e

sudo docker pull harness/delegate:latest

sudo docker run -d --restart unless-stopped --hostname=$(hostname -f) \
-e ACCOUNT_ID=kmpySm00000006NL73w \
-e DELEGATE_TOKEN=[enter new token here] \
-e MANAGER_HOST_AND_PORT=https://app.harness.io/ \
...

Create a new container: ./launch-harness-delegate.sh

You can verify that the environment variable has the new token using docker exec [container ID] env.

ECS Task Delegate

Update the Delegate by updating the existing ECS task and container instances.

Stop the Delegate task:

aws ecs stop-task --task [task ID or full ARN of the task]

Paste the token into the DELEGATE_TOKEN value field:

...
"cpu": 1,
"environment": [
{
"name": "ACCOUNT_ID",
"value": "Ws0x0000008z4g"
},
{
"name": "DELEGATE_TOKEN",
"value": "[enter new token here]"
},
{
"name": "DELEGATE_CHECK_LOCATION",
"value": "delegate.txt"
},

...

Start the Delegate task:

aws ecs start-task \
--task-definition [family and revision (family:revision ) or full ARN of the task definition] \
--container-instances [container instance IDs or full ARN entries for the container instances]

Helm Delegate

The Delegate is set up using the Helm values YAML file, harness-delegate-values.yaml, that you originally downloaded.

Stop the Helm Delegate.

Paste the token into the delegateToken field in the harness-delegate.yaml file:

# Account Id to which the delegate will be connecting
accountId: XIC000000Ox-cQ

# Secret identifier associated with the account
delegateToken: [enter new token here]

# Short 6 character identifier of the account
accountIdShort: xicobc

delegateName: helm-example
...

Install the Helm Delegate using the Helm Values YAML (in this example, the name is helm-delegate-doc):

helm install --name helm-delegate-doc harness/harness-delegate -f harness-delegate-values.yaml

If you are installing into a specific namespace, you will need the --namespace parameter also:

helm install harness-helm-repo/harness-delegate --name helm-delegate-doc -f harness-delegate-values.yaml --namespace doc-example

Option: Revoke Tokens

To revoke unused token, in Harness, click Setup.

Click Harness Delegates.

Click Delegate Tokens.

Here you can see, create, and revoke all Delegate tokens.

Select the token you want to revoke, and click Revoke.

Click Confirm. The token is revoked. The Harness Manager will not accept connections from any Delegates using this revoked token.
