Publish Workflow Events to an HTTP Endpoint

Updated 2 months ago by Rashmi Nanda Sahoo

Currently, this feature is behind the Feature Flag GRAPHQL_DEV. Contact Harness Support to enable the feature.

To help you analyze how Workflows are performing, Harness can send key Workflow deployment events to a URL endpoint as a JSON payload. Next, you can use other tools to consume and build dashboards for the events.

This topic explains how to publish Workflow events. For information on how to publish Pipeline events, see Publish Pipeline Events to an Http Endpoint.

In this topic:

Before You Begin

Review: Events Published

Currently, Harness publishes the following events:

  • WORKFLOW START
  • WORKFLOW COMPLETE
  • WORKFLOW PAUSE
  • WORKFLOW CONTINUE

Harness will be adding more events soon.

Step 1: Add Event Rule

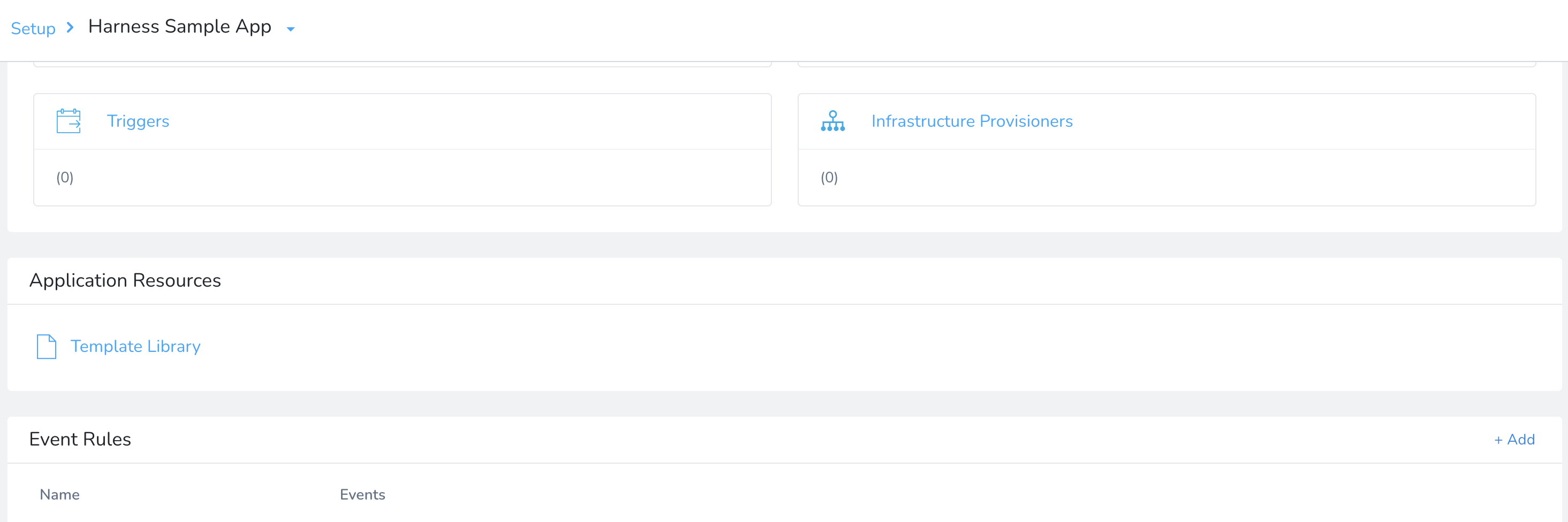

In your Application, in Event Rules, click Add.

The Rule Configuration settings appear.

Enter a name for the event rule.

Option: Send Me Everything

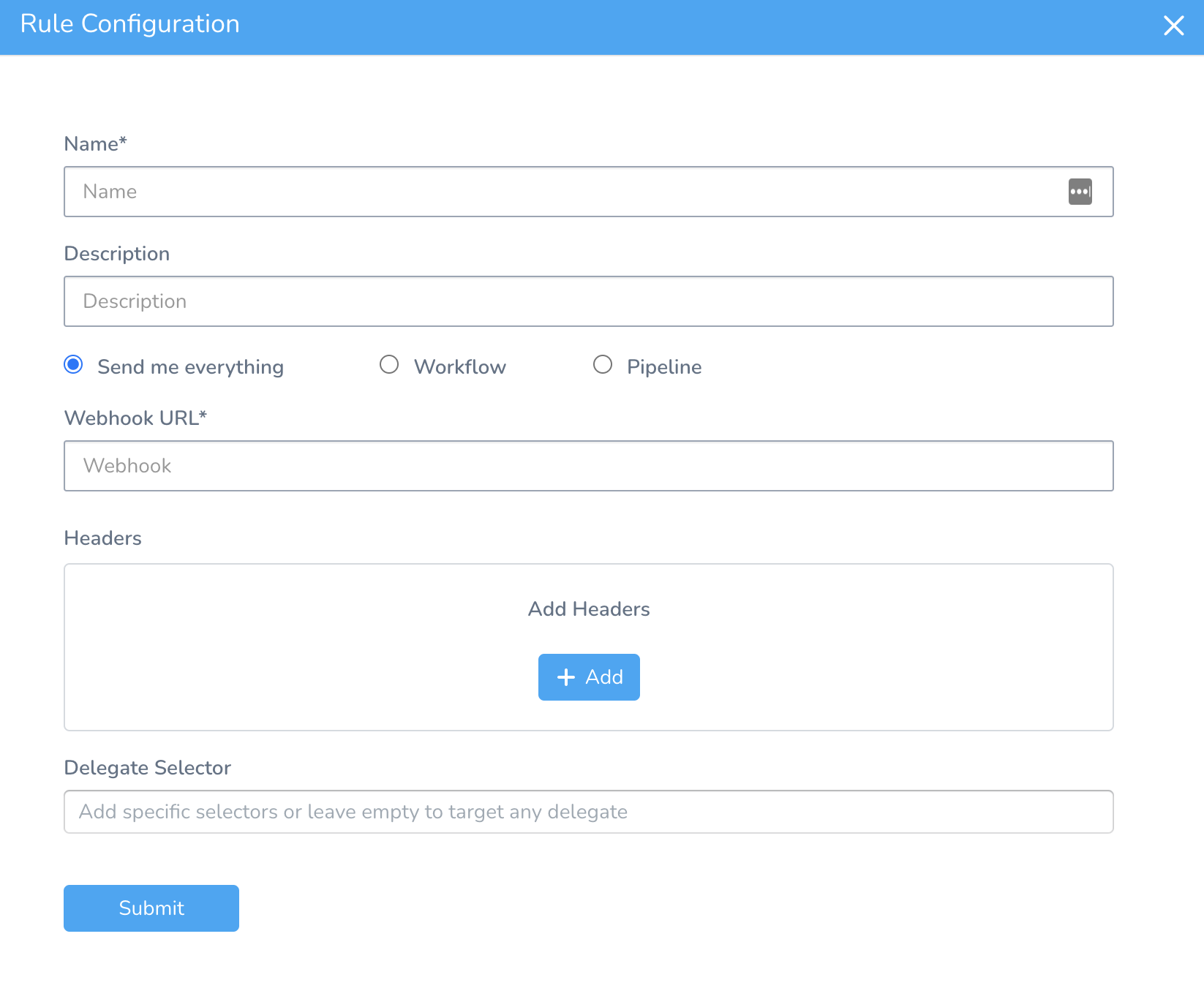

Select Send me everything to send all the events that Harness currently publishes.

Option: Workflow

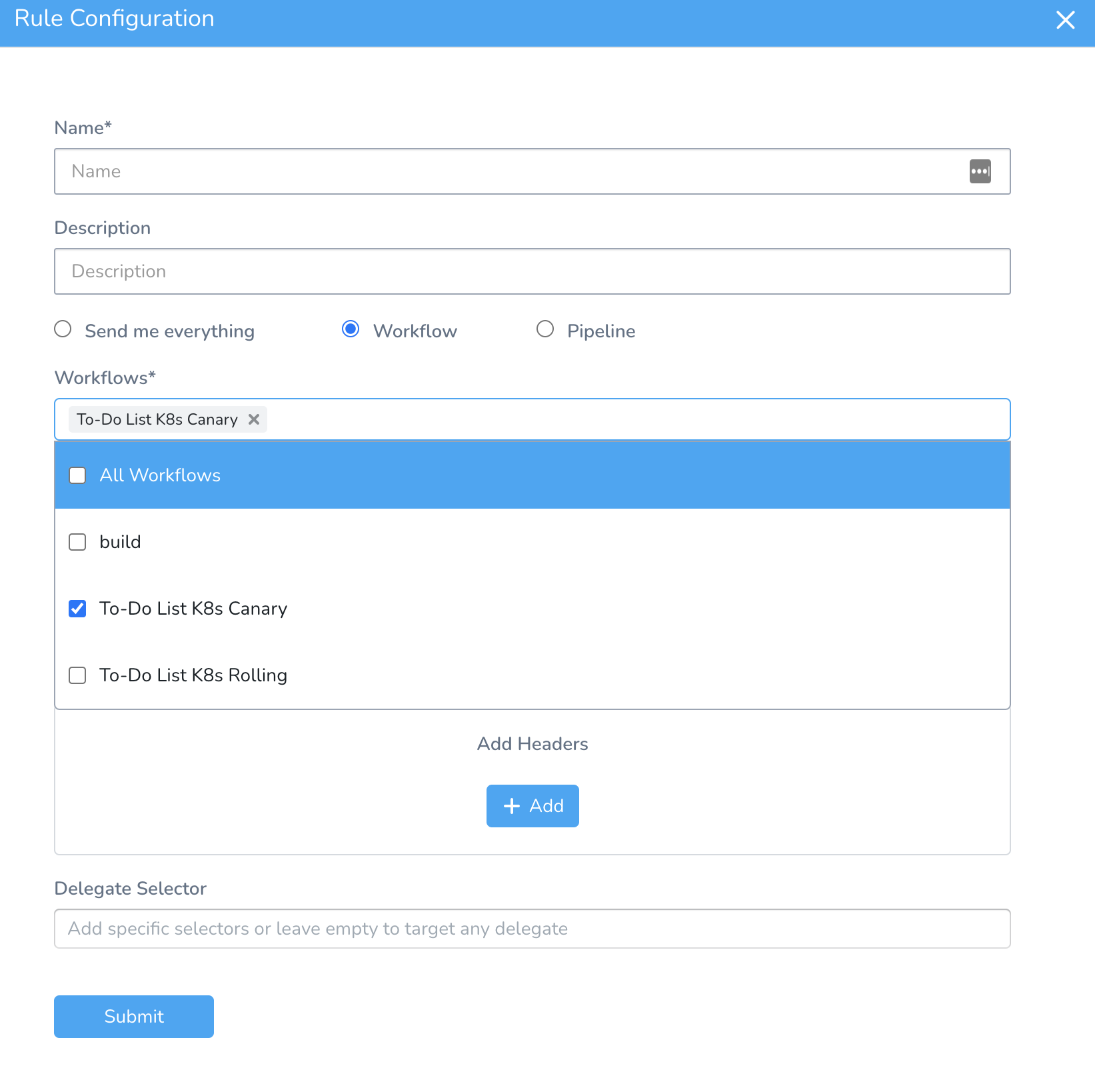

Select Workflow to send events for specific Workflows. In Workflows, select the Workflows you want events for, or select All Workflows.

Option: Pipeline

Select Pipeline to send events for specific Pipelines. For more information, see Publish Pipeline Events to an HTTP Endpoint.

Step 2: Select Events

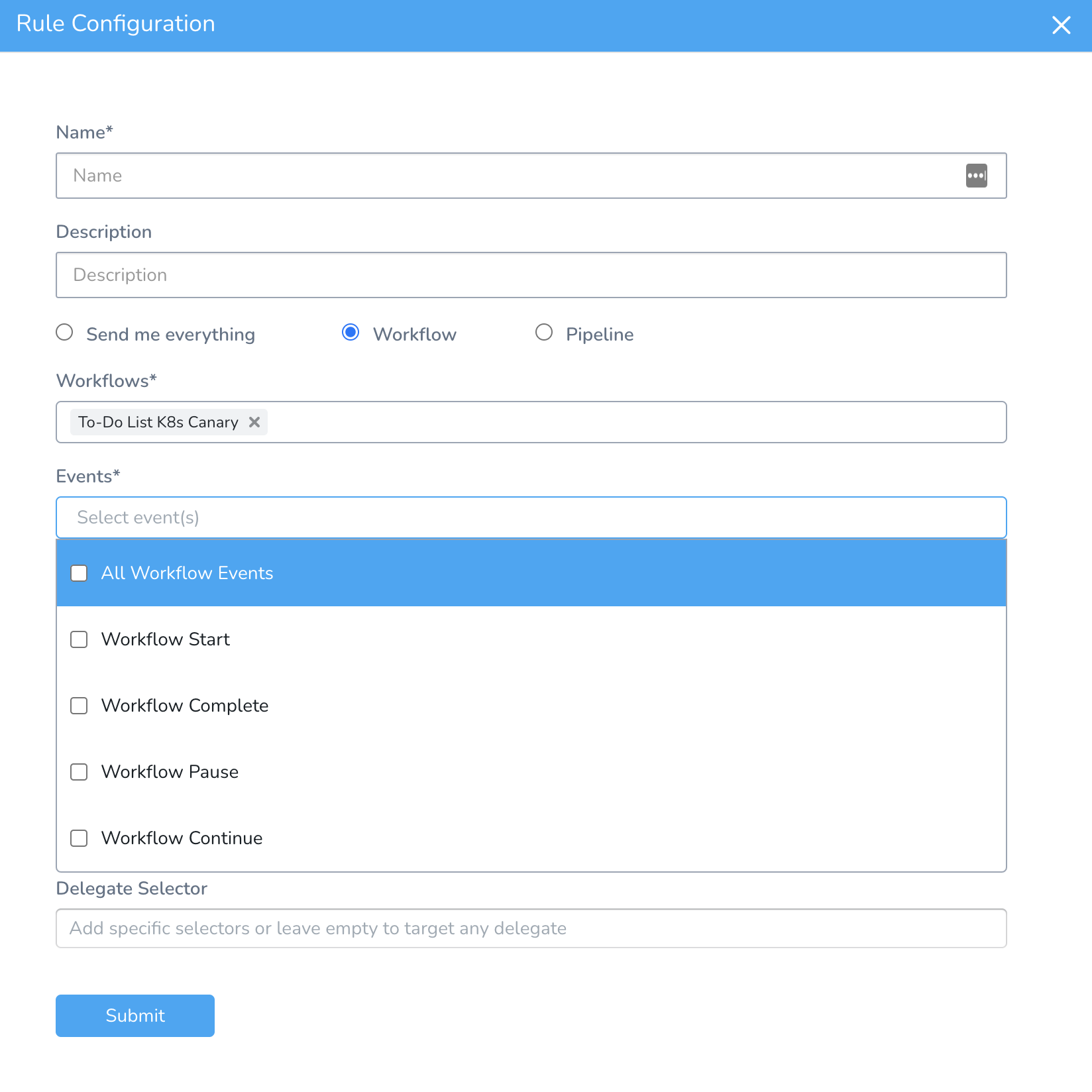

In Events, select the event types you want to publish or select All Events.

Step 3: Enter the Webhook URL

In Webhook URL, enter the HTTP endpoint URL where Harness will publish the events for this rule.

This is the URL you will use to consume events.

Step 4: Add Headers

Add any HTTP headers that you want to send with the events.

Step 5: Delegate Selector

By default, Harness will select any available Delegate. You might want to use a specific Delegate because you know it has access to the endpoint URL.

In Delegate Selector, select the Selector for the Delegate(s) you want to use.

You add Selectors to Delegates to make sure that they're used to execute the command. For more information, see Select Delegates with Selectors.

Harness will use Delegates matching the Selectors you add.

If you use one Selector, Harness will use any Delegate that has that Selector.

If you select two Selectors, a Delegate must have both Selectors to be selected. That Delegate might also have other Selectors, but it must have the two you selected.

You can use expressions for Harness built-in variables or Account Default variables in Delegate Selectors. When the variable expression is resolved at deployment runtime, it must match an existing Delegate Selector.

Click Submit.

Step 6: Enable the Rule

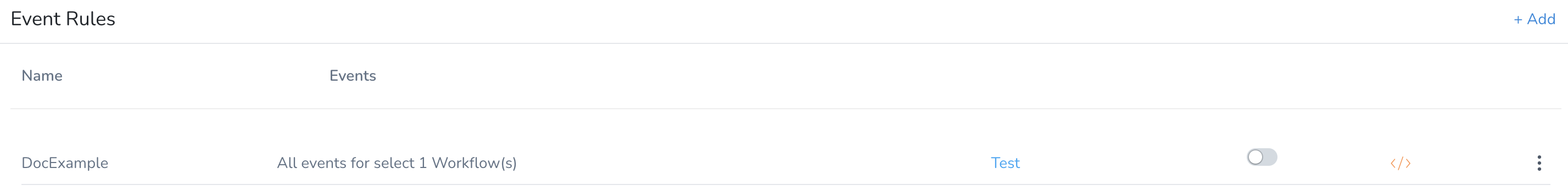

By default, the Rule you just created is disabled. You can enable the rule using the toggle button.

Step 7: Test the Event Rule

You can test an event rule to see if the rule is enabled or disabled.

To test the rule, click Test.

Here is a Workflow Start event payload example:

{
"id": "86afca34-4cb1-4859-b1c6-11f398f55a4b",
"eventType": "workflow_start",
"data": {
"pipeline": {
"name": "K8s Prod Pipeline",
"id": "T4XKvdmXRM-zjyfyMHBlxg"
},
"application": {
"name": "Harness Sample App",
"id": "V9DxliUiS_SVzmNPkkR5Ow"
},
"workflow": {
"name": "To-Do List K8s Rolling",
"id": "smcCVuvCT4SCyayxG85U8w"
},
"environments": [
{
"id": "5Rx44pB4RC-eAt2SB10l_A"
}
],
"workflowExecution": {
"id": "Ji0GRNDvSKCaiNmrLT8Fmg"
},
"pipelineExecution": {
"id": "j_V2nAroRbCdy8tmiy6eoA"
},
"startedAt": 1644938260133,
"infraDefinitions": [
{
"id": "MfxXXKPdRjysPEE_KZCaHA"
}
],
"services": [
{
"id": "2U9X2Z3YTBmQOvUMaWDy-Q"
}
],
"triggeredBy": {
"name": "Admin",
"uuid": "lv0euRhKRCyiXWzS7pOg6g",
"email": "[email protected]"
}
},
"version": "v1"
},
"query": {}
},
"eventName": "wfEvents",
"createdAt": 1644938267179,
"expiry": 1647530267,
"id": "1644938267179-LU/fwFNTueqnFVx315rU7A=="
}

Here is a Workflow Complete event payload example:

{
"id": "0c3eecb7-e9cf-400a-b3b1-be6ce9d2bf9f",
"eventType": "workflow_end",
"data": {
"pipeline": {
"name": "K8s Prod Pipeline",
"id": "T4XKvdmXRM-zjyfyMHBlxg"
},
"completedAt": 1644938268018,
"application": {
"name": "Harness Sample App",
"id": "V9DxliUiS_SVzmNPkkR5Ow"
},
"workflow": {
"name": "To-Do List K8s Rolling",
"id": "smcCVuvCT4SCyayxG85U8w"
},
"environments": [
{
"id": "5Rx44pB4RC-eAt2SB10l_A"
}
],
"workflowExecution": {
"id": "Ji0GRNDvSKCaiNmrLT8Fmg"
},
"pipelineExecution": {
"id": "j_V2nAroRbCdy8tmiy6eoA"
},
"startedAt": 1644938260133,
"infraDefinitions": [
{
"id": "MfxXXKPdRjysPEE_KZCaHA"
}
],
"services": [
{
"id": "2U9X2Z3YTBmQOvUMaWDy-Q"
}
],
"triggeredBy": {
"name": "Admin",
"uuid": "lv0euRhKRCyiXWzS7pOg6g",
"email": "[email protected]"
},
"status": "FAILED"
},
"version": "v1"
},
"query": {}
},
"eventName": "wfEvents",
"createdAt": 1644938276855,
"expiry": 1647530276,
"id": "1644938276855-zy4xu3CNdCFbm/gn9QCJog=="
}

You can see various Workflow event details in both payload examples. The Ids correspond to Harness entities in the Harness Application such as Services and Environments.

To perform analysis on Workflow performance, you can use the startedAt and completedAt timestamps (in milliseconds).

Notes

  • The Event Rules do not appear in the Configure As Code YAML.
  • If you delete an Application, its Event Rules are also deleted.
