Add Samba Server Artifact Servers

Updated 11 months ago by Chakravarthy Tenneti

You can share files and folders on your network and use them for an SMB Artifact Server connection.

In this topic:

Before You Begin

Visual Summary

Here's an example configuration of Samba Server Artifact Source.

The SMB dialog has the following fields.

Step 1: Select Samba Server

To connect to an artifact server, do the following:

  1. Click Setup.
  2. Click Connectors.
  3. Click Artifact Servers.
  4. Click Add Artifact Server.
  5. In Type, click Samba Server.

Step 2: Display Name

Enter a name for the Samba Server. This is the name you will use to identify this connection when adding the Artifact Source to a Harness Service.

Step 3: SMB URL

Enter a value that contains the smb:\\ scheme followed by the hostname or IP address and folder name. For example, smb:\\23.100.87.22\share.

If you want to specify a folder in the URL, you can enter the folder using the \myFolder format, such as smb:\\23.100.87.22\myFolder. Typically, you will specify the folder when you use the SMB Artifact Server as an Artifact Source for a Service.

Step 4: Domain

Enter the Windows domain where the host containing the shared folder is located.

Step 5: Username and Password

Use a user account that has permissions to access the shared folder.

For secrets and other sensitive settings, select or create a new Harness Encrypted Text secret.

Usage Scope is determined by the secret you selected.

Click Submit.

Review: Adding Samba Server to a Service

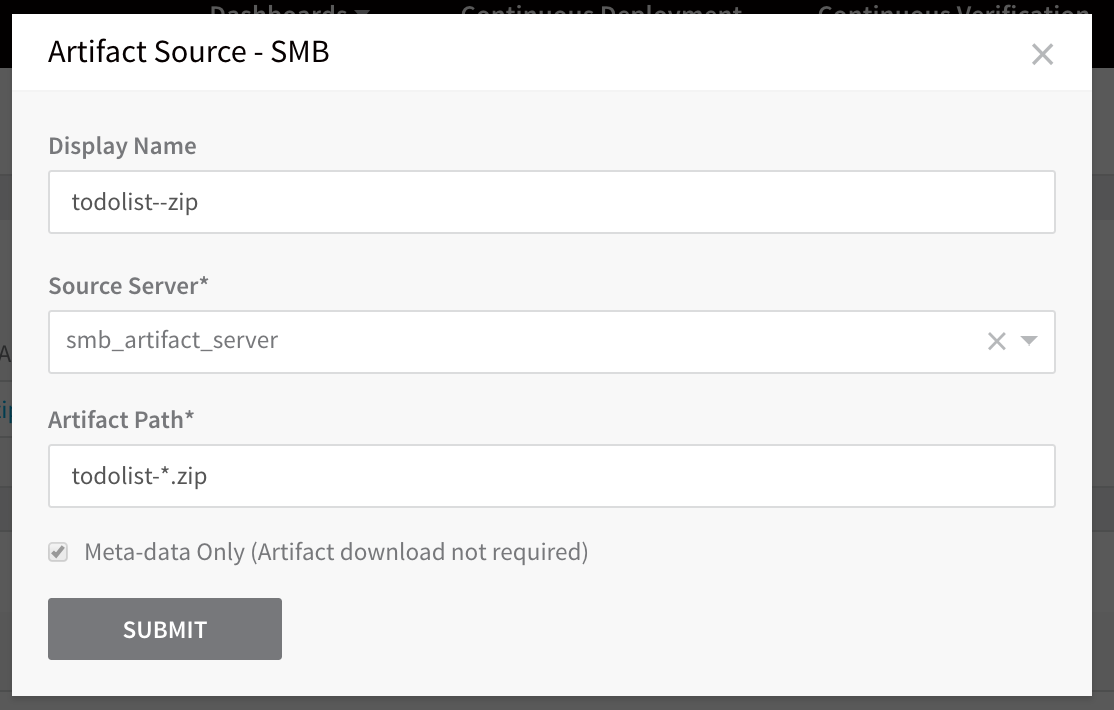

When you use the SMB Artifact Server as an Artifact Source for a Service, you can specify a file or a folder for the artifact. This allows a folder to be copied to the deployment target host by the Harness Delegate. Here is the SMB Artifact Source dialog:

In Artifact Path, you can specify a file or folder by name or using wildcards. The following are examples for matching different files and folders:

  • todo-*zip - All matching files, such todo-1.0.zip, todo-2.0.zip.
  • test/*zip - All zip files under test folder.
  • test/1* - All folders under test folder starting with 1.
  • test/* - All folders under test folder.
