Delegate Task Category Mapping

Updated 3 weeks ago by Michael Cretzman

The Task Category Map feature replaces the Command setting in Delegate Scopes, which is deprecated and will be removed soon.

Harness deployments are broken down into separate tasks performed by Harness Delegates.

Tasks are organized by category. For example, all the connections and images pulled using Docker Hub are part of the Docker Hub Task Category.

By default, Harness performs tasks using any available Delegates. If you want Harness to prioritize a specific Delegate for a task category, you can map the task category to a Selector, and apply that Selector to a Delegate.

The mapped Selector can also be used in certain Harness entities to prioritize Delegates, such as Cloud Providers and the Shell Script Workflow step.

This topic describes how to map task categories to Selectors, and then apply the Selector to one or more Delegates.

In this topic:

Before You Begin

The Delegate is a key component of your Harness setup. Please review the following topics to ensure you have a solid understanding of the Delegate:

Supported Platforms and Technologies

See Supported Platforms and Technologies.

Visual Summary

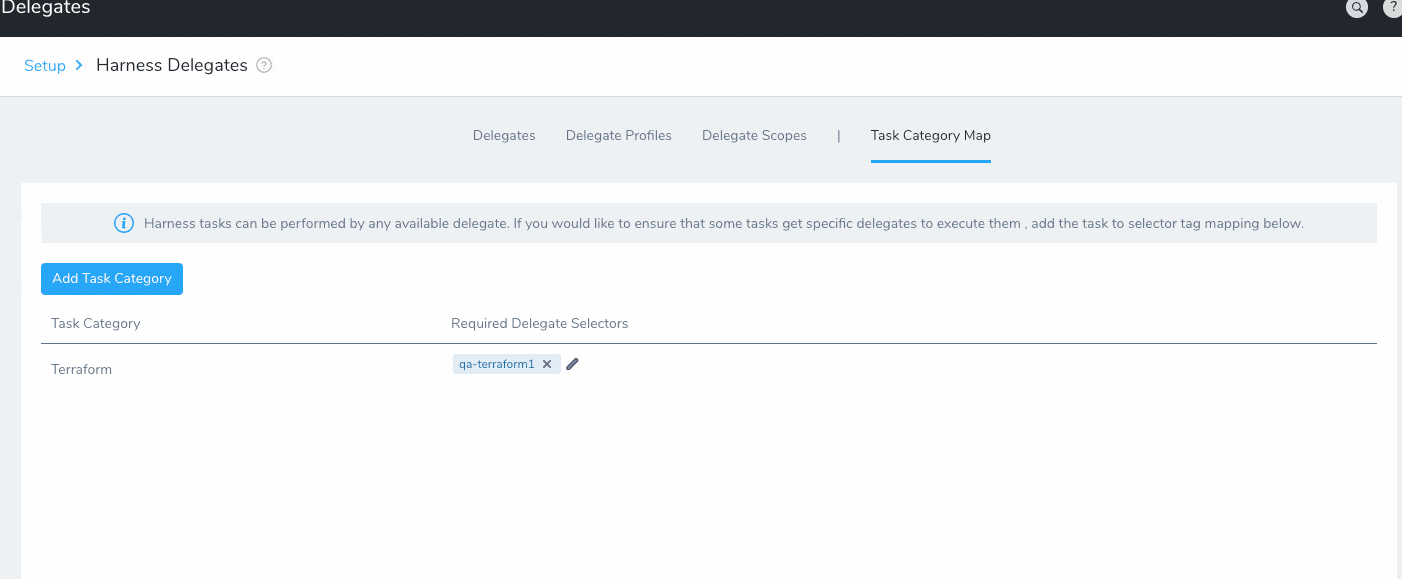

Here is example of adding a new Selector to a Delegate, and then mapping the Selector to a Task Category:

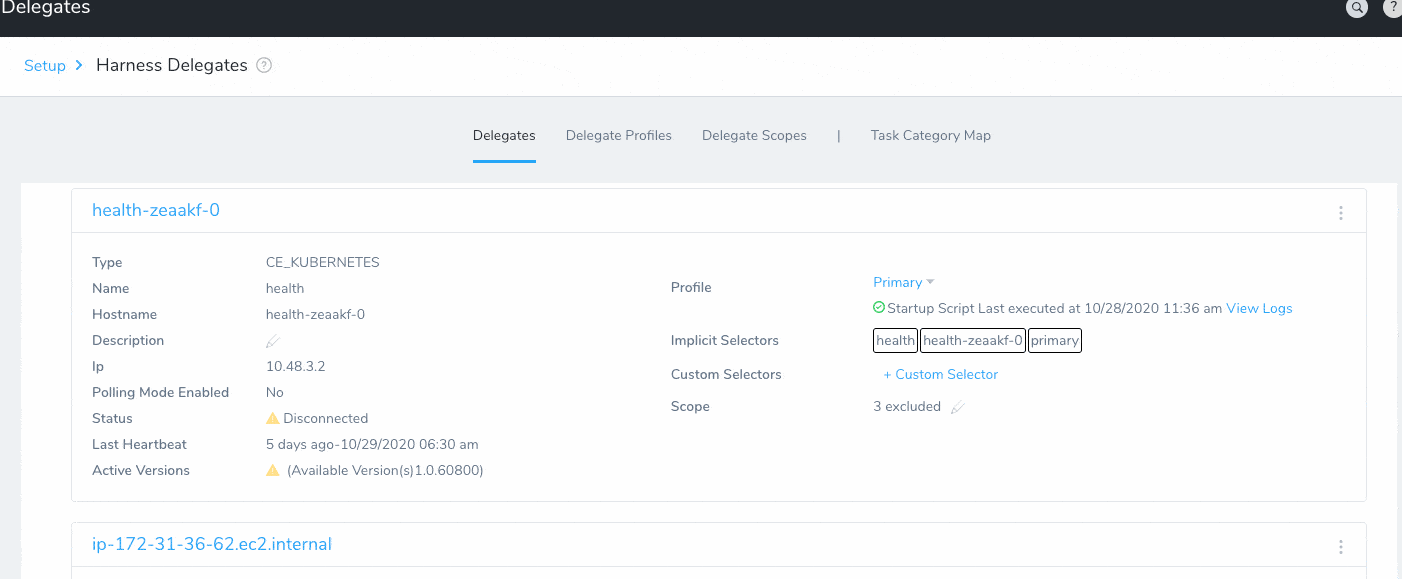

Here is an example of adding a Selector to a Task Category Mapping, and then applying the Selector to a Delegate:

Step 1: Set Permissions

To map Selectors to Task Categories a user must belong to a User Group with the Account Permission Manage Delegates enabled.

See Managing Users and Groups (RBAC).

Step 2: Map a Selector to a Task Category

  1. To map a Selector to a Task Category, in Setup, click Harness Delegates.
  2. Click Task Category Map.
  3. Click Map Task Category.
  4. In Task Category, select the category you want to map. See Review: Task Categories.
  5. Select or create selectors to map to this Task Category.
    1. You can simply enter the name of a new Selector and click Create.
    2. If you have an existing Selector, one that is perhaps already used by a Delegate or Delegate Profile, you can start entering its name and it will appear. Next, click its name to select it.
      You must select or create at least one Selector.
  6. Click Submit. The Task Category is now mapped to the Selector.

If this Selector is not being used by a Delegate or Profile, you can now add it to one or both.

Review: Applying Selectors to Delegates and Profiles

Once you have mapped a Selector to a Task Category, you can apply the Selector to a Delegate using the following options:

  • Add the Selector to the Delegate's Custom Selectors setting.
  • Add the Selector to a Delegate Profile, and then add the Profile to any Delegates. All the Delegates using that Profile are thereby mapped to the Task Category.

For steps on adding Custom Selectors, see Select Delegates with Selectors.

For steps on adding Profile Selectors, see the Selector option in Run Scripts on Delegates using Profiles.

Which option to use?

If your task requires a Delegate Profile, it is best to map the Task Category to a Selector and apply that Selector to the Profile. All Delegates assigned that Profile will then perform the mapped tasks.

If your task can only be performed by specific Delegates because of their location or credentials, it is best to map it to specific Delegate using a Delegate's Custom Selectors setting.

Review: Task Categories

The following table describes the different task categories.

Task Category

Description

Amazon Machine Image (AMI)

Perform tasks related to AMI Deployments.

Amazon Elastic Container Registry (ECR)

Connect and pull images from ECR.

Amazon S3

Connect and pull artifacts and files from Amazon S3.

AppDynamics

Perform AppDynamics verification tasks.

AWS

Connect using any Harness AWS Cloud Provider.

APM

Delegate can perform any APM task

Artifactory

Connect to JFrog Artifactory using the Artifactory Artifact Server credentials.

Azure Container Registry

Connect and pull Azure Container Registry images and artifacts.

Bamboo

Perform Bamboo related tasks using the Bamboo Artifact Server credentials.

Build Source

Perform tasks for any Build Workflow.

CloudFormation

Perform CloudFormation tasks such as CloudFormation Create Stack and CloudFormation Delete Stack Workflow steps. See CloudFormation Provisioning with Harness.

CloudWatch

Perform configuration and verification using AWS CloudWatch.

Collaboration Provider

Connect and configure Harness Collaboration Providers.

Command

Delegate will be used first for Service commands.

Connectivity Validation

Tests connectivity with resources, such as Harness Cloud Providers.

Container

Performs the following container-related tasks:

  • Container active service counts
  • Container information
  • Controller names with labels
  • Container Continuous Efficiency (CE) validation
  • CE Delegate validation
  • Container connection validation
  • List clusters
  • Container validation
  • Fetch Kubernetes master URL
  • Kubernetes steady state check
  • Kubernetes swap service selectors
  • ECS steady state check
  • Validate Kubernetes config

Custom Artifact Source

Collect artifacts using Custom Artifact Sources.

Custom Log Collection and Bugsnag

Perform configuration and verification using Custom Logs and Bugsnag Verification Overview

Dynatrace

Perform configuration and verification using Dynatrace.

Docker Hub

Connect to Docker Hub and pull down metadata associated with the artifact.

ELK

Perform configuration and verification using ELK.

Git

Perform configuration and tasks Git Source Repo Providers.

Google Cloud Build

Perform Google Cloud Build related tasks.

Google Cloud Storage

Connect and pull artifacts from Google Cloud Storage.

Google Container Registry

Connect and pull artifacts from GCR.

Helm

Delegate can perform Native Helm deployment tasks.

Helm Repo Config Validation

Validate the Helm Repo connection.

Helm Values Fetch

Fetch values.yaml for Native and Kubernetes Helm deployments.

HTTP Verification

Perform the HTTP step in a Workflow.

Host Validation

Validating target hosts availability. For example, see Select Nodes Workflow Step.

Jenkins

Connect and perform tasks for Jenkins.

Jira

Connect and perform tasks for Jira.

Key Management Service

Connect and perform tasks for Harness Secrets Managers.

Kubernetes

Performs Kubernetes rollouts for Kubernetes deployments.

LDAP

Connect to LDAP server and perform LDAP tasks.

Logz

Connect and perform Logz tasks.

Nexus

Connect to Nexus and pull down metadata associated with the artifact.

New Relic

Connect and perform New Relic tasks.

Prometheus

Connect and perform Prometheus tasks.

PCF

Connect and perform Pivotal (PCF) deployments.

Service Guard

Perform 24/7 Service Guard tasks.

ServiceNow

Connect and perform ServiceNow tasks.

SFTP

Delegate can perform SFTP (email server) tasks such as sending emails.

Splunk

Connect and perform Splunk tasks.

Shell Script

Perform Shell Script step in a Workflow.

Shell Script Provision

Delegate can perform Shell Script Provisioner tasks.

Slack Notifications

Delegate can perform tasks related to sending Slack notifications.

SMB

Delegate can perform tasks related to SMB Artifact Servers

SpotInst

Delegate can perform SpotInst Deployments and connect to the SpotInst Cloud Provider.

Sumo Logic

Delegate can perform tasks related to Sumo Logic calls and Sumo Logic Verification Provider.

Terraform

Delegate can perform Terraform tasks.

Trigger

Delegate can perform tasks related to Harness Triggers.

Continuous Integration

Delegate can perform tasks related to CI: Jenkins, Bamboo.

Artifact Collection In Pipeline

Delegate can perform the artifact collection step in a Pipeline.
