Use Approvals API

You can query for the pending Approval steps and stages of a Workflow or Pipeline using Harness approvalDetails GraphQL API.

Once you have found the Approval step or stage, you can use the approveOrRejectApprovals mutation to approve or reject it.

Before You Begin​

Supported Platforms and Technologies​

See Supported Platforms and Technologies.

Requirements​

The approvalDetails GraphQL API uses the same RBAC required for the Approval step type. The API can be run using a user session or API key, as described in Harness API Explorer.

For example, if the Approval is a Harness UI Approval step, you must be a member of the User Group(s) selected as approvers for that step in order to use the API to accept/reject the step.

Step: Get Application and Execution Ids​

To use the approvalDetails API you need the Ids of the Application and Workflow/Pipeline execution where the approval steps/stages are located.

In the API, you will enter them like this:

approvalDetails(applicationId: "[Application Id]", executionId: "[execution Id]"){
...
}

You can get these Ids using the GraphQL API. See:

Also, you can see these Ids in the URL of an execution in the Deployments page.

Step: Query Approvals by Execution​

The following example shows how to query a Workflow execution for all its Approval steps, including all of the available types (Jira, ServiceNow, Shell Script, User Group):

{
  approvalDetails(applicationId: "_2rA0SO7TE-AAurQv-GiIA", executionId: "0dyqdgJ0TE2rrHII5JISGw") {
    approvalDetails {
      approvalId
      approvalType
      stepName
      stageName
      startedAt
      triggeredBy {
        name
        email
      }
      willExpireAt
      ... on UserGroupApprovalDetails {
        approvers
        approvalId
        approvalType
        stepName
        stageName
        startedAt
        executionId
        triggeredBy {
          name
          email
        }
        willExpireAt
        variables {
          name
          value
        }
      }
      ... on ShellScriptDetails {
        approvalId
        approvalType
        retryInterval
        stageName
        stepName
        startedAt
        triggeredBy {
          email
          name
        }
        willExpireAt
      }
      ... on SNOWApprovalDetails {
        approvalCondition
        approvalId
        approvalType
        currentStatus
        rejectionCondition
        stageName
        startedAt
        stepName
        ticketType
        ticketUrl
        triggeredBy {
          email
          name
        }
        willExpireAt
      }
      ... on JiraApprovalDetails {
        approvalCondition
        approvalId
        approvalType
        currentStatus
        issueKey
        issueUrl
        rejectionCondition
        stepName
        stageName
        startedAt
        triggeredBy {
          email
          name
        }
        willExpireAt
      }
    }
  }
}

In this example, the Workflow only contains User Group Approval step (Harness UI Approvals), so the results are for Approval steps of the USER_GROUP type:

{
  "data": {
    "approvalDetails": {
      "approvalDetails": [
        {
          "approvalId": "IyqEFWtTQSer0xcTvoy2SQ",
          "approvalType": "USER_GROUP",
          "stepName": "Approval_2",
          "stageName": null,
          "startedAt": "1628609788702",
          "triggeredBy": {
            "name": "john.doe@harness.io",
            "email": "john.doe@harness.io"
          },
          "willExpireAt": "1628696188702",
          "approvers": [
            "myUserGroup"
          ],
          "executionId": "0dyqdgJ0TE2rrHII5JISGw",
          "variables": null
        },
        {
          "approvalId": "2AScQdfqSOCYTPdHAsXRsQ",
          "approvalType": "USER_GROUP",
          "stepName": "Approval",
          "stageName": null,
          "startedAt": "1628609788693",
          "triggeredBy": {
            "name": "john.doe@harness.io",
            "email": "john.doe@harness.io"
          },
          "willExpireAt": "1628696188693",
          "approvers": [
            "Account Administrator"
          ],
          "executionId": "0dyqdgJ0TE2rrHII5JISGw",
          "variables": null
        }
      ]
    }
  }
}

Step: Approve or Reject Approval​

To approve or reject an Approval step, you need the Application, Execution, and Approval step Ids. The Approval step Id is displayed in the results of the approvalDetails query:

{
  "data": {
    "approvalDetails": {
      "approvalDetails": [
        {
          "approvalId": "IyqEFWtTQSer0xcTvoy2SQ",
          "approvalType": "USER_GROUP",
          "stepName": "Approval_2",
...

Once you have the Ids, you use the mutation approveOrRejectApprovals to approve/reject. The approveOrRejectApprovals mutation includes an action parameter where you approve/reject the step/stage.

The action parameter has two values:

  • APPROVE
  • REJECT

Here's an example:

mutation {
 approveOrRejectApprovals(input: {
  action: APPROVE
  approvalId: "jupRo7KxTamKSJyR4BXc5A"
  applicationId: "iDnsEHm6SH-3au-yEaeaRA"
  comments: "Testing"
  executionId: "p1AuqRjLTDCrbvBKuENzxQ"
  clientMutationId: "testing"
  })
  {
  success
  clientMutationId
  }
}

If the Approval contains variables, you can provide values for the variable in the mutation using variableInputs:

mutation {
 approveOrRejectApprovals(input: {
  action: APPROVE
  approvalId: "jupRo7KxTamKSJyR4BXc5A"
  applicationId: "iDnsEHm6SH-3au-yEaeaRA"
  comments: "Testing"
  executionId: "p1AuqRjLTDCrbvBKuENzxQ"
  clientMutationId: "testing"
  variableInputs: [ {
    name: "var1"
    value: "var1Value"
  },
  {
    name: "var2"
    value: "var2Value"}],
  })
  {
  success
  clientMutationId
  }
}

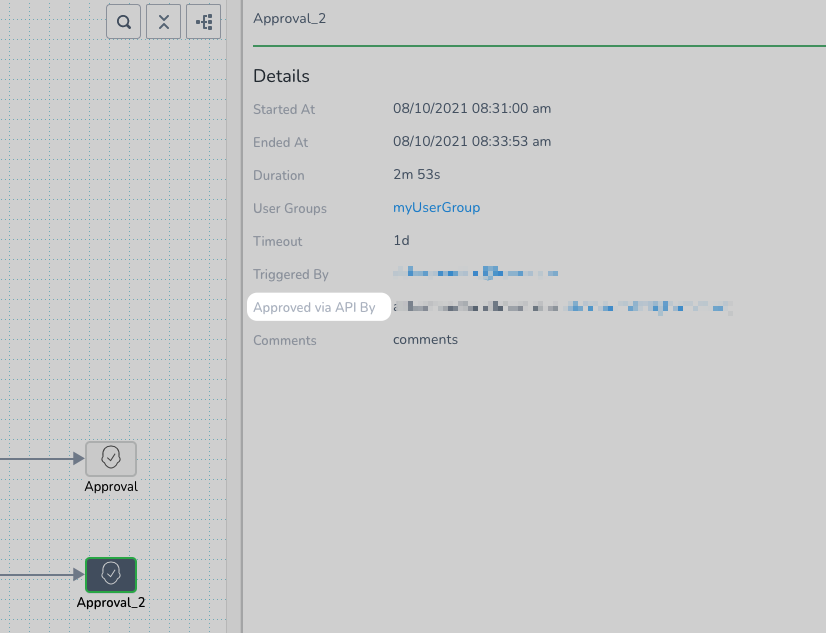

Whether an Approval step is approved/rejected via the GraphQL API is highlighted in the Deployment details:
