3 - Verify Deployments with Sumo Logic

Updated 1 week ago by Michael Cretzman

Harness can analyze Sumo Logic data and analysis to verify, rollback, and improve deployments. To apply this analysis to your deployments, you set up Sumo Logic as a verification step in a Harness Workflow.

This section covers how to set up Sumo Logic in a Harness Workflow, and provides a summary of Harness verification results.

In order to obtain the names of the host(s), pod(s), or container(s) where your service is deployed, the verification provider should be added to your workflow after you have run at least one successful deployment.

Deployment Verification Setup

To verify your deployment with Sumo Logic, do the following:

  1. Ensure that you have added Sumo Logic as a verification provider, as described above.
  2. In your workflow, under Verify Service, click Add Verification, and then click Sumo Logic. The Sumo Logic dialog appears.

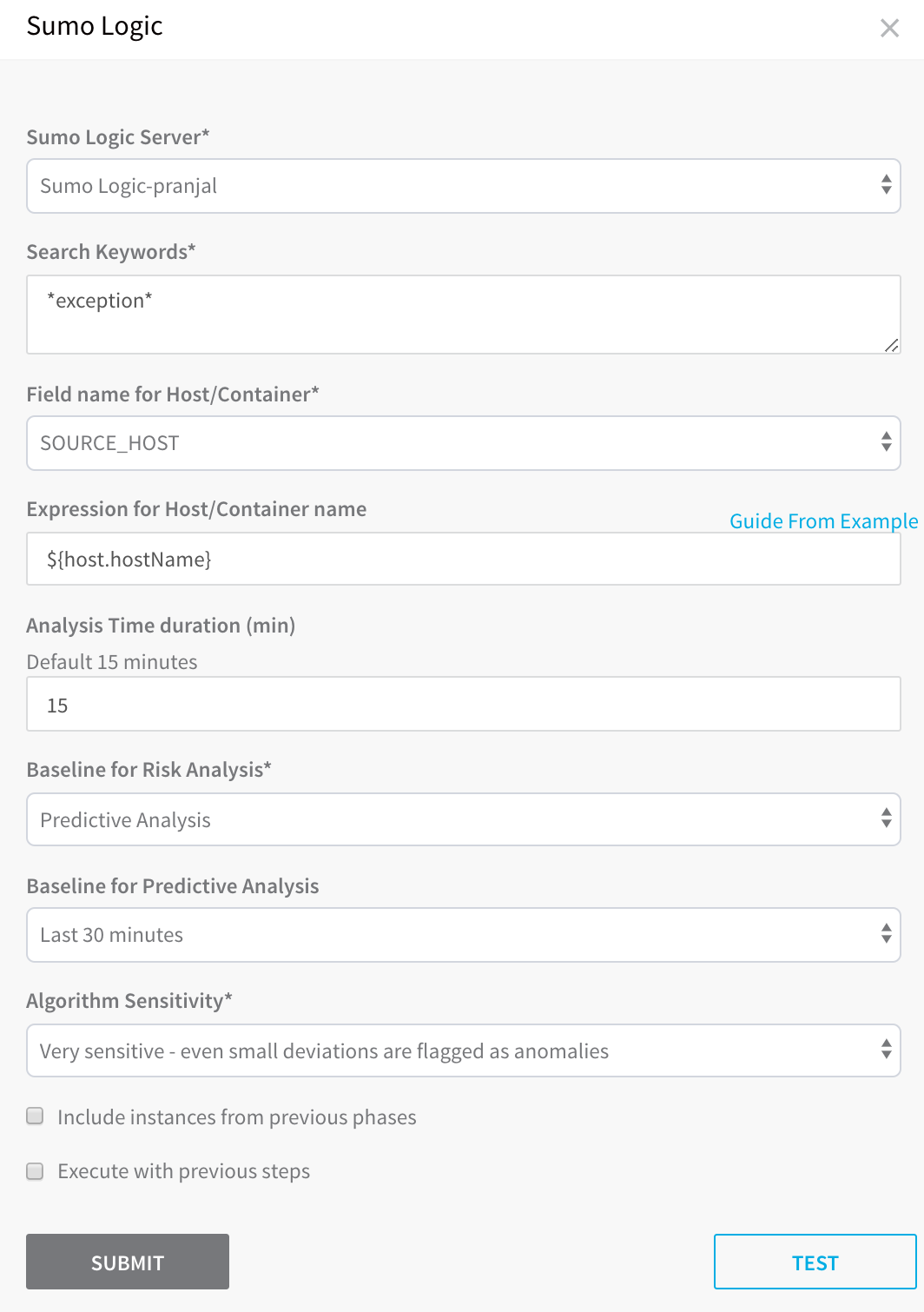

  1. Fill out the dialog. The Sumo Logic dialog has the following fields.

Field

Description

Sumo Logic Server

Select the Sumo Logic verification provider you added, as described above.

Search Keywords

Enter the keywords for your search. Use the Sumo Logic search field and then copy your keywords into the Sumo Logic dialog.

Example keywords: *exception* and *error*.For more information, see Search Syntax Overview and Keyword Search Expressions from Sumo Logic.

Field name for Host/Container

Enter the message field that contains the host name. You can find this in the Sumo Logic search. In the Sumo Logic search field, start typing _source and see the metadata options:

Click on the source host option, _sourceHost, and execute a query with it.

View the query results and confirm that the _sourceHost field returns the name of the host. And then enter _sourceHost in the Field name for Host/Container field.

Expression for Host/Container name

Add an expression that evaluates to the hostname value for the Message field host information. For example, in Sumo Logic, if you look at an exception Message, you will see a Host field:

In the service infrastructure where your workflow deployed your artifact (see Add a Service Infrastructure), the hostname is listed in a JSON name label under a host label.Locate the name label that displays the same value as the Host field in your Sumo Logic Message. Locate the path to that name label and use it as the expression in Expression for Host/Container name.The default expression is ${host.hostName}.

Analysis Time duration

Set the duration for the verification step. If a verification step exceeds the value, the workflow Failure Strategy is triggered. For example, if the Failure Strategy is Ignore, then the verification state is marked Failed but the workflow execution continues.

See CV Strategies, Tuning, and Best Practices.

Baseline for Risk Analysis

See CV Strategies, Tuning, and Best Practices.

Baseline for Predictive Analysis

This option appears if you selected Predictive Analysis in Baseline for Risk Analysis. Specify the time unit Harness should use to pull logs to set as the baseline for predictive analysis, such as Last 30 minutes.

A few notes about selecting the time unit for Baseline for Predictive Analysis:

  • The greater the length of time you specify for a Predictive Analysis baseline (in Baseline for Predictive Analysis), the longer it takes Harness to run the analysis. If you select Last 24 hours, it could take up to 15 or more minutes to perform predictive analysis.
  • The greater the length of time you specify for a Predictive Analysis baseline, the more API calls Harness makes to the verification provider. Harness makes API calls to verification providers to obtain logs grouped in 15 minutes batches. If you specify a long amount of time for a Predictive Analysis baseline, Harness will need to make a lot of API calls to the verification provider. For example, if you select Last 24 hours as the baseline for Predictive Analysis, then Harness will make 96 API calls to collect that data.

Algorithm Sensitivity

Select the sensitivity that will result in the most useful results for your analysis.

See CV Strategies, Tuning, and Best Practices.

Execute with previous steps

Check this checkbox to run this verification step in parallel with the previous steps in Verify Service.

Include instances from previous phases

If you are using this verification step in a multi-phase deployment, select this checkbox to include instances used in previous phases when collecting data. Do not apply this setting to the first phase in a multi-phase deployment.

Click TEST. Harness verifies the settings you entered.

When you are finished, click SUBMIT. The Sumo Logic verification step is added to your workflow.

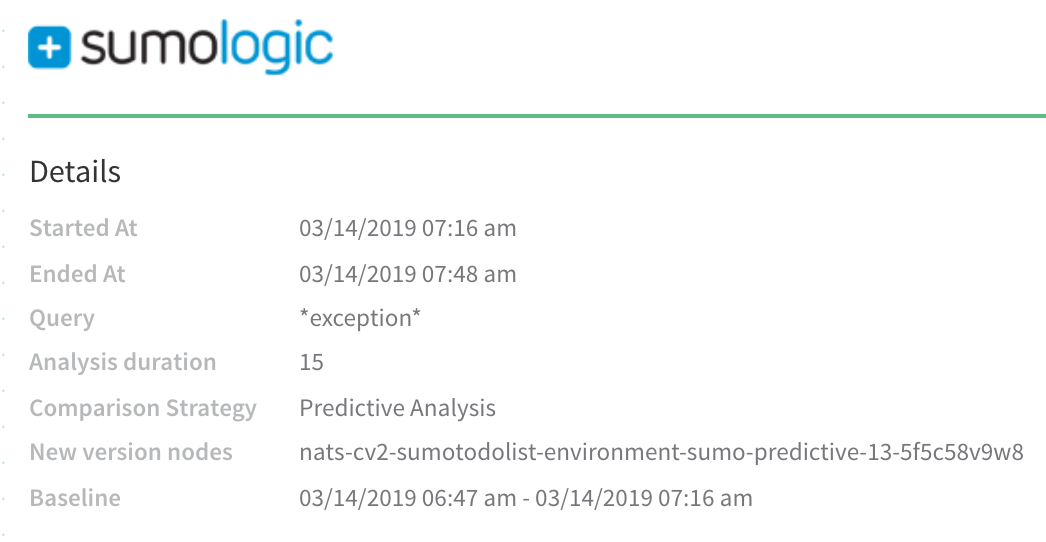

If you select Predictive Analysis in Baseline for Risk Analysis, the time unit range is displayed in the Details section of the results. See Baseline in the image below:

Verification Results

Once you have deployed your Workflow (or Pipeline) using the Sumo Logic verification step, you can automatically verify cloud application and infrastructure performance across your deployment. For more information, see Add a Workflow and Add a Pipeline.

Workflow Verification

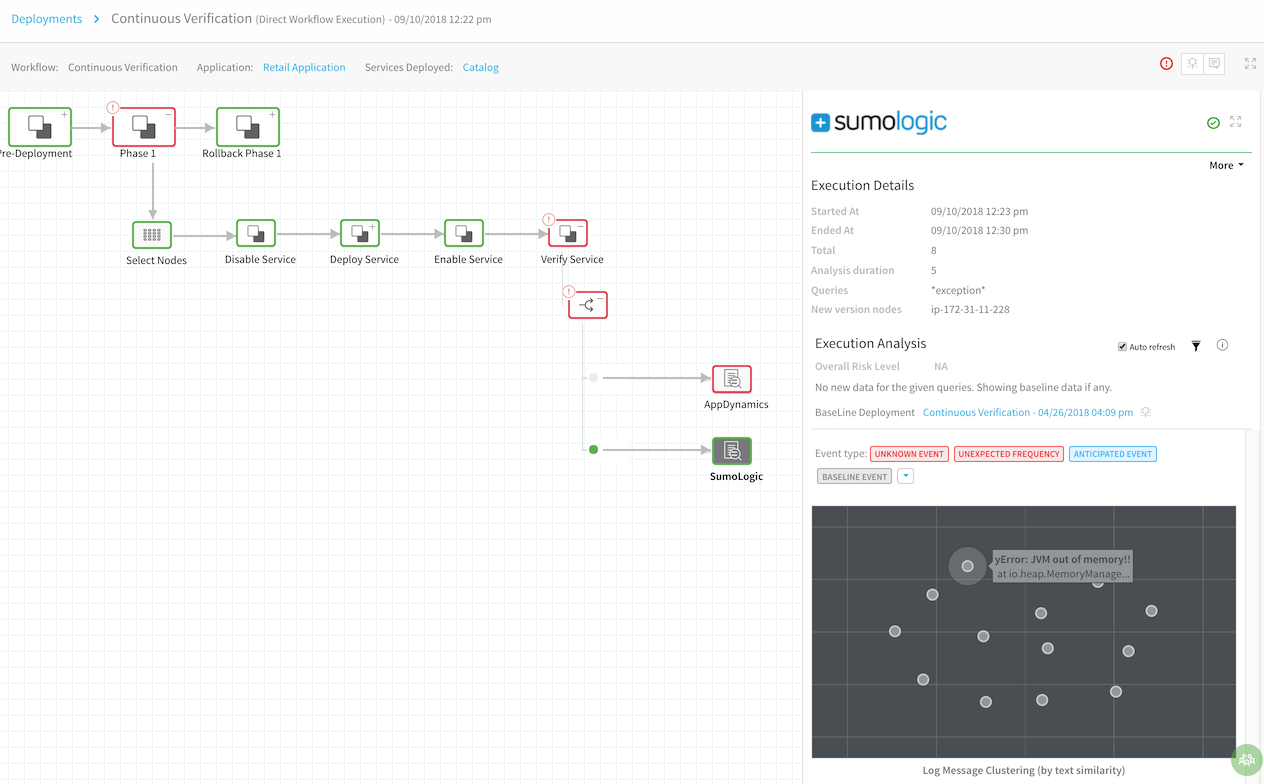

To see the results of Harness machine-learning evaluation of your Sumo Logic verification, in your Workflow or pipeline deployment you can expand the Verify Service step and then click the Sumo Logic step.

Continuous Verification

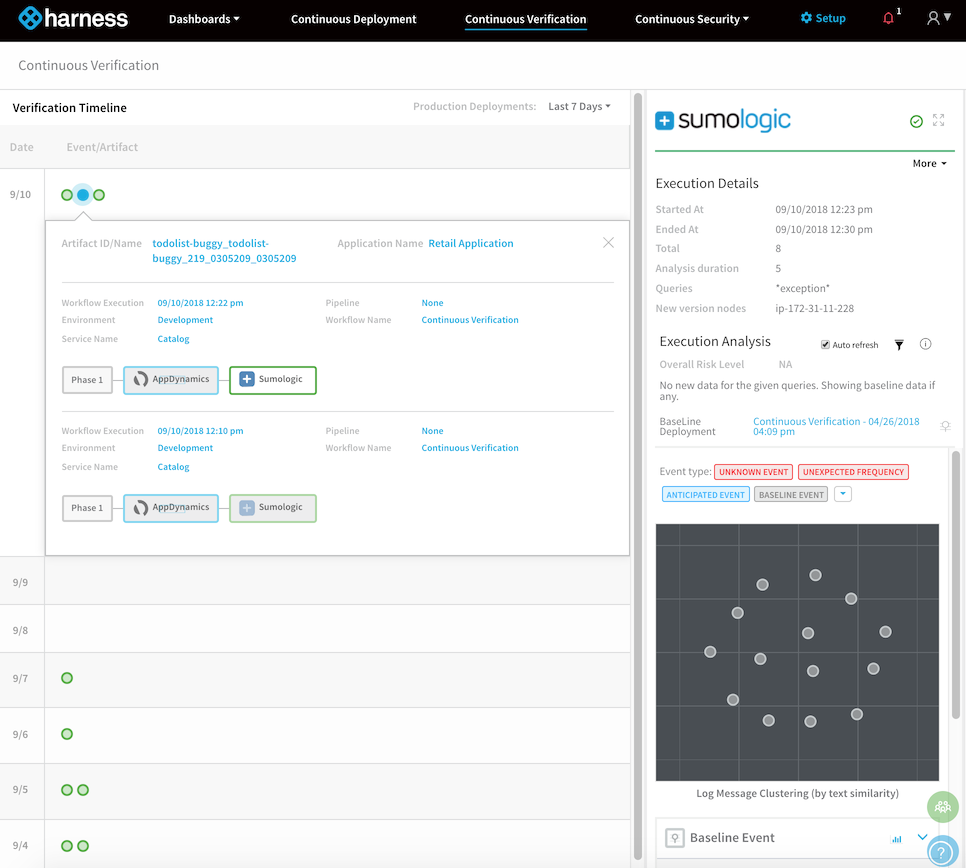

You can also see the evaluation in the Continuous Verification dashboard. The Workflow verification view is for the DevOps user who developed the Workflow. The Continuous Verification dashboard is where all future deployments are displayed for developers and others interested in deployment analysis.

To learn about the verification analysis features, see the following sections.

Deployment Info

Deployment infoSee the verification analysis for each deployment, with information on its Service, Environment, Pipeline, and Workflows.

Verification phases and providersSee the verification phases for each Verification Provider. Click each provider for logs and analysis.

Verification timelineSee when each deployment and verification was performed.

Transaction Analysis

Execution detailsSee the details of verification execution. Total is the total time the verification step took, and Analysis duration is how long the analysis took.

Risk level analysisGet an overall risk level and view the cluster chart to see events.

Transaction-level summarySee a summary of each transaction with the query string, error values comparison, and a risk analysis summary.

Execution Analysis

Event typeFilter cluster chart events by Unknown Event, Unexpected Frequency, Anticipated Event, Baseline Event, and Ignore Event.

Cluster chartView the chart to see how the selected event contrast. Click each event to see its log details.

Event Management

Event-level analysisSee the threat level for each event captured.

Tune event captureRemove events from analysis at the Service, Workflow, execution, or overall level.

Event distributionClick the chart icon to see an event distribution including the measured data, baseline data, and event frequency.
