2 - 24/7 Service Guard for Datadog

Updated 1 month ago by Michael Cretzman

Harness 24/7 Service Guard monitors your live applications, catching problems that surface minutes or hours following deployment. For more information, see 24/7 Service Guard Overview.

You can add your Datadog monitoring to Harness 24/7 Service Guard in your Harness Application Environment. For a setup overview, see 1 - Datadog Connection Setup.

This section assumes you have a Harness Application set up and containing a Service and Environment. For steps on setting up a Harness Application, see Application Checklist.

24/7 Service Guard Setup

To set up 24/7 Service Guard for Datadog, do the following:

  1. Ensure that you have added Datadog as a Harness Verification Provider, as described in Verification Provider Setup.
  2. In your Harness Application, ensure that you have added a Service, as described in Services. For 24/7 Service Guard, you do not need to add an Artifact Source to the Service, or configure its settings. You simply need to create a Service and name it. It will represent your application for 24/7 Service Guard.
  3. In your Harness Application, click Environments.
  4. In Environments, ensure that you have added an Environment for the Service you added. For steps on adding an Environment, see Environments.
  5. Click the Environment for your Service. Typically, the Environment Type is Production.
  6. In the Environment page, locate 24/7 Service Guard.

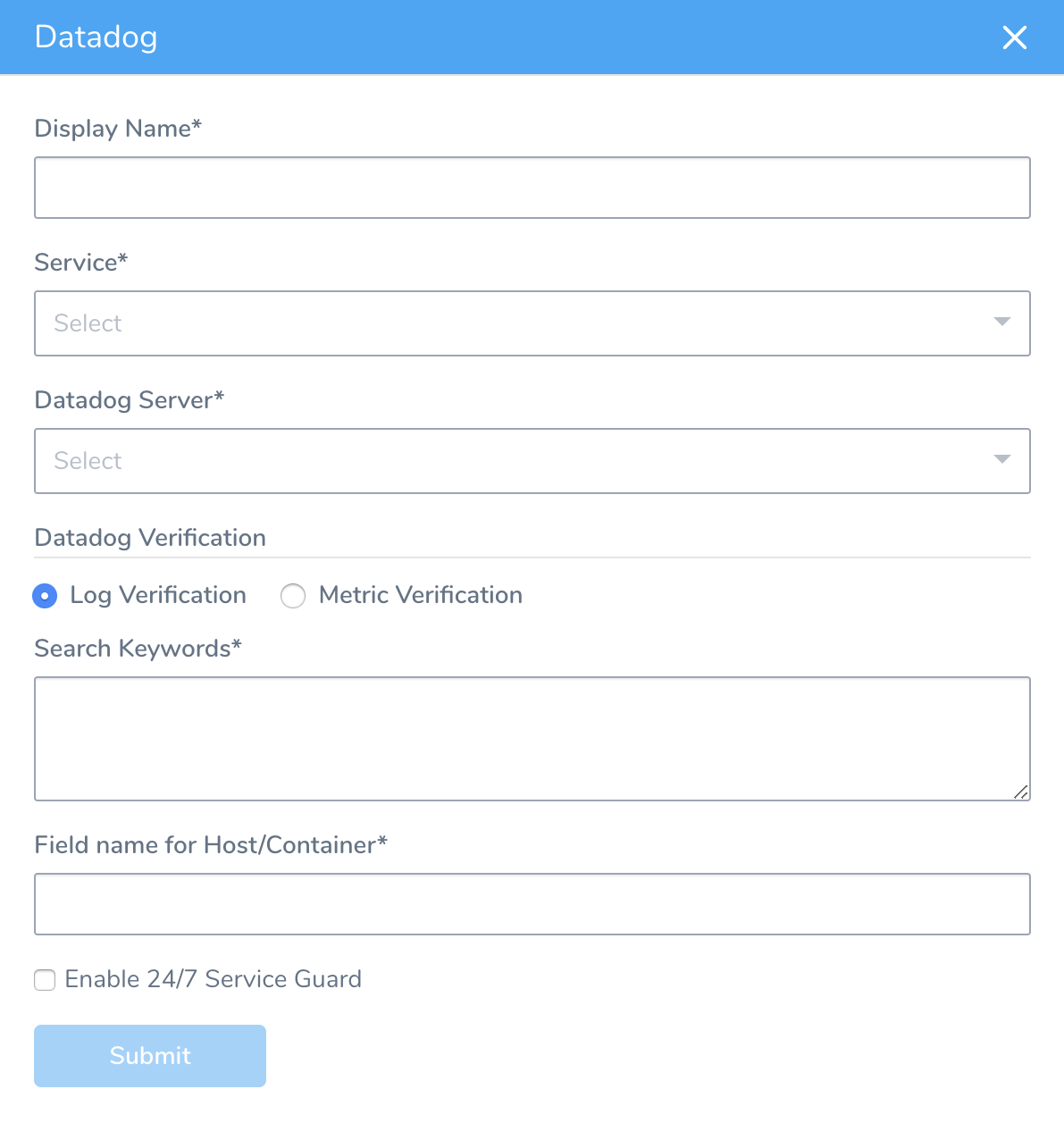

  7. In 24/7 Service Guard, click Add Service Verification, and then click Datadog. The Datadog dialog appears.
  8. Fill out the dialog. The dialog has the following fields.
For 24/7 Service Guard, the queries you define to collect logs are specific to the application or service you want monitored. Verification is application/service level. This is unlike Workflows, where verification is performed at the host/node/pod level.

Field

Description

Display Name

The name that will identify this service on the Continuous Verification dashboard. Use a name that indicates the environment and monitoring tool, such as Datadog.

Service

The Harness Service to monitor with 24/7 Service Guard.

Datadog Server

Select the Datadog Verification Provider to use.

APM Traces

In Datadog Service Name, enter which service in Datadog you want to monitor. By default, Datadog monitors the servlet hits (number of incoming requests), servlet duration, and errors. Harness will fetch this data for every Web transaction with the service you enter and display it in 24/7 Service Guard as Errors, Hits, Request Duration.

Docker Container Metrics

Select the Docker container infrastructure metrics to monitor.

  1. In Datadog Tags, enter any tags that have been applied to your metrics in Datadog. These are the same tags used in Datadog Events, Metrics Explorer, etc.

Use the Datadog tag format, such as cluster-name:harness-test.

  1. In Metrics, select the Docker metrics to use.

ECS Metrics

  1. In Datadog Tags, enter any tags that have been applied to your metrics in Datadog. These are the same tags used in Datadog Events, Metrics Explorer, etc. You can find these tags by following the steps in the Docker Container Metrics instructions above.
  2. In Metrics, select the ECS metrics to use.

Datadog Custom Metrics

  1. In Datadog Tags, enter any tags that have been applied to your metrics in Datadog. These are the same tags used in Datadog Events, Metrics Explorer, etc. You can find these tags by following the steps in the Docker Container Metrics instructions above.
  2. In Metric Type, select the metric to use. To use multiple types, click Add.
  3. In Display Name, enter a name to identify this metric in the Harness dashboards.
  4. In Metric Name, enter the metric you want to use. These are the metrics you will see in the Datadog Metrics Explorer Graph menu:

Algorithm Sensitivity

See CV Strategies, Tuning, and Best Practices.

Moderately sensitive is recommended.

Enable 24/7 Service Guard

Enable this setting to turn on 24/7 Service Guard. If you simply want to set up 24/7 Service Guard, but not enable it, leave this setting disabled.

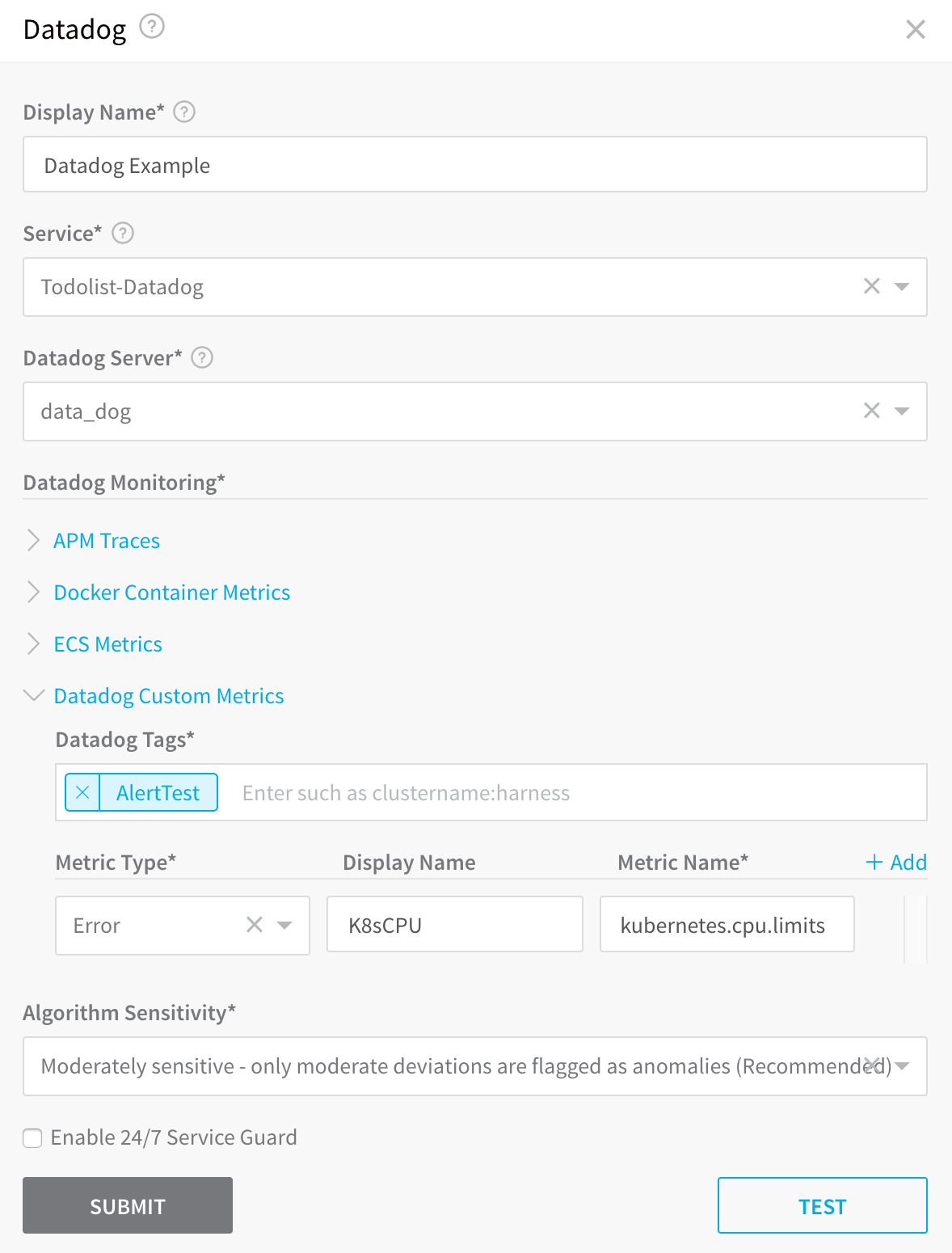

When you are finished, the dialog will look something like this:

  1. Click TEST. Harness verifies the settings you entered.
  2. Click SUBMIT. The Datadog 24/7 Service Guard is added.

To see the running 24/7 Service Guard analysis, click Continuous Verification.

The 24/7 Service Guard dashboard displays the production verification results.

For more information, see 24/7 Service Guard Overview.
