Workflow Queuing

Updated 7 months ago by Michael Katz

This topic outlines how Harness queues Workflows, to prevent conflicts when two or more Workflows simultaneously deploy the same Harness Service to the same Harness Infrastructure Definition.

In this topic:

Before You Begin

Ensure that you understand the following:

Overview

When multiple Harness Workflows simultaneously deploy to the same infrastructure, this can generate conflicts. To prevent such conflicts, Harness normally places a resource lock on the infrastructure, and queues the Workflows in FIFO (First In, First Out) order.

You can override this behavior, as covered below. Queuing is particularly valuable for Pipelines that execute multiple Workflows in parallel.

Using Concurrency Strategy to Control Queuing

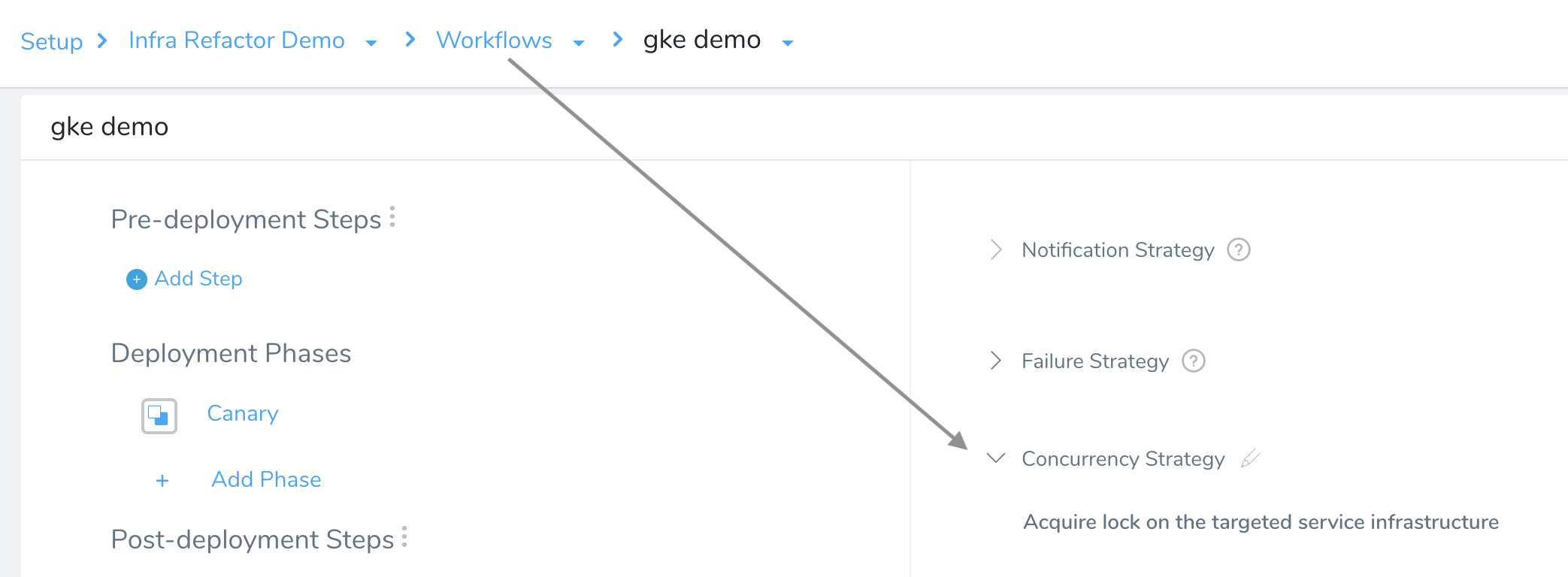

By default, Harness Workflows have their Concurrency Strategy set to Acquire lock on the targeted service infrastructure. This is the setting that enables queuing for shared infrastructure.

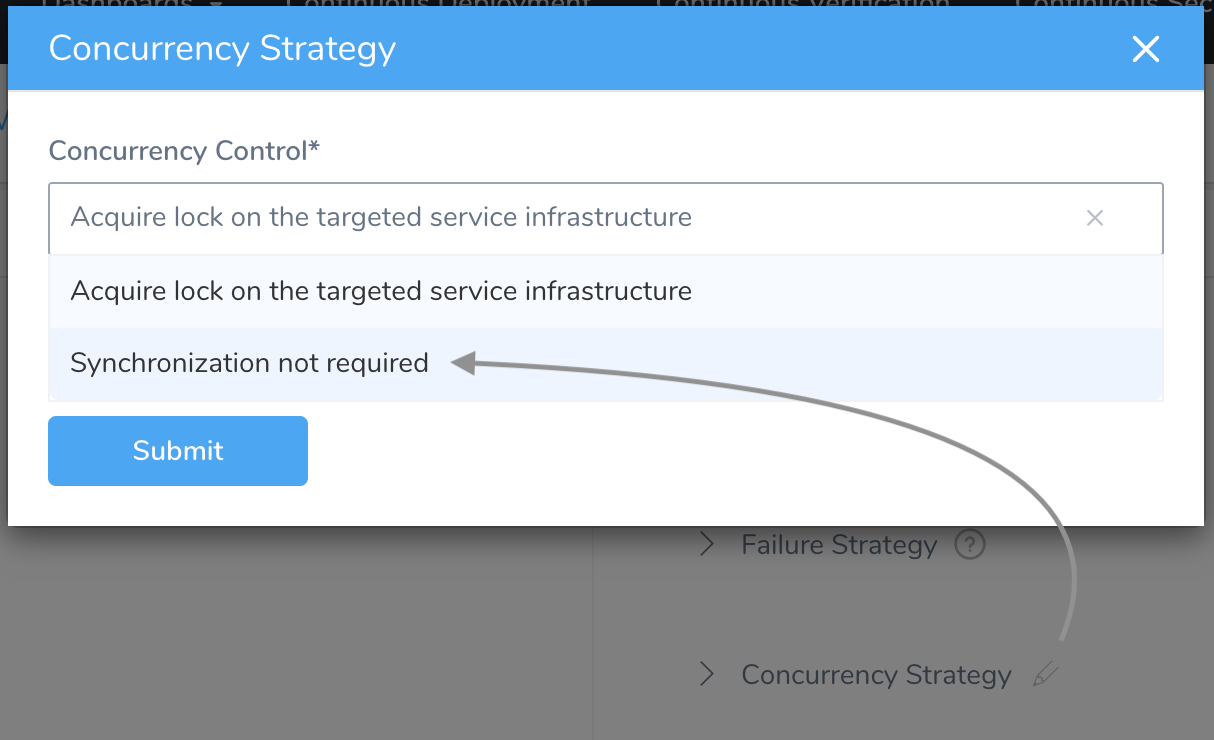

To exempt a Workflow from queuing behavior, click the pencil icon to open the Concurrency Strategy dialog shown here. Set the Concurrency Control drop-down to Synchronization not required, and click Submit.

How Harness Locks Infrastructure

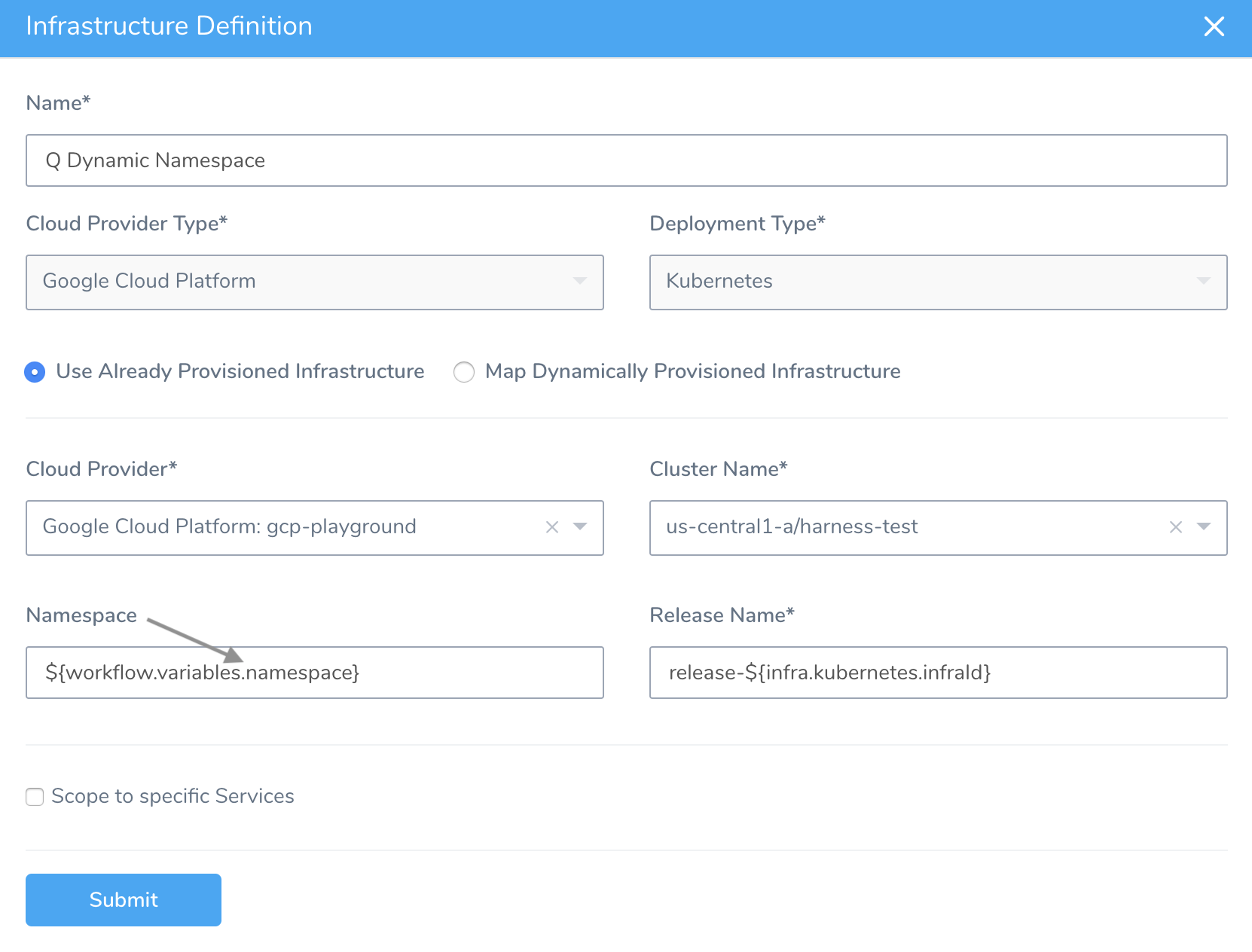

Here is an example of how infrastructure locking works. In this Harness Infrastructure Definition, the Kubernetes cluster's Namespace field is populated by the variable ${workflow.variables.namespace}:

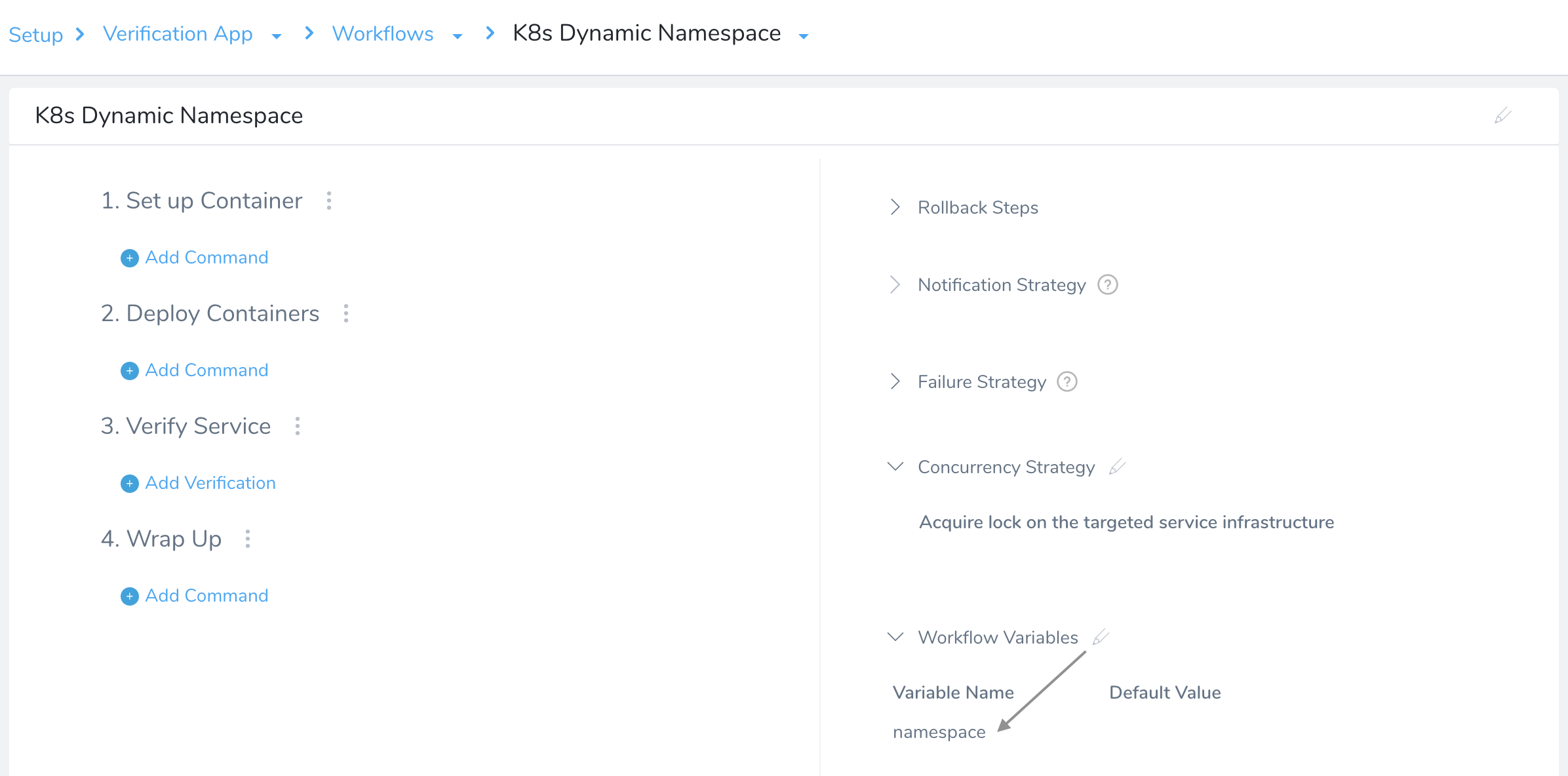

In this Kubernetes Workflow, we define the corresponding namespace variable:

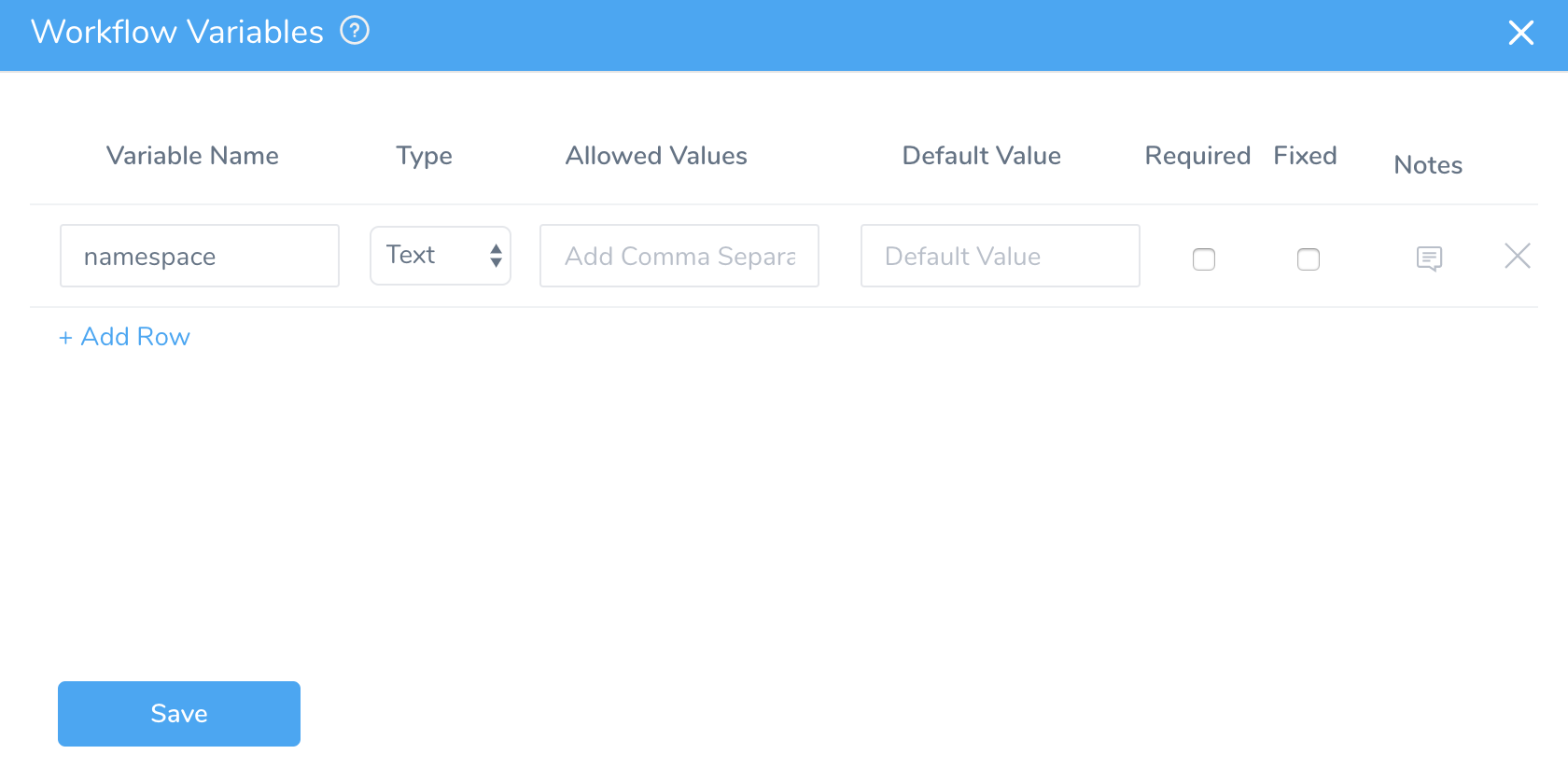

In the Workflow Variables dialog, we've assigned the variable no default value:

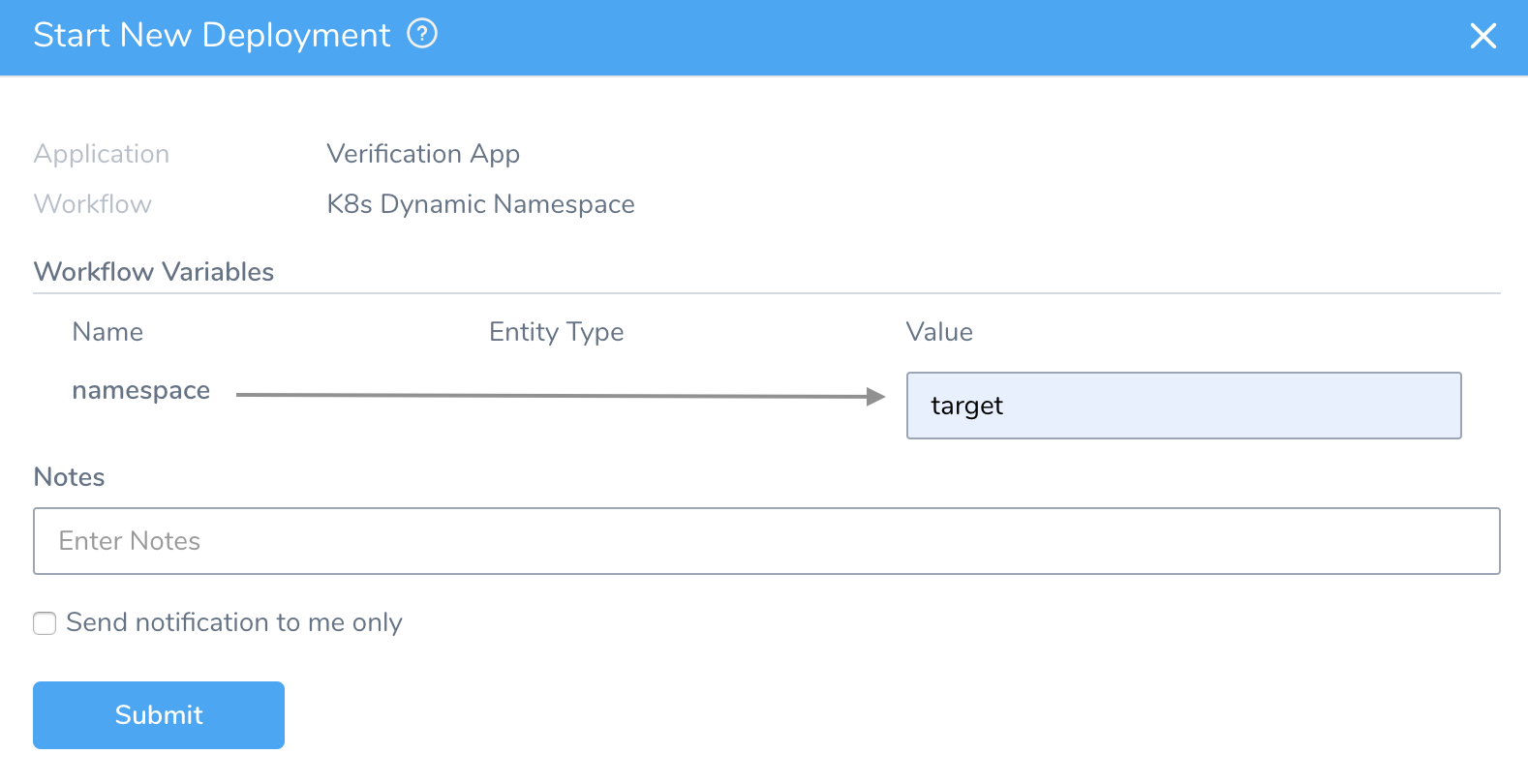

As we begin deployment of this Workflow, we assign the variable the value target:

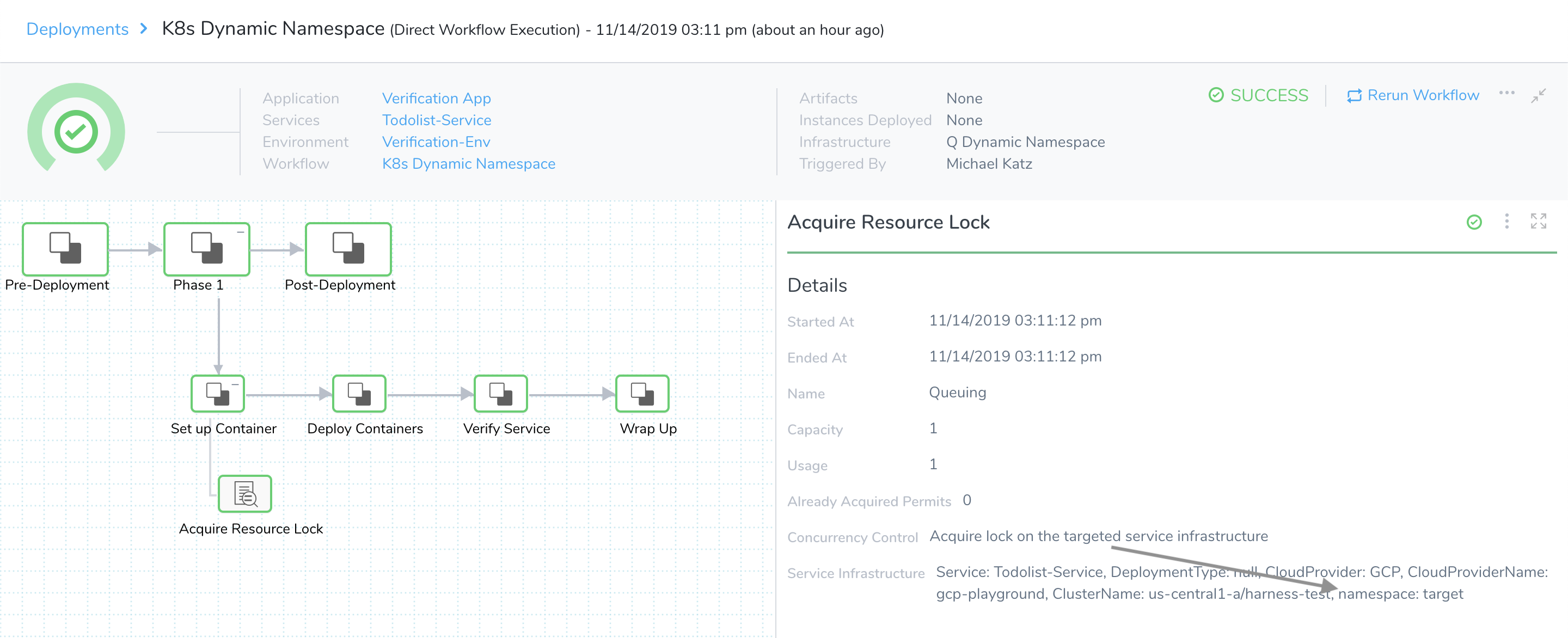

Once the Workflow deploys, the Details panel confirms that a lock has been placed on the resulting namespace: target and Harness Service combination:

Harness locks on the unique combination of namespace and Harness Service. We do not lock the Service from being deployed to another namespace. Harness simply makes the Workflow wait if there is another Workflow running using the same Service and the same namespace together.

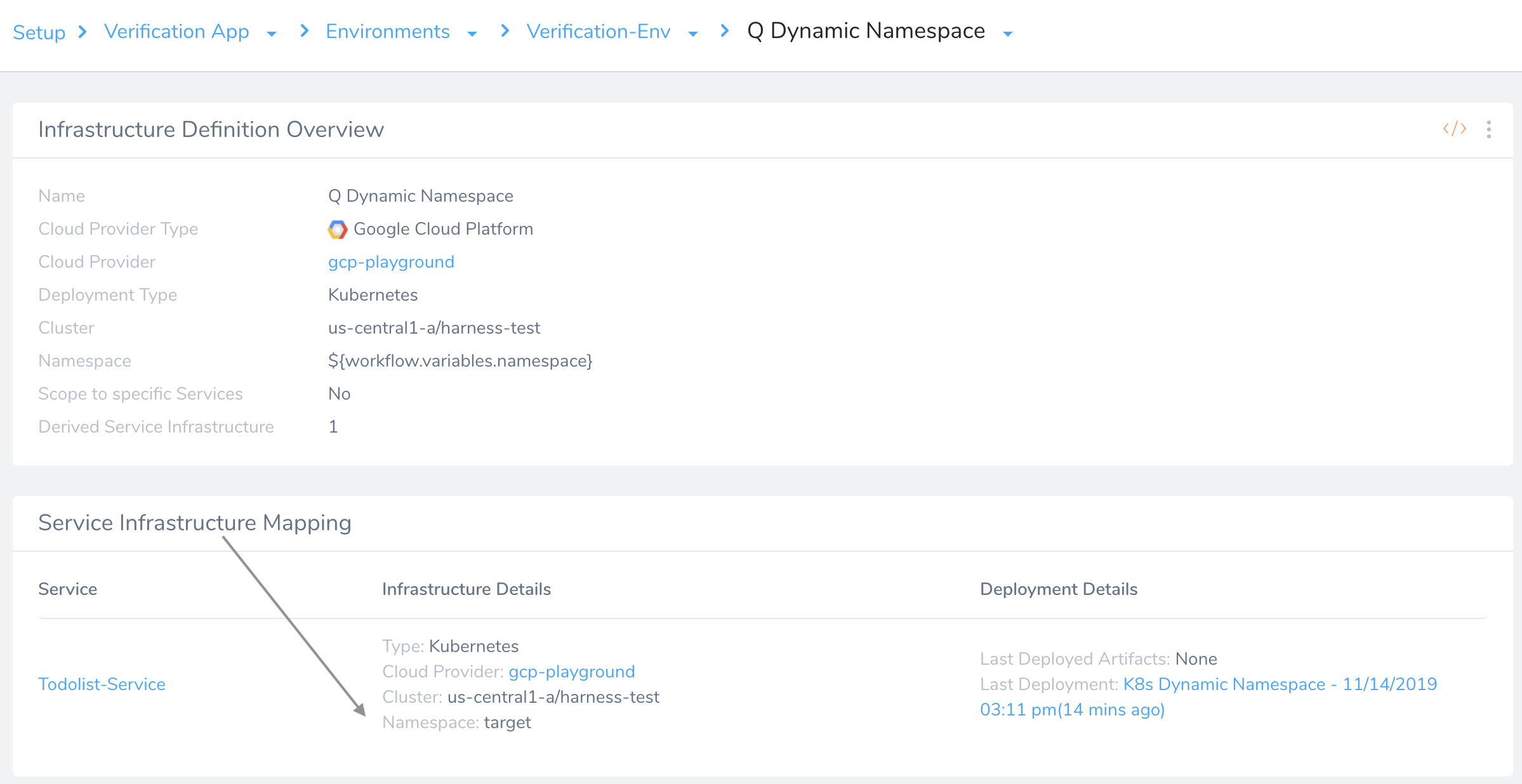

If we open the details page for the Infrastructure Definition that we started with, it displays a newly created Infrastructure Mapping for the target namespace we specified:

Acquiring Resource Locks

When pending Workflows are contending for shared infrastructure, Harness uses the above mechanism to place the Workflows in a resource lock queue. The first-launched Workflow gets a resource lock on this infrastructure, which it holds until its deployment is resolved. This temporarily blocks other Workflows from using the infrastructure—only one Workflow at a time can have a lock on a given infrastructure.

When contending for shared infrastructure, most Workflows will therefore display an Acquire Resource Lock step in Harness' Deployments page:

This step appears even if no queue is present, because it's specified by Harness' Acquire lock on the targeted service infrastructure default setting. There are two exceptions:

  • No Acquire Resource Lock will appear in Workflows of Build deployment type.
  • No Acquire Resource Lock step will appear in Workflows that have been configured to ignore queueing.

Harness seeks to acquire a Resource Lock only once per Workflow. The lock's scope is the current Workflow. The Acquire Resource Lock step occurs in the first deployment or setup phase that follows any Pre‑Deployment phase or step.

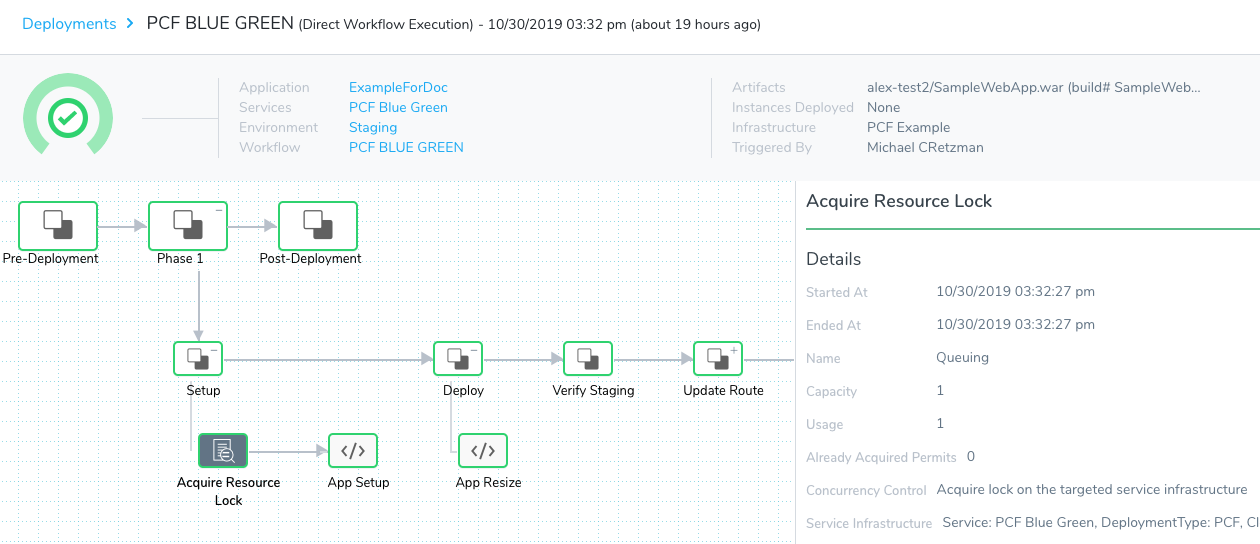

This example, using a Pivotal Cloud Foundry Blue/Green Workflow, shows the Acquire Resource Lock step's typical position in a deployment:

Queuing in Action

Let's look at a full example of how queuing works. Assume that we have two similar Harness Kubernetes Workflows, gke demo and gke demo-template-clone. Both deploy to the same infrastructure, because they share the same Infrastructure Definition.

When both Workflows are deployed simultaneously, Harness might initiate the deployment of gke demo slightly before gke demo‑template‑clone. This scenario applies to a Pipeline whose stages run these Workflows in parallel, but in that order:

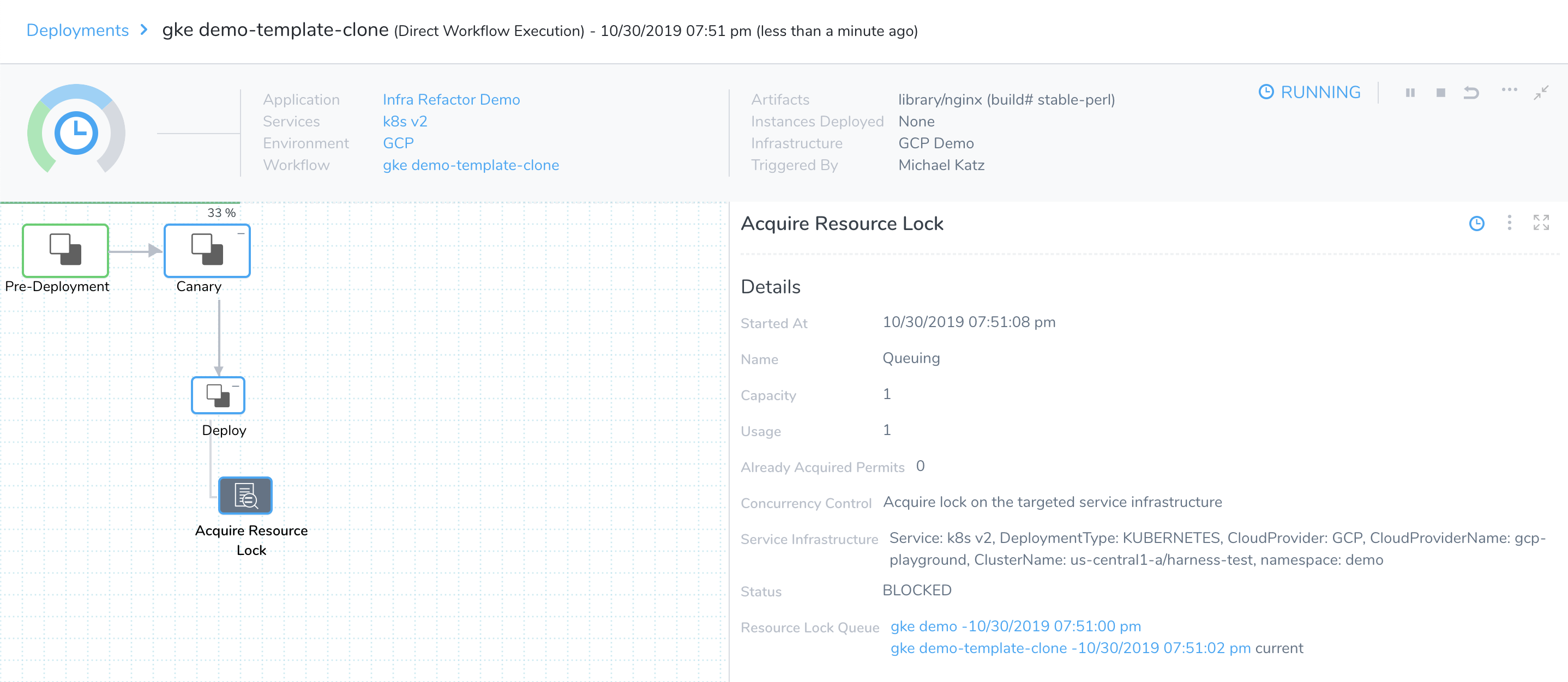

If we examine the gke demo-template-clone Workflow's Deployments page, we might initially see something like this:

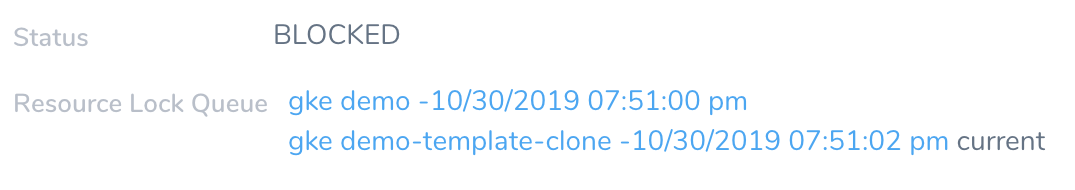

This deployment is paused at its Acquire Resource Lock step. The Details panel shows why:

The gke demo-template-clone deployment is second in the Resource Lock Queue, so it currently has BLOCKED status.

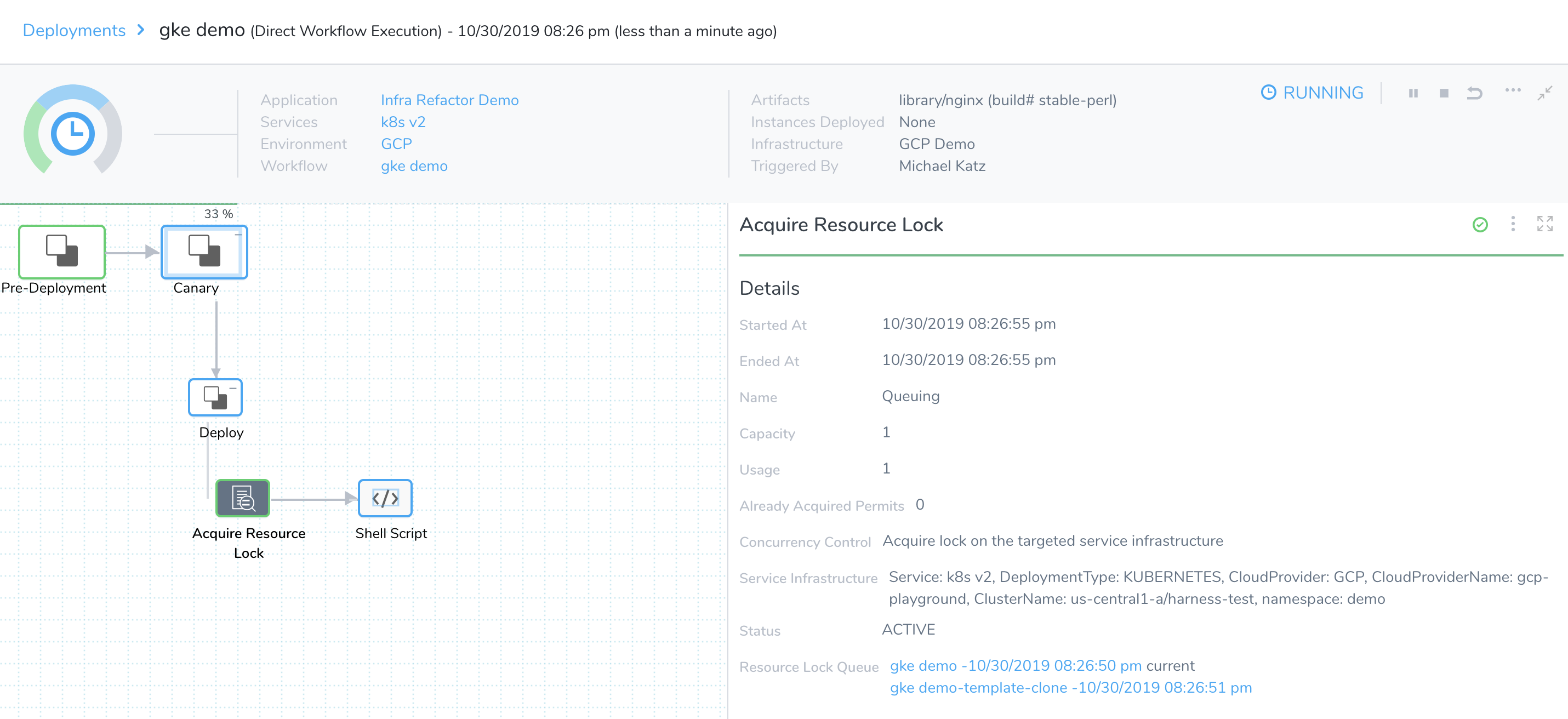

Meanwhile, the gke demo is first in the queue. If we immediately switch to its Deployments page, we might see something like this:

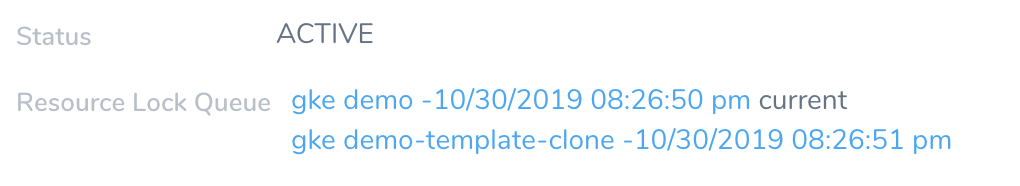

This Workflow's Acquire Resource Lock step has completed—it has acquired the lock. The Details panel confirms that this first-in-queue deployment has ACTIVE status:

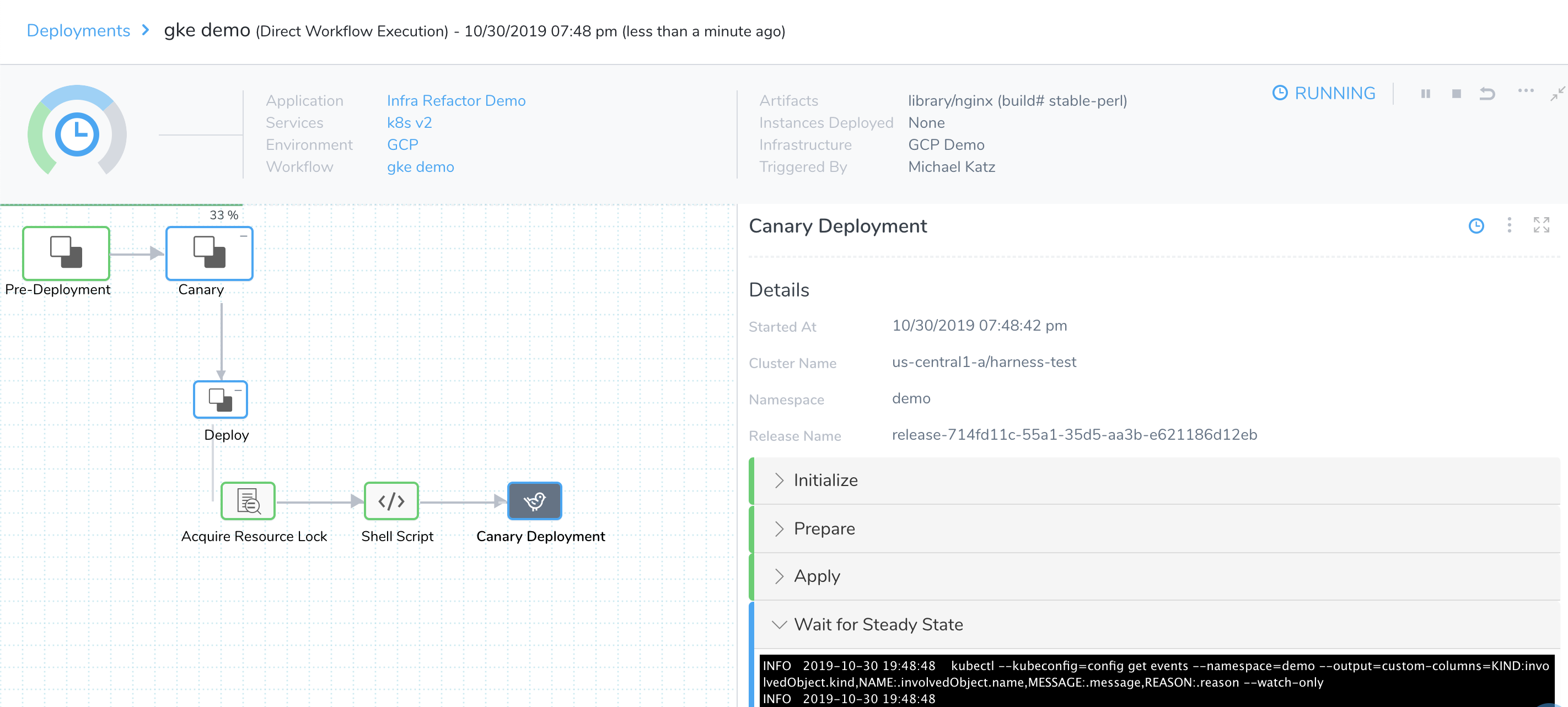

So the gke demo Workflow can now proceed through completion:

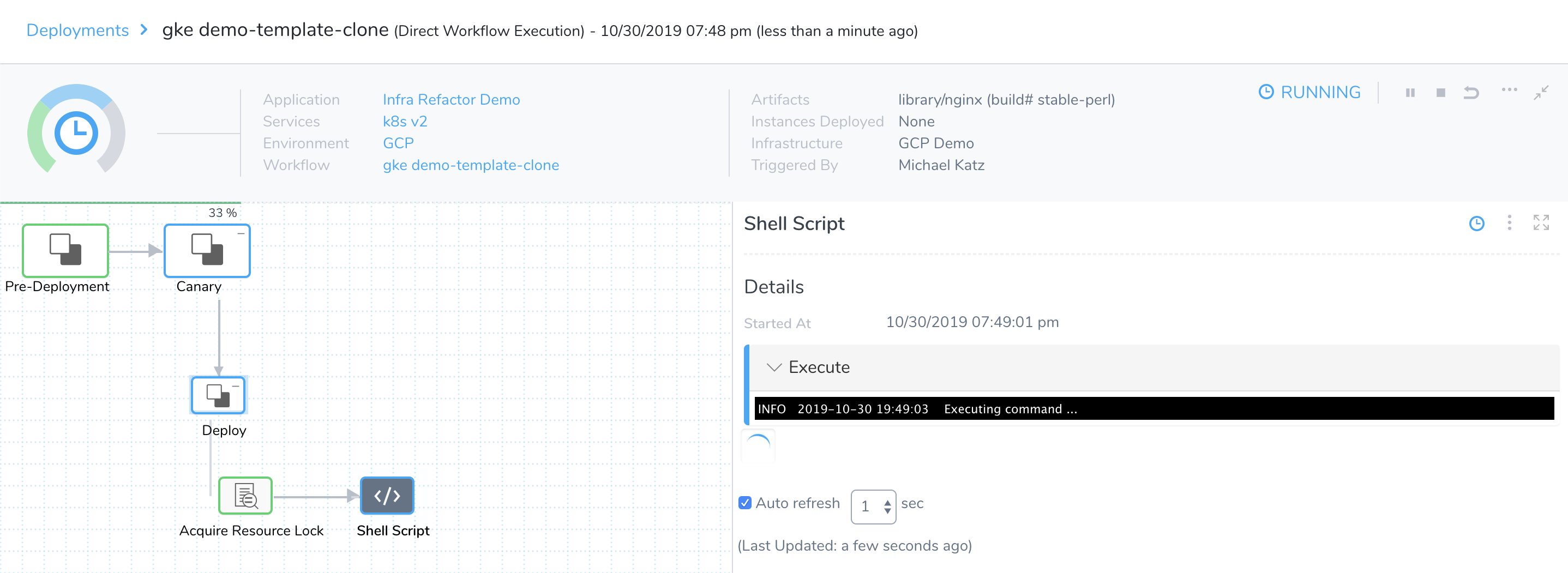

Once the gke demo Workflow has completed deployment, this clears the queue. Therefore, the gke demo‑template‑clone can now acquire the lock, and proceed to deploy:

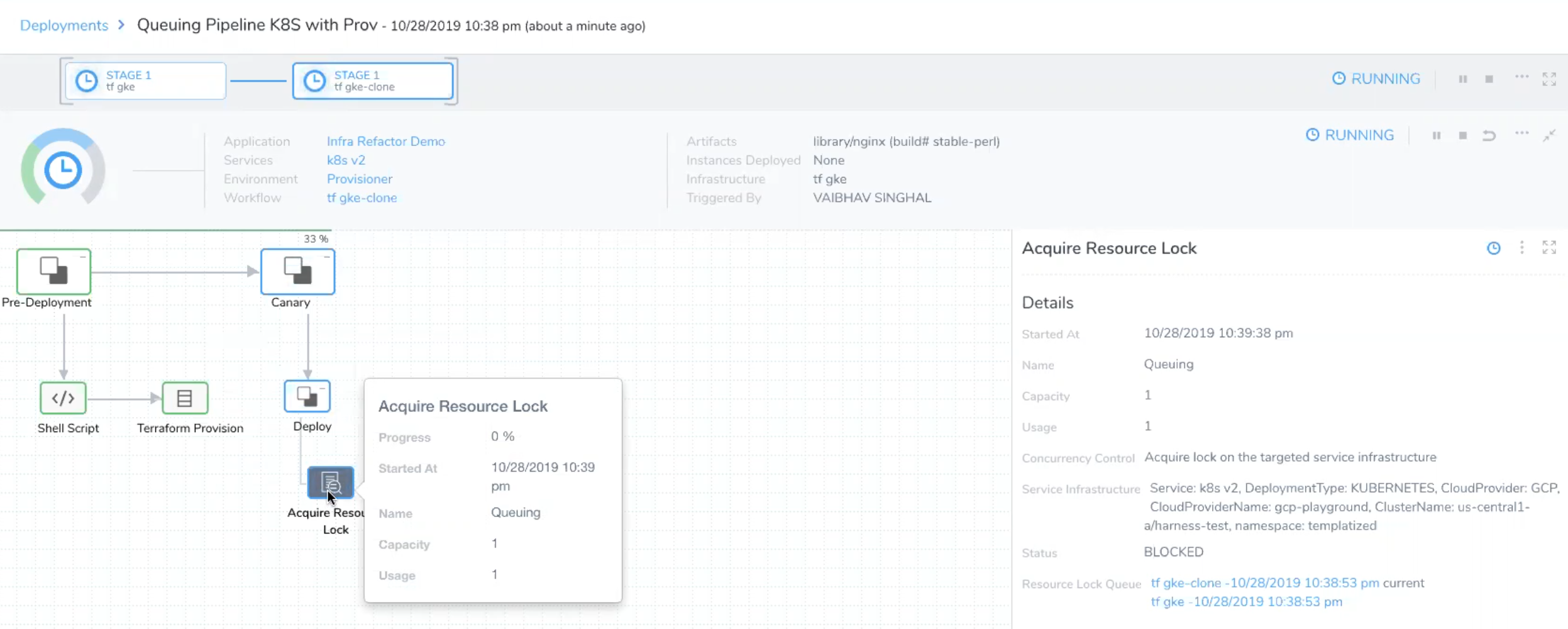

Queuing with Infrastructure Provisioners

Workflows incorporating Infrastructure Provisioners are queued the same way as Workflows based on predefined infrastructure. Infrastructure Provisioners commands are always added in the Workflow's Pre‑Deployment phase. This sets up the new infrastructure, enabling Harness to properly queue and lock deployments to that infrastructure in the following phase.

Next Steps

  • To more precisely synchronize multiple Workflows within a Pipeline, use Barriers.
  • To queue deployments account-wide, add a Resource Constraint. See Resource Restrictions.
