Harness StartExecution API Deep Dive

Updated 2 months ago by Archana Singh

This topic describes how to start executions using the StartExecution Harness API.

You can start a Workflow and a Pipeline using APIs. For more information, see Trigger Workflows or Pipelines Using GraphQL API and Harness Blog Post. The API access is tied to an API Key created in the Access Management section in Continuous Security.

Use Cases

  • Incorporate an API call in your Jenkins or another system to fire off the deployment (system to system interaction)
  • Create your own in-house CLI tool to trigger deployments
  • Start an execution using GraphQL queries via Harness API Explorer

Authentication

You can authenticate using Logged-in User Session or Use API Key. The authentication determines what data you can query and retrieve via API. By default, when you launch the API Explorer, you authenticate using a session key.

For more information, see Authenticate.

Authorization

The API authorization uses the API Token. The API token can be scoped to a Harness user group or multiple user groups.

For list APIs, the data is returned based on your permissions. You are only allowed to see what your user group is authorized to read and have access to.

Example

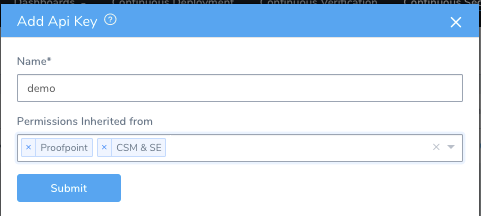

Add an API key scoped to two different permission groups:

Below, the user can see the key with the Permissions Inherited from field:

The permissions for these groups are tied to the token. The user or system that uses the token will only be authorized to perform the specific actions.

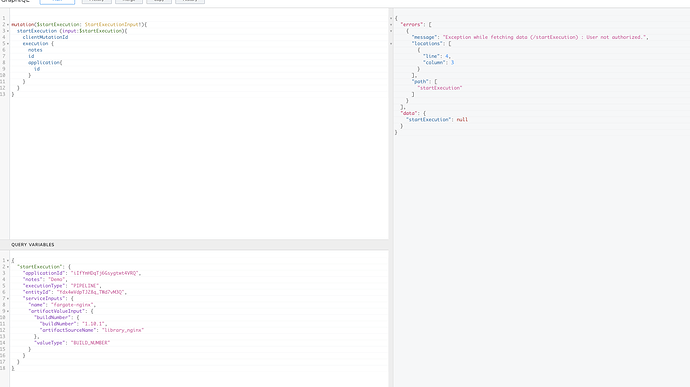

These user groups do not have permissions to execute a production Pipeline. When deploying the Pipeline with the key, the API throws an error stating that the user is not authorized to deploy.

Note

  • The authorization and authentication of the API don’t apply to any specific portion, the entire API follows this model.
  • Admins can rotate the API keys to avoid them being stale. To rotate, simply delete the old API key and create a new one.

Sample Queries

Here are the sample queries:

Get Pipelines By Name

This sample query returns Pipeline name and the variables associated with it.

Request
{
pipelineByName(applicationId: "iIfYmHDqTj6Gsygtwt4VRQ", pipelineName: "Guestbook Pipeline") {
id
name
pipelineVariables {
name
type
required
}
}
}
Response
{
"data": {
"pipelineByName": {
"id": "YdK1ONo9TnyzIK5-plsnAg",
"name": "Guestbook Pipeline",
"pipelineVariables": [
{
"name": "skipCV",
"type": "Text",
"required": false
},
{
"name": "hotfix",
"type": "Text",
"required": false
},
{
"name": "branch",
"type": "Text",
"required": false
}
]
}
}
}

Get Workflow By Name

This sample query returns Workflow name and the variables associated with it.

Request
{
workflowByName(applicationId: "iIfYmHDqTj6Gsygtwt4VRQ", workflowName: "K8s Rolling Deployment") {
id
name
workflowVariables {
name
type
required
}
}
}
Response
{
"data": {
"workflowByName": {
"id": "VzViT24gTluKWNFpdrL95A",
"name": "K8s Rolling Deployment",
"workflowVariables": [
{
"name": "Environment",
"type": "Environment",
"required": true
},
{
"name": "Service",
"type": "Service",
"required": true
},
{
"name": "InfraDefinition_KUBERNETES",
"type": "Infrastructure definition",
"required": true
},
{
"name": "hotfix",
"type": "Text",
"required": false
},
{
"name": "branch",
"type": "Text",
"required": false
},
{
"name": "skipCV",
"type": "Text",
"required": false
}
]
}
}
}

Deploy Fargate Production Pipeline

This example has no Workflow variables, just a plain deployment.

First query by the Application name to retrieve the Application ID and PipelineID.

query {
applicationByName(name:"Harness Demo"){
id
name
pipelines(limit:4){
nodes{
id
description
}
}
}
}

After getting the information, create startExecution mutation to execute the deployment.

You need to pass the Application ID and Pipeline ID as an input. Based on your mutation, the notes, execution ID, and Application ID are returned.

startExecution (input:$startExecution){
clientMutationId
execution {
notes
id
application{
id
}
}
}
}

Request

For the parameters to execute the query, pass the below information:

{
"startExecution": {
"applicationId": "<YOUR APPLICATION ID>",
"notes": "Demo",
"executionType": "PIPELINE",
"entityId": "<YOUR PIPELINE ID>",
"serviceInputs": {
"name": "fargate-nginx",
"artifactValueInput": {
"buildNumber": {
"buildNumber": "1.10.1",
"artifactSourceName": "library_nginx"
},
"valueType": "BUILD_NUMBER"
}
}
}
}

Response

Payload and the Pipeline executed are returned.

{
"data": {
"startExecution": {
"clientMutationId": null,
"execution": {
"notes": "Demo",
"id": "<YOUR EXECUTION ID>",
"application": {
"id": "<YOUR APPLICATION ID>"
}
}
}
}
}

You can also see your deployment in the Continuous Deployment page.

Deploy a Pipeline with Variables

The below sample shows how to deploy a Pipeline with variables.

Query
mutation($startExecution: StartExecutionInput!){
startExecution (input:$startExecution){
clientMutationId
execution {
notes
status
startedAt
id
application{
id
}
}
}
}
Query with Variables
{
"name":"skipCV",
"variableValue":{
"type":"NAME",
"value":"true"
}
},
{
"name":"branch",
"variableValue":{
"value":"master",
"type":"NAME"
}
},
{
"name":"hotfix",
"variableValue":{
"value":"false",
"type":"NAME"
}
}
]
}
}

Proof that the Workflow variables are passed:

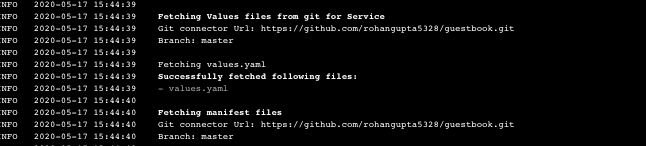

Branch

Hot fix

Since it was set to false all the stages are deployed.

skipCV

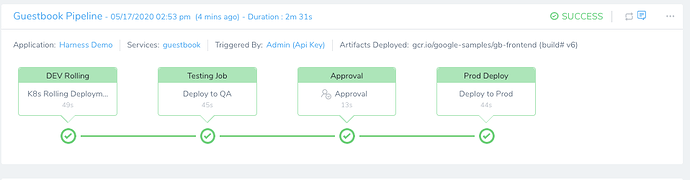

The end result:

Deploy a Workflow with Variables

The following sample shows how to deploy a Workflow with variables.

Query for the Execution

mutation ($startExecution: StartExecutionInput!) {
startExecution(input: $startExecution) {
clientMutationId
execution {
notes
status
startedAt
id
application {
id
}
}
}
}
Query Variables

{
"startExecution":{
"applicationId":"iIfYmHDqTj6Gsygtwt4VRQ",
"notes":"Demo",
"executionType":"WORKFLOW",
"entityId":"VzViT24gTluKWNFpdrL95A",
"serviceInputs":{
"name":"guestbook",
"artifactValueInput":{
"buildNumber":{
"buildNumber":"v6",
"artifactSourceName":"guestbook"
},
"valueType":"BUILD_NUMBER"
}
},
"variableInputs":[
{
"name":"Environment",
"variableValue":{
"type":"NAME",
"value":"dev"
}
},
{
"name":"InfraDefinition_KUBERNETES",
"variableValue":{
"type":"NAME",
"value":"k8s-dev"
}
},
{
"name":"Service",
"variableValue":{
"type":"NAME",
"value":"guestbook"
}
},
{
"name":"hotfix",
"variableValue":{
"type":"NAME",
"value":"false"
},
"name":"branch",
"variableValue":{
"type":"NAME",
"value":"master"
},
"name":"skipCV",
"variableValue":{
"type":"NAME",
"value":"true"
}
}
]
}
}

Proof of Execution

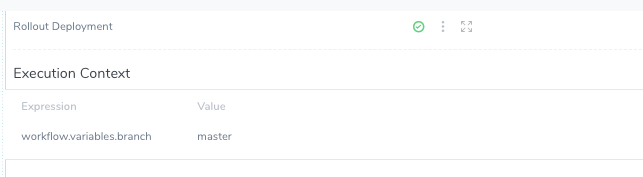

The value was master for branch. The branch is successfully passed:

The Prometheus step is skipped due to the set condition. skipCV was set to true.

Check the Status of Deployments Via API

You can use the following queries to check the deployment status.

For Pipeline Execution

query{
execution(executionId: "QzhqUddfQiKMxJdEzZC3bg") {
id
... on PipelineExecution {
id
status
}
}
}

For Workflow Execution

{
execution(executionId:"_Mffj1GZQd-VgNN_XWA7NQ"){
id
status
... on WorkflowExecution {
id
outcomes{
nodes{
execution {
id
endedAt
startedAt
}
}
}
}
}
}

Scripts for CLI Tools or System to System Interaction

Here is a sample script with the startExecution API call:

#ARGUMENTS
APPLICATIONID="<YOUR APPLICATION ID>"
PIPELINEID="<YOUR PIPELINE ID>"
BUILDNO="<YOUR BUILD NO>"
SERVICENAME="<YOUR SERVICE NAME>"
ARTIFACTSOURCENAME="<YOUR ARTIFACT SOURCE>"
# Execute Pipeline
func_execute_pipeline(){
curl --request POST \
--url 'https://app.harness.io/gateway/api/graphql?accountId='$HARNESS_ACCOUNT_ID'' \
--header 'content-type: application/json' \
--header 'x-api-key:'$HARNESS_KEY' \
--data '{"query":"\nmutation($startExecution: StartExecutionInput!){\n startExecution (input:$startExecution){\n clientMutationId\n execution {\n notes\n id\n application{\n id\n }\n }\n }\n}","variables":{"startExecution":{"applicationId":"'$APPLICATIONID'","notes":"Demo","executionType":"PIPELINE","entityId":"'$PIPELINEID'","serviceInputs":{"name":"'$SERVICENAME'","artifactValueInput":{"buildNumber":{"buildNumber":"'$BUILDNO'","artifactSourceName":"'$ARTIFACTSOURCENAME'"},"valueType":"BUILD_NUMBER"}}}}}'
}

Here is a sample script for Get Application By Name:

# Get Application By Name
APPNAME="<YOUR APP NAME>"
func_getAppByName(){
curl --request POST \
--url 'https://app.harness.io/gateway/api/graphql?accountId='$HARNESS_ACCOUNT_ID'' \
--header 'content-type: application/json' \
--header 'x-api-key:'$HARNESS_KEY' \
--data '{"query":"query {\n applicationByName(name:\"'$APPNAME'\"){\n id\n name\n pipelines(limit:4){\n nodes{\n id\n description\n }\n }\n }\n}\n\n"}'
}

You can use tools like Insomnia or Postman to generate these CURL commands. Here, Insomnia is used.

  1. Click on the Arrow key next to your command and select from the drop-down list.
  2. Click Copy as Curl and it's copied to your clipboard.
  3. Paste the command.

    curl --request POST \
    --url 'https://app.harness.io/gateway/api/graphql?accountId=<ACOUNTID> \
    --header 'content-type: application/json' \
    --header 'x-api-key: <API_KEY>' \
    --data '{"query":"\nmutation($startExecution: StartExecutionInput!){\n startExecution (input:$startExecution){\n clientMutationId\n execution {\n notes\n status\n startedAt\n id\n application{\n id\n }\n }\n }\n}","variables":{"startExecution":{"applicationId":"iIfYmHDqTj6Gsygtwt4VRQ","notes":"Demo","executionType":"WORKFLOW","entityId":"VzViT24gTluKWNFpdrL95A","serviceInputs":{"name":"guestbook","artifactValueInput":{"buildNumber":{"buildNumber":"v6","artifactSourceName":"guestbook"},"valueType":"BUILD_NUMBER"}},"variableInputs":[{"name":"Environment","variableValue":{"type":"NAME","value":"dev"}},{"name":"InfraDefinition_KUBERNETES","variableValue":{"type":"NAME","value":"k8s-dev"}},{"name":"Service","variableValue":{"type":"NAME","value":"guestbook"}},{"name":"skipCV","variableValue":{"type":"NAME","value":"true"}}]}}}'
