3 - Datadog as a Custom APM

Updated 2 months ago by Michael Cretzman

Currently, Datadog-Harness integration is for Kubernetes deployments only. To use Datadog with other deployment types, such as ECS, use the following example of how to use the Custom Metrics Provider with Datadog.

Custom Verification Provider Setup

To add a Custom Metrics Provider using Datadog, do the following:

  1. In Harness, click Setup.
  2. Click Connectors.
  3. Click Verification Providers.
  4. Click Add Verification Provider, and click Custom Verification. The Metrics Data Provider dialog appears.
  5. In Type, select Metrics Data Provider.
  6. In Display Name, give the Verification Provider a name. You will use this name to select this provider in a Workflow.
  7. In Base URL, enter https://app.datadoghq.com/api/v1/.
  8. In Parameters, click Add Parameters, and add the following parameters.

Key

Value

Encrypted Value

api_key

Enter the API key.

Checked

application_key

Enter the application key.

Checked

If you need help obtaining the API and Application keys, see the following:

API Key

To create an API key in Datadog, do the following:

  1. In Datadog, mouseover Integrations, and then click APIs.
    The APIs page appears.
  2. In API Keys, in New API key, enter the name for the new API key, such as Harness, and then click Create API key.
  3. Copy the API key and, in Harness, paste it into the Value field.

Application Key

To create an application key in Datadog, do the following:

  1. In Datadog, mouseover Integrations, and then click APIs. The APIs page appears.
  2. In Application Keys, in New application key, enter a name for the application key, such as Harness, and click Create Application Key.
  3. Copy the API key and, in Harness, paste it into the Value field.
  1. In Validation Path, enter metrics?from=1527102292. This is the epoch seconds value used to ensure an HTTP 200 response with the credentials validated.

When you are finished, the dialog will look something like this:

Workflow Verification

Now that you have the Verification Provider set up, you can use it as a verification step in a Workflow. In the procedure below, we will provide information on how to select the Datadog metrics you need.

  1. In Harness, open the Workflow that deploys the service you are monitoring with Datadog. You add verification steps after you have performed at least one successful deployment.
  2. In the Workflow, in Verify Service, click Add Verification.
  3. Under Verifications, click APM Verification. The Metrics Verification State dialog appears. All of the settings in Metrics Verification State are Harness settings for collecting and grouping metrics except for the settings where you will map JSON response keys to Harness fields.
  4. Fill out the Metrics Verification State dialog using the following information. You will set up an API query for Harness to execute that returns a JSON response. Next, you will map the keys in the JSON response to the fields Harness needs to locate your metric values and host.
  • Metrics Data Provider - Select the Custom Verification Provider you added above.
  • Metric Collections - Click Add Metric Collection. The New Metrics Collection settings appear.
  • Metrics Name - Enter the name to use for your metric. This is not a Datadog value. It is simply the name used for metrics collected by Harness.
  • Metrics Type - Enter the type of metric, such as Infra. These are Harness types, not Datadog's.
  • Metrics Group - Enter the name to group your collected metrics with.
  • Metrics Collection URL - This is the API query that will return a JSON response.

The query for Metrics Collection URL follows this syntax:

query?query=<METRIC_NAME>{pod_name:${host}}by{pod_name}.rollup(avg,60)&from=${start_time_seconds}&to=${end_time_seconds}

The values in ${...} braces are placeholders used for querying the data. These are substituted at runtime with real values.

Replace <METRIC_NAME> in the query with the correct metric name. The metric names are available in Datadog Metric Explorer:

For example, to search for the kubernetes.memory.usage_pct metric, your query would look like this:

query?query=kubernetes.memory.usage_pct{pod_name:${host}}by{pod_name}.rollup(avg,60)&from=${start_time_seconds}&to=${end_time_seconds}
  • Response Type - Select JSON.
  • Response Mapping - In this section you will map the keys in the JSON response to Harness fields.
  • Transaction Name - Select Fixed or Dynamic depending on the transaction name. In our example, we will use Fixed. If you select Dynamic, you will see the Transaction Name Path and Regex to transform Transaction Name fields. The Transaction Name Path is filled out in the same way as Name below. You Regex to transform Transaction Name to truncate the value of the Transaction Name Path if needed.
  • Name - Enter a name to map to the metric name. For example, if the metric name is kubernetes.memory.usage_pct then use a name like KubeMemory.
  • Metrics Value - Run the query using Guide from an example to see the JSON response and pick a key to map to Metrics Value.

In Guide from an example, specify the time range and host for the query. To specify the time range, click in the ${startTime} and ${endTime} calendars.

To specify the ${host}, get the full name of a host from Datadog Metrics Explorer:

To copy the name, click in the graph and click Copy tags to clipboard.

Next, paste the name in the ${host} field.

Click Submit. The JSON results appear. Click the name of the field to map to Metrics Value.

  • Hostname JSON path - Use Guide from an example to query Datadog and return the JSON response. In the JSON response, click the key that includes the hostname path.
  • Timestamp - Use Guide from an example to query Datadog and return the JSON response. In the JSON response, click the key that includes the timestamp.

Now that the Metric Collection is complete, click UPDATE to return to the rest of the Metrics Verification State settings.

  • Canary Analysis - Harness will compare the metrics received for the nodes deployed in each phase with metrics received for the rest of the nodes in the application. For example, if this phase deploys to 25% of your nodes, the metrics received from Custom APM during this deployment for these nodes will be compared with metrics received for the other 75% during the defined period of time.
  • Previous Analysis - Harness will compare the metrics received for the nodes deployed in each phase with metrics received for all the nodes during the previous deployment. For example, if this phase deploys V1.2 to node A, the metrics received from Custom APM during this deployment will be compared to the metrics for nodes A, B, and C during the previous deployment (V1.1). Previous Analysis is best used when you have predictable load, such as in a QA environment.
  • Failure Criteria - Specify the sensitivity of the failure criteria. When the criteria is met, the workflow Failure Strategy is triggered.
  • Data Collection Interval - Specify the frequency with which Harness will query Datadog, The value 2 is recommended.

Click SUBMIT. Now the Datadog custom verification step is added to the Workflow. Run your Workflow to see the results.

Verification Results

Once you have deployed your workflow (or pipeline) using the Custom verification step, you can automatically verify cloud application and infrastructure performance across your deployment.

Workflow Verification

To see the results of Harness machine-learning evaluation of your Custom verification, in your workflow or pipeline deployment you can expand the Verify Service step and then click the APM Verification step.

Continuous Verification

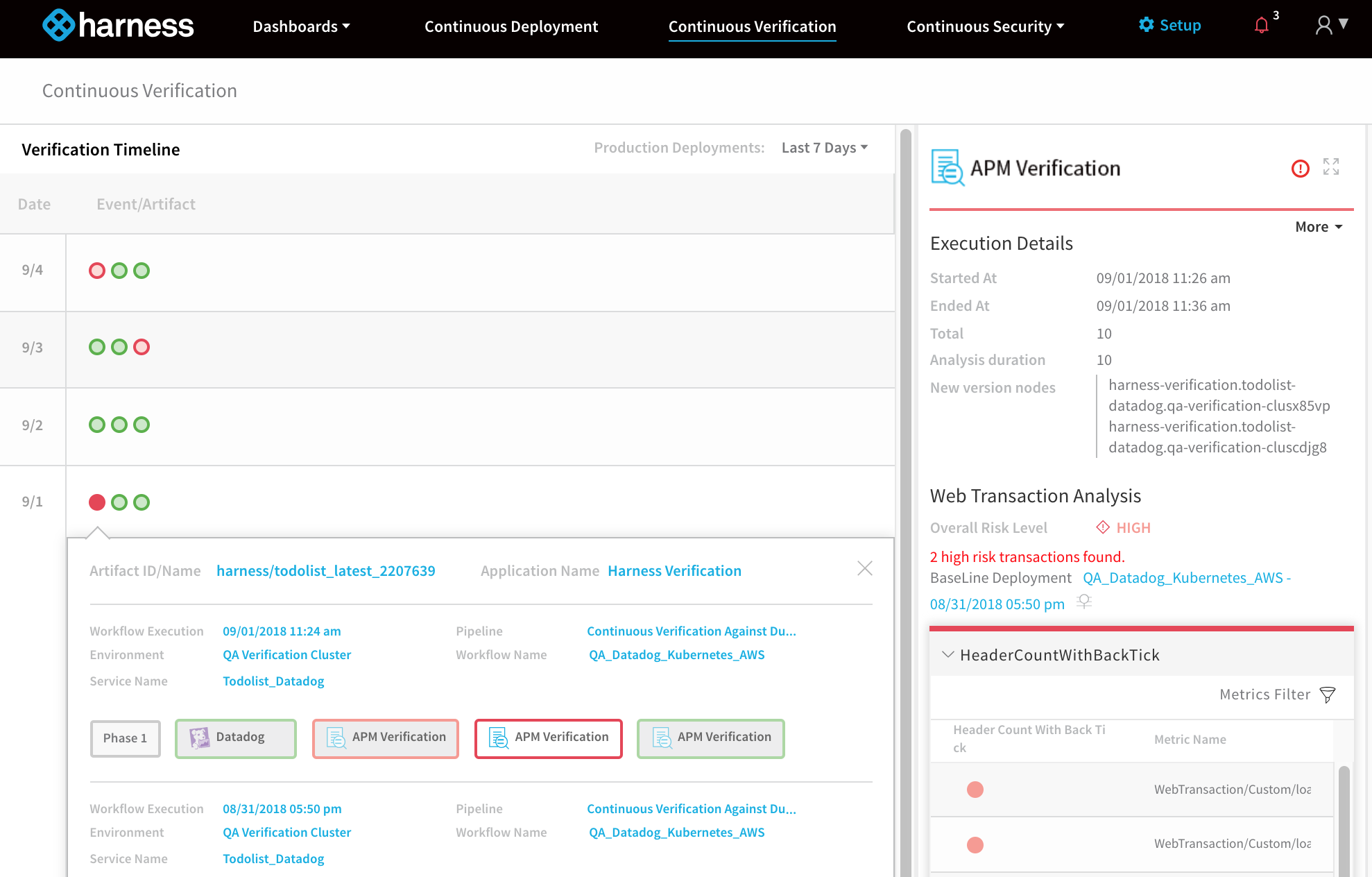

You can also see the evaluation in the Continuous Verification dashboard. The workflow verification view is for the DevOps user who developed the workflow. The Continuous Verification dashboard is where all future deployments are displayed for developers and others interested in deployment analysis.

To learn about the verification analysis features, see the following sections.

Deployments

Deployment infoSee the verification analysis for each deployment, with information on its service, environment, pipeline, and workflows.

Verification phases and providersSee the vertfication phases for each vertfication provider. Click each provider for logs and analysis.

Verification timelineSee when each deployment and verification was performed.

Transaction Analysis

Execution detailsSee the details of verification execution. Total is the total time the verification step took, and Analysis duration is how long the analysis took.

Risk level analysisGet an overall risk level and view the cluster chart to see events.

Transaction-level summarySee a summary of each transaction with the query string, error values comparison, and a risk analysis summary.

Execution Analysis

Event typeFilter cluster chart events by Unknown Event, Unexpected Frequency, Anticipated Event, Baseline Event, and Ignore Event.

Cluster chartView the chart to see how the selected event contrast. Click each event to see its log details.

Event Management

Event-level analysisSee the threat level for each event captured.

Tune event captureRemove events from analysis at the service, workflow, execution, or overall level.

Event distributionClick the chart icon to see an event distribution including the measured data, baseline data, and event frequency.
