Cost Explorer Walkthrough

Updated 3 weeks ago by Archana Singh

Harness Continuous Efficiency (CE) Cost Explorer allows you to view, understand, and analyze your cloud costs in a simple and intuitive interface.

On the Overview tab, the dashboard provides a quick summary of your cloud spend. On the Application, Cluster, and AWS tabs, get deep insights into your resource usage, cost drivers, and cost trends.

The following are the key features of Cost Explorer:

  • Filter your data by Harness Application, Service, Environment, and Tags.
  • Filter your data by Kubernetes or ECS cluster, namespace, node, workload, and label.
  • Filter your data for AWS region, account, instance type, and usage type.
  • Filter your data for GCP product, project, SKU, and region.
  • View the cost breakdown of your resources. For example, total, idle, utilized and unallocated costs.
  • View forecasted cost based on the historical data.
  • View hourly, daily, weekly, or monthly granular details.
  • View an Efficiency Score: a measurement of how cost-optimized your resource usage is across your clusters.

In this topic:

Before You Begin

Visual Summary

Reading the Cost Explorer Data

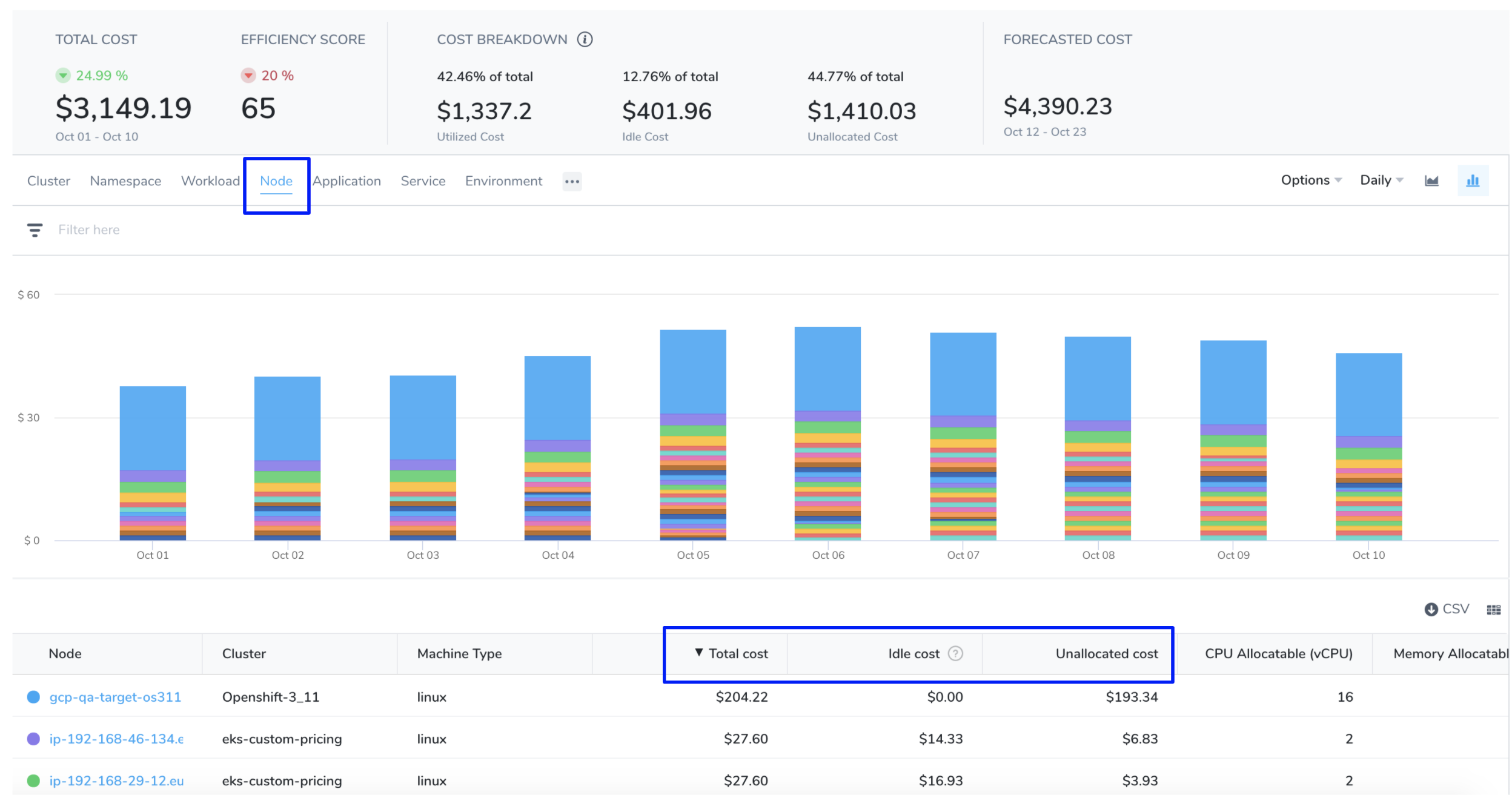

The Cost Explorer displays data as a chart and table. You can view, understand, and analyze your usage and cost data using either of them.

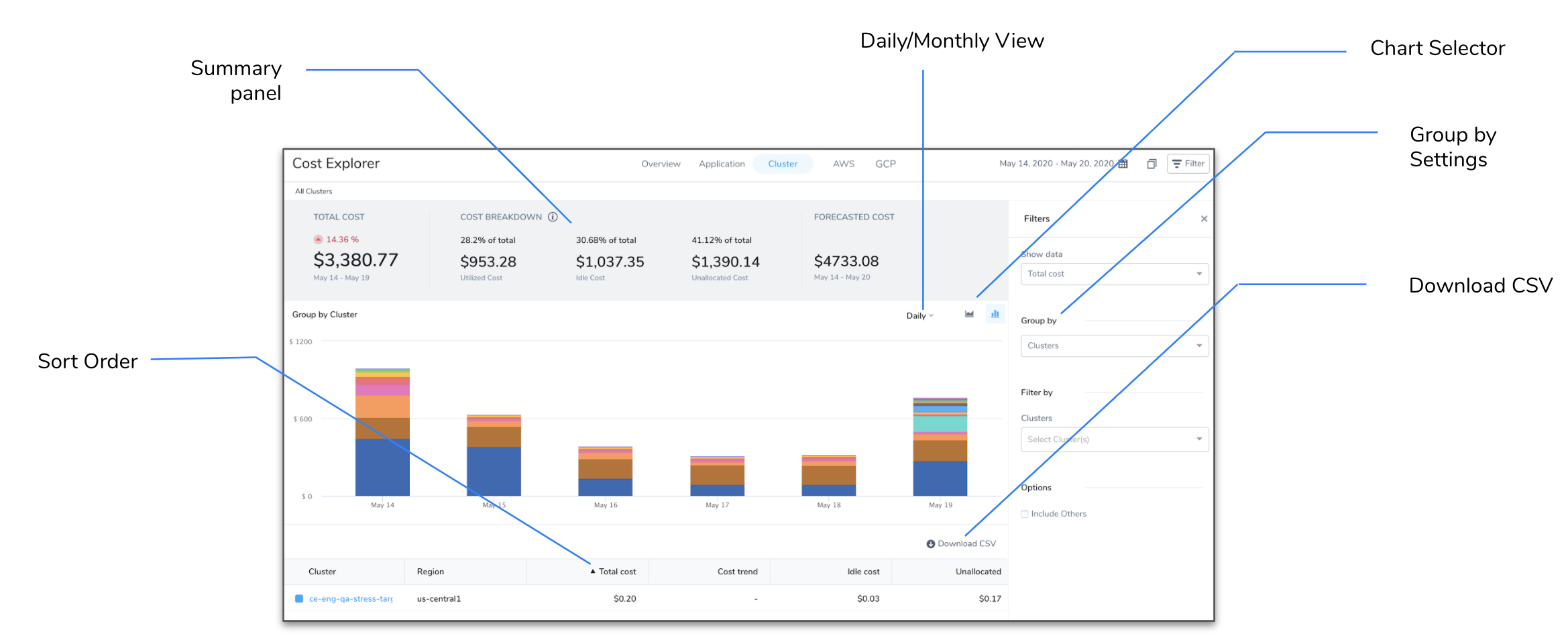

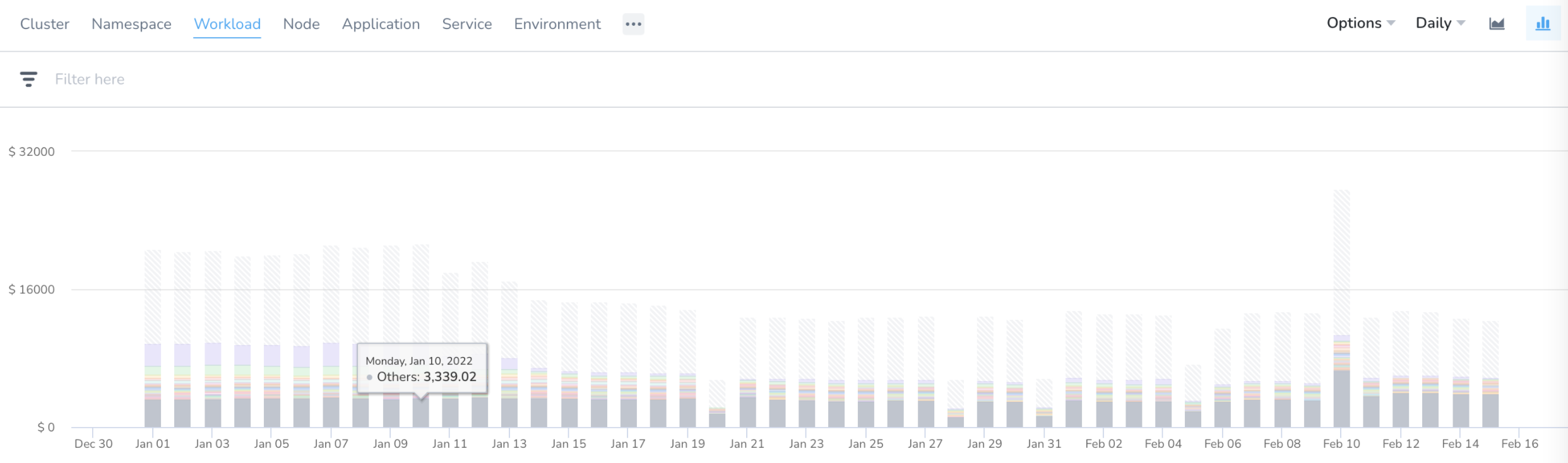

  • Specify a different chart display style using the Line Chart/Bar Chart selector. You can also choose the Daily/Monthly/Hourly view.
  • Change the sort order of the data in the table by clicking on the column header. The direction of the arrow indicates if you are sorting largest to smallest (down arrow) or smallest to largest (up arrow). To reverse the sort order on the selected column, click the column header again.
  • The Group by setting determines what data will be presented in the chart and the table. You have multiple options available to customize your Cost Explorer view including filters and other settings. Your view changes depending on the filter selections you choose.
  • The summary bar above the chart provides a summary of the total cost, cost breakdown, forecasted cost, and cost trend.
  • Download the CSV format of the report for your reference.

Cost Explorer Overview

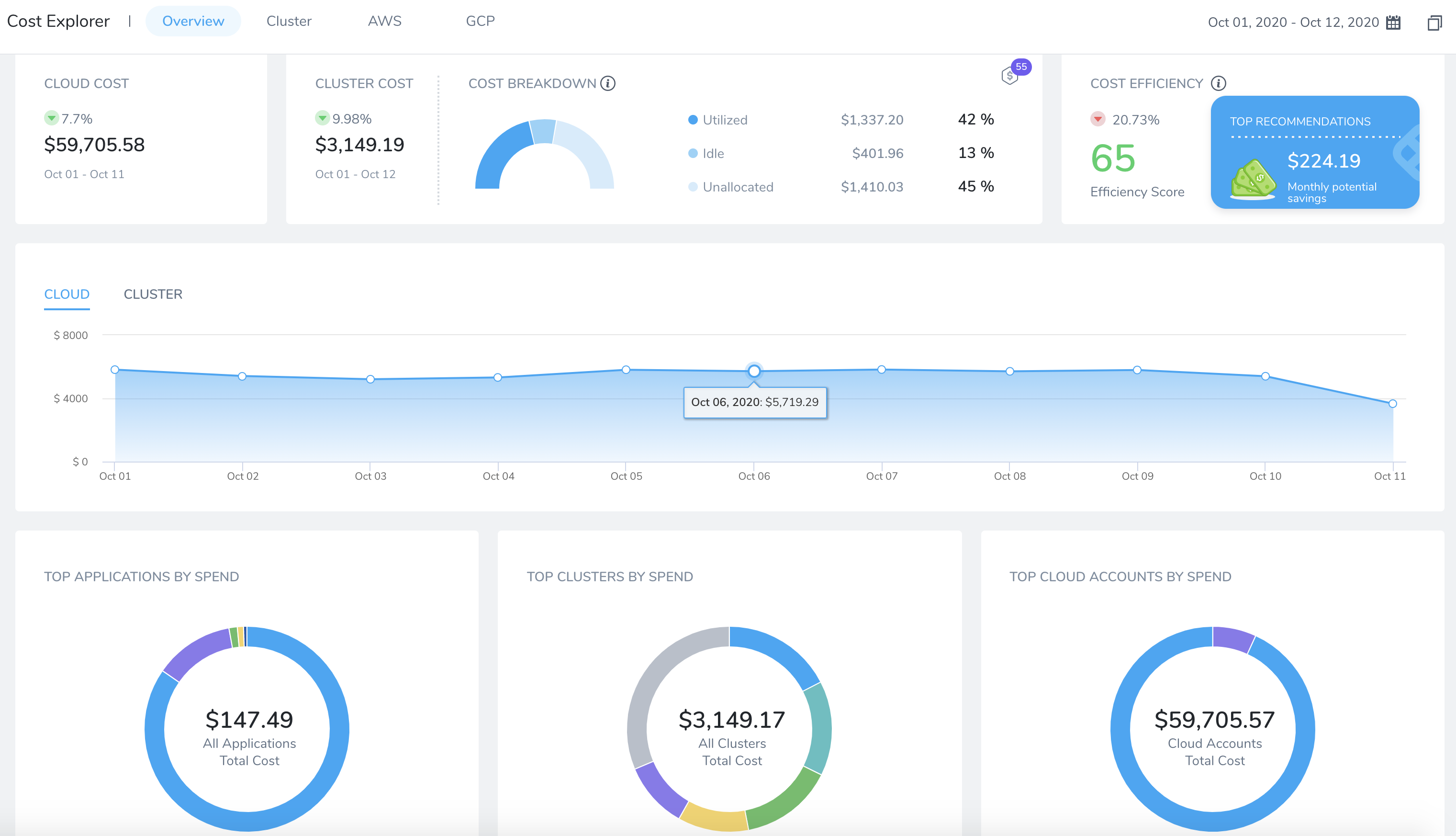

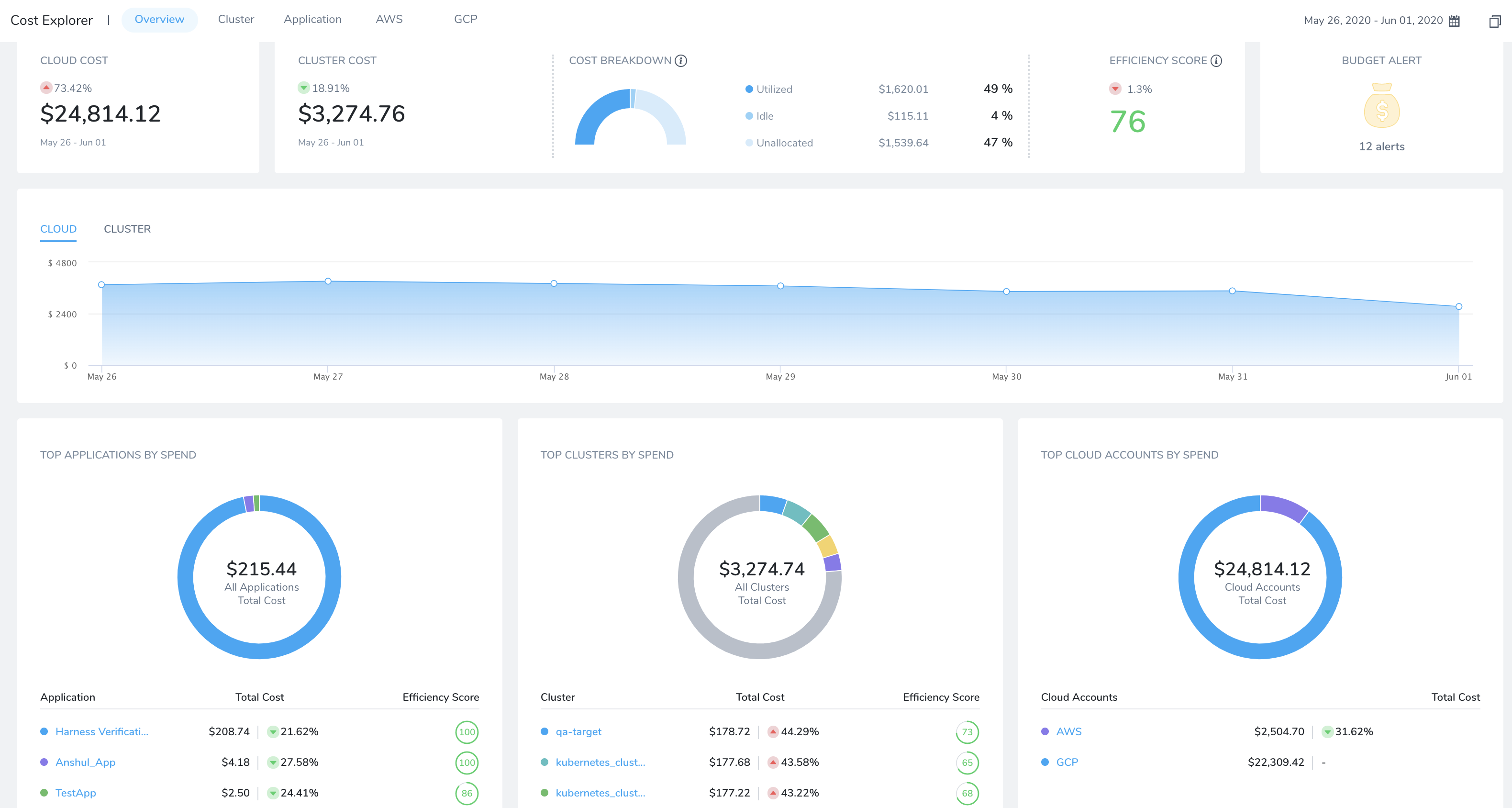

Get a summary of your total spend by Harness Application and cluster from the Cost Explorer Overview tab. The Overview tab displays the following information based on the selected date range:

  • Total cluster cost
  • Cost breakdown
  • Efficiency score
  • Budget alert
  • Top Application by spend
  • Top cluster by spend
  • Top cloud accounts by spend

Cost Explorer by Harness Application

The Cost Explorer Application tab displays the following information based on the selected date range:

  • All Harness Applications: Displays the total cost, cost breakdown, and cost trend.
  • Group by Applications, Services, Environments, Cloud Providers, Tags (In Applications), and None: The Group by setting determines what data will be presented in the chart and the table. Based on your selection the data is populated.
  • Idle cost and Total cost: Displays the idle or total cost for your selected Application.

Cost Explorer by Cluster

The Cost Explorer Cluster tab displays the following information based on the selected date range:

  • All Clusters: Displays the total cost, cost breakdown, and cost trend.
  • Group by Cluster: The Group by setting determines what data will be presented in the chart and the table. Based on your selection the data is populated.
  • Idle cost and Total cost: Displays the idle or total cost for your selected cluster.

Cost Explorer AWS

The Cost Explorer AWS tab displays the following information based on the selected date range:

  • AWS total cost: Displays the total AWS cost and cost trend.
  • Group by Service, Account, Instance Type, Usage Type, and Region: The Group by setting determines what data will be presented in the chart and the table. Based on your selection the data is populated.

Cost Explorer GCP

The Cost Explorer GCP tab displays the following information based on the selected date range:

  • GCP total cost: Displays the total GCP cost and cost trend.
  • Group by Project, Product, SKUs, and Region: The Group by setting determines what data will be presented in the chart and the table. Based on your selection the data is populated.

Key Cost Concepts

This section defines different CE cost concepts.

For ECS clusters, you can replace nodes with container instances and pods with tasks.

Node Cost

Node cost is calculated based on the pricing API of the cloud platform. For more information, see Cloud Instance Type Details.

Here is an example of how node cost is calculated based on the following node specification:

Operating system

Linux

Region

us-central1

Instance family

n1-standard-4

Instance Category

ON_DEMAND

As per the cloud platform pricing, per hour price of  n1-standard-4 in us-central1 is $0.1900.

Here is the formula:

Cost for 24 hours = 24 * 0.1900 = $4.56.

Typically nodes are the same size. If they are running for a full day and are the same size, the cost will be the same.

Pod cost

Pod cost is a ratio of the cost of the node it is running on. The price is equally distributed among CPU and memory. The following formula is used to calculate the pod cost:

Hourly pod cost = ((podCPU/nodeCPU) * nodeCPUPricePerHour) + ((podMemory/nodeMemory)) * nodeMemoryPricePerHour)

Here is an example of a pod cost calculation:

Pod Resources = (cpuUnits: 1024, memoryMB: 4096)
Node Resource = (cpuUnits: 4096, memoryMB: 15360) n1-standard-4
Node Resource = (cpuUnits: 4096, memoryMB: 15360) n1-standard-4
Pod cost = ((1024/4096)  * 0.095 ) + ((4096/15360)) *  0.095) = 0.0490833333

System Cost

System cost is calculated by subtracting the total cost of the node from the allocatable resource cost.

Allocatable on a Kubernetes node is defined as the amount of compute resources that are available for pods. For more information, see Reserve Compute Resources for System Daemons in Kubernetes.

Here is the formula:

System cost = total cost of node - allocatable resource cost

System cost is used when calculating Unallocated Cost, described below.

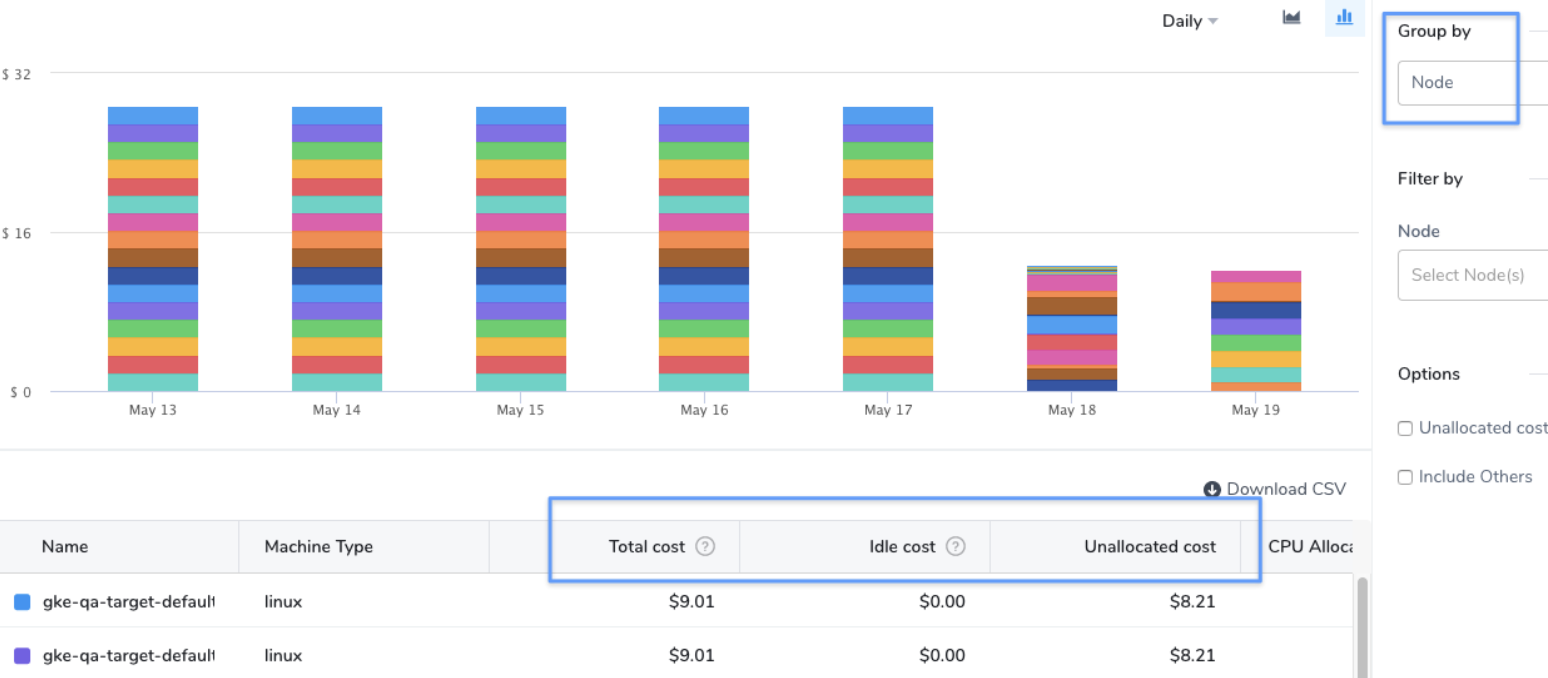

Unallocated Cost

Unallocated cost is applicable for nodes only. There is no concept of unallocated costs for pods.

Unallocated cost is the cost of unallocated node resources in a Kubernetes cluster or unallocated container instances in an ECS cluster.

Unallocated cost of node = node cost - the cumulative sum of pod costs running on that node - system cost of the node
Unallocated cost of cluster = sum of the node’s unallocated cost running in the cluster

Idle Cost

Idle cost is the cost of idle resources (CPU and memory) allocated to a Kubernetes pod or an Amazon ECS task but is not utilized.

Here is an example of pod idle cost calculation:

Instance cost = 75$, CPU cost = 25$,  Memory cost = 50$
Avg cpu util = 75%, Avg memory util = 25%

CPU Idle cost = (25) * (1 - .75) = 6.25
Memory Idle cost = (50) * (1 - .25) = 37.50

Idle Cost = 6.25 + 37.50 = 43.75$

Node Idle cost = Cost of unutilized resources - unallocated resource

Here is an example of node idle cost calculation:

Instance cost = 75$, CPU cost = 25$,  Memory cost = 50$
Avg cpu util = 75% , Avg memory util = 75%
CPU Idle cost = (25) * (1 - .75) = 6.25
Memory Idle cost = (50) * (1 - .75) = 12.5

Unallocated cost of cpu = 2.5$, Memory = 10$

Idle Cost = 6.25 + 12.50 - 2.5 - 10 = 6.25$

Total Cost

For Kubernetes clusters, the total cost is the sum of all the node costs. For ECS clusters, the sum of all container instances.

Utilized Cost

Utilized cost is the cost estimate for the utilized node or pod resources.

Utilized cost = Total cost - node idle cost - unallocated cost

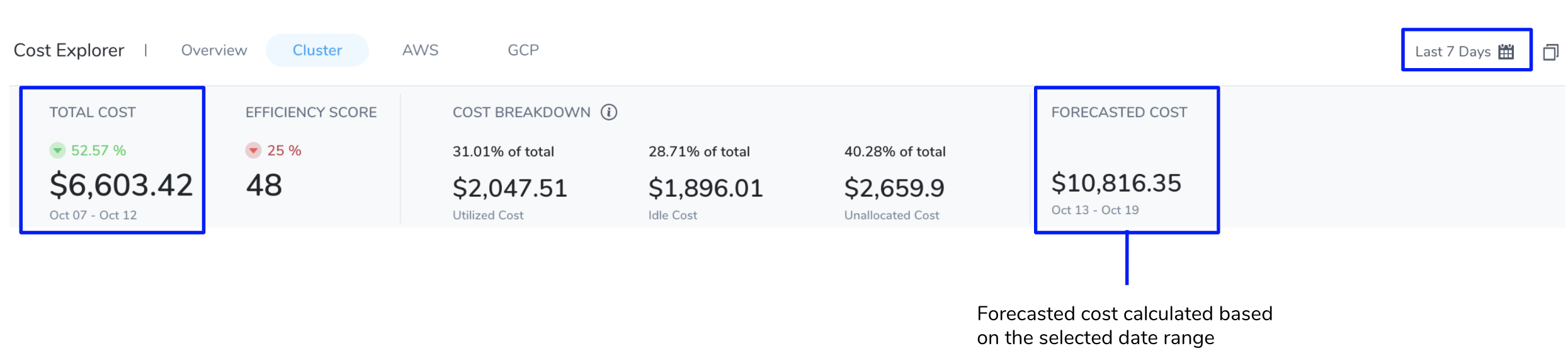

Forecasted Cost

Forecasted costs are predictions based on your historical cost data. The forecasted date is applicable only where historical data exists. If there is insufficient data to compute the forecast, the value is not displayed. The forecasted cost is predicted for the same future time period as your selected date range.

The following table lists some of the examples for forecasted cost calculation. In this example, the current date is considered as March 30, 2020.

Selected Date Range

Forecasted Date Range

Predefined date range, for example, Last 7 days, Last 30 days, Last month, and so on

Calculated for the next 7 days, next 30 days, or next month based on the selected date range

Custom date range, for example, March 25 - 30 (6 days)

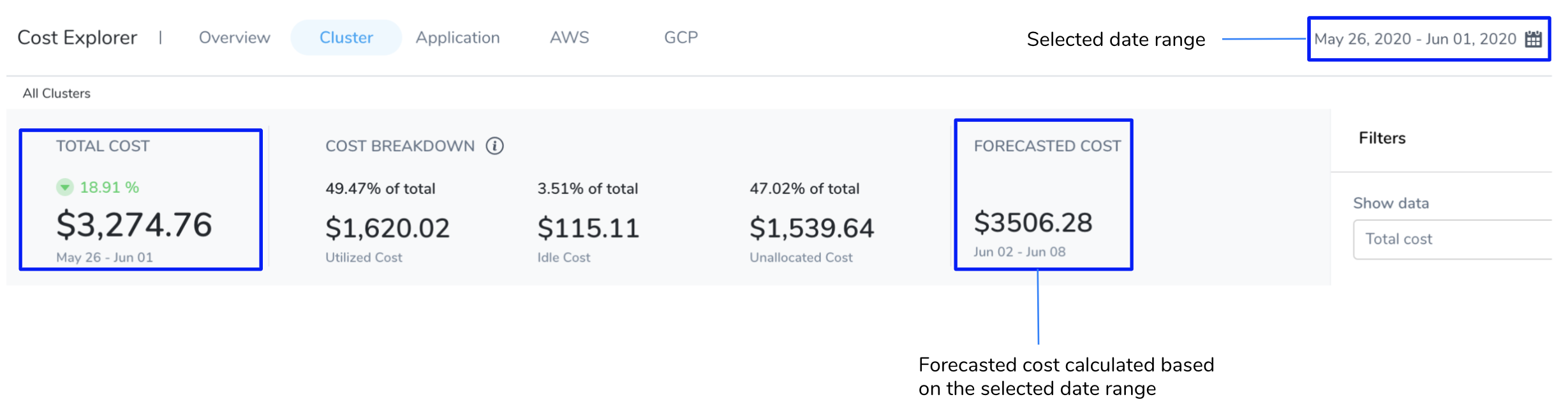

March 31 - April 5 (next 6 days)

Future date range, for example, March 25 - April 3 (invalid date range)

Not applicable

Past date range, for example, March 1 -15

Not applicable

Cost Trend

The cost trend is calculated based on previous spending. It can be calculated only if the previous data is available.

Efficiency Score

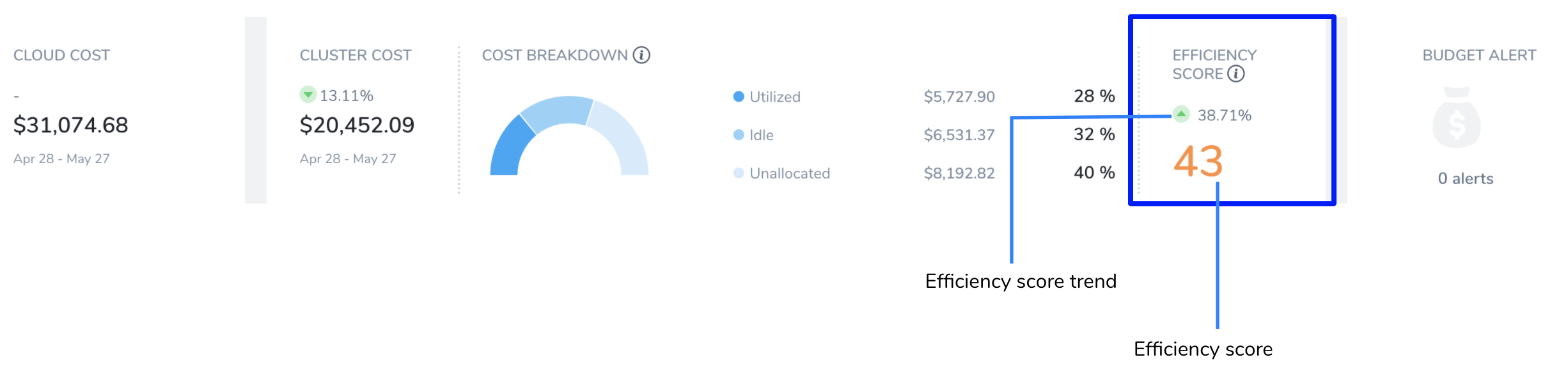

A measure of how cost-optimized your resource usage is across your clusters. It is derived from the total and idle (and or unallocated) spend of your resources. Efficiency score and trend is displayed on the Overview page as the following:

Efficiency score display uses the following visual cues:

  • Green (Healthy): 61 - 100 range; indicates that the cost of your resources across clusters is well optimized
  • Orange (Medium): 31- 60 range; indicates that the cost of your resources across clusters can be optimized better
  • Red (Poor): 0 - 30 range; indicates that the cost of your resources are not well optimized and needs immediate attention

The efficiency score is the deviation of actual utilization from the expected utilization baseline.

Expected utilization baseline = utilized resources (100 - x - y)%,
where  x% is allowed unallocated cost and y% is allowed idle cost

Here is an example:

Allowed unallocated resources = 5% of the total cost

Allowed idle resources = 30% of the total cost

Utilized resources baseline defined = 65%

If the utilization is 58% of total cost, then the efficiency score =
[1 - [(65-58)/65]] * 100 ~ [89 efficiency score]

Context and Visibility

Cost Explorer provides context and visibility into the following:

Application

Environment

Harness Service

Cluster

Workload

Namespace

Node

Pod

Region

Usage Type

Account

Service

Instance Type

Products

Project

SKUs



Next Steps
