ServiceNow Approvals

Updated 3 weeks ago by Archana Singh

You can use ServiceNow to approve or reject a Workflow or Pipeline step.

In your Harness Workflow or Pipeline, you define a ServiceNow ticket and the approval and rejection criteria. During deployment, a ServiceNow ticket is created and its approval/rejection determines if the Pipeline (and Workflow) deployment may proceed. For details on integrating ServiceNow with Harness, see ServiceNow Integration.

In this topic:

The other approval mechanisms are:

Step: Add an Approval Step

The following steps are for a Pipeline Approval stage, but the same same settings apply to Workflow Approval steps.
  1. In your Pipeline, in Pipeline Stages, click +. The following settings appear.
  2. Select Approval Step.
  3. Select ServiceNow in the Ticketing System.
  4. Select the ServiceNow account in ServiceNow Connector that you want to use by selecting the Collaboration Provider you added for the account, as described in Add ServiceNow as a Collaboration Provider. Use the same provider you used to create the ticket in the Workflow.
  5. Select the ServiceNow Ticket Type from the drop-down list. Use the same type as the ticket you created in the Workflow.
  6. Enter the Issue Number. It is an output variable for a ServiceNow issue created in a Workflow, such as ${snow.issueId}.
  7. Enter the time duration in Timeout that Harness should wait for the approval or rejection before failing the deployment. You can use w  for week, d  for day, h  for hour, m  for minutes, s  for seconds and ms for milliseconds. For example, 1d for one day.
  8. In Approval, define the approval criteria using the ServiceNow status items.
  9. In Rejection, define the rejected criteria using the ServiceNow status items.
    For both Approval and Rejection, the criteria you see depends on the Ticket Type you selected:
  10. In Enable Approval Change Window, use Window Start and Window End values to specify the window in which Harness will proceed with the deployment. Once this step is approved, Harness will not proceed with deployment unless the current time is within this window. The values that appear depend on the type selected in Ticket Type.
    The start and end times use the time zone set in the ServiceNow account selected in ServiceNow Connector.
    This is available in Approvals only.
  11. Select Execute in Parallel with Previous Step checkbox to execute the steps in parallel.
  12. Select either Do not skip or Skip always for setting the skip option. For more information, see Skip Execution.
  13. Click Submit.

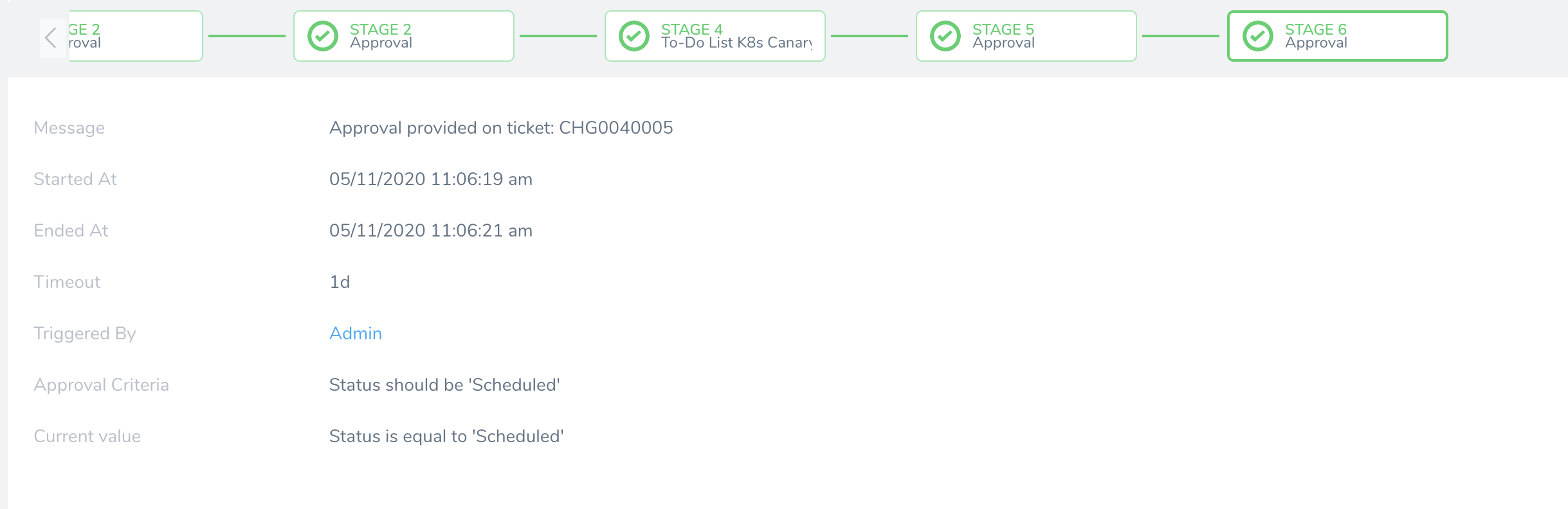

  14. Deploy your Workflow or Pipeline and go to the Deployments page. The Approval Stage displays the following information:
  • Message: The "Message" appears only when the stage of a Pipeline is completed, and there is no action pending from the user or system. It displays the completed status of the process. For example, approval provided, approval rejected, or Pipeline aborted.
  • Started At: The time at which the Pipeline was triggered.
  • Ended At: The time at which the system or a user completed the approval process.
  • Timeout: The time duration that Harness should wait for the approval or rejection before killing the deployment process.
  • Triggered By: The user who triggered the Pipeline deployment. It can be triggered using a Pipeline or Trigger process.
  • Approval Criteria: Criterion set for approving the request.
  • Current Value: Current status of ServiceNow ticket.
  • Rejection Criteria: Criterion set for rejecting the request.

Option: State Model and Transitions

If you select Change in Ticket Type, you enable ServiceNow's state model to move and track change requests through several states.

After the change request is authorized by all the approvers, it transitions into Scheduled state by default.

For more information, see State model and transitions from ServiceNow.
