9 - Workflow Variable Expressions

Updated 1 month ago by Michael Cretzman

For a list of Harness' built-in variables and expressions, see Variables and Expressions in Harness.

The following Kubernetes-specific Harness variables are available as expressions you can use in your Workflows:

  • ${k8s.primaryServiceName} - The service in your Harness Service Manifests section that uses the annotations: harness.io/primary-service: true annotation. See Kubernetes Blue/Green Workflows.
  • ${k8s.stageServiceName} - The service in your Harness Service Manifests section uses the annotations: harness.io/stage-service: true annotation. See Kubernetes Blue/Green Workflows.
  • ${k8s.canaryWorkload} - The Kubernetes workload set up in the Canary Workflow. Workflows only deploy one workload per deployment. Workloads include the DaemonSet, Deployments, Jobs, Pods, ReplicaSet, ReplicationController, and StatefulSet objects.
  • ${k8s.virtualServiceName} - The name in the Virtual Service manifest deployed by the Workflow. This is the manifest in the Service Manifests section that uses kind: VirtualService for Istio. See Traffic Management.
  • ${k8s.canaryDestination} and ${k8s.stableDestination} - The names in the Destination Rule subsets deployed by the Canary Workflow. See Traffic Management.

This is the manifest Harness generates for Istio traffic splitting:

Found VirtualService with name anshul-traffic-split-demo-virtualservice

Found following destinations
${k8s.canaryDestination}
weight: 50

${k8s.stableDestination}
weight: 50

...

http:
- route:
- destination:
host: "anshul-traffic-split-demo-svc"
subset: "canary"
weight: 50
- destination:
host: "anshul-traffic-split-demo-svc"
subset: "stable"
weight: 50

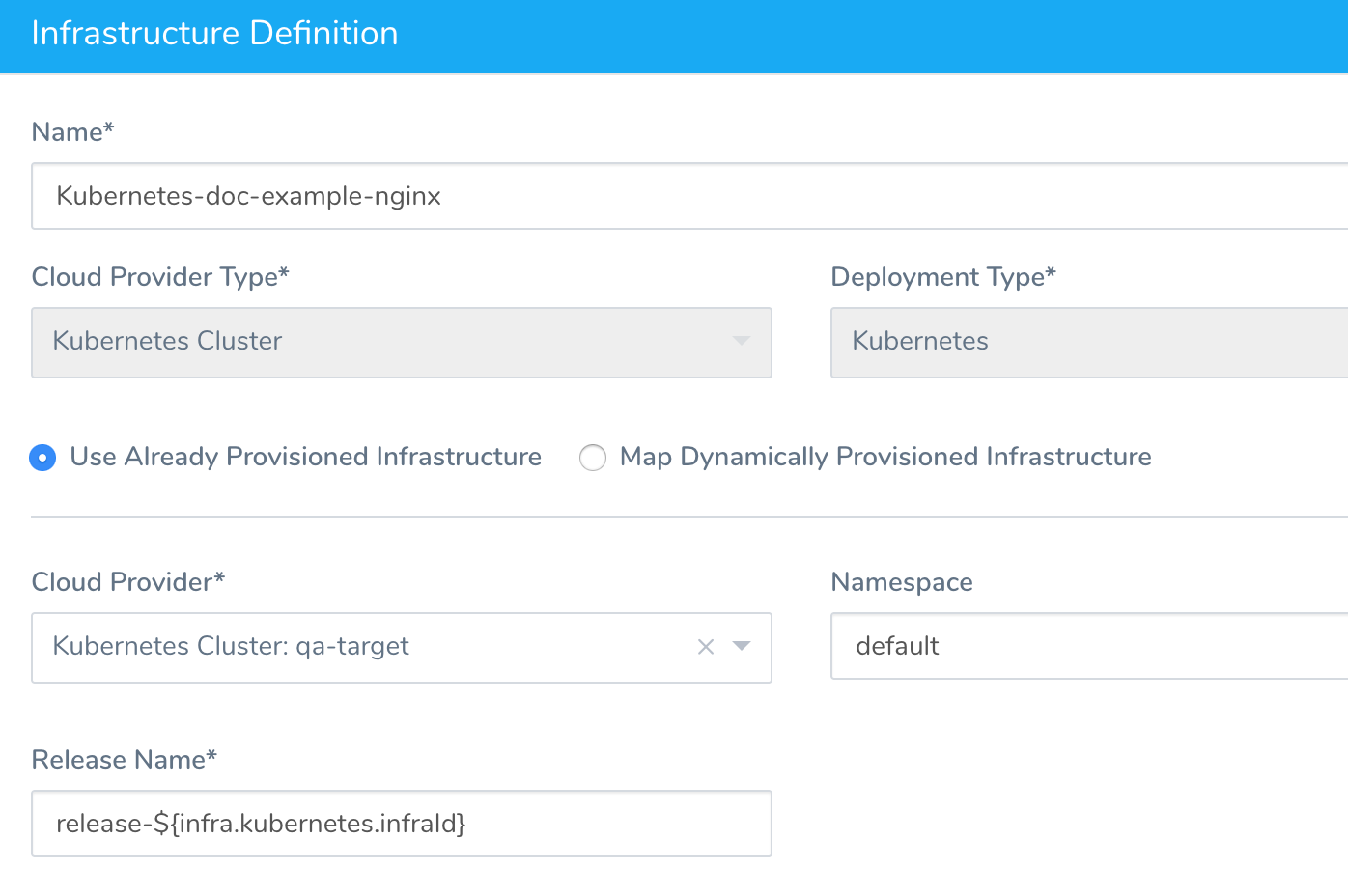

  • ${infra.kubernetes.namespace} - The Harness variable ${infra.kubernetes.namespace} refers to the namespace entered in the Harness Environment Service Infrastructure/Infrastructure Definition settings Namespace field:

Infrastructure Definitions is a feature-flagged replacement for Service Infrastructure.

You can use ${infra.kubernetes.namespace} in your Harness Service Manifests definition of a Kubernetes Namespace to reference the name you entered in the Service Infrastructure/Infrastructure Definition Namespace field. When the Harness Service is deployed to that Service Infrastructure/Infrastructure Definition, it will create a Kubernetes namespace using the value you entered in the Service Infrastructure/Infrastructure Definition Namespace field.

In the values.yaml file, it will look like this:

namespace: ${infra.kubernetes.namespace}

In a manifest file for the Kubernetes Namespace object, it will be used like this:

apiVersion: v1
kind: Namespace
metadata:
name: {{.Values.namespace}}

When this manifest is used by Harness to deploy a Kubernetes Namespace object, it will replace ${infra.kubernetes.namespace} with the value entered in the Service Infrastructure/Infrastructure Definition Namespace field, creating a Kubernetes Namespace object using the name. Next, Harness will deploy the other Kubernetes objects to that namespace.

If you omit the namespace key and value from a manifest in your Service, Harness automatically uses the namespace you entered in the Harness Environment Service Infrastructure/Infrastructure Definition settings Namespace field.
