Using the Helm Delegate

Updated 2 weeks ago by Michael Cretzman

The Helm Delegate can be installed on your Kubernetes cluster using the Harness Helm Delegate YAML file and Helm chart located in the Harness Helm Delegate repo at https://app.harness.io/storage/harness-download/harness-helm-charts/.

The Helm Delegate can also be installed using the Kubernetes management platform, Rancher.

In this guide:

Install the Helm Delegate

You can install the Helm Delegate in your Kubernetes cluster using Harness Manager and a few Helm commands.

Helm Delegate Requirements

Ensure that the Kubernetes cluster where you are installing the Helm Delegate has the following.

Helm and Tiller Requirement

The Kubernetes cluster where you install the Helm Delegate must have Helm and Tiller installed. Many Kubernetes providers have Helm installed by default and you will only need to install Tiller via the helm init command.

Tiller Service Account and Role Binding

Ensure Tiller has a Kubernetes service account and cluster role binding. Here are the common commands and outputs:

$ kubectl -n kube-system create serviceaccount tiller

serviceaccount/tiller created

$ kubectl create clusterrolebinding tiller --clusterrole cluster-admin --serviceaccount=kube-system:tiller

clusterrolebinding.rbac.authorization.k8s.io/tiller created

$ helm init --service-account tiller

$ kubectl get pods --namespace kube-system

NAME READY   STATUS    RESTARTS   AGE
tiller-deploy-859766db44-hn9p5  1/1     Running   0          66s

For more information, see Tiller and Role-based Access Control from Helm.

Cloud Platform Permissions

Ensure that the account you use to install the Helm Delegate in your Kubernetes cluster has permissions to deploy to the target namespace. If the account does not have permissions, you might see the error:

namespaces "default" is forbidden: User "system:serviceaccount:kube-system:default" cannot get resource "namespaces" in API group "" in the namespace "default"

In this case, use the following kubectl command to add the user as a cluster admin:

kubectl edit clusterrolebinding cluster-admin

Add user to the file, save, and re-run the installation:

- apiGroup: rbac.authorization.k8s.io
kind: User
name: john.doe@example.com

Different Kubernetes platforms might require different roles for Helm to deploy to the cluster. For example, the Kubernetes Engine Cluster Admin role is required for the service account on Google Kubernetes Engine that will run the commands to install the Helm Delegate.

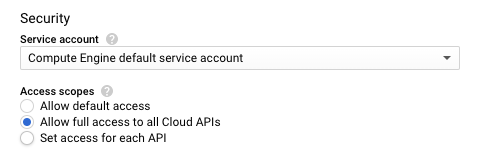

GKE clusters also have security settings that might need to be applied. For example, the Access Scope might need to be set to Allow full access to all Cloud APIs for some clusters.

Installing the Helm Delegate

To install the Helm Delegate using Helm commands, do the following:

  1. In Harness, click Setup.
  2. Click Harness Delegates.
  3. In the Harness Delegates page, click Download Delegate, and then click Helm Values YAML.

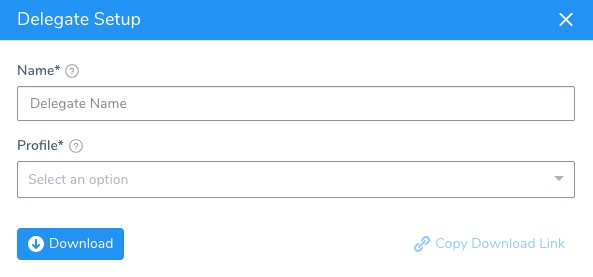

The Delegate Setup dialog appears.

  1. In Name, enter a name for the Delegate. You will use this name later when you install the Delegate in Kubernetes using the command helm install --name <delegate_name> harness-helm-repo/harness-delegate -f harness-delegate-values.yaml.
  2. In Profile, select a Delegate Profile to apply to the Delegate.
  3. Click SUBMIT. The Helm Values YAML is downloaded.
  4. Open a Terminal and navigate to where the Helm Values YAML file is downloaded.
  5. In the Terminal, log into the Kubernetes cluster where you want to install the Helm Delegate. In GKE, you click the Connect button for the cluster, and then copy and paste the login command into your Terminal.
  6. Ensure Helm and Tiller are installed. Run helm version, and then helm init.
  7. Add the Harness Helm Delegate chart to the Helm repo:

helm repo add harness-helm-repo https://app.harness.io/storage/harness-download/harness-helm-charts/

You will see the following output:

"harness-helm-repo" has been added to your repositories

You can use helm search harness to see the chart.

  1. Install the Helm Delegate using the Helm Values YAML file you downloaded and the name you gave the Delegate (in this example, the name is helm-delegate-doc):

helm install harness-helm-repo/harness-delegate --name helm-delegate-doc -f harness-delegate-values.yaml

If you are installing into a specific namespace, you will need the --namespace parameter also:

helm install harness-helm-repo/harness-delegate --name helm-delegate-doc -f harness-delegate-values.yaml --namespace doc-example

The successful output will look something like this:

NAME:   helm-delegate-doc
LAST DEPLOYED: Fri Aug 30 11:22:01 2019
NAMESPACE: doc-example
STATUS: DEPLOYED

RESOURCES:
==> v1/ConfigMap
NAME DATA AGE
helm-delegate-doc-configmap 17 1s

==> v1/Namespace
NAME STATUS AGE
harness-delegate Active 1s

==> v1/Pod(related)
NAME READY STATUS RESTARTS AGE
helm-delegate-doc-lnfzrf-0 0/1 ContainerCreating 0 1s

==> v1/Secret
NAME TYPE DATA AGE
helm-delegate-doc-secret Opaque 2 1s

==> v1beta1/ClusterRoleBinding
NAME AGE
helm-delegate-doc-cluster-admin 1s

==> v1beta1/StatefulSet
NAME READY AGE
helm-delegate-doc-lnfzrf 0/1 1s

Wait a few minutes and the Helm Delegate will appear in the Harness Delegates page, using the name you entered when you downloaded the Helm Values YAML file:

Install Using Rancher

The Harness Helm Delegate integrates with Rancher as many users now use Rancher to deploy and manage multiple Kubernetes clusters running anywhere, on any provider.

The following procedure assumes that you have a Rancher account.

To install the Helm Delegate using Rancher, do the following:

  1. In Harness, click Setup.
  2. Click Harness Delegates.
  3. In the Harness Delegates page, click Download Delegate, and then click Helm Values YAML.

The Delegate Setup dialog appears.

  1. In Name, enter a name for the Delegate.
  2. In Profile, select a Delegate Profile to apply to the Delegate.
  3. Click SUBMIT. The Helm Values YAML is downloaded.
  4. Log into your Rancher account.

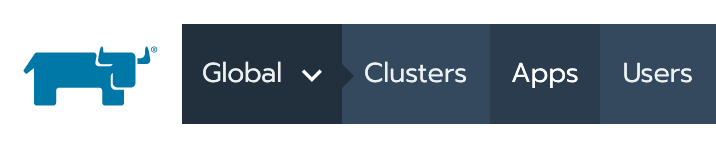

  5. Click Apps.

  1. Click Launch.

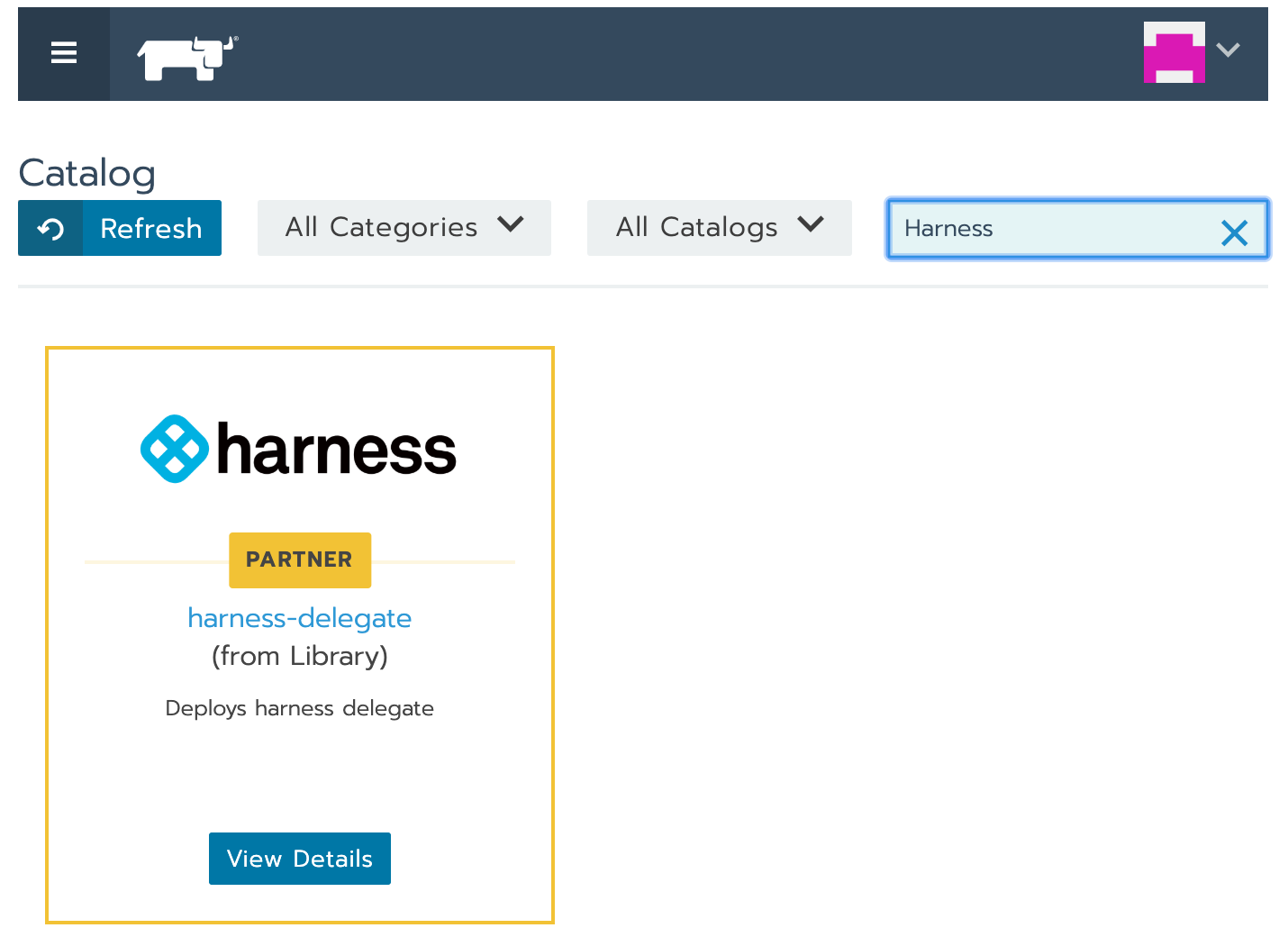

  2. In Search, enter Harness. The Harness Delegate app appears.

  1. Click View Details. Next, you will use the Helm Values YAML file you downloaded to fill out the fields in the Harness Delegate app in Rancher.
  2. Open the Helm Values YAML you downloaded in a text editor. It will look something like this:
# Account Id to which the delegate will be connecting
accountId: xxxxxxxxx

# Secret identifier associated with the account
accountSecret: xxxxxxxxx

# Short 6 character identifier of the account
accountIdShort: lnfzrf

delegateName: doc-helm-example

# Id of the delegate profile that needs to run when the delegate is
# coming up
delegateProfile: ""

managerHostAndPort: https://app.harness.io
watcherStorageUrl: https://app.harness.io/storage/wingswatchers
watcherCheckLocation: watcherprod.txt
delegateStorageUrl: https://app.harness.io/storage/wingsdelegates
delegateCheckLocation: delegateprod.txt

In Rancher, use the Helm Values YAML file to enter the following:

  1. in Name, enter a name for the Delegate App.

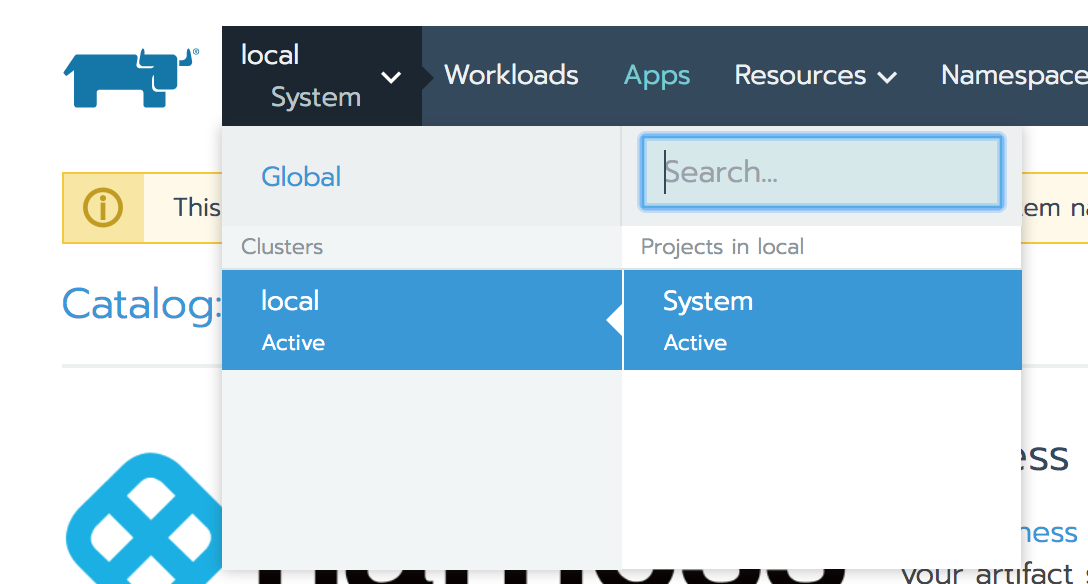

  2. In Namespace, enter the Kubernetes namespace in the target cluster where you want the Delegate installed. To see the Namespace field, you might need to change to the Project in Rancher:

  1. In Account ID, enter the value used for accountId.
  2. In Account Secret, enter the value used for accountSecret.
  3. In Short Account ID, enter the value used for accountIdShort.
  4. In Delegate Name, enter the name used for the delegateName.
  5. To set advanced configurations, in Show Advanced Server Configurations, click True, and change the defaults. This is rarely necessary.
The Helm version setting can be used to control the Helm version, but ensure that the Helm and Tiller versions match.

To set proxy configurations, in Show Advanced Proxy Configurations, click True, and change the defaults. This is rarely necessary. The proxy settings are visible in the Helm Values YAML file you downloaded also.

When you are finished setting up the Delegate, click Launch. Rancher will launch the Helm Delegate.

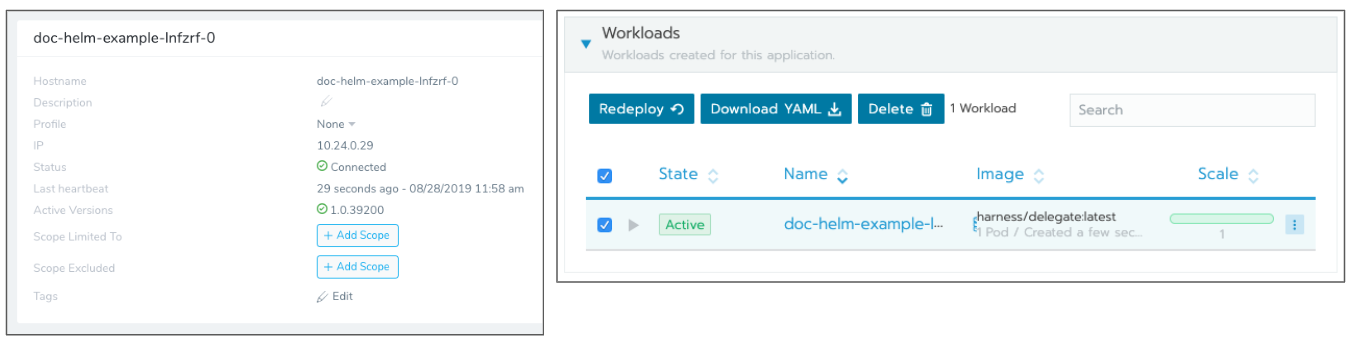

In a few minutes, the Helm Delegate appears in Harness in the Harness Delegates page. Here is the Helm Delegate and its corresponding Rancher status page:

Troubleshooting

The Helm Delegate installation requires that admin privileges in the cluster. If the user account you use to install the Delegate does not have these privileges, you might see the following error:

namespaces "default" is forbidden: User "system:serviceaccount:kube-system:default" cannot get resource "namespaces" in API group "" in the namespace "default"

To add the user account to the cluster admin group, enter:

kubectl edit clusterrolebinding cluster-admin

Add user to file and save:

- apiGroup: rbac.authorization.k8s.io
kind: User
name: john.does@harness.io
