7 - Kubernetes Rolling Update Workflows

Updated 1 day ago by Michael Cretzman

A rolling updates strategy update Kubernetes Deployments with zero downtime by incrementally updating pods instances with new ones. New Pods are scheduled on nodes with available resources.

For a detailed explanation, see Performing a Rolling Update from Kubernetes.

This topic contains the following sections:

Kubernetes Service for Rolling Update

There are not mandatory Rolling Update-specific settings for the Harness Service. You can use any Kubernetes configuration in your Service Manifests section.

The default Rolling Update strategy used by Harness is:

RollingUpdateStrategy:  25% max unavailable, 25% max surge

If you want to set a Rolling Update strategy that is different from the default, you can include the strategy settings in your Deployment manifest:

strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 1

For details on the settings, see RollingUpdateDeployment in the Kubernetes API.

Deploy Multiple Workloads

Harness Canary and Blue/Green Workflow types only support Kubernetes Deployment workloads. Rolling Workflow types support all other workloads, except Jobs. The Apply Step can deploy any workloads or objects.

In Harness, a workload is a Deployment, StatefulSet, or DaemonSet object deployed and managed to steady state. For Rolling Update deployments, you can deploy multiple managed workloads. For Canary and Blue/Green Workflow deployments, only one managed object may be deployed per Workflow by default. You can deploy additional objects using the Apply Step, but it is typically used for deploying Jobs controllers.

You can specify the multiple workload objects in a single manifest or in individual manifests, or any other arrangement.

For example, here is a Service Manifests section with two Deployment objects, each in their own manifest:

Here is the log from the deployment, where you can see both Deployment objects deployed:

apiVersion: apps/v1
kind: Deployment
metadata:
name: anshul-multiple-workloads-deployment
spec:
replicas: 1
selector:
matchLabels:
app: anshul-multiple-workloads
template:
metadata:
labels:
app: anshul-multiple-workloads
spec:
containers:
- name: anshul-multiple-workloads
image: registry.hub.docker.com/library/nginx:stable
envFrom:
- configMapRef:
name: anshul-multiple-workloads
- secretRef:
name: anshul-multiple-workloads
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: anshul-multiple-workloads-deployment-1
spec:
replicas: 3
selector:
matchLabels:
app: anshul-multiple-workloads
template:
metadata:
labels:
app: anshul-multiple-workloads
spec:
containers:
- name: anshul-multiple-workloads
image: registry.hub.docker.com/library/nginx:stable
envFrom:
- configMapRef:
name: anshul-multiple-workloads
- secretRef:
name: anshul-multiple-workloads

Kubernetes Workflows for Rolling Update

To create a Kubernetes Rollout Deployment Workflow, do the following:

  1. In your Application containing a completed Service and Environment for the Rollout Deployment, click Workflows.
  2. Click Add Workflow. The Workflow dialog appears.
  3. In Name, enter a name for your Workflow, such as NGINX-K8s-Rolling.
  4. In Workflow Type, select Rolling Deployment.
  5. In Environment, select the Environment you created for your Kubernetes deployment.
  6. In Service, select the Service containing the manifest files you want to use for your deployment.
  7. In Service Infrastructure/Infrastructure Definition, select the Service Infrastructure/Infrastructure Definition where you want to deploy.
  8. When you are finished the Workflow dialog will look like this (the example uses the feature-flagged Infrastructure Definition functionality):
  9. Click SUBMIT. The new Workflow appears.

The Workflow generates the Rollout Deployment step automatically. There is nothing to update. You can deploy the Workflow.

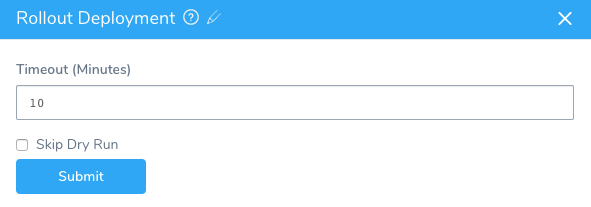

Skip Dry Run: By default, Harness uses the --dry-run flag on the kubectl apply command during the Initialize step of this command, which prints the object that would be sent to the cluster without really sending it. If the Skip Dry Run option is selected, Harness will not use the --dry-run flag.

Let's look at what the Rollout Deployment step does in the deployment logs.

Apply

The Apply section deploys the manifests from the Service Manifests section as one file.

kubectl --kubeconfig=config apply --filename=manifests.yaml --record

configmap/harness-example-config-3 configured
deployment.apps/harness-example-deployment created

Done.

Wait for Steady State

The Wait for Steady State section shows the containers and pods rolled out.

kubectl --kubeconfig=config get events --output=custom-columns=KIND:involvedObject.kind,NAME:.involvedObject.name,MESSAGE:.message,REASON:.reason --watch-only

kubectl --kubeconfig=config rollout status Deployment/harness-example-deployment --watch=true


Status : Waiting for deployment "harness-example-deployment" rollout to finish: 0 of 2 updated replicas are available...
Event : Pod harness-example-deployment-5674658766-6b2fw Successfully pulled image "registry.hub.docker.com/library/nginx:stable-perl" Pulled
Event : Pod harness-example-deployment-5674658766-p9lpz Successfully pulled image "registry.hub.docker.com/library/nginx:stable-perl" Pulled
Event : Pod harness-example-deployment-5674658766-6b2fw Created container Created
Event : Pod harness-example-deployment-5674658766-p9lpz Created container Created
Event : Pod harness-example-deployment-5674658766-6b2fw Started container Started
Event : Pod harness-example-deployment-5674658766-p9lpz Started container Started

Status : Waiting for deployment "harness-example-deployment" rollout to finish: 1 of 2 updated replicas are available...

Status : deployment "harness-example-deployment" successfully rolled out

Done.

Wrap Up

The Wrap Up section shows the Rolling Update strategy used.

...
Name: harness-example-deployment
Namespace: default
CreationTimestamp: Sun, 17 Feb 2019 22:03:53 +0000
Labels: <none>
Annotations: deployment.kubernetes.io/revision: 1
kubectl.kubernetes.io/last-applied-configuration:
{"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{"kubernetes.io/change-cause":"kubectl apply --kubeconfig=config --f...
kubernetes.io/change-cause: kubectl apply --kubeconfig=config --filename=manifests.yaml --record=true
Selector: app=harness-example
Replicas: 2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType: RollingUpdate
MinReadySeconds: 0
RollingUpdateStrategy: 25% max unavailable, 25% max surge
...
NewReplicaSet: harness-example-deployment-5674658766 (2/2 replicas created)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ScalingReplicaSet 8s deployment-controller Scaled up replica set harness-example-deployment-5674658766 to 2

Done.

Rolling Update Workflow Deployment

Now that the setup is complete, you can click Deploy in the Workflow to deploy the artifact to your cluster.

Next, select the artifact build version and click SUBMIT.

The Workflow is deployed.

To see the completed deployment, log into your cluster and run kubectl get all. The output lists the new Deployment:

NAME                                                   READY     STATUS    RESTARTS   AGE
pod/harness-example-deployment-5674658766-6b2fw 1/1 Running 0 34m
pod/harness-example-deployment-5674658766-p9lpz 1/1 Running 0 34m

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.83.240.1 <none> 443/TCP 34m

NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
deployment.apps/harness-example-deployment 2 2 2 2 34m

NAME DESIRED CURRENT READY AGE
replicaset.apps/harness-example-deployment-5674658766 2 2 2 34m

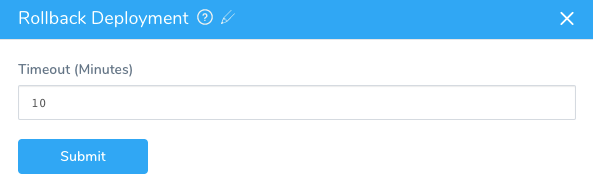

Rollback Deployment Command

You can add a Rollback Deployment command to the Rollback Steps in your Workflow to roll back the workloads deployed by the Rollout Deployment step.

Simply add this command to the Rollback Steps in a Workflow where you want to initiate a rollback. Note that this command applies to the deployments of the Rollout Deployment command, and not the Apply Step command.
