4 - Lambda Workflows and Deployments

Updated 2 weeks ago by Michael Cretzman

This topic will walk through creating a Basic Workflow for Lambda, describe what the Workflow steps include, and deploy the Lambda function using Harness:

Create a Lambda Workflow

By default, Harness Basic Workflows for Lambda have two steps:

  • AWS Lambda - This step deploys the function and also sets the Lambda aliases and tags for the function.
  • Rollback AWS Lambda - If a deployment fails, this step uses aliases to roll back to the last successful version of a Lambda function.

To create a Basic Workflow for Lambda, do the following:

  1. In your Application, click Workflows.
  2. Click Add Workflow. The Workflow dialog appears.

    If you are using Infrastructure Definitions, the Workflow dialog will look like this:
    If you are using a Service Infrastructure, the Workflow dialog will look like this:
  3. In Name, enter a name for your Workflow, such as Lambda Basic.
  4. In Workflow Type, select Basic Deployment.
  5. In Environment, select the Environment you created for your Lambda deployment in Lambda Environments.
  6. In Service, select the Lambda Service you created in Services for Lambda.
  7. Select the Infrastructure Definition or Service Infrastructure you created in Lambda Environments.
  8. Click SUBMIT. The new Basic Workflow is created and pre-configured with the AWS Lambda step.

Next, let's look at the pre-configured AWS Lambda step.

AWS Lambda Step

When you deploy the Workflow, the AWS Lambda step creates the Lambda functions defined in the Service you attached to the Workflow. This is the equivalent of the aws lambda create-function API command.

The next time you run the Workflow, manually or as the result of a Trigger, the AWS Lambda step updates the Lambda functions. This is the equivalent of the aws lambda update-function-configuration API command.

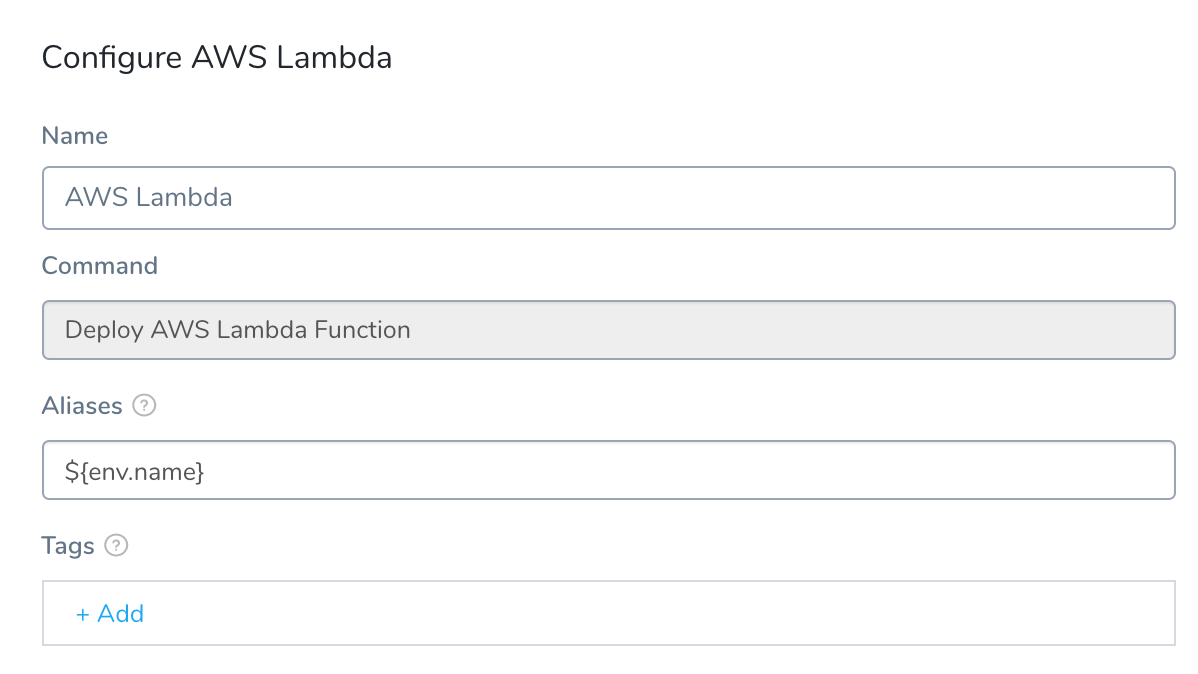

In the Workflow, click the AWS Lambda step. The AWS Lambda dialog appears.

The dialog provides settings for Lambda Aliases and Tags.

Versioning with Aliases
This guide assumes you are familiar with Lambda versioning.

Published Lambda functions are immutable objects (they cannot be changed), and are versioned with the latest always being published to $LATEST. These versions are made up of both code as well as configuration settings. Once the code and configuration are published, the function becomes immutable.

Continuous delivery on Lambda requires that Harness manage the versioning (via aliases) and rollbacks. Since each new version is immutably pushed to $LATEST, rolling back to a previous version becomes complicated.

Harness solves the complexity by keeping track of the aliases required to recreate the function, the code, and the configuration. An alias is a pointer to one or two versions.

Harness handles the burden of managing the code and configuration in order to properly version, tag, or recreate the previous version, thus allowing for fully-automated rollbacks based on prescriptive failure strategies.

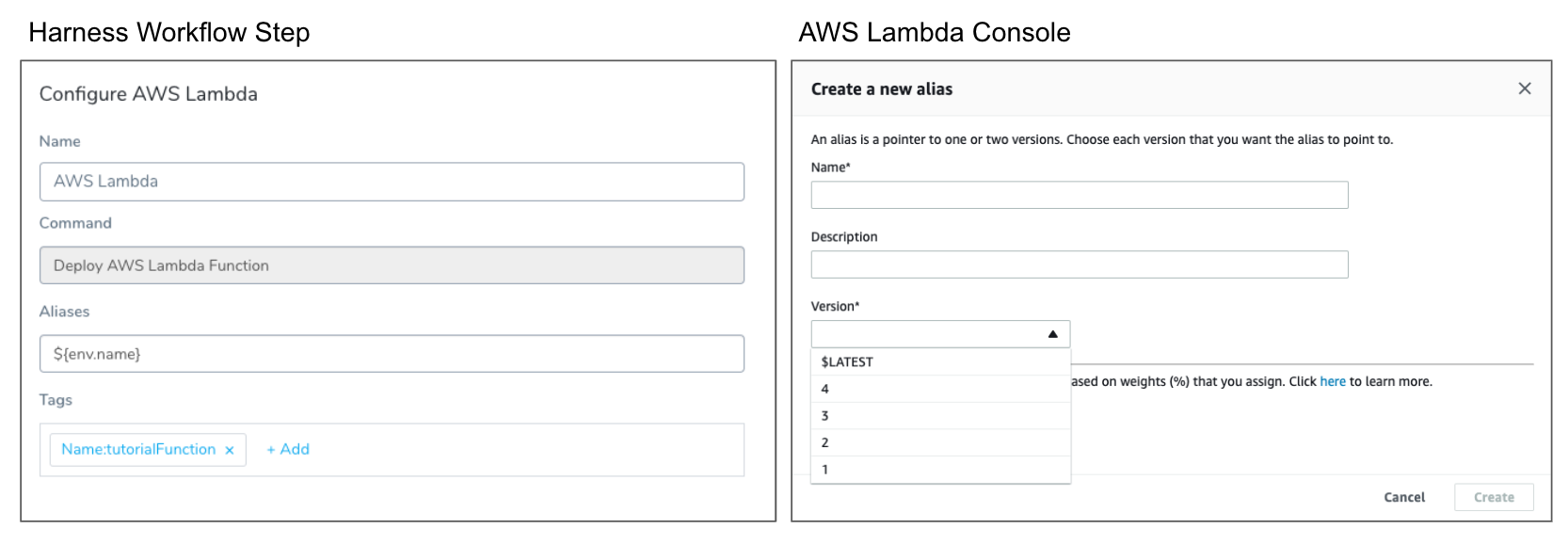

The AWS Lambda step in the Workflow applies the alias just like you would using the AWS Lambda console:

By default, Harness names the alias with the name of the Environment by using the built-in Harness variable ${env.name}. You can replace this with whatever alias you want, or use other built-in Harness variables by entering $ and seeing what variables are available.

Once the Workflow is deployed and a Lambda function has been versioned using the alias in the AWS Lambda step, you can see the versioning in the AWS Lambda console:

Tags

Tags are key-value pairs that you attach to AWS resources to organize them. For Lambda functions, tags simplify the process of tracking the frequency and cost of each function invocation.

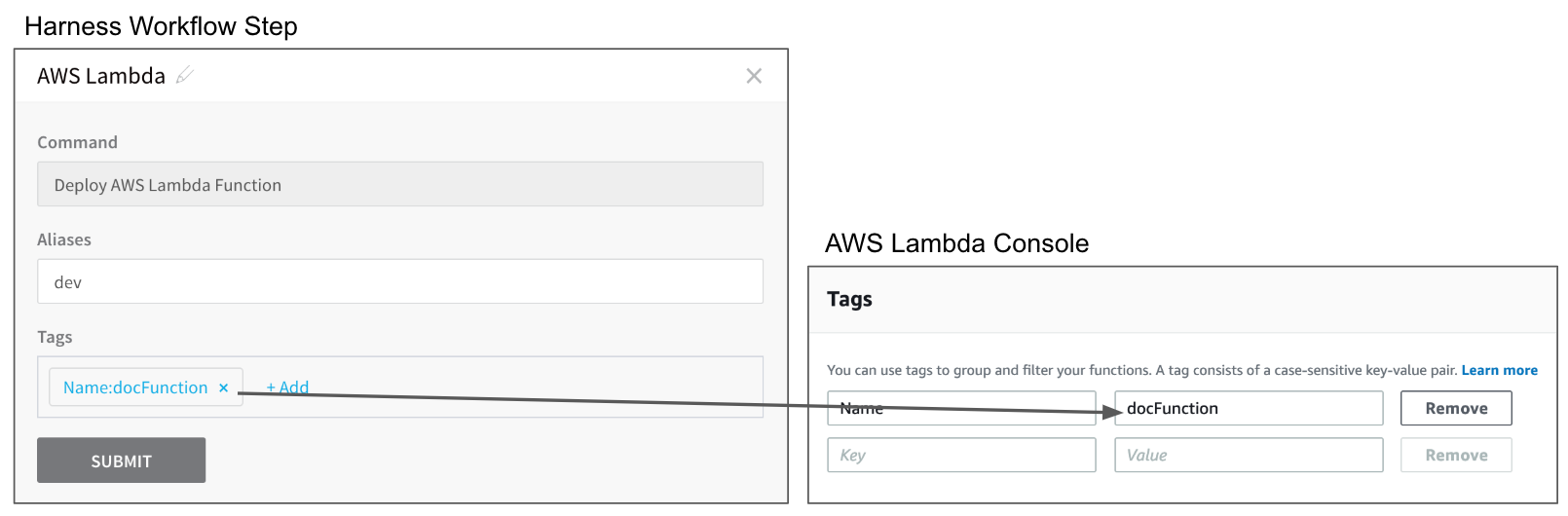

You can set the tags for your Lambda functions in the AWS Lambda step and, once deployed, you can see the tags in the AWS Lambda console:

Rollback AWS Lambda Step

In the Basic Workflow you can see the Rollback AWS Lambda step.

This step initiates rollback if the AWS Lambda step fails, or if a step elsewhere in the Workflow fails.

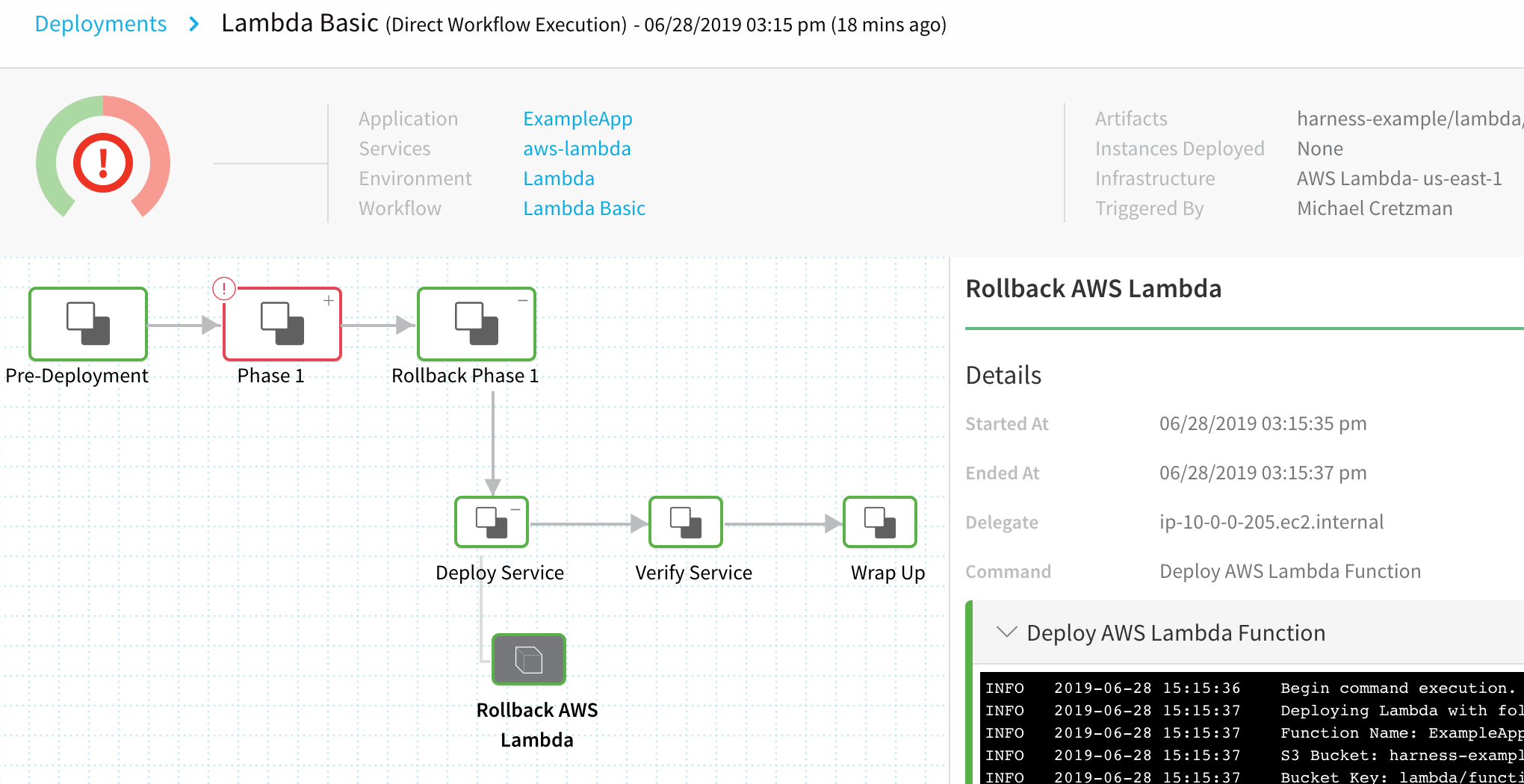

The best way to see what the Rollback AWS Lambda step does is to look at a log for a rollback.

In the following scenario, the previous, successful version of the function was version 2. When Harness fails to publish version 3 (we added an HTTP call that intentionally failed), it publishes the previous version as a new version and names it version 4. Version 3 is never deployed.

First, Harness gets the function configuration and VPC settings from the last successful version:

Begin command execution.
Deploying Lambda with following configuration
Function Name: ExampleApp-aws-lambda-Lambda-my-function
S3 Bucket: harness-example
Bucket Key: lambda/function.zip
Function handler: index.handler
Function runtime: nodejs8.10
Function memory: 128
Function execution timeout: 3
IAM role ARN: arn:aws:iam::00000000000:role/service-role/TestAwsLamdaRole
VPC: vpc-00a7e8ea4fd1ffd9d
Subnet: [subnet-0c945c814c09c9aed, subnet-05788710b1b06b6b1]
Security Groups: sg-05e7b8b9cad94b393

Next, Harness updates and publishes the previous version as version 4:

Function: [ExampleApp-aws-lambda-Lambda-my-function] exists. Update and Publish

Existing Lambda Function Code Sha256: [U+zi3X2Fu+ojXZzd58XXXXXXXXXXB05evN2U=].

New Lambda function code Sha256: [U+zi3X2Fu+ojXZzd58MIKDKXXXXXXXXXXAB05evN2U=]

Function code didn't change. Skip function code update

Updating function configuration

Function configuration updated successfully

Publishing new version

Published new version: [4]

Published function ARN: [arn:aws:lambda:us-east-1:00000000000:function:ExampleApp-aws-lambda-Lambda-my-function:4]

Untagging existing tags from the function: [arn:aws:lambda:us-east-1:00000000000:function:ExampleApp-aws-lambda-Lambda-my-function]

Executing tagging for function: [arn:aws:lambda:us-east-1:00000000000:function:ExampleApp-aws-lambda-Lambda-my-function]

Successfully deployed lambda function: [ExampleApp-aws-lambda-Lambda-my-function]

=================
Successfully completed AWS Lambda Deploy step

As you can see, the rollback succeeded and version 4 is published.

Lambda Workflow Deployment

Now that the Basic Workflow for Lambda is set up, you can click Deploy in the Workflow to deploy the Lambda functions in the Harness Service to your AWS Lambda environment.

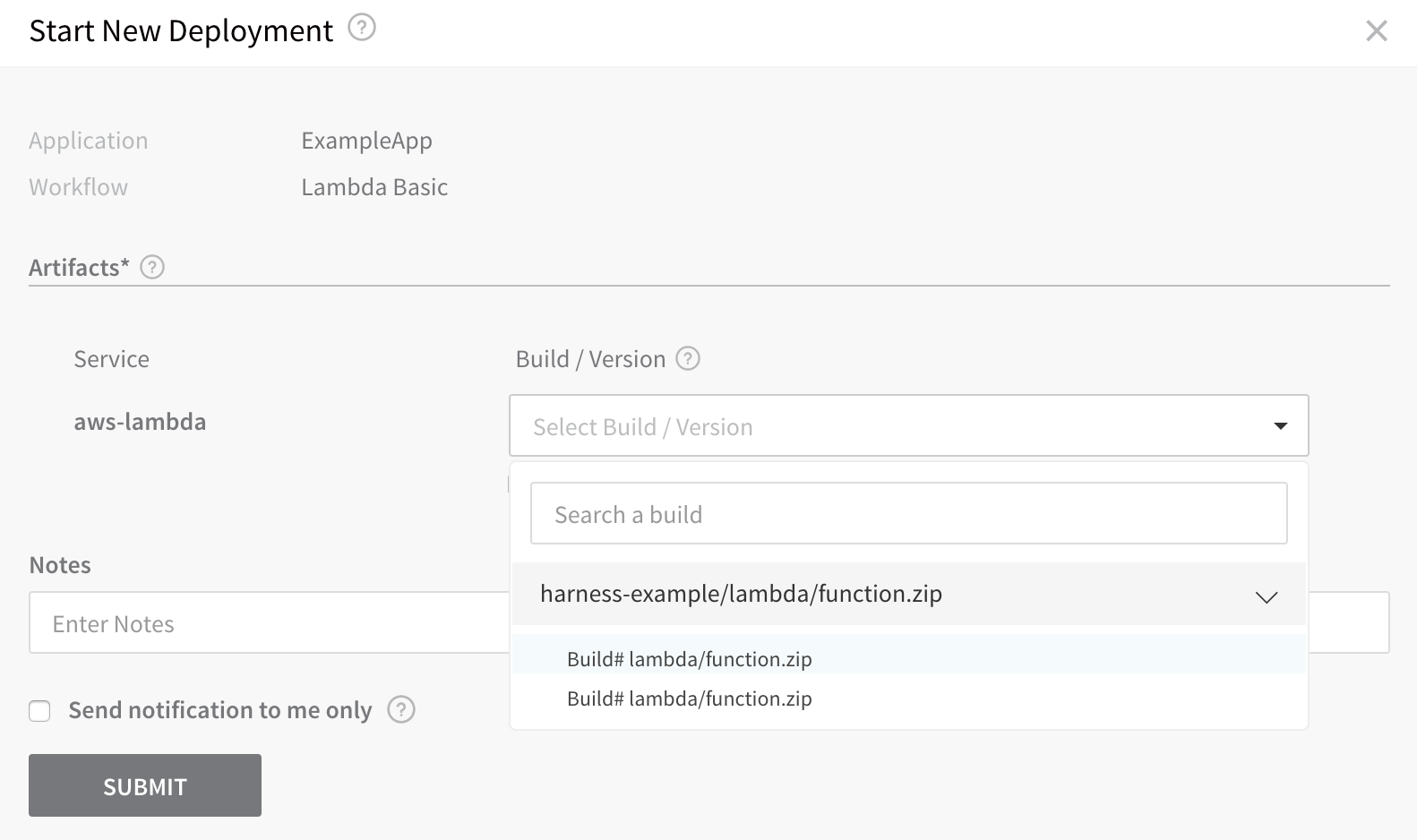

In Start New Deployment, in Build / Version, select the zip file in the S3 bucket you set up as an Artifact Source for your Harness Lambda Service:

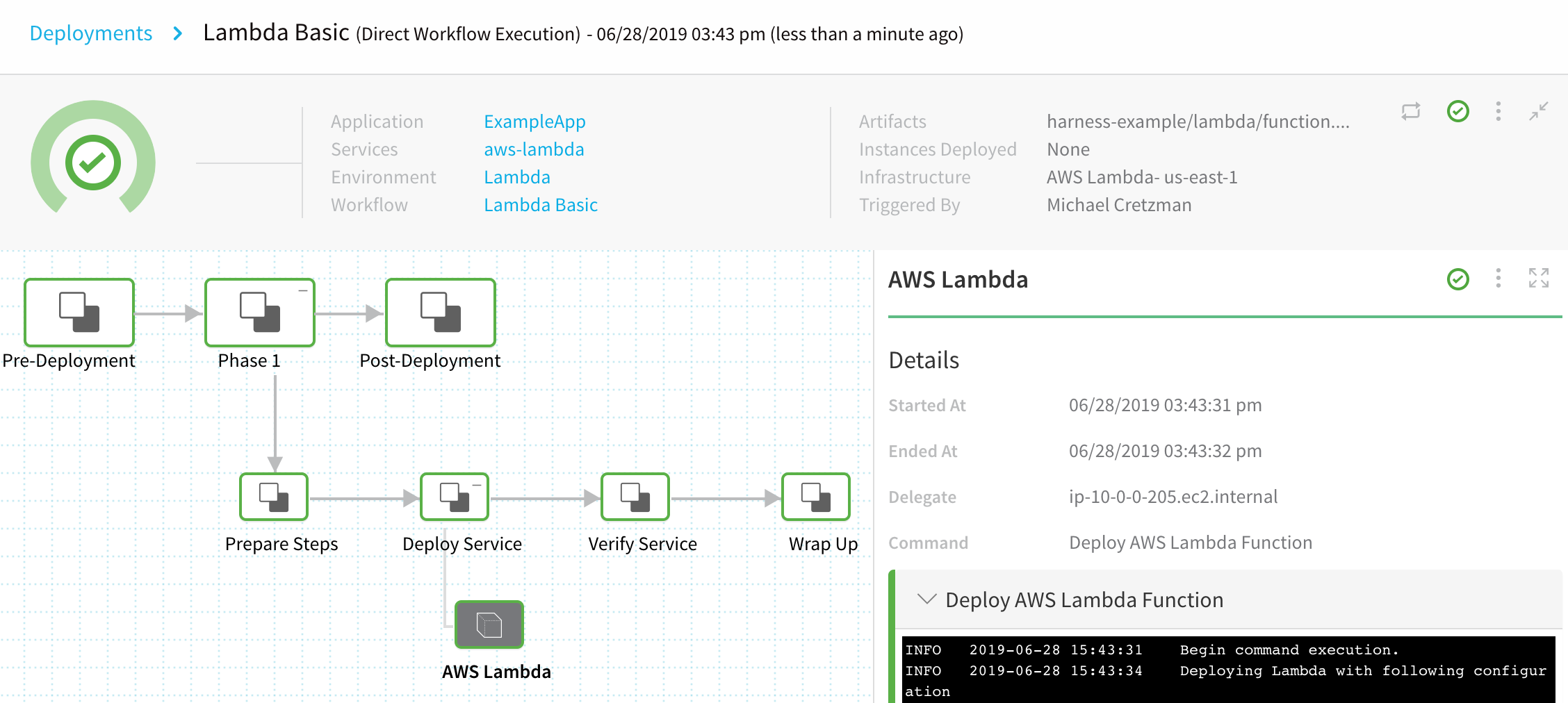

Click SUBMIT. The Workflow is deployed.

To see the completed deployment, log into your AWS Lambda console. The Lambda function is listed:

You can also log into AWS and use the aws lambda get-function command to view the function:

$ aws lambda get-function --function-name ExampleApp-aws-lambda-Lambda-my-function
{
"Code": {
"RepositoryType": "S3",
"Location": "https://prod-04-2014-tasks.s3.amazonaws.com/snapshots/..."
},
"Configuration": {
"TracingConfig": {
"Mode": "PassThrough"
},
"Version": "$LATEST",
"CodeSha256": "U+zi3X2Fu+ojXZzd58MIKDK56UaVASDA0KAB05evN2U=",
"FunctionName": "ExampleApp-aws-lambda-Lambda-my-function",
"VpcConfig": {
"SubnetIds": [
"subnet-05788710b1b06b6b1",
"subnet-0c945c814c09c9aed"
],
"VpcId": "vpc-00a7e8ea4fd1ffd9d",
"SecurityGroupIds": [
"sg-05e7b8b9cad94b393"
]
},
"MemorySize": 128,
"RevisionId": "4c3d4cfd-f72b-4f4c-9c0a-031d9cfe9e46",
"CodeSize": 761,
"FunctionArn": "arn:aws:lambda:us-east-1:00000000000:function:ExampleApp-aws-lambda-Lambda-my-function",
"Handler": "index.handler",
"Role": "arn:aws:iam::00000000000:role/service-role/TestAwsLamdaRole",
"Timeout": 3,
"LastModified": "2019-06-28T22:43:32.241+0000",
"Runtime": "nodejs8.10",
"Description": ""
},
"Tags": {
"Name": "docFunction"
}
}

Next Step
