3 - 24/7 Service Guard for Custom Metrics

Updated 3 weeks ago by Michael Cretzman

Harness 24/7 Service Guard monitors your live applications, catching problems that surface minutes or hours following deployment. For more information, see 24/7 Service Guard Overview.

While Harness supports all of the common metrics tools, you can add your Custom metrics to Harness 24/7 Service Guard in your Harness Application Environment. For a setup overview, see 1 - Custom Verification Connection Setup.

This section assumes you have a Harness Application set up and containing a Service and Environment. For steps on setting up a Harness Application, see Application Checklist.

24/7 Service Guard Setup

To set up 24/7 Service Guard for custom metrics, do the following:

  1. Ensure that you have added your Custom Verification provider as a Harness Verification Provider, as described in Verification Provider Setup.
  2. In your Harness Application, ensure that you have added a Service, as described in Services. For 24/7 Service Guard, you do not need to add an Artifact Source to the Service, or configure its settings. You simply need to create a Service and name it. It will represent your application for 24/7 Service Guard.
  3. In your Harness Application, click Environments.
  4. In Environments, ensure that you have added an Environment for the Service you added. For steps on adding an Environment, see Environments.
  5. Click the Environment for your Service. Typically, the Environment Type is Production.
  6. In the Environment page, locate 24/7 Service Guard.

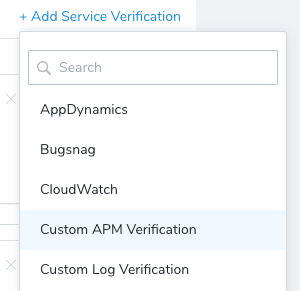

  7. In 24/7 Service Guard, click Add Service Verification, and then click Custom APM Verification.

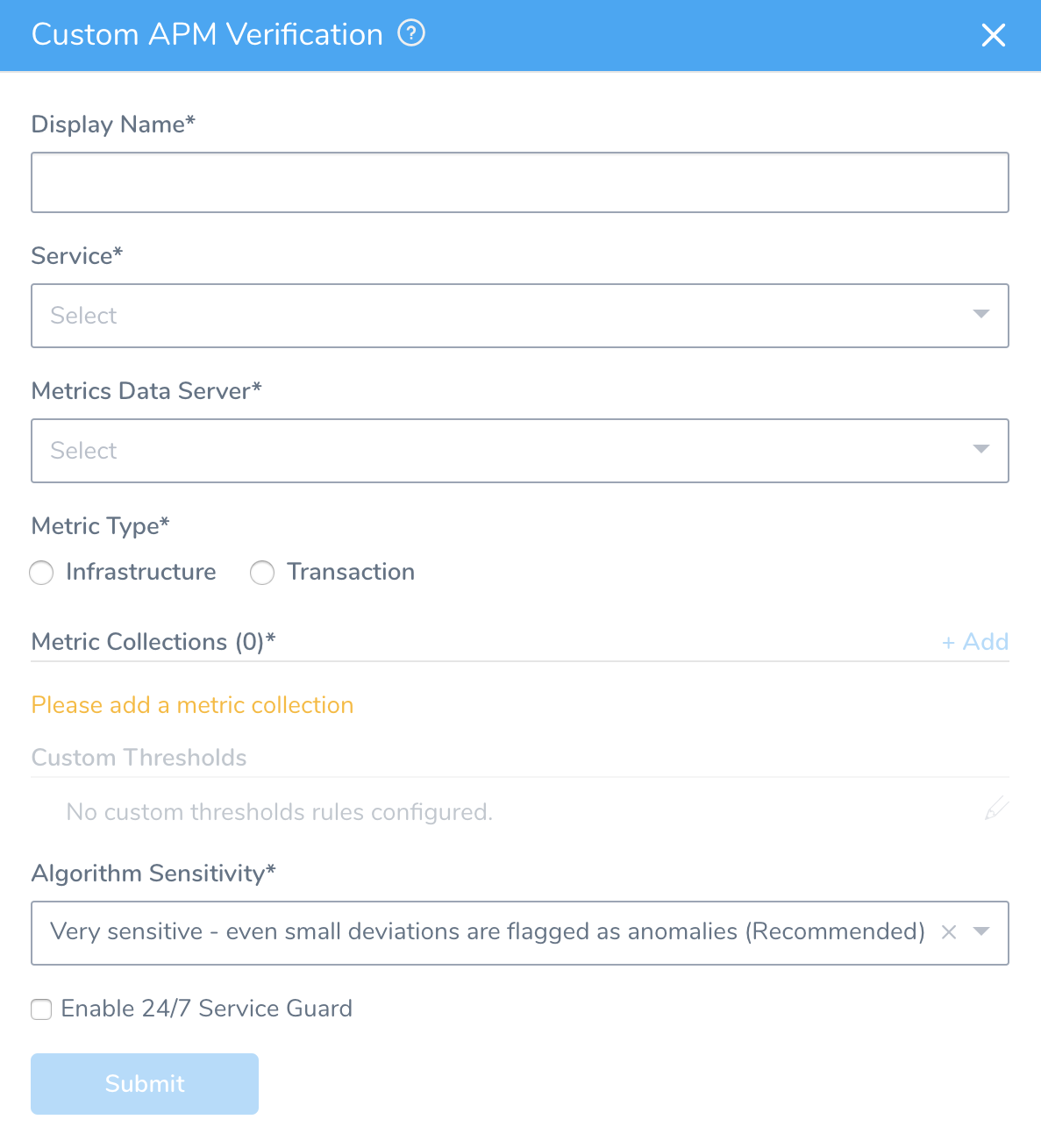

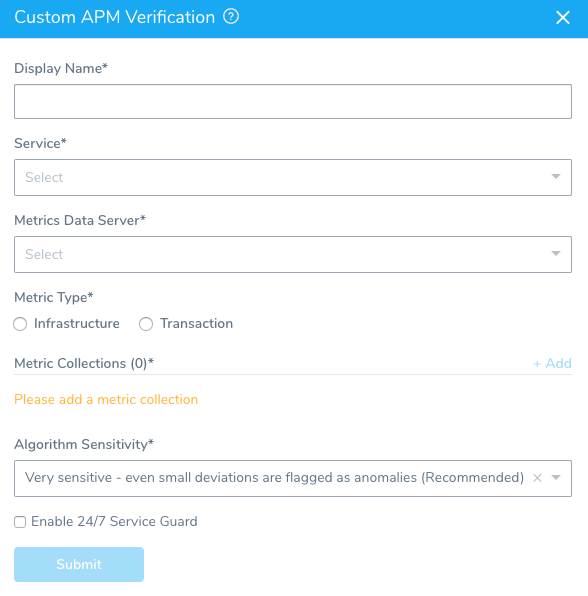

The Custom APM Verification dialog appears.

Fill out the dialog. The dialog has the following fields.

For 24/7 Service Guard, the queries you define to collect metrics are specific to the application or service you want monitored. Verification is application/service level. This is unlike Workflows, where verification is performed at the host/node/pod level.

Settings

Description

Display Name

Enter the name that will identify this 24/7 Service Guard monitoring in Harness' Continuous Verification page.

Service

Select the Harness Service that represents your live, production application or service.

Metrics Data Server

Select the custom metric provider you added, described in Metrics Data Provider.

Metric Type

Select Infrastructure or Transaction.

Metric Collections

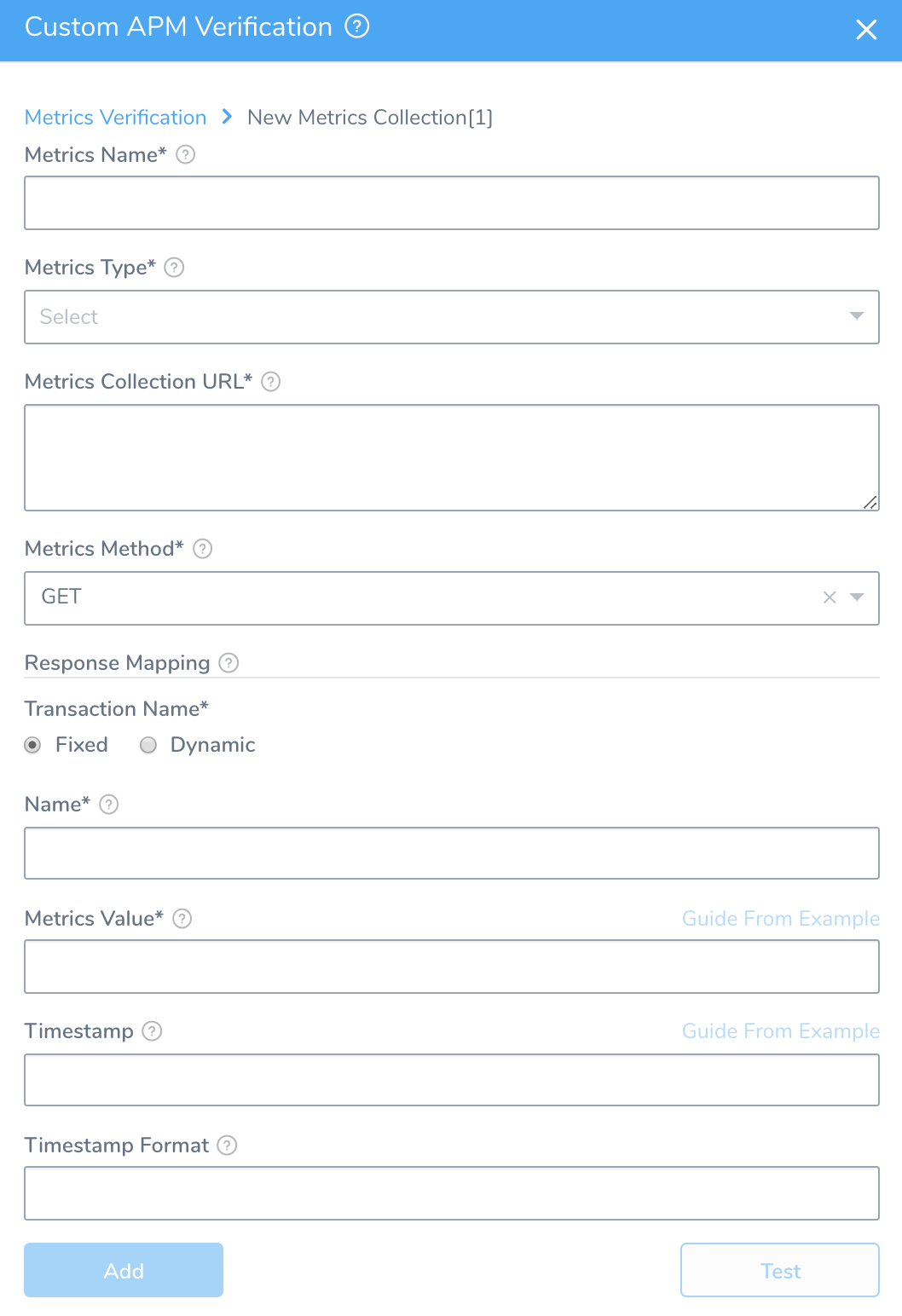

Click Add to add a new metric collection.

Metrics Name

Enter a name for the metrics you want analyzed, such as ThreadCount.

Metrics Type

For the Infrastructure Metrics Type, select the type of metric you want to collect:

  • Infra: Infrastructure metrics, such as CPU, memory, and HTTP errors.
  • Value: Apdex (measures user satisfaction with response time).
  • Lower Value: Values below the average.

For the Transaction Metrics Type, select the type of metric you want to collect:

  • Error
  • Response Time
  • Throughput

Metrics Collection URL

Enter a query for your verification. You can simply make the query in your Verification Provider and paste it in the Metrics Collection URL field.

You will use this query to obtain the JSON paths for the Response Mapping settings.

In most cases, you will want to add the placeholders ${start_time} and ${end_time} in your query so that you can customize the range when making requests.

Metrics Method

Select GET or POST. If you select POST, the Metric Collection Body field appears.

In Metric Collection Body, enter the JSON body to send as a payload when making a REST call to the APM Provider. The requirements of the JSON body will depend on your APM provider.

You can use variables you created in the Service and Workflow in the JSON, as well as Harness built-in variables.

Response Mapping

These settings are for specifying which JSON fields in the responses to use for monitoring.

Transaction Name

Select Fixed or Dynamic.

Fixed: Use this option when all metrics are for the same transaction. For example, a single login page.

Dynamic: Use this option when the metrics are for multiple transactions

Name (Fixed)

Enter a name to identify the transaction.

Transaction Name Path (Dynamic)

This is the JSON label for identifying a transaction name.

For example, in a New Relic Insights query, the FACET clause is used to group results by the attribute transactionName. You can obtain the field name that records the transactionName by using the Guide From Example feature:

  1. Click Guide From Example. The Guide From Example popover appears.
    The Metrics URL Collection is based on the query you entered in the Metric Collection URL field earlier.
  2. Specify a time range using the ${startTime} and ${endTime}.
  3. Click SEND. The query is executed and the JSON is returned.
  4. Locate the field name that is used to identify transactions. In our New Relic Insights query, it is the facets.name field.
    If no metrics are found, you will see a METRIC DATA NOT FOUND error.
    Using New Relic Insights as an example, you can find the name in the JSON of your Insights query results.
  5. Click the field name under facets. The field path is added to the Transaction Name Path field.

Regex to transform Transaction Name (Dynamic)

Enter a regex expression here to obtain the specific name from the transaction path.

For example, if your Transaction Name Path JSON evaluated to a value such as name : TxnName, you can write a regex to remove everything other than TxnName.

For example (name:(.*),) or (?<=:).*(?=,).

Metrics Value

Specify the value for the event count. This is used to filter and aggregate data returned in a SELECT statement. To find the correct label for the value, do the following:

  1. Click Guide From Example. The example popover appears.
    The Metrics URL Collection is based on the query you entered in the Metric Collection URL field earlier. The ${host} field refers to the ${host} variable in your query.
  2. Specify a time range using the ${startTime} and ${endTime}.
  3. Click Send. The query is executed and the JSON is returned.
    If no metrics are found, you will see a METRIC DATA NOT FOUND error.
  4. Locate the field name that is used to count events.
  5. Click the name of the field, such as value. The JSON path is added to the Metrics Value field.

Timestamp

Specify the value for the timestamp in the query. To find the correct label for the value, do the following:

  1. Click Guide From Example. The popover appears.
    The Metrics URL Collection is based on the query you entered in the Metric Collection URL field earlier.
  2. Click Send. The query is executed and the JSON is returned.
  3. Click the name of the label for the start time.

The JSON path is added to the Timestamp path:

Timestamp Format

Enter a timestamp format. The format follows the Java SimpleDateFormat. For example, a timestamp syntax might be yyyy-MM-dd'T'HH:mm:ss.SSSX. If you leave this field empty, Harness will use the default range of 1 hour previous (now-1h) to now.

Algorithm Sensitivity

Select the Algorithm Sensitivity. See CV Strategies, Tuning, and Best Practices.

Enable 24/7 Service Guard

Select this option to enable 24/7 Service Guard.

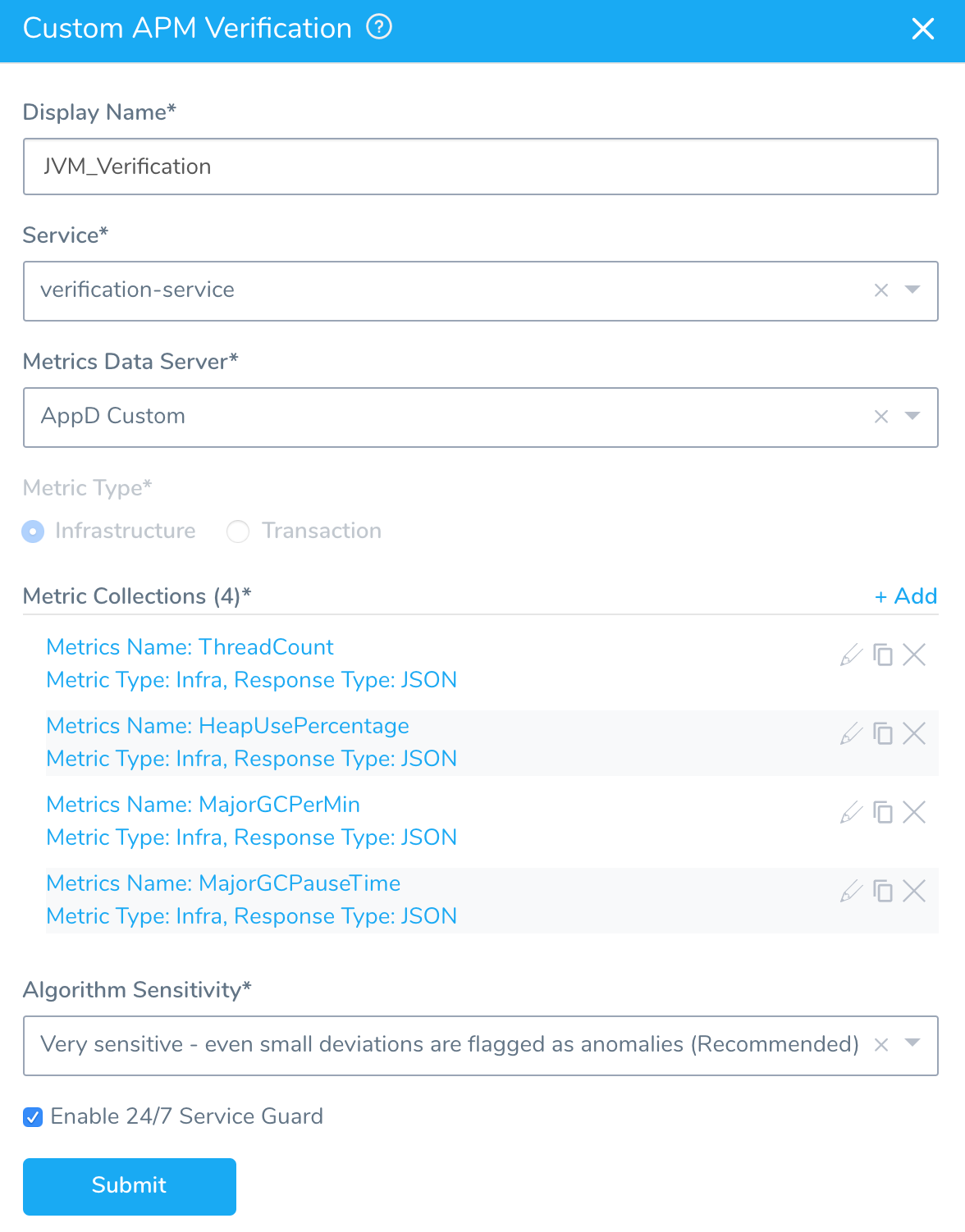

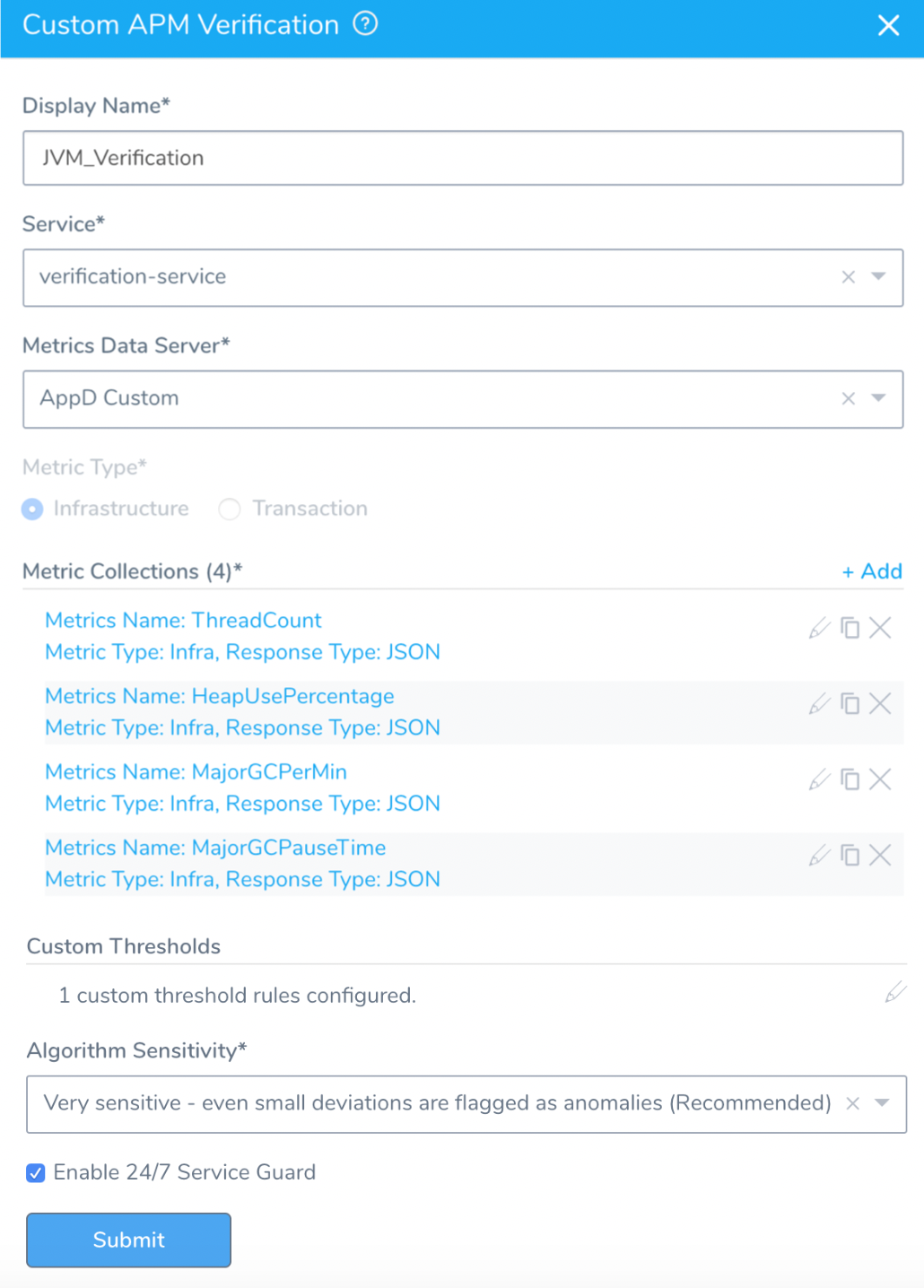

When you are finished, the dialog will look something like this:

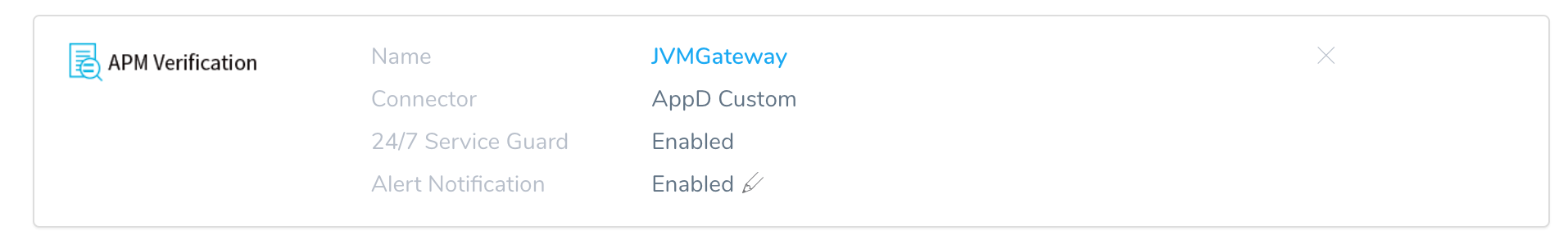

Click Submit. The Custom Metrics 24/7 Service Guard is added.

To see the running 24/7 Service Guard analysis, click Continuous Verification.

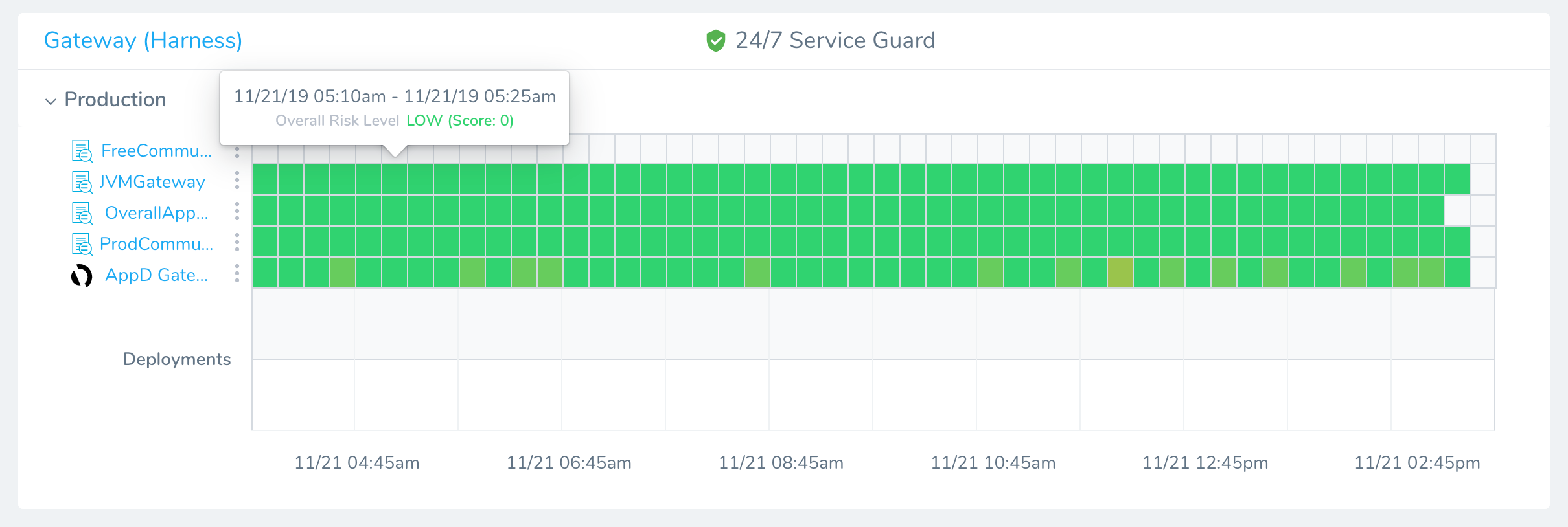

The 24/7 Service Guard dashboard displays the production verification results.
