Add SFTP Artifact Servers

Updated 10 months ago by Chakravarthy Tenneti

You can share files and folders on your network and use them for an SFTP Artifact Server connection.

In this topic:

Before You Begin

Visual Summary

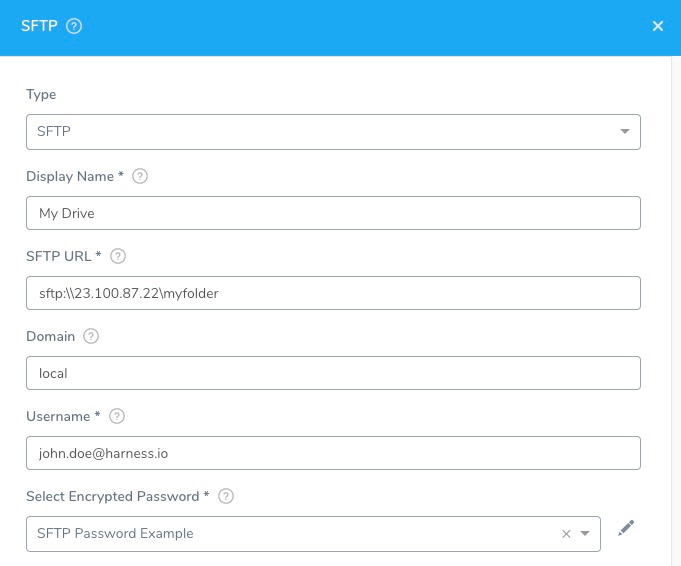

Here's an example configuration of SFTP Artifact Source.

The SFTP dialog has the following fields.

Step 1: Select SFTP Artifact Server

To connect to an artifact server, do the following:

  1. Click Setup.
  2. Click Connectors.
  3. Click Artifact Servers.
  4. Click Add Artifact Server.
  5. In Type, click SFTP.

Step 2: Display Name

Enter a name for the SFTP Server. This is the name you will use to identify this connection when adding an Artifact Source to a Harness Service.

Step 3: SFTP URL

Ensure that the value contains the sftp:\\ scheme followed by the hostname or IP address. For example, sftp:\\23.100.87.22.

If you want to specify a folder in the URL, you can enter the folder using the \myFolder format, such as sftp:\\23.100.87.22\myFolder. Typically, you will specify the folder when you use the SFTP Artifact Server as an Artifact Source for a Service.

Step 4: Domain

Enter the domain where the SFTP server is located.

Step 5: Username and Password

Use a user account that has permissions to access the SFTP server.

For secrets and other sensitive settings, select or create a new Harness Encrypted Text secret.

Usage Scope is determined by the secret you selected.

Click Submit.

Review: Adding SFTP Artifact Source in a Service

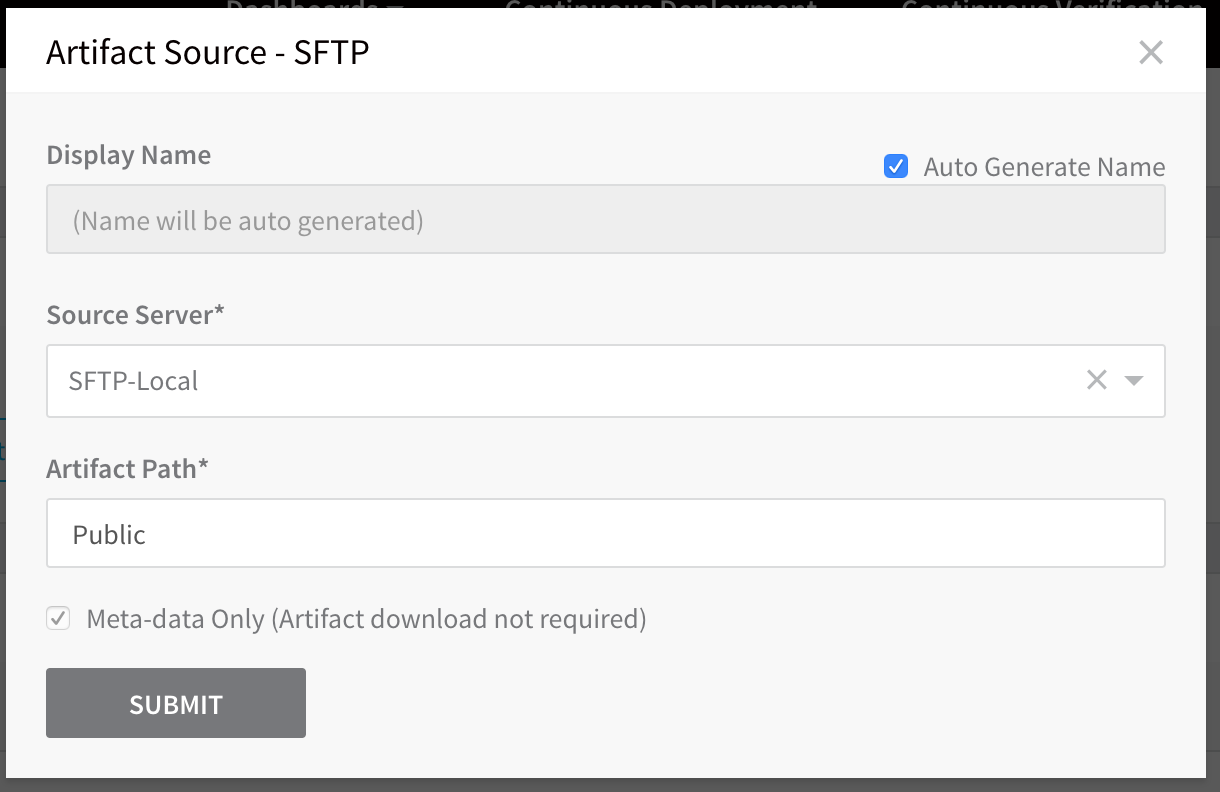

When you use the SFTP Artifact Server as an Artifact Source for a Service, you can specify a file or a folder for the artifact. This allows a folder to be copied to the deployment target host by the Harness Delegate. Here is the SFTP Artifact Source dialog:

In Artifact Path, you can specify a file or folder by name or using wildcards. The following are example for different files and folders:

  • todo-*zip - All matching files, such todo-1.0.zip, todo-2.0.zip.
  • test/*zip - All zip files under test folder.
  • test/1* - All folders under test folder starting with 1.
  • test/* - All folders under test folder.
