Define Your Azure Web App Infrastructure

Updated 1 day ago by Michael Cretzman

Currently, this feature is in Beta and behind a Feature Flag. Contact Harness Support to enable the feature. Feature Flags can only be removed for Harness Professional and Essentials editions. Once the feature is released to a general audience, it is available for Trial and Community Editions.

The target Azure environment for your Harness Web App deployment is defined in a Harness Environment's Infrastructure Definition.

You simply select the Web App's Subscription and Resource Group.

You can also provision the infrastructure and Web App as part of your Workflow.

In this topic:

Before You Begin

Visual Summary

Supported Platforms and Technologies

See Supported Platforms and Technologies.

Step 1: Create an Environment

In your Harness Application, click Environments.

Click Add Environment.

Enter a name and select an Environment Type for your Environment, and click Submit.

The Environment Type here doesn't relate to the production or non-production slots of your Web App.

A Harness Environment Type is simply a way to organize your work environments.

Step 2: Create an Infrastructure Definition

In the new Environment, click Add Infrastructure Definition.

Enter the following settings:

Name

Provide a name for the Infrastructure Definition. You'll select this name when defining target infrastructures for Workflows and their Phases.

Cloud Provider Type

Select Microsoft Azure.

Deployment Type

Select Azure Web Application.

Cloud Provider

Select the Azure Cloud Provider you set up for your Azure Web App deployment. The Cloud Provider determines which subscriptions and resource groups appear in the other settings.

See Connect to Azure and Artifact Repo for Your Web App Deployments.

Subscription

Select the Azure subscription used by your Web App.

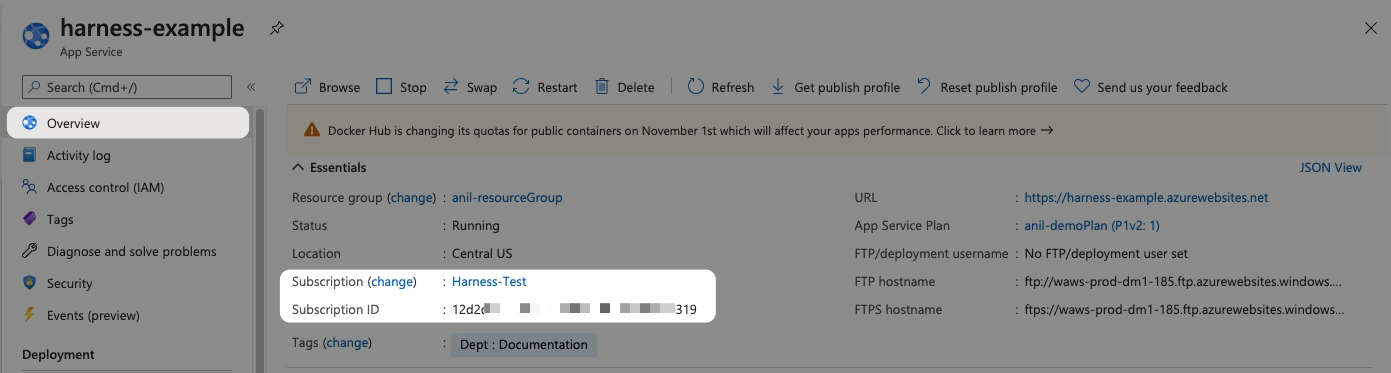

The subscription is located in the Web App Overview section of the Azure portal.

Resource Group

Select the resource group used by your Web App.

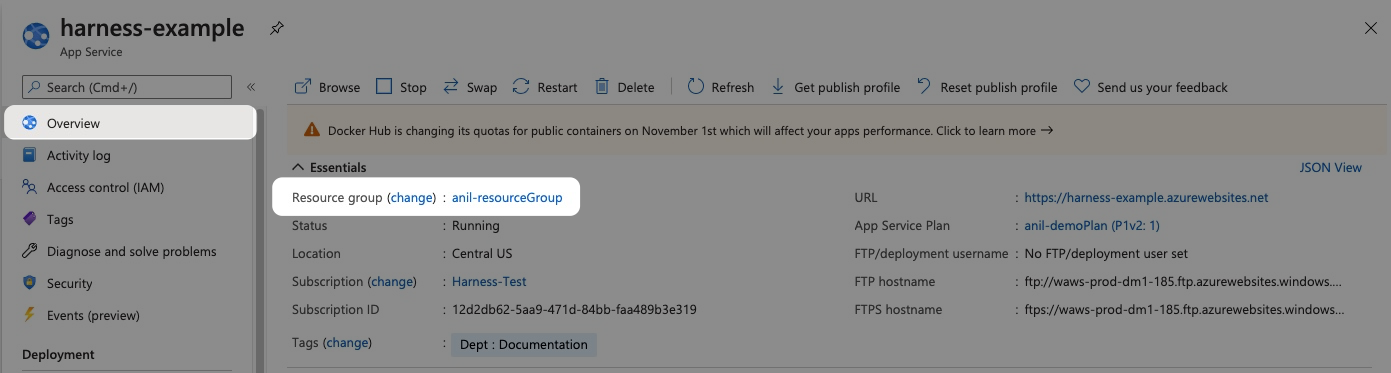

The resource group is located in the Web App Overview section of the Azure portal.

Within the same resource group, you can't mix Windows and Linux apps in the same region. See Limitations from Azure.

Option 1: Scope to Specific Services

The Scope to specific Services setting in the Infrastructure Definition enables you to scope this Infrastructure Definition to specific Harness Services.

See Add an Infrastructure Definition.

Option: Dynamically Provision Infrastructure

You can use Terraform scripts to provision the target Azure environment and Web App for your Harness Web App deployment.

See Map an Azure Web App.

Next Steps

Configure As Code

To see how to configure the settings in this topic using YAML, configure the settings in the UI first, and then click the YAML editor button (</>).
