1 - Delegate and Connectors for IIS

This topic sets up the Harness Delegate, WinRM Connection, Artifact Server, and Cloud Provider for your IIS Deployment. You can use these connections globally for all the IIS services and environments you add in Harness, or restrict them to specific applications and environments.

Harness Delegate Connections for Azure

A Harness Delegate needs to connect to the Artifact Servers, Cloud Providers, and hosts you configure with Harness. The Delegate is only supported for Linux and cannot be run on a Windows VM in Azure.

To ensure that the Harness Delegate you use for Azure deployments can connect to your Azure resources, you can run the Delegate on a Linux VM in your Azure VPC (such as Ubuntu) or simply ensure that the Delegate has network access to resources in your Azure VPC.

For steps on setting up the Harness Delegate, see Delegate Installation and Management.

Set Up WinRM on Instances and Network

WinRM is a management protocol used by Windows to remotely communicate with another server, in our case, the Harness Delegate. WinRM communicates over HTTP (5985)/HTTPS (5986), and is included in all recent Windows operating systems.

For WinRM, you need the following networking configured:

  • The VMs must listen on HTTP (5985)/HTTPS (5986)
  • Open the VMs ports for HTTP (5985)/HTTPS (5986)
  • Open the subnet ports for HTTP (5985)/HTTPS (5986)

In cases where WinRM is not already set up on your Windows instances, you can set WinRM for HTTPS up using the following command:

Invoke-Expression ((New-Object System.Net.Webclient).DownloadString('https://raw.githubusercontent.com/ansible/ansible/devel/examples/scripts/ConfigureRemotingForAnsible.ps1'))

We recommend using this command as it configures the necessary port and firewall settings for the Windows instance.HTTP only — To set up WinRM for HTTP (not HTTPS), from the command line (not PowerShell), run the following (the default HTTP port is 5985):

winrm quickconfig
winrm set winrm/config/service @{AllowUnencrypted="true"}
netsh advfirewall firewall add rule name="WinRM-HTTP" dir=in localport=5985 protocol=TCP action=allow

Set Up WinRM in Azure

Here is an example of the PowerShell set up of WinRM on an Azure Windows Server VM.

C:\Users\harness>PowerShell.exe
Windows PowerShell
Copyright (C) 2016 Microsoft Corporation. All rights reserved.

PS C:\Users\harness> Invoke-Expression ((New-Object System.Net.Webclient).DownloadString('https://raw.githubusercontent.
com/ansible/ansible/devel/examples/scripts/ConfigureRemotingForAnsible.ps1'))
Self-signed SSL certificate generated; thumbprint: 4B4AAFE402B3B96EAC3C26FE0DE7332E9010B1C7


wxf : http://schemas.xmlsoap.org/ws/2004/09/transfer
a : http://schemas.xmlsoap.org/ws/2004/08/addressing
w : http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd
lang : en-US
Address : http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous
ReferenceParameters : ReferenceParameters

Ok.

PS C:\Users\harness> exit

C:\Users\harness>winrm e winrm/config/listener
Listener
Address = *
Transport = HTTP
Port = 5985
Hostname
Enabled = true
URLPrefix = wsman
CertificateThumbprint
ListeningOn = 10.0.1.4, 127.0.0.1, ::1, 2001:0:9d38:90d7:1868:10ad:f5ff:fefb, fe80::5efe:10.0.1.4%9, fe80::1868:10ad:f5ff:fefb%10, fe80::915e:d4bb:bf06:9807%5

Listener
Address = *
Transport = HTTPS
Port = 5986
Hostname = doc
Enabled = true
URLPrefix = wsman
CertificateThumbprint = 4B4AAFE402B3B96EAC3C26FE0DE7332E9010B1C7
ListeningOn = 10.0.1.4, 127.0.0.1, ::1, 2001:0:9d38:90d7:1868:10ad:f5ff:fefb, fe80::5efe:10.0.1.4%9, fe80::1868:10ad:f5ff:fefb%10, fe80::915e:d4bb:bf06:9807%5

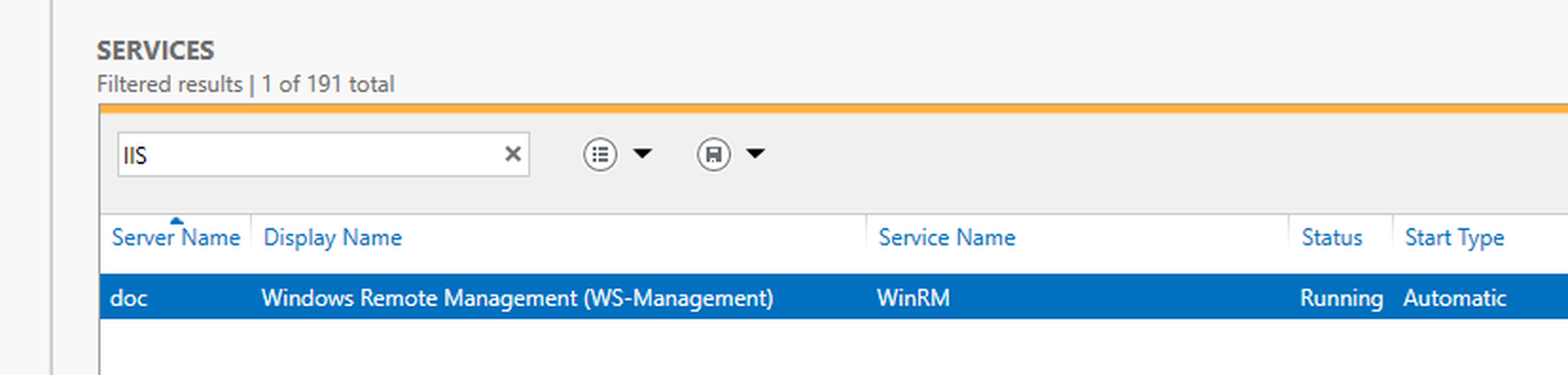

You can also see WinRM running in Server Manager:

You can also test if the WinRM service is running on a local or remote computer using the Test-WSMan PowerShell command. For more information, see Test-WSMan from Microsoft.

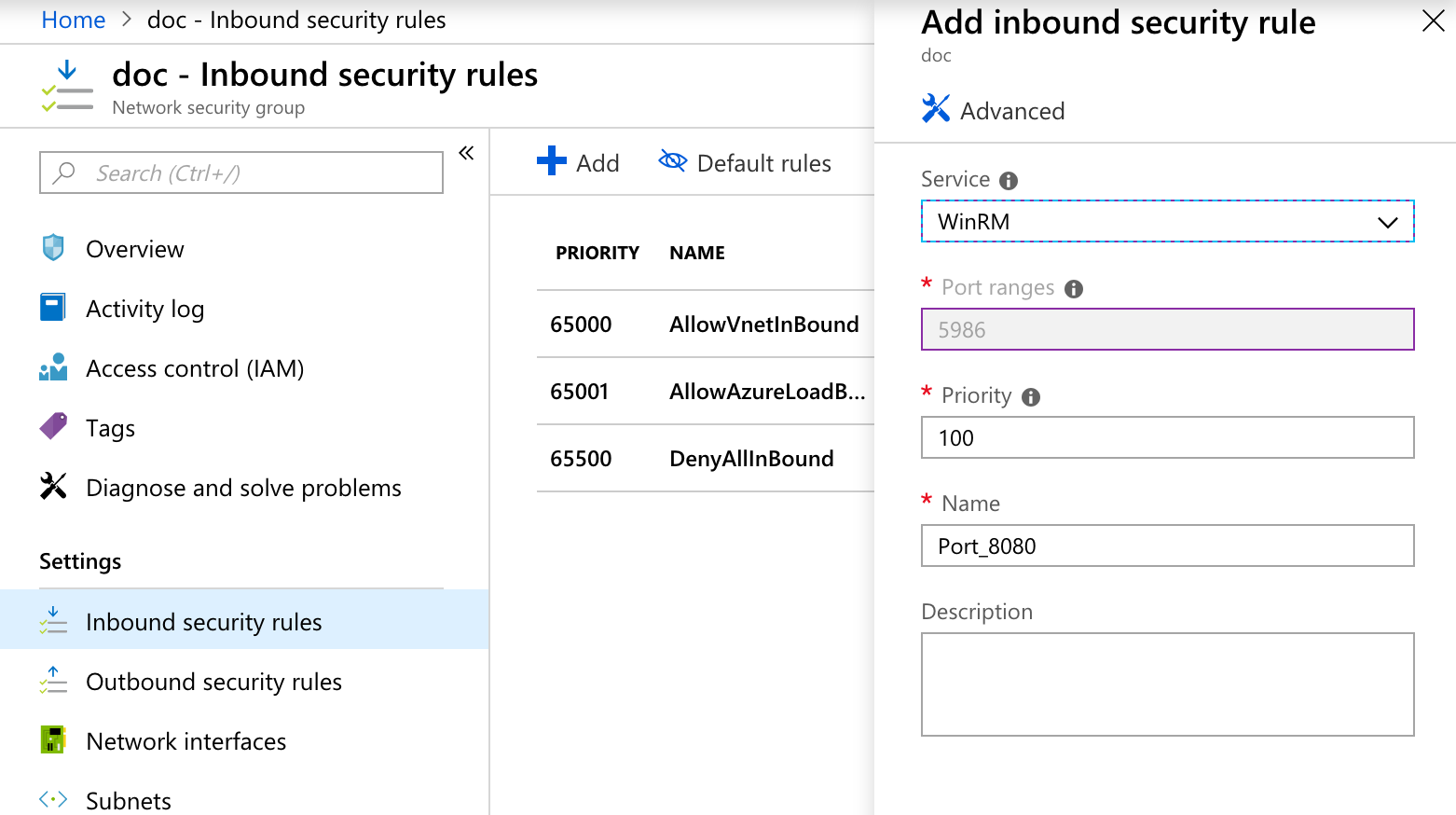

Ensure that the ports you need for the WinRM connection are open on your network security group and VM. For more information, see How to open ports to a virtual machine with the Azure portal to open the WinRM Inbound security rule.Network Security Group:

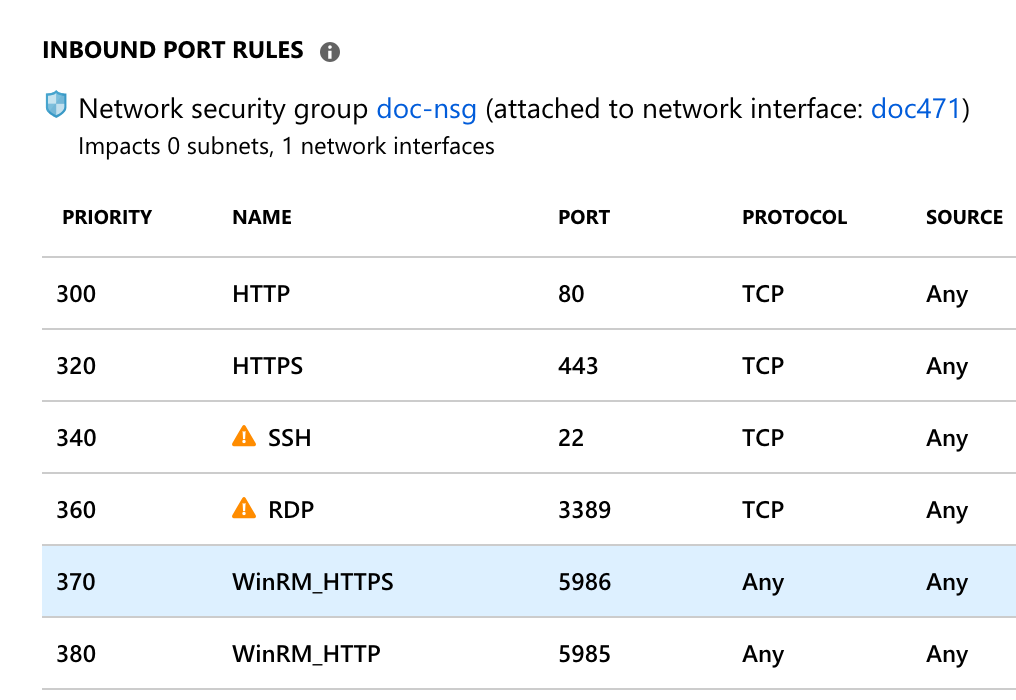

VM Inbound Port Rules:

For more information about Azure and WinRM, see the following:

Set Up WinRM in AWS

In AWS EC2, you can enter the command as User data when creating the instance:

<powershell>
Invoke-Expression ((New-Object System.Net.Webclient).DownloadString('https://raw.githubusercontent.com/ansible/ansible/devel/examples/scripts/ConfigureRemotingForAnsible.ps1'))
</powershell>

If you launch more than one instance at a time, the user data is available to all the instances in that reservation.

You can also remote into the EC2 instance, open a PowerShell session, and run the Invoke-Expression.

To verify that WinRM is running on your Windows instance, run the command:

winrm e winrm/config/listener

The successful output will be something like this:

C:\Windows\system32&gt;winrm e winrm/config/listener
Listener
Address = *
Transport = HTTP
Port = 5985
Hostname
Enabled = true
URLPrefix = wsman
CertificateThumbprint
ListeningOn = 127.0.0.1, ....

Listener
Address = *
Transport = HTTPS
Port = 5986
Hostname = EC2AMAZ-Q0MO0AP
Enabled = true
URLPrefix = wsman
CertificateThumbprint = 1A1A1A1A1A1A1A1A1A1A1
ListeningOn = 127.0.0.1, ...

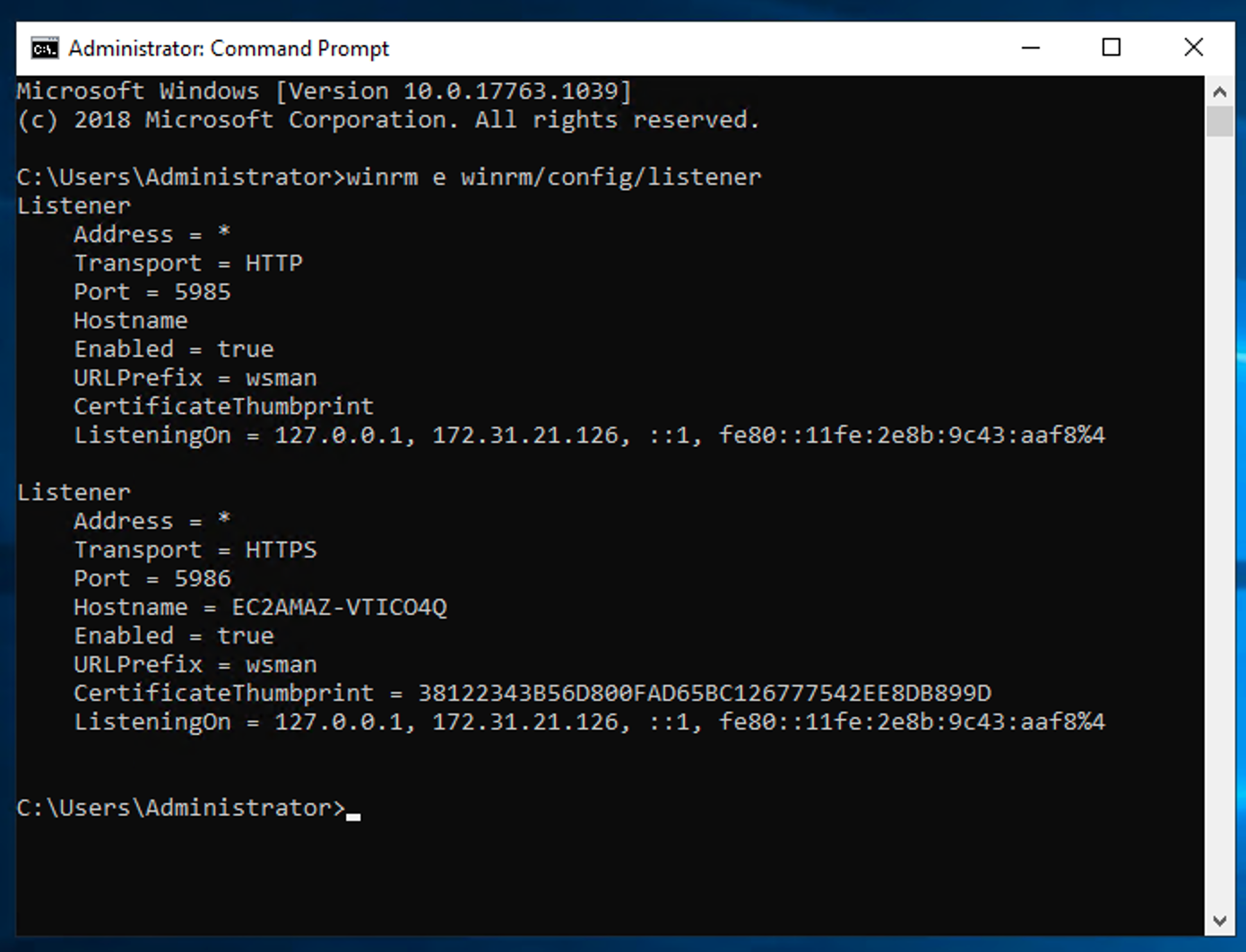

Here's an example:

For more information about EC2 and WinRM, see the following:

If the default methods for setting up WinRM in your Windows instances is not working, try the script listed here: Configure a Windows host for remote management with Ansible.

Set Up the WinRM Connection in Harness

Add a WinRM connection in Harness to execute deployment steps on the remote Windows servers.

  1. Mouseover Continuous Security, and then click Secrets Management. The Secrets Management page appears.

  2. Under Executions Credentials, click WinRM Connection. The WinRM Connection Attributes dialog appears.

  3. Fill out the WinRM Connection Attributes dialog and click SUBMIT. The WinRM Connection Attributes dialog has the following fields.

FieldDescription
NameName to identify the connection. You will use this name to identify this connection when setting up the Connection Attributes in the Environment Infrastructure Definition.
Auth SchemeSpecifies the mechanism used to authenticate the credentials used in this connection. Currently only NTLM is supported.
DomainThe Active Directory domain name where the user account in the credentials is registered. This can be left blank when using a local user.
User Name / PasswordThe user account credentials for this connection. The user must belong to the same Active Directory domain as the Windows instances that this connection uses. These are the same user account credentials you would use to log into the VM using a remote connection such as Microsoft Remote Desktop.In cases when Domain is blank (local user), you can put ./ before the user name. The ./ prefix is equivalent to local_host_or_ip\user.
Use SSLEnables an HTTPS connection instead of an HTTP connection. SSL is recommended.
Skip Cert CheckWhen connected over HTTPS (Use SSL in enabled), the client does not validate server certificate.
WinRM PortSpecifies the network port on the remote computer to use.To connect to a remote computer, the remote computer must be listening on the port that the connection uses. The default ports are 5985, which is the WinRM port for HTTP, and 5986, which is the WinRM port for HTTPS.To determine what ports WinRM is listening on, use the command:winrm e winrm/config/listener

If you experience errors getting the WinRM connection to work, you might need to restart the Windows Server.

Cloud Provider Setup

Add a connection to the Cloud Provider where the IIS website, application, or virtual directory will be deployed.

  1. Click Setup, and then click Cloud Providers. The Cloud Providers page appears.
  2. Click Add Cloud Provider. The Cloud Provider dialog appears.
  3. In Type, select the type of cloud provider you want to add, such as Amazon Web Services or Microsoft Azure. The dialog settings will change for each cloud provider.
  4. Enter the cloud provider account information, and then click SUBMIT. For account details and Harness permission requirements for the different providers, see Add Cloud Providers (AWS, Azure).
    Once you have created Harness applications and environments, you can return to this dialog and add Usage Scope on which applications and environments may use this provider.

For certain Cloud Providers, such as AWS, instead of using account information to set up the Cloud Provider, you can install a Harness Delegate in your VPC and use its credentials for your Cloud Provider. After you install the Delegate, you add a Selector to the Delegate, and then simply select that Selector in the Cloud Provider dialog. For an example, see Installation Example: Amazon Web Services and ECS.### Artifact Server Setup

Add a connection to the Artifact Server where Harness can pull the IIS website, application, or virtual directory artifact.

If you are using the same Cloud Provider as artifact server, then you can skip this step. For example, if you added AWS EC2 as a Cloud Provider and you are using AWS S3 as an artifact server, you do not need to add AWS S3 as an artifact server. You can simply use the same AWS connection.

  1. Click Setup, and then click Connectors. The Connectors page appears.
  2. Click Artifact Server, and then click Add Artifact Server. The artifact server dialog appears.
  3. In Type, click the artifact source you want to use. The dialog settings will change for each server.
  4. Enter the artifact server information and click SUBMIT. For account details and Harness permission requirements for the different servers, such as SMB and SFTP, see Add Artifact Servers.
    Once you have created Harness applications and environments, you can return to this dialog and add Usage Scope on which applications and environments may use this server.

Now that you have connected the IIS artifact server and a cloud provider, and configured a WinRM connection to execute deployment steps on the remote Windows servers, you can add your Harness application.

Azure Storage is not currently supported as an Artifact Source. Azure Container Registry is supported for Docker and Kubernetes deployments.
