3 - Helm Environments

Updated 2 days ago by Michael Cretzman

After you have set up the Harness Service for your Helm deployment, you can add a Harness Environment that lists the Cloud Provider and Kubernetes cluster where Harness will deploy your Docker image.

Harness includes both Kubernetes and Helm deployments, and you can Helm charts in both. Harness Kubernetes Deployments allow you to use your own Helm chart (remote or local), and Harness executes the Kubernetes API calls to build everything without Helm and Tiller needing to be installed in the target cluster. See Helm Charts.

In this topic:

Create a New Harness Environment

You will define the service infrastructure for Harness to use when deploying the Docker image.

The following procedure creates a Harness environment where you can deploy your Docker image. For this guide, we will be using a Kubernetes cluster on Google Cloud Platform for the deployment environment.

To add a Harness environment, do the following:

  1. In your Harness application, click Environments. The Environments page appears.
  2. Click Add Environment. The Environment dialog appears.
  3. In Name, enter a name that describes the deployment environment, for example, GCP-K8S-Helm.
  4. In Environment Type, select Non-Production.

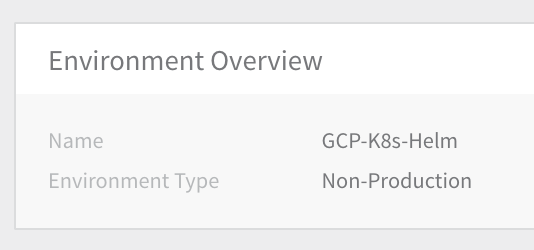

  5. Click SUBMIT. The new Environment page appears.

Add an Infrastructure Definition

Infrastructure Definitions are a feature-flagged replacement for Service Infrastructure.

​Infrastructure Definitions specify the target deployment infrastructure for your Harness Services, and the specific infrastructure details for the deployment, like VPC settings.

You define the Kubernetes cluster to use for deployment as an ​Infrastructure Definition. For this guide, we will use the GCP Cloud Provider you added and the Kubernetes cluster with Helm installed.

To add the Infrastructure Definition, do the following:

  1. In the Harness Environment, click Add Infrastructure Definition. The Infrastructure Definition dialog appears.
  2. In Name, enter the name you will use to select this Infrastructure Definition when you create a Workflow.
  3. In Cloud Provider Type, select Kubernetes Cluster.
  4. In Deployment Type, select Helm.
  5. Click Use Already Provisioned Infrastructure. If you were using a Harness Infrastructure Provisioner, you would select Map Dynamically Provisioned Infrastructure.
  6. In Cloud Provider, select the Cloud Provider you added earlier, such as Google Cloud Platform, etc.
  7. In Cluster Name, select the Kubernetes cluster where you want to deploy. This list is populated using the Cloud Provider you selected.
  8. In Namespace, enter the name of the cluster namespace you want to use. As we noted in Values YAML Override, you can enter a ${NAMESPACE} variable in your Service and Harness will replace it with the value you enter in Namespace at runtime.
  9. In Scope to specific Services, select the Harness Service you created earlier.

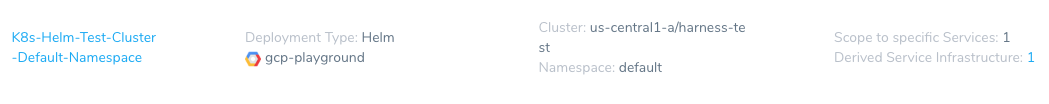

    The Infrastructure Definition will look something like this:
  10. Click Submit. The new Infrastructure Definition is added to the Harness Environment.

That is all you have to do to set up the deployment Environment in Harness.

Now that you have the Service and Environment set up. Now you can create the deployment Workflow in Harness.

Add a Service Infrastructure

Harness now uses Infrastructure Definitions (which are a feature-flagged replacement for Service Infrastructure).

You define the Kubernetes cluster to use for deployment as a Service Infrastructure. For this guide, we will use the GCP Cloud Provider you added and the Kubernetes cluster with Helm installed.

To add a service infrastructure, do the following:

  1. In the Harness environment, click Add Service Infrastructure. The Service Infrastructure dialog appears.
  2. In Service, select the Harness Service you created earlier for your Docker image.
  3. In Deployment Type, select Helm.
  4. In Cloud Provider, select the GCP Cloud Provider you added earlier. The dialog will look something like this:
  5. Click Next. The Configuration section is automatically populated with the clusters located using the Cloud Provider connection. If the Cluster Name drop-down is taking a long time to load, check the connectivity to the Cloud Provider of the host running the Harness delegate.
  6. In Cluster Name, select the cluster you created for this deployment.
  7. In Namespace, select the namespace of the Kubernetes cluster. Typically, this is default. If you used the Helm Value YAML dialog placeholder ${NAMESPACE}, the namespace you select here will replace that placeholder.

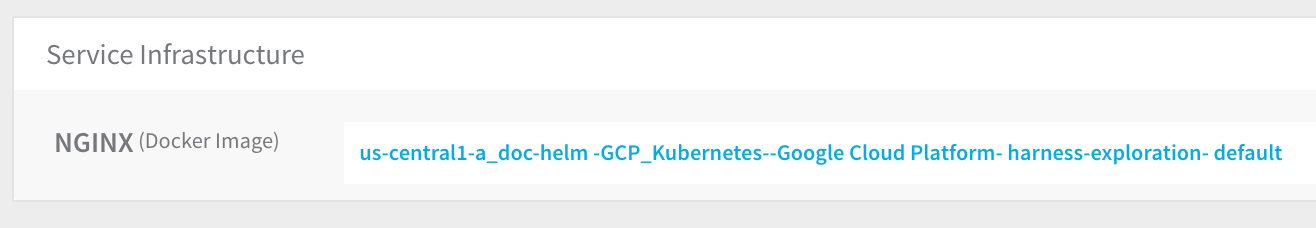

    When you are finished, the dialog will look something like this:
  8. Click SUBMIT. The new service infrastructure is added to the Harness environment.

That is all you have to do to set up the deployment environment in Harness. You have the Docker image service and deployment environment set up. Now you can create the deployment workflow in Harness.

Override Service Helm Values

In the Harness environment, you can override Helm values specified in the Harness service. This can ensure that the Helm values used in the environment are consistent even if multiple services with different Helm values use that environment.

To override a service Helm value, do the following:

  1. In the Harness environment, click Add Configuration Overrides. The Service Configuration Override dialog appears.
  2. In Service, click the name of the service you want to override, or click All Services. The dialog changes to provide Override Type options.
  3. Click Values YAML. For Local, a text area appears where you can paste an entire value.yaml file or simply override one or more values, such as a Docker image name. For the variables you can use in the text, see Values YAML Override.

    For Remote, do the following:
    1. In Source Repository, select the Git repo you added as a Source Repo Provider.
    2. For Commit ID, select either Use latest from Branch and enter in the branch name, or Use specific commit ID and enter in the commit ID.
    3. In File path, enter the path to the values.yaml file in the repo, including the repo name, like helm/values.yaml.

For more information, see Helm Values Priority.

Next Step
